Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM7560R-475CMC 4.7MH 880MA 2LN TH |
3,182 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.7 mH @ 1 kHz | 880mA | 450mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-563CMC 56UH 5.5A 2LN TH |
4,753 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 56 µH @ 1 kHz | 5.5A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-564CMC 560UH 3.5A 2LN TH |
1,219 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 560 µH @ 1 kHz | 3.5A | 35mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-565CMC 5.6MH 880MA 2LN TH |
2,836 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.6 mH @ 1 kHz | 880mA | 500mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-683CMC 68UH 5.5A 2LN TH |
1,524 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 µH @ 1 kHz | 5.5A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-684CMC 680UH 3.5A 2LN TH |
2,112 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 680 µH @ 1 kHz | 3.5A | 40mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-685CMC 6.8MH 880MA 2LN TH |
4,990 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.8 mH @ 1 kHz | 880mA | 600mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-823CMC 82UH 5.5A 2LN TH |
1,613 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 82 µH @ 1 kHz | 5.5A | 13mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-824CMC 820UH 2.8A 2LN TH |
4,095 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 820 µH @ 1 kHz | 2.8A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-825CMC 8.2MH 880MA 2LN TH |
2,637 | 18.58 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 8.2 mH @ 1 kHz | 880mA | 750mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

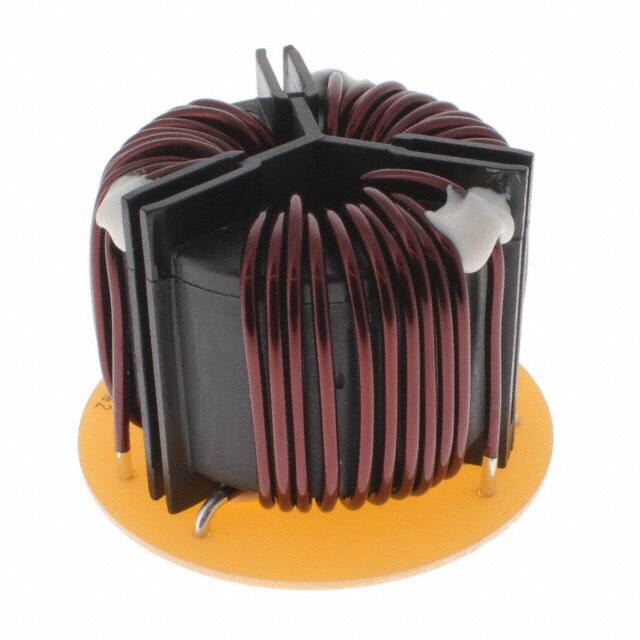

SCR47B-200-S2R0A025JH-PCMC 2.5MH 20A 3LN TH |
3,899 | 23.98 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 2.5 mH @ 10 kHz | 20A | 7.8mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|
|
CMF4-5004HCHRZ COMMON MODE CHOKE |
2,585 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 2A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
T60405S4200X2244200X224 |
4,229 | 0.00 |
|
- |
Horizontal, 8 PC Pin | - | 3 | - | 1.4 mH @ 10 kHz | 40A | - | - | - | -40°C ~ 60°C | - | - | - | - | - |
|

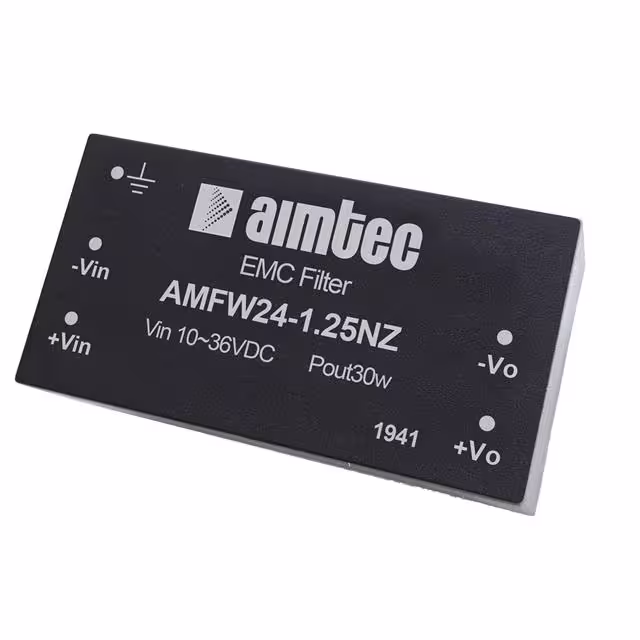

AMFW24-1.25NZCMC 13LN TH INDUSTRIAL |
4,863 | 42.62 |
|
Datasheet |
- | Power Line | 2 | - | - | - | - | 10V | - | -40°C ~ 85°C | - | - | Industrial | - | - |
|
|
CMF4-7504HCHRZ COMMON MODE CHOKE |
4,391 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 10 kHz | 1.4A | 300mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

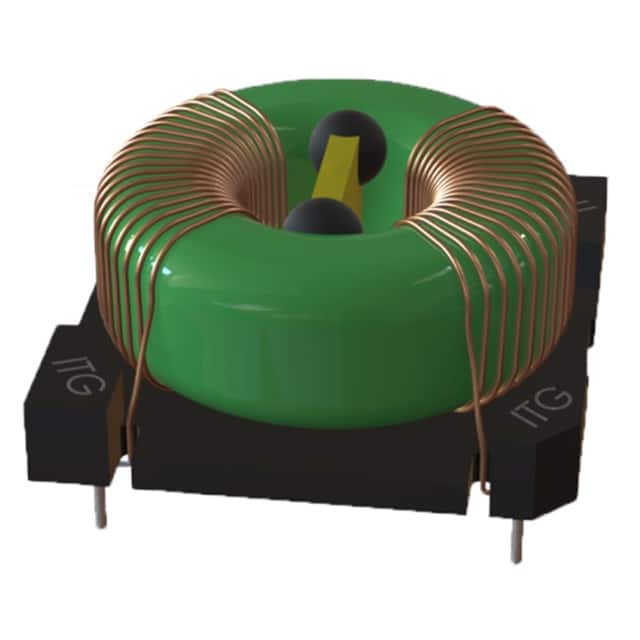

C301306-332NHF3.3mH, 30%, 11mOhm, 13.5A Rated |
4,345 | 20.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 13.5A | 11mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301306-382NHF3.8mH, 30%, 13.5mOhm, 12.5A Rate |
4,634 | 20.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.8 mH @ 10 kHz | 12.5A | 13.5mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMF4-1005HCHRZ COMMON MODE CHOKE |
4,266 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.2A | 390mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMF4-1704VMLFVERTICAL MOUNT COMMON MODE CHOKE |
3,161 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.7 mH @ 10 kHz | 3.1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

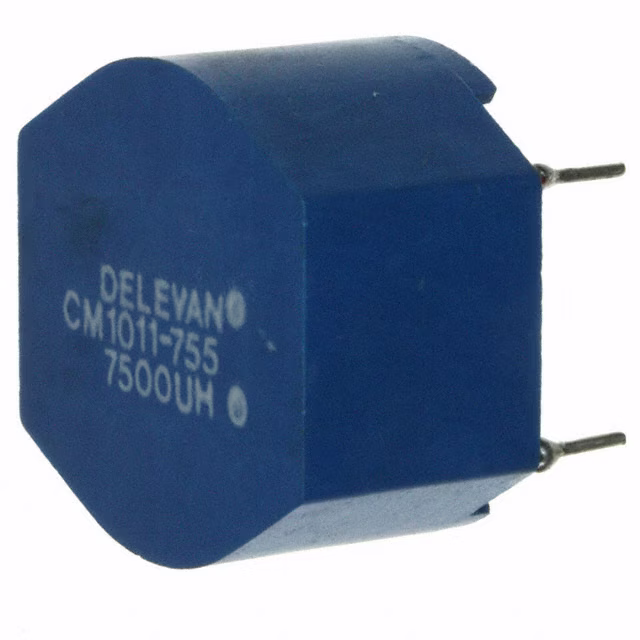

CM1011-104CMC 100UH 12A 2LN TH |
2,005 | 11.82 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 100 µH @ 1 kHz | 12A | 4mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
