Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-10-E035JCMC 350UH 10A 2LN TH |
990 | 3.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 350 µH @ 10 kHz | 10A | 8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ACMP-Q1260-102-TCMC 7A 2LN 1K OHM SMD AEC-Q200 |
974 | 3.35 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 7A | 8mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82791H2501N001CMC 10MH 500MA 2LN TH |
18,701 | 4.06 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 500mA | 1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PM3700-50-RCCMC 2MH 3.5A 2LN SMD |
3,190 | 3.36 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 2 mH @ 1 kHz | 3.5A | 30mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
SH-302CMC 3A 2LN TH |
1,297 | 3.15 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 3A | 26mOhm | 150V | - | -25°C ~ 80°C | - | - | - | - | - |
|
B82721A2402N020CMC 700UH 4A 2LN TH |
665 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 4A | 30mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

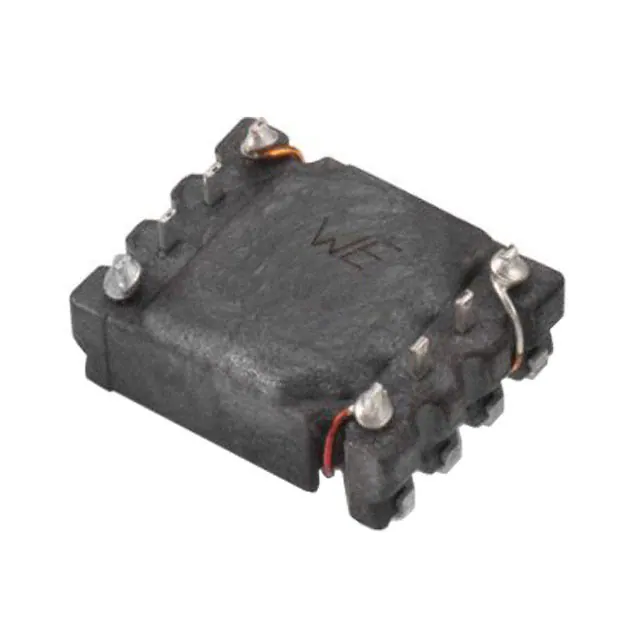

744206CMC 60UH 2A 2LN SMD |
496 | 3.13 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 60 µH @ 100 kHz | 2A | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

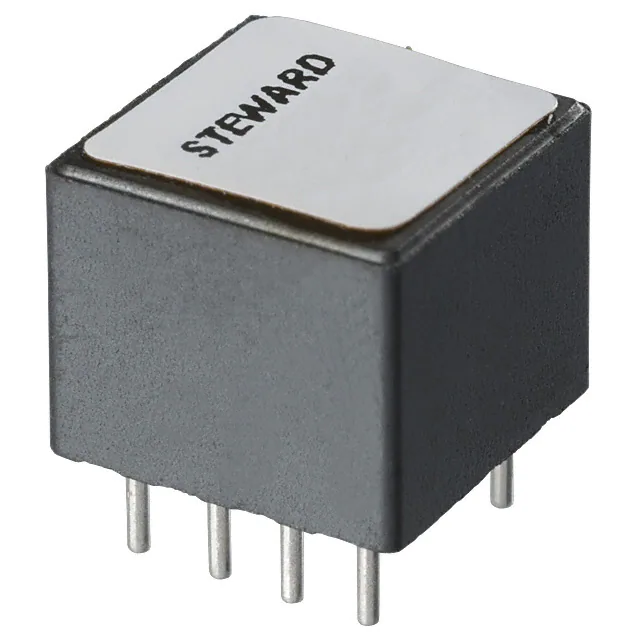

CM4545Z131B-10CMC 10A 4LN 130 OHM TH |
15,979 | 3.18 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | 130 Ohms @ 100 MHz | - | 10A | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PE-53912NLCMC 2.5A 2LN SMD |
1,120 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.5A | 80mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
CMS1-8-RCMC 51.2UH 2.2A 2LN SMD |
5,064 | 3.31 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 51.2 µH @ 100 kHz | 2.2A | 26mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
CM7060P701R-10CMC 4A 2LN 700 OHM SMD |
21,588 | 1.05 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
LPTC-V-0.85-5-35CMC 850UH 5A 2LN TH |
980 | 3.24 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 850 µH @ 1 kHz | 5A | 35mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
P0421NLCMC 3.3A 2LN SMD |
889 | 3.27 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

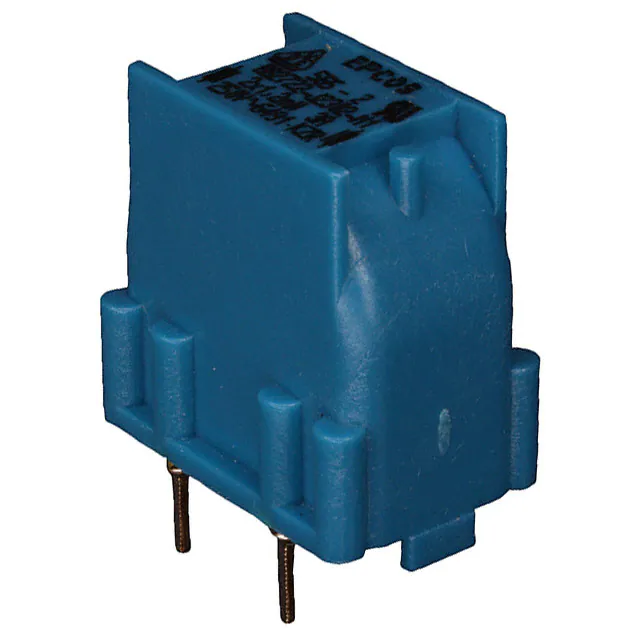

B82722J2302N001CMC 1.2MH 3A 2LN TH |
376 | 3.67 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 3A | 56mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

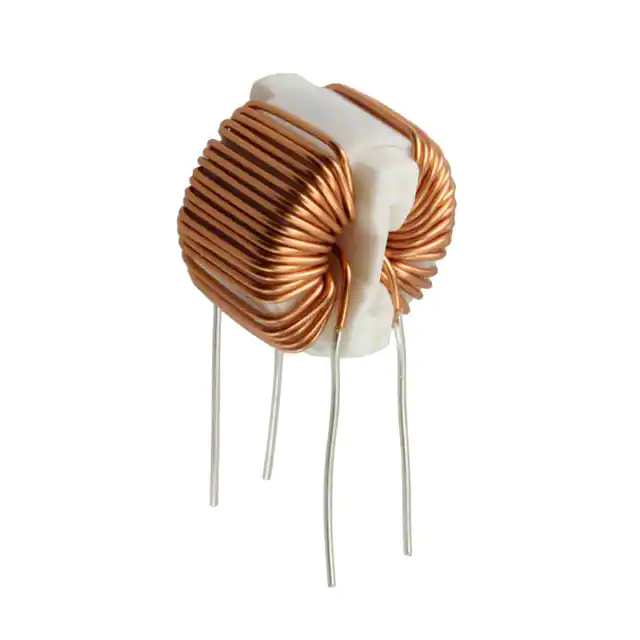

SC-02-20GCMC 2MH 2A 2LN TH |
444 | 2.65 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 2A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

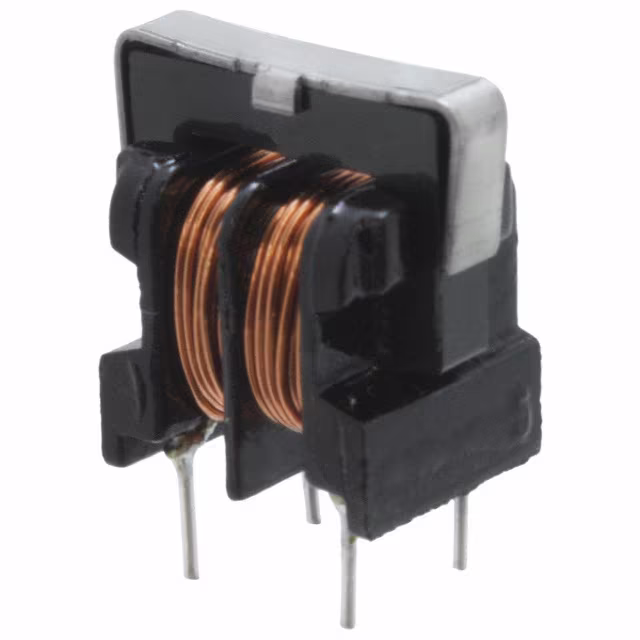

7351-V-RCCMC 1MH 1.2A 2LN TH |
444 | 3.34 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 1.2A | 220mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
7356-V-RCCMC 22MH 270MA 2LN TH |
169 | 3.34 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 1 kHz | 270mA | 4Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
RN122-2-02-6M8CMC 6.8MH 2A 2LN TH |
288 | 2.73 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 156mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

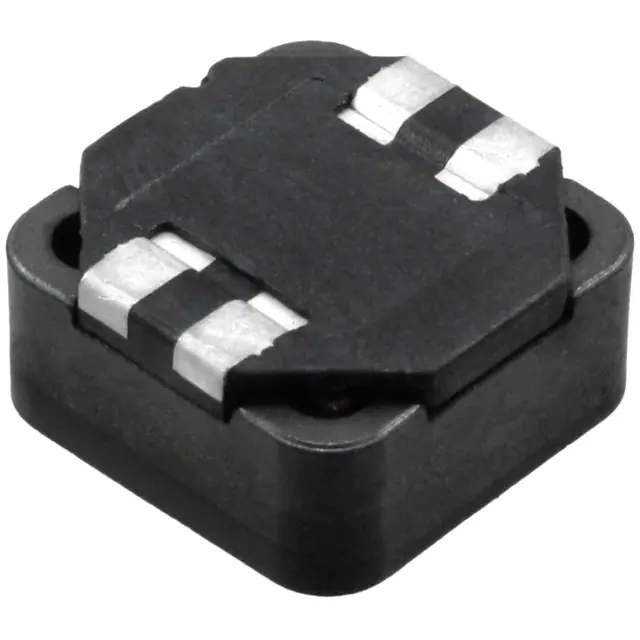

744282100CMC 10UH 2.25A 2LN 9K OHM SMD |
2,716 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 9 kOhms @ 20 MHz | 10 µH @ 100 kHz | 2.25A | 50mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744282102CMC 1MH 250MA 2LN 160K OHM SMD |
228 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 160 kOhms @ 2 MHz | 1 mH @ 100 kHz | 250mA | 2.8Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
