Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RN112-0.5-02-27MCMC 27MH 500MA 2LN TH |
525 | 2.16 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.2Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN112-3.6-02-0M4CMC 400UH 3.6A 2LN TH |
222 | 2.16 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 10 kHz | 3.6A | 27mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82789C0513N001CMC 51UH 250MA 2LN SMD AEC-Q200 |
2,480 | 0.00 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 250mA | 550mOhm | 80V | 42V | -55°C ~ 125°C | - | - | - | - | - |
|
|
RN112-0.4-02-39MCMC 39MH 400MA 2LN TH |
7,511 | 2.19 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 400mA | 1.5Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
RN212-4-02-0M7CMC 700UH 4A 2LN TH |
4,600 | 2.19 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 4A | 24mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN212-0.5-02-27MCMC 27MH 500MA 2LN TH |
3,711 | 2.16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 500mA | 1.2Ohm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN112-2-02-1M8CMC 1.8MH 2A 2LN TH |
2,617 | 2.19 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 2A | 74mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

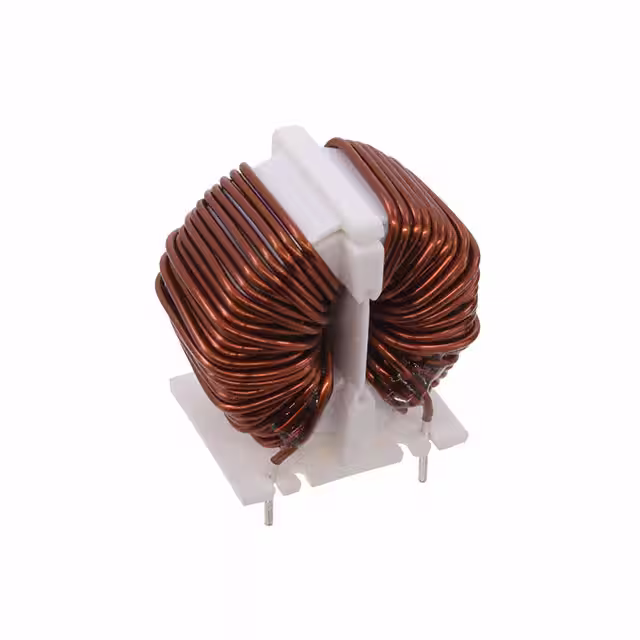

SC-06-10J-BCMC 1MH 6A 2LN TH |
2,193 | 3.18 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 6A | 30mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CMS1-5-RCMC 25UH 3.6A 2LN SMD |
1,435 | 2.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 25 µH @ 100 kHz | 3.6A | 10mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|
|
7427523WE-CMS COMMON MODE SMT BEAD SIZE |
2,603 | 0.00 |
|
Datasheet |
4-SMD, J-Lead | Power, Signal Line | 2 | 83 Ohms @ 100 MHz | - | 21A | 3mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
7427520CMC 17A 2LN 30 OHM SMD |
1,140 | 0.00 |
|
Datasheet |
4-SMD, J-Lead | Power Line | 2 | 30 Ohms @ 100 MHz | - | 17A | 3mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82732F2132B001CMC 15MH 1.3A 2LN TH |
829 | 3.40 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 1.3A | 430mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
RN214-0.5-02-39MCMC 39MH 500MA 2LN TH |
482 | 2.22 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 39 mH @ 10 kHz | 500mA | 830mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
SU10VFC-R04250CMC 25MH 400MA 2LN TH |
2,008 | 1.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 mH @ 1 kHz | 400mA | 2.8Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RN114-1.5-02-6M8CMC 6.8MH 1.5A 2LN TH |
5,756 | 2.25 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 1.5A | 123mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN214-1.2-02-10MCMC 10MH 1.2A 2LN TH |
1,305 | 2.25 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1.2A | 195mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

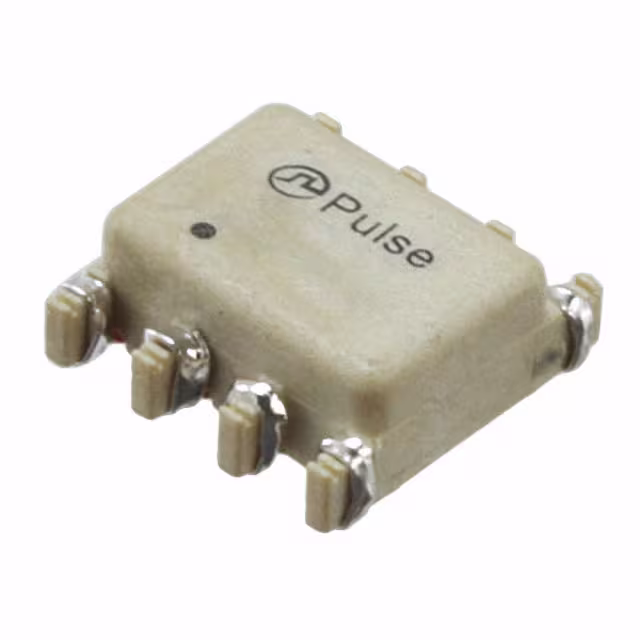

PA2741NLCMC 1.1A 2LN SMD |
780 | 2.72 |
|
Datasheet |
Vertical, 8 Flat Lead | - | 2 | - | - | 1.1A | 30mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
744237102CMC 13UH 6A 2LN 1KOHM SMD |
1,250 | 2.57 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1 kOhms @ 100 MHz | 13 µH @ 100 kHz | 6A | 14mOhm | 80V | 1000V (1kV) | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744237152CMC 17UH 4.5A 2LN 1.5KOHM SMD |
615 | 2.57 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 1.5 kOhms @ 100 MHz | 17 µH @ 100 kHz | 4.5A | 21mOhm | 80V | 1000V (1kV) | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
744252510CMC 51UH 500MA 2LN SMD |
2,853 | 2.58 |
|
Datasheet |
- | Signal Line | 2 | - | 51 µH @ 100 kHz | 500mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
