Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

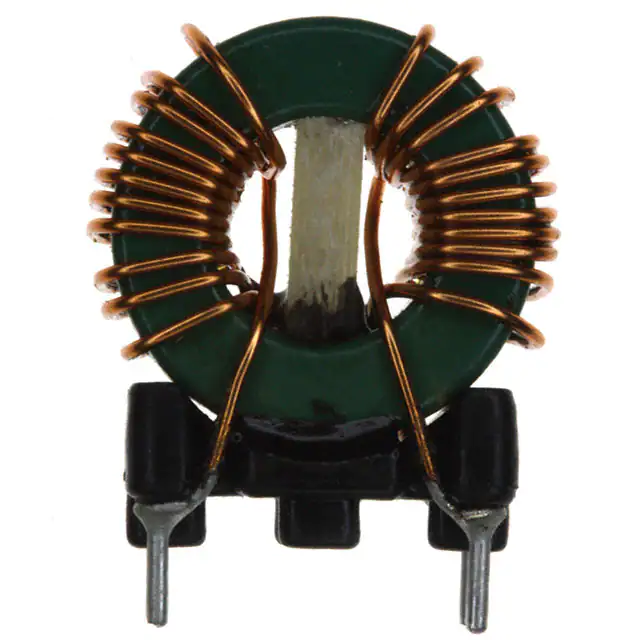

744841247CMC 47UH 2A 2LN TH |
662 | 3.51 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 µH @ 10 kHz | 2A | 40mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

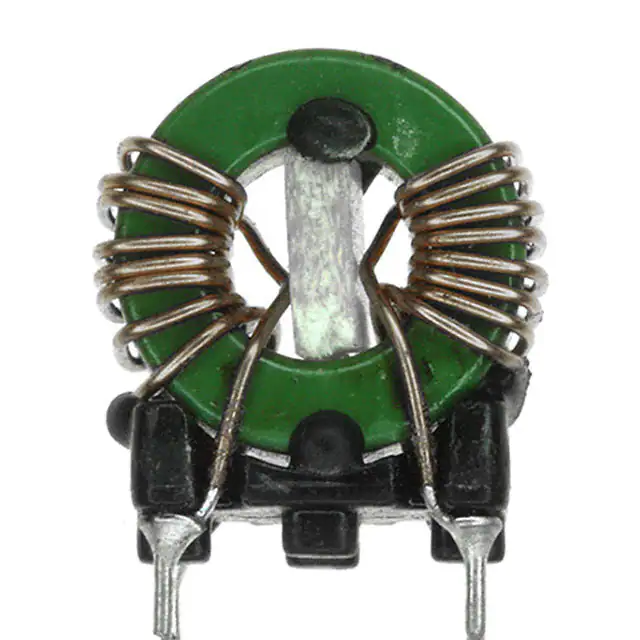

744841330CMC 30UH 3A 2LN TH |
291 | 3.51 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 µH @ 10 kHz | 3A | 26mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

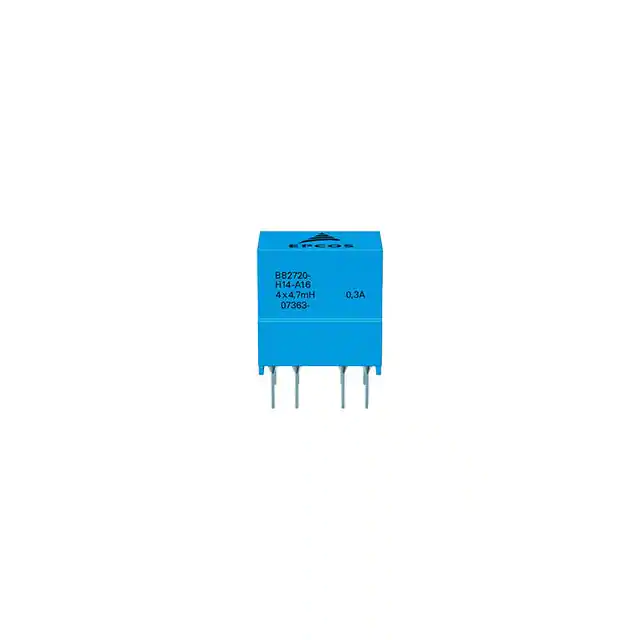

B82720H0014A025CMC 10MH 200MA 4LN TH |
109 | 2.10 |
|
Datasheet |
Vertical, 8 PC Pin | Signal Line | 4 | - | 10 mH @ 10 kHz | 200mA | 1.3Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | UL | - | - | - |
|
PE-53913NLCMC 1A 2LN SMD |
1,110 | 3.47 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 1A | 450mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|

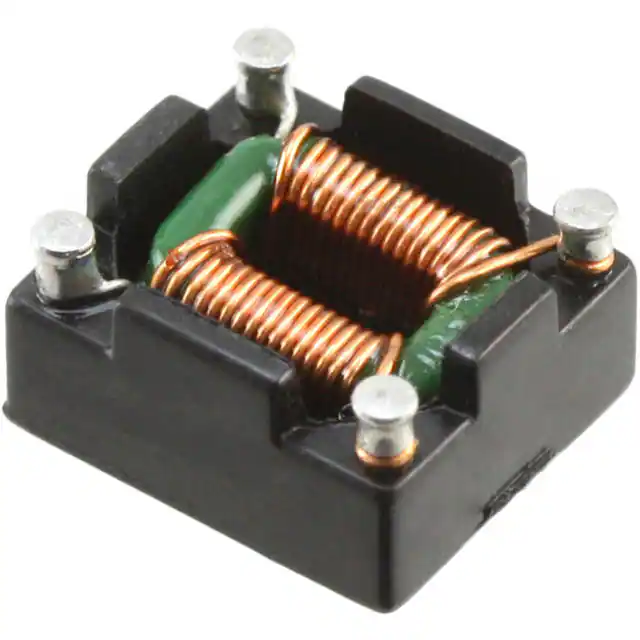

744273222CMC 30UH 1.4A 2LN 2.2K OHM SMD |
7,988 | 3.59 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 2.2 kOhms @ 60 MHz | 30 µH @ 100 kHz | 1.4A | 60mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744242220CMC 22UH 300MA 2LN 1.5K OHM SMD |
1,006 | 3.59 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 1.5 kOhms @ 65 MHz | 22 µH @ 100 kHz | 300mA | 230mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

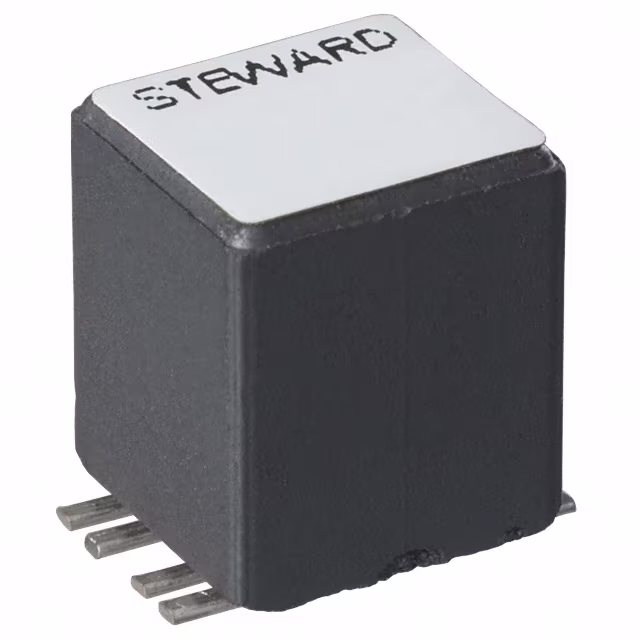

CM3032V201R-10CMC 8A 4LN 200 OHM SMD |
2,177 | 3.43 |
|
Datasheet |
Vertical, 8 Flat Lead | Power Line | 4 | 200 Ohms @ 100 MHz | - | 8A | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

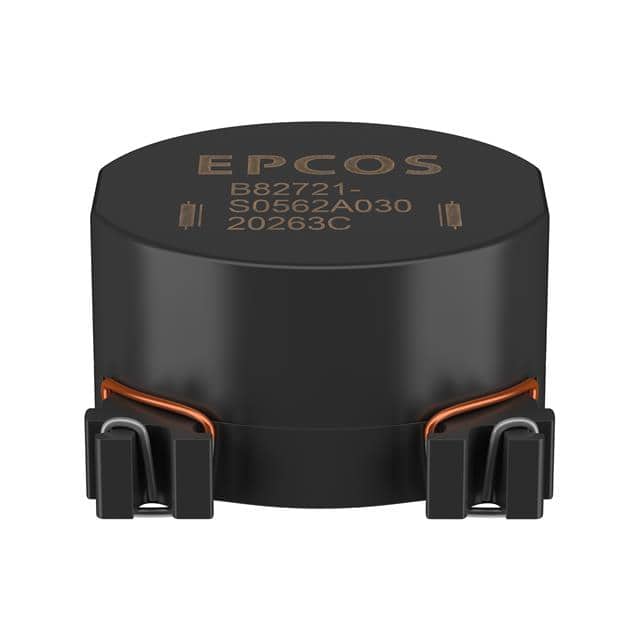

B82721S0572A040CMC 1.18MH 5.7A 2LN SMD |
684 | 7.19 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.18 mH @ 10 kHz | 5.7A | 17mOhm | 80V | 48V | - | - | - | - | - | - |
|
PA3927NLTCMC 3A 2LN SMD AEC-Q200 |
1,843 | 3.70 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 3A | 27mOhm | - | - | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
B82721S0572A020CMC 590UH 5.7A 2LN SMD |
198 | 7.19 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 590 µH @ 100 kHz | 5.7A | 17mOhm | 80V | 48V | - | - | - | - | - | - |
|
EV24-2.0-02-2M5CMC 2.5MH 2A 2LN TH |
654 | 3.13 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 2A | 62mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

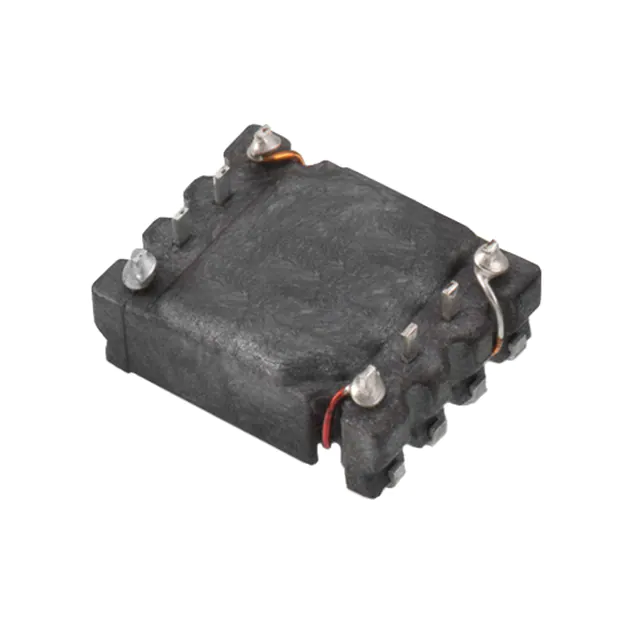

744201CMC 4.7MH 200MA 4LN SMD |
1,784 | 3.68 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 4.7 mH @ 100 kHz | 200mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744205CMC 100UH 700MA 4LN SMD |
1,271 | 3.68 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 100 µH @ 100 kHz | 700mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

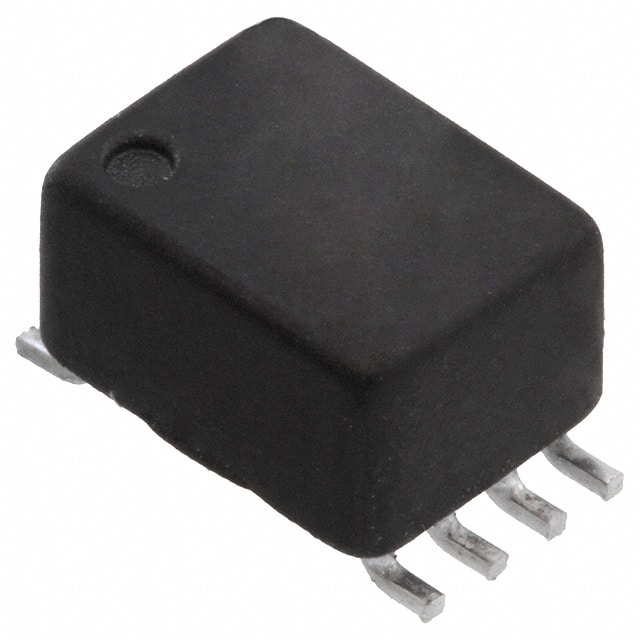

CMJ-4-101CMC 100UH 500MA 4LN SMD |
7,584 | 3.82 |
|
Datasheet |
Horizontal, 8 Flat Lead | Signal Line | 4 | - | 100 µH @ 100 kHz | 500mA | 330mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|

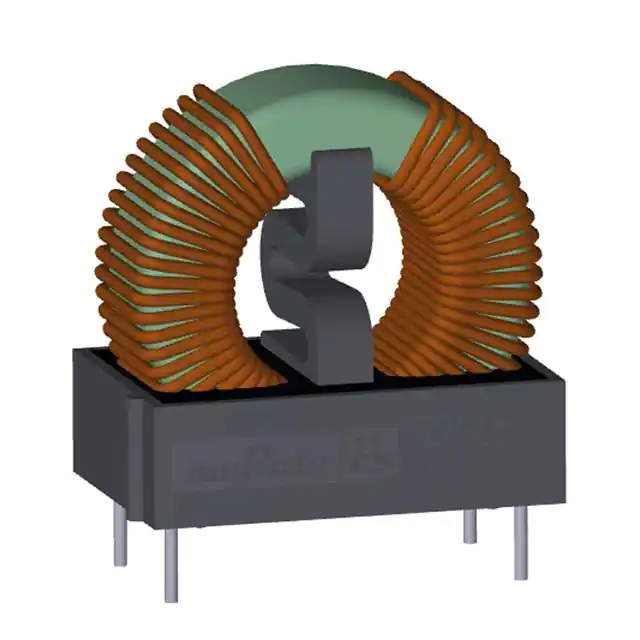

52705CCMC 2.2A 2LN TH |
174 | 3.33 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2.2A | 107mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PE-53914NLTCMC 500MA 2LN SMD |
1,718 | 2.16 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 500mA | 850mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
|
PE-53914NLCMC 500MA 2LN SMD |
847 | 3.74 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 500mA | 850mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|
744284100CMC 10UH 2.75A 2LN 10K OHM SMD |
699 | 3.75 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 10 kOhms @ 30 MHz | 10 µH @ 100 kHz | 2.75A | 40mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82791H0015A025CMC 10MH 100MA 2LN TH |
243 | 4.37 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 10 mH @ 10 kHz | 100mA | 1.2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

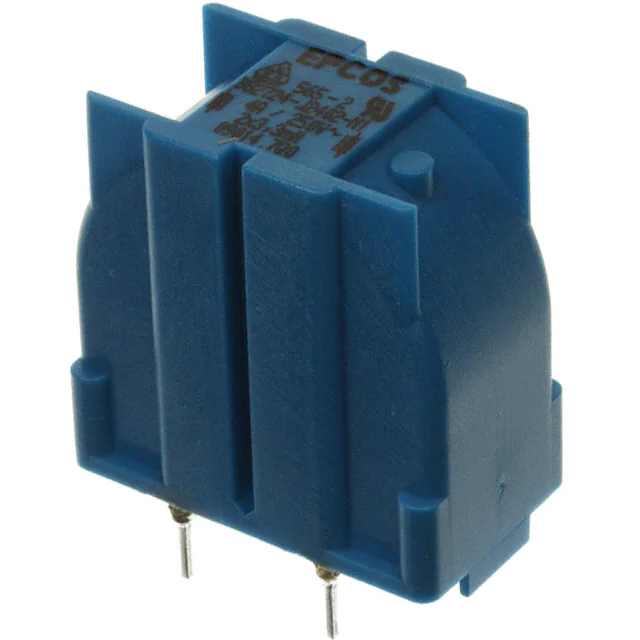

B82724J2402N001CMC 3.3MH 4A 2LN TH |
653 | 4.95 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 65mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
