Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMK-07-T0.7MM*8/2T 0.08MHH0.16MH (TRAY |
2,022 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 120 µH @ 10 kHz | 45A | 0.7mOhm | - | - | - | - | - | - | - | - |
|
|
CMF5-1505VMLFVERTICAL MOUNT COMMON MODE CHOKE |
4,784 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 2.2A | 250mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CMK-05-T0.8MM*2/10T 0.491MHH0.953MH V1 |
4,853 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 720 µH @ 10 kHz | 20A | 7mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-04-T0.4MM/13T 1MH MIN BASE V1.0 (5 |
4,914 | 0.00 |
|
- |
Vertical, 4 PC Pin | - | 2 | - | 1.7 mH @ 10 kHz | 3.2A | 41mOhm | - | - | - | - | - | - | - | - |
|
DKLP-0233-2012CMC 20A 2LN TH |
1,010 | 136.98 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 20A | 19mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKLP-0333-1610CMC 16A 3LN TH |
1,309 | 136.98 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 16A | 30mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
CMK-03-T1.0MM/14T 1MH MIN (24 PCS TRAY |
2,515 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 1.5 mH @ 100 kHz | 9.4A | 9.5mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-06-T0.8MM*4/4T 0.352MHH0.683MH (T |
3,651 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 520 µH @ 10 kHz | 30A | 1.5mOhm | - | - | - | - | - | - | - | - |
|
|
Z30ECMC 20A 2 LN |
1,711 | 161.37 |
|
Datasheet |
- | Power Line | 2 | - | - | 20A | 85mOhm | - | - | - | - | - | - | - | - |
|
|
1398136-1RD8137-16-5MO CHOKE, COMMON M |
4,599 | 276.95 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T60405S6123X3116123X311 |
4,865 | 0.00 |
|
- |
Horizontal, 6 PC Pin | Power Line | 3 | 410 Ohms @ 100 kHz | 642 nH @ 100 kHz | 110A | 0.74mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
CMK-02-C0.8MM/20T 3.10115.395MH (270 P |
1,530 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 4.2 mH @ 1 kHz | 5A | 32mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-01-C1.0MM/16T 2.7MH MIN (270 PCS P |
4,053 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 3.9 mH @ 1 kHz | 9.4A | 20mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-05-C0.8MM*2/10T 0.491MHH0.953MH (C |
2,675 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 720 µH @ 10 kHz | 20A | 7mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-07-C0.7MM*8/2T 0.08MHH0.16MH (CART |
4,219 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 120 µH @ 10 kHz | 45A | 0.7mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-03-C1.0MM/14T 1MH MIN (624 PCS PER |
4,070 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 1.5 mH @ 100 kHz | 9.4A | 9.5mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-06-C0.8MM*4/4T 0.352MHH0.683MH |
2,691 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | - | 520 µH @ 10 kHz | 30A | 1.5mOhm | - | - | - | - | - | - | - | - |
|
|
CMK-04-C0.4MM/13T 1MH MIN BASE (2090 P |
4,249 | 0.00 |
|
- |
Vertical, 4 PC Pin | - | 2 | - | 1.7 mH @ 10 kHz | 3.2A | 41mOhm | - | - | - | - | - | - | - | - |
|

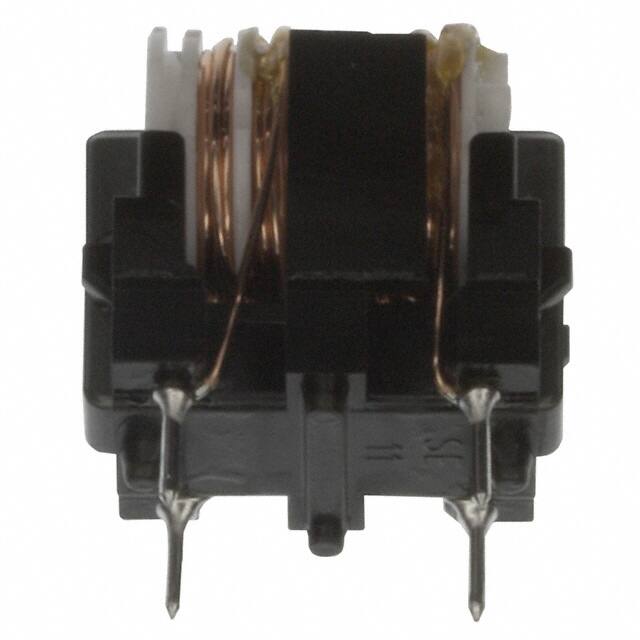

ELF-18D290BCMC 2A 2LN TH |
4,170 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 2A | 72mOhm (Typ) | - | - | - | - | - | - | - | - |
|
ELF-18D850YCMC 3.5A 2LN TH |
3,105 | 7.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | - | 3.5A | 60mOhm (Typ) | - | - | - | - | - | - | - | - |
