Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

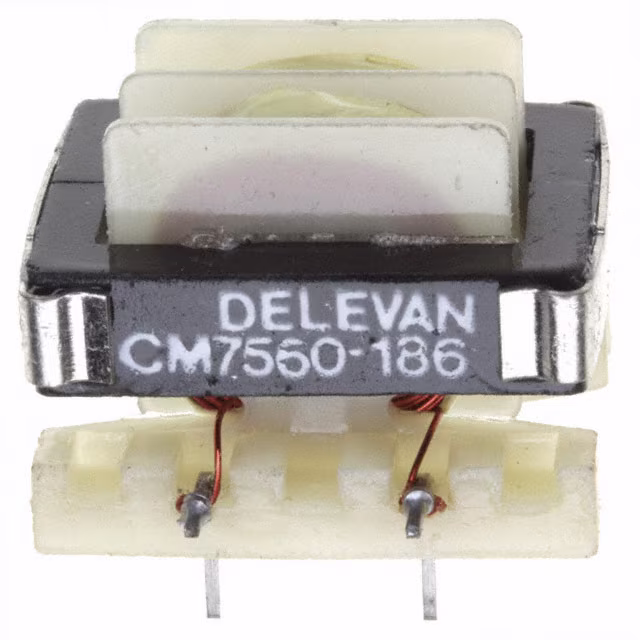

CM7560-186CMC 18MH 550MA 2LN TH |
2,469 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 550mA | 1.3Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

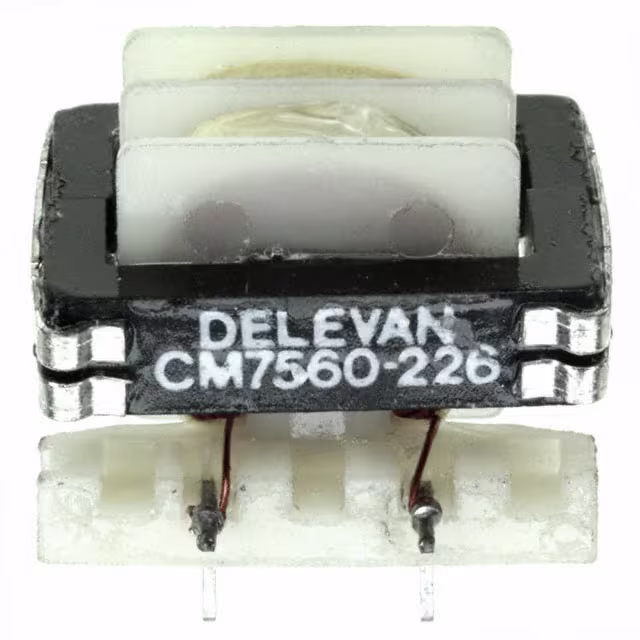

CM7560-226CMC 22MH 550MA 2LN TH |
3,236 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 1 kHz | 550mA | 1.5Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

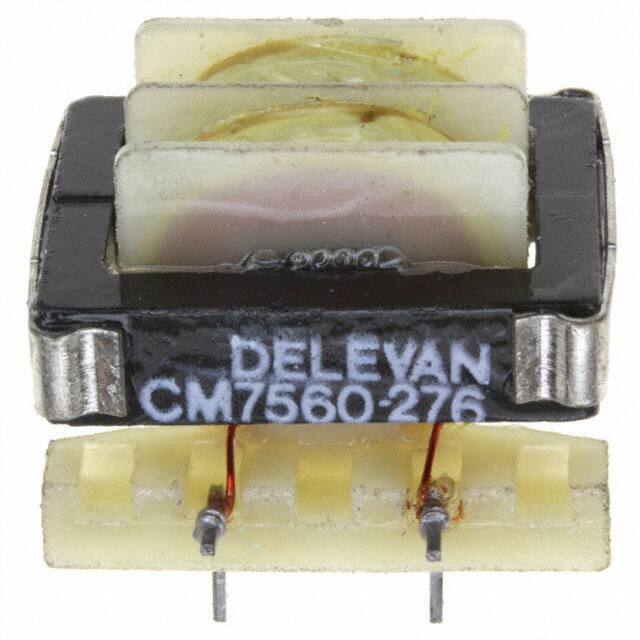

CM7560-276CMC 27MH 440MA 2LN TH |
3,773 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 27 mH @ 1 kHz | 440mA | 1.8Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

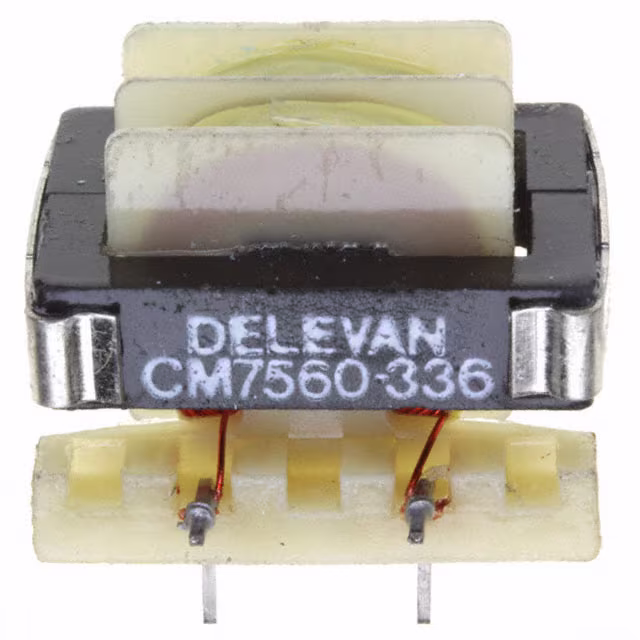

CM7560-336CMC 33MH 440MA 2LN TH |
4,156 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 33 mH @ 1 kHz | 440mA | 2.2Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

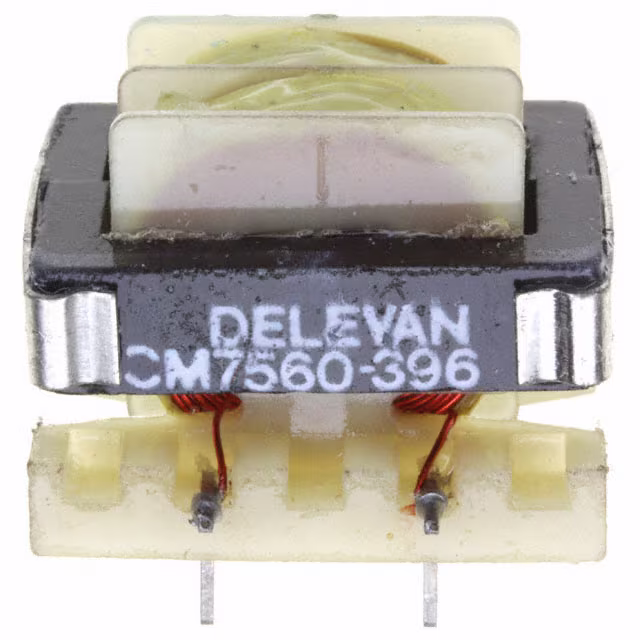

CM7560-396CMC 39MH 440MA 2LN TH |
4,462 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 39 mH @ 1 kHz | 440mA | 2.6Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM7560-476CMC 47MH 440MA 2LN TH |
4,843 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 1 kHz | 440mA | 3Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

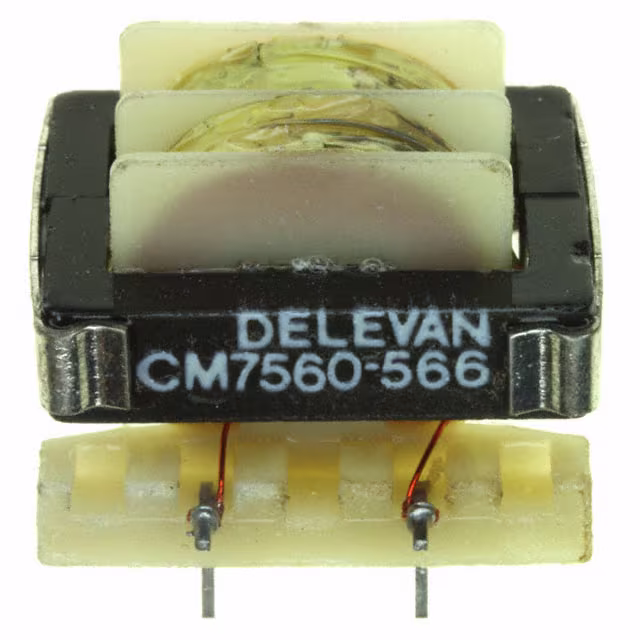

CM7560-566CMC 56MH 350MA 2LN TH |
1,827 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 56 mH @ 1 kHz | 350mA | 4Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

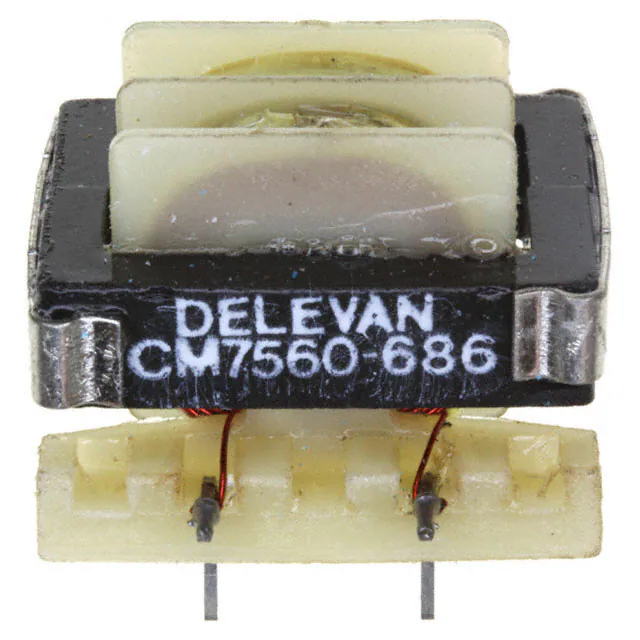

CM7560-686CMC 68MH 270MA 2LN TH |
1,610 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 1 kHz | 270mA | 5Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

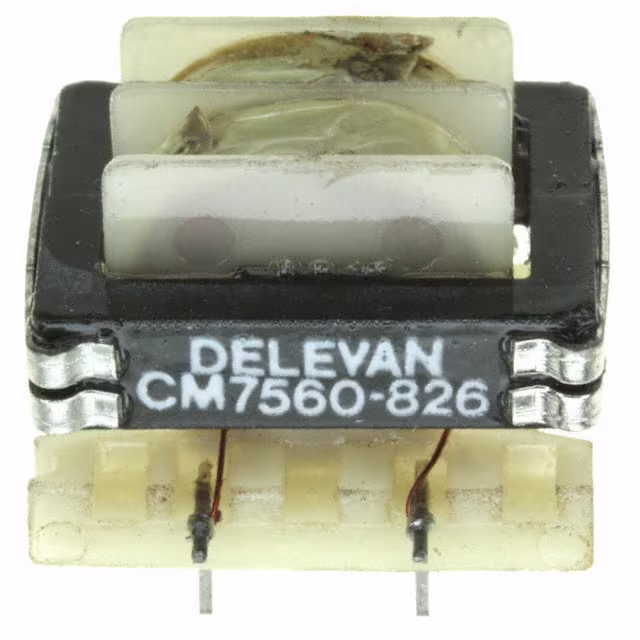

CM7560-826CMC 82MH 270MA 2LN TH |
1,568 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 82 mH @ 1 kHz | 270mA | 5.5Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM7560-107CMC 100MH 270MA 2LN TH |
2,009 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 100 mH @ 1 kHz | 270mA | 6.4Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM7560-127CMC 120MH 220MA 2LN TH |
4,345 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 120 mH @ 1 kHz | 220mA | 7.8Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

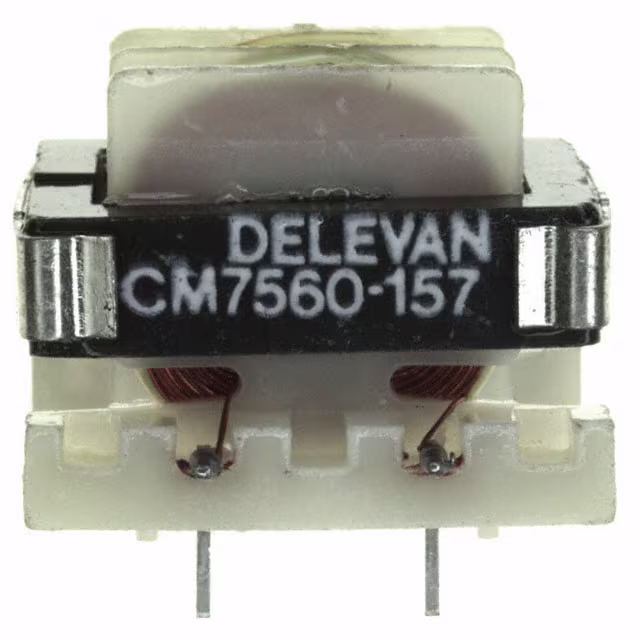

CM7560-157CMC 150MH 220MA 2LN TH |
2,695 | 25.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 150 mH @ 1 kHz | 220mA | 9Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
CM7560R-106CMC 10MH 700MA 2LN TH |
3,442 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 700mA | 800mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-107CMC 100MH 270MA 2LN TH |
4,125 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 100 mH @ 1 kHz | 270mA | 6.4Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-126CMC 12MH 700MA 2LN TH |
1,300 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 12 mH @ 1 kHz | 700mA | 900mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-127CMC 120MH 220MA 2LN TH |
1,124 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 120 mH @ 1 kHz | 220mA | 7.8Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-156CMC 15MH 700MA 2LN TH |
4,721 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 15 mH @ 1 kHz | 700mA | 1Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-157CMC 150MH 220MA 2LN TH |
3,232 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 150 mH @ 1 kHz | 220mA | 9Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-186CMC 18MH 550MA 2LN TH |
1,000 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 550mA | 1.3Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-226CMC 22MH 550MA 2LN TH |
2,303 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 22 mH @ 1 kHz | 550mA | 1.5Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
