Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM7560R-276CMC 27MH 440MA 2LN TH |
3,517 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 27 mH @ 1 kHz | 440mA | 1.8Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-336CMC 33MH 440MA 2LN TH |
1,678 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 33 mH @ 1 kHz | 440mA | 2.2Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-396CMC 39MH 440MA 2LN TH |
4,836 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 39 mH @ 1 kHz | 440mA | 2.6Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-476CMC 47MH 440MA 2LN TH |
2,147 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 1 kHz | 440mA | 3Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-566CMC 56MH 350MA 2LN TH |
3,228 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 56 mH @ 1 kHz | 350mA | 4Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-686CMC 68MH 270MA 2LN TH |
4,701 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 68 mH @ 1 kHz | 270mA | 5Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM7560R-826CMC 82MH 270MA 2LN TH |
4,821 | 27.32 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 82 mH @ 1 kHz | 270mA | 5.5Ohm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
DKIP-0329-1501CMC 15A 3LN CHAS MNT |
1,001 | 30.29 |
|
Datasheet |
Nonstandard | - | 3 | - | - | 15A | 7mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
|
SC04H102NB25SFERNICE INDUCTIVES |
1,543 | 27.04 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SC04H471NB25SFERNICE INDUCTIVES |
3,712 | 27.04 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
DKLP-0229-0430CMC 4A 2LN CHAS MNT |
2,710 | 33.51 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 4A | 96mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKIH-3352-204L-NKCMC 20A 3LN TH |
4,933 | 33.55 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | - | - | 20A | 1.5mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
|
CMF4-1704HLFHRZ MOUNT COMMON MODE CHOKE |
4,530 | 0.00 |
|
Datasheet |
Radial, Horizontal Cylinder (Open) | Power Line | 2 | - | 1.7 mH @ 10 kHz | 3.1A | 60mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
744835034160CMC 3.4MH 16A 3LN TH |
2,850 | 38.19 |
|
Datasheet |
Horizontal, 6 PC Pin | Power Line | 3 | - | 3.4 mH @ 10 kHz | 16A | 14mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
DKIH-3352-254K-NKCMC 25A 3LN TH |
3,661 | 34.48 |
|
Datasheet |
Horizontal, 6 PC Pin | - | 3 | - | - | 25A | 1.2mOhm | - | 600V | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|

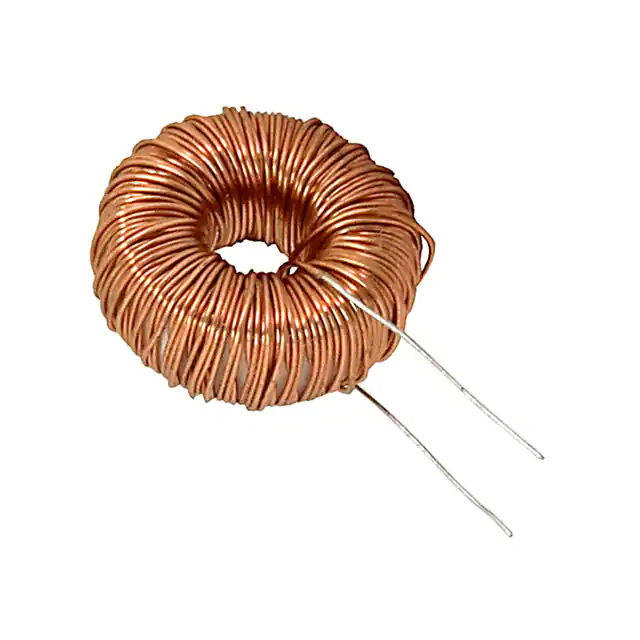

DSO1-48-0001CMC 3.15A 2LN TH |
4,755 | 39.65 |
|
Datasheet |
Radial | - | 2 | - | - | 3.15A | 180mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SC06V332NB25SFERNICE INDUCTIVES |
3,792 | 31.08 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
T60405R6123X2856123X285 |
3,695 | 0.00 |
|
- |
Horizontal, 4 PC Pin | - | 2 | 510 Ohms @ 100 kHz | 490 µH @ 100 kHz | 85A | 0.67mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
DFK-48-0008CMC 6A 2LN TH |
2,098 | 35.85 |
|
Datasheet |
Nonstandard | - | 2 | - | - | 6A | 20mOhm | - | - | -25°C ~ 100°C | - | - | - | - | - |
|
B82746S4103A020CMC 10A 3LN CHAS MNT |
2,408 | 0.00 |
|
Datasheet |
- | Power Line | 3 | - | - | 10A | - | - | 440/250V | -40°C ~ 125°C | - | - | - | - | - |
