Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

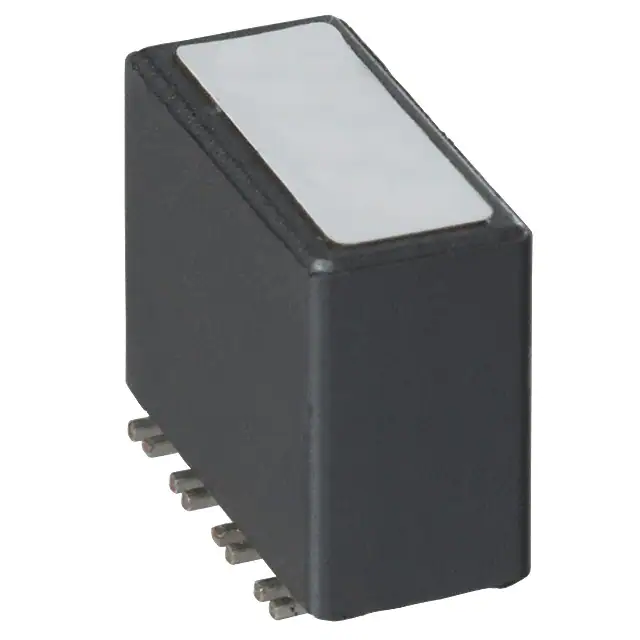

CM5022R201R-10CMC 5A 8LN 200 OHM SMD |
4,495 | 4.70 |
|
Datasheet |
Vertical, 16 Flat Lead | Power Line | 8 | 200 Ohms @ 100 MHz | - | 5A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

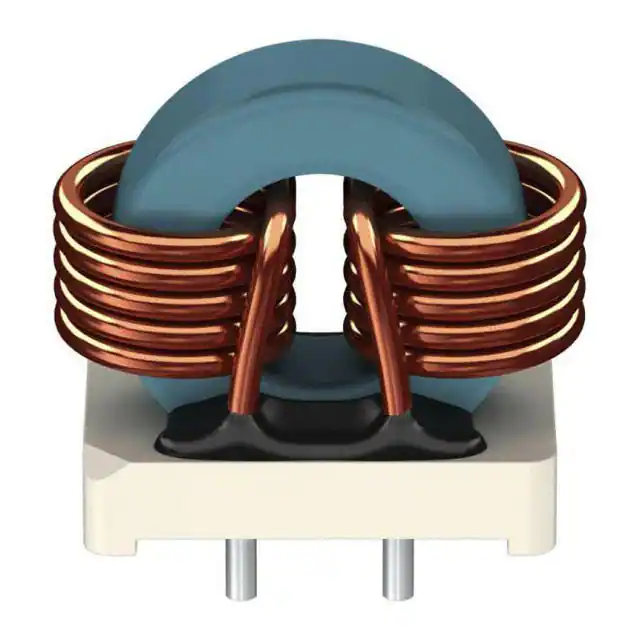

B82622S0173L030CMC 2.1UH 30A 2LN TH |
4,027 | 9.56 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.1 µH @ 100 kHz | 30A | 2.8mOhm | - | - | -40°C ~ 150°C | - | - | - | - | - |
|
B82792C0106N365CMC 10MH 500MA 2LN SMD |
2,988 | 5.66 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 10 mH @ 10 kHz | 500mA | 1.1Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
74466240007CMC 700UH 4A 2LN TH |
483 | 4.91 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 4A | 27mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
EV28-3.0-02-5M0CMC 5MH 3A 2LN TH |
14,298 | 4.32 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 400 Hz | 3A | 79mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
|
B82792C2474N315CMC 470UH 600MA 4LN SMD |
875 | 6.08 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 470 µH @ 100 kHz | 600mA | 220mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82792C0336N365CMC 33MH 100MA 2LN SMD |
930 | 3.02 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 2 | - | 33 mH @ 10 kHz | 100mA | 2Ohm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
B82724J8432N040CMC 6.8MH 4.3A 2LN TH |
230 | 6.48 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4.3A | 40mOhm (Typ) | 800V | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

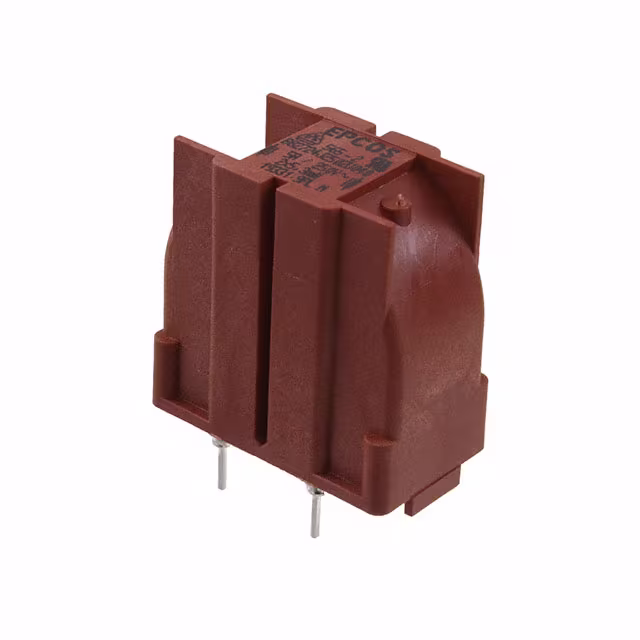

B82724J2502U040CMC 5.3MH 5A TH |
282 | 5.86 |
|
Datasheet |
Vertical, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
P0527NLTCMC 7.2A 2LN SMD |
284 | 5.23 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 7.2A | 15mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
RN242-6-02-1M8CMC 1.8MH 6A 2LN TH |
3,307 | 4.59 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 20mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

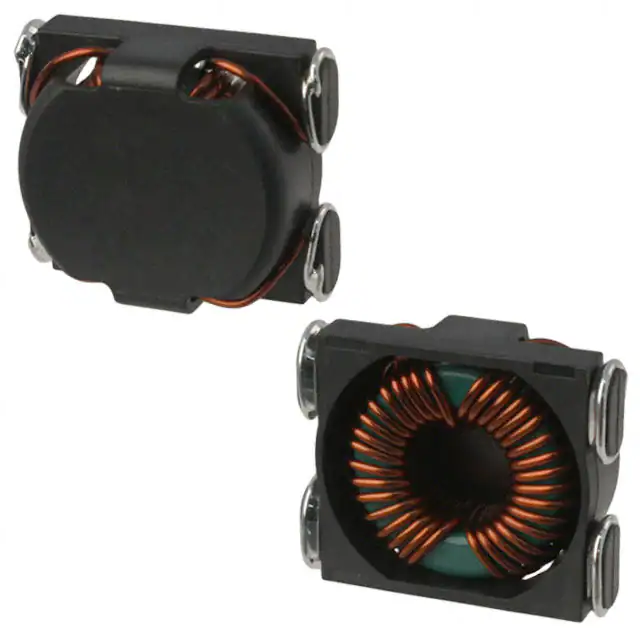

P0429NLCMC 9.7A 2LN SMD |
1,388 | 7.64 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 9.7A | 14mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|

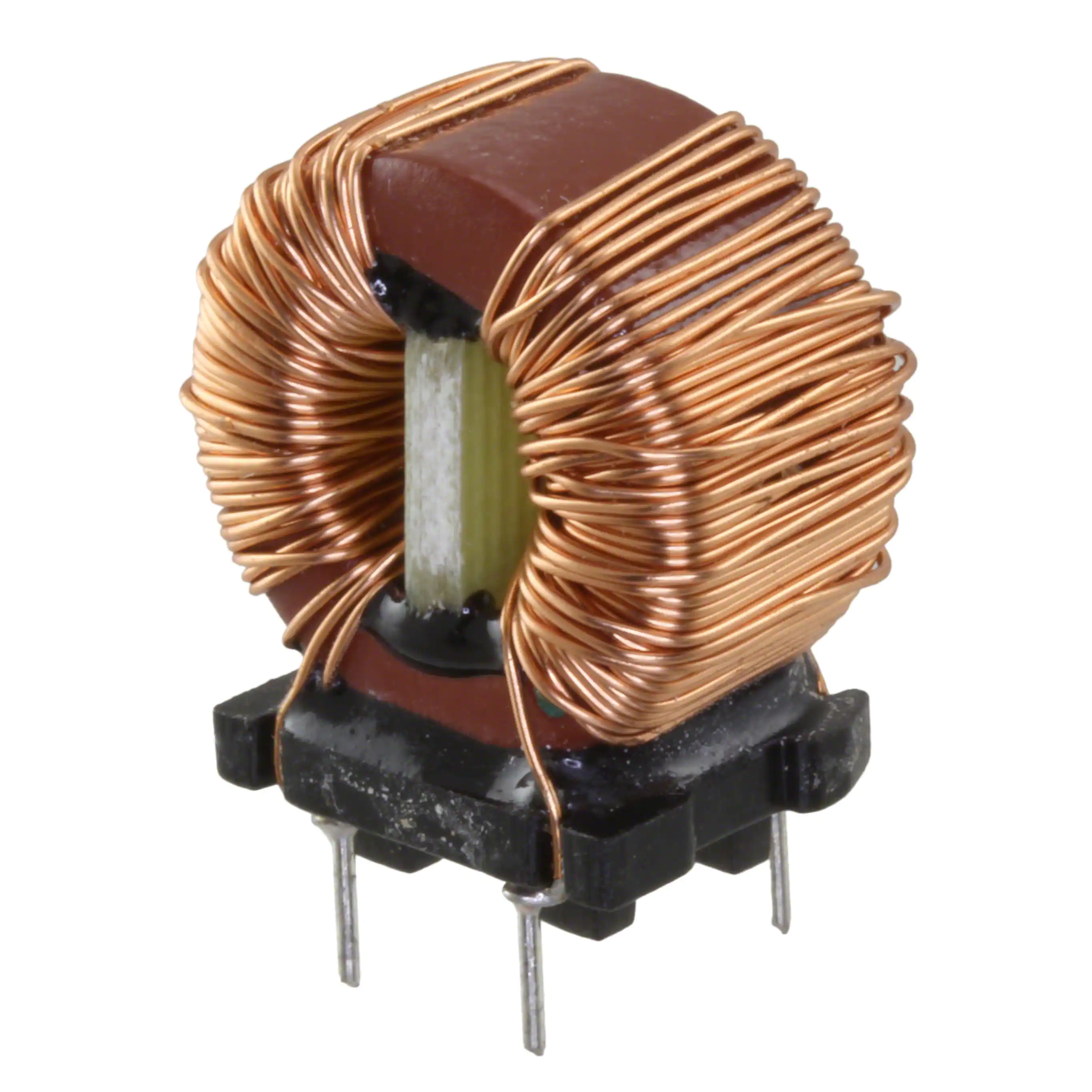

744823220CMC 20MH 1.5A 2LN TH |
745 | 5.28 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1.5A | 270mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744823422CMC 2.2MH 4A 2LN TH |
701 | 5.28 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 4A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744823601CMC 1MH 6A 2LN TH |
388 | 5.28 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 6A | 13mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

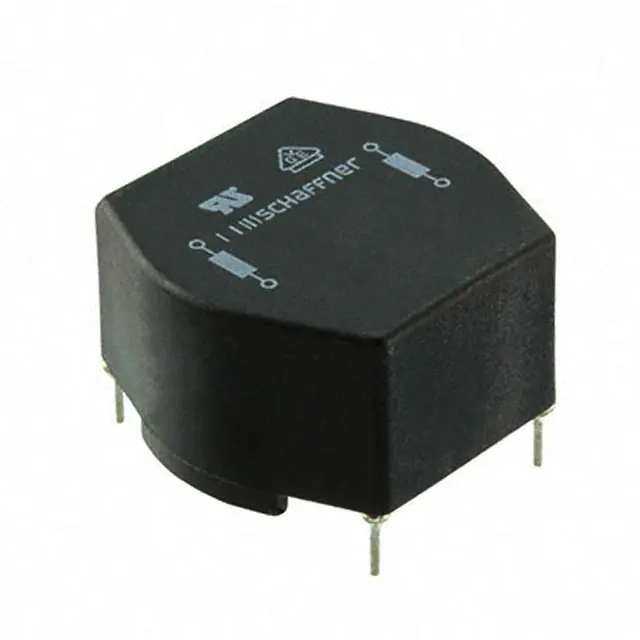

RN142-6-02-1M8CMC 1.8MH 6A 2LN TH |
482 | 4.83 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 20mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

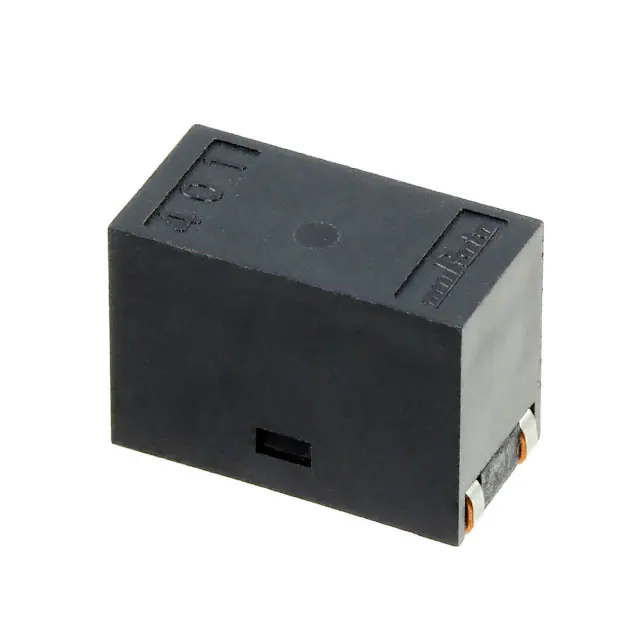

PLT10HH401100PNLCMC 10A 2LN 400 OHM SMD AEC-Q200 |
5,329 | 5.68 |
|
Datasheet |
Vertical, 4 PC Pad | Power Line | 2 | 400 Ohms @ 10 MHz | - | 10A | 4.1mOhm | 100V | - | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
744824622CMC 2.2MH 6A 2LN TH |
113 | 5.63 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 20mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

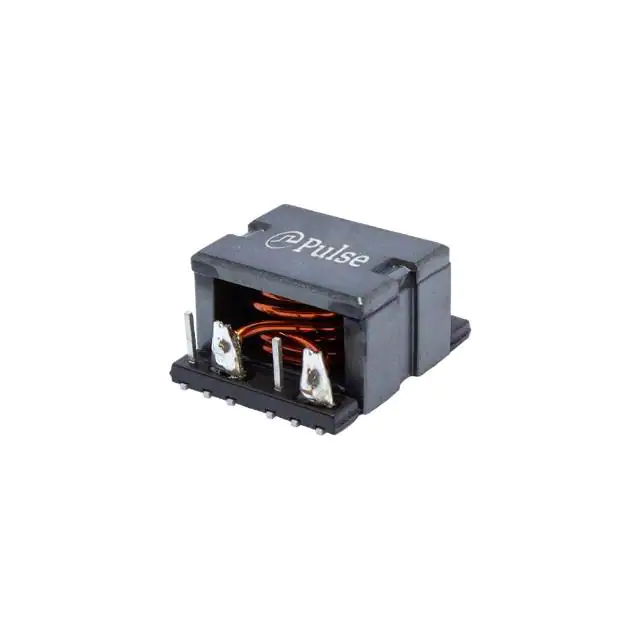

PH9407.104NLTCMC 20A 2LN 730 OHM SMD |
685 | 5.78 |
|
Datasheet |
Nonstandard | - | 2 | 730 Ohms @ 1.6 MHz | - | 20A | 2.5mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

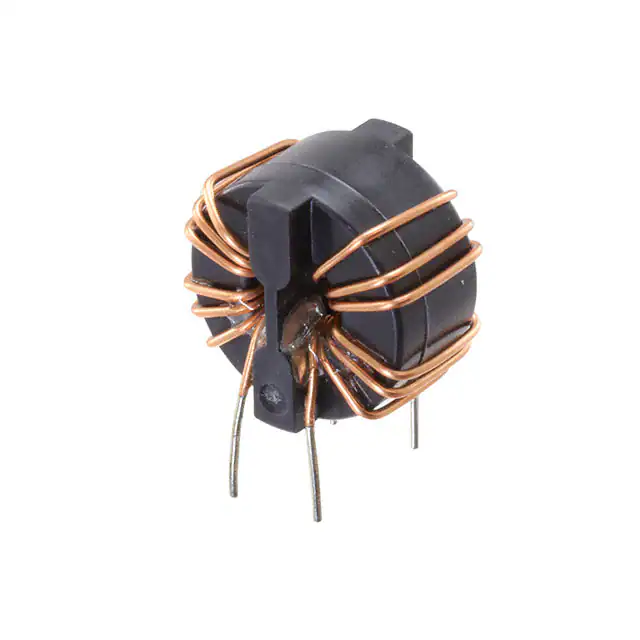

SCF-05-060CMC 600UH 5A 2LN TH |
861 | 7.64 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 600 µH @ 10 kHz | 5A | 18mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
