Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
42Z4000NLCMC TH |
1,672 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PE-65738NLTCMC 4LN SMD |
4,262 | 0.00 |
|
Datasheet |
16-SMD | Signal Line | 4 | - | - | - | 300mOhm | - | - | - | - | - | - | - | - |
|
|
PE-65944NLCMC 2LN TH |
3,295 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | - | - | 300mOhm | - | - | - | - | - | - | - | - |
|
|
PE-68002NLCMC 4LN TH |
2,688 | 0.00 |
|
Datasheet |
Vertical, 8 PC Pin | Signal Line | 4 | - | - | - | 350mOhm | - | - | - | - | - | - | - | - |
|
|
H6033NLCMC 4LN SMD |
2,559 | 0.00 |
|
Datasheet |
Vertical, 8 Gull Wing | - | 4 | - | - | - | 400mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
|
H6036NLCMC 2LN SMD |
3,729 | 0.00 |
|
Datasheet |
Vertical, 8 Gull Wing | Power Line | 2 | - | - | - | 500mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|
TCE1210U-500-2PCMC 100MA 2LN 50 OHM SMD ESD |
1,971 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 6 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 1.7Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
TCE1210U-120-2PCMC 100MA 2LN 12 OHM SMD ESD |
1,668 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 6 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 700mOhm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
B82502WC10CMC 680UH 2A 2LN TH |
1,425 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 680 µH @ 100 kHz | 2A | 550mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82502WC2CMC 82MH 200MA 2LN TH |
1,124 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 82 mH @ 10 kHz | 200mA | 45Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82502WC5CMC 15MH 500MA 2LN TH |
4,343 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 8.5Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82502WC8CMC 3.3MH 1A 2LN TH |
1,345 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1A | 1.9Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82503UE1CMC 25UH 15A 2LN TH |
4,695 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 25 µH @ 100 kHz | 15A | 15mOhm (Typ) | 450V | 400V | - | - | - | - | - | - |
|
|
B82503UE3CMC 100UH 10A 2LN TH |
2,440 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 10A | 30mOhm (Typ) | 450V | 400V | - | - | - | - | - | - |
|
|
B82504WA1CMC 27MH 1A 2LN CHAS MNT |
1,116 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 27 mH @ 10 kHz | 1A | 5.25Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|

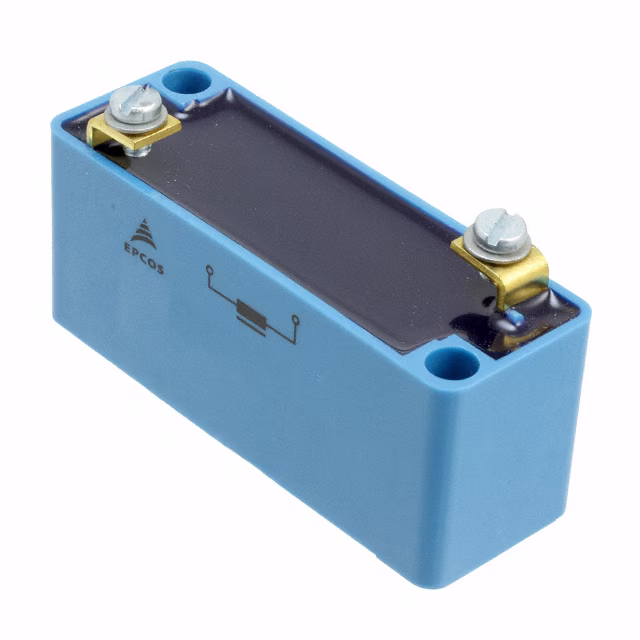

B82504WA16CMC 120UH 16A 2LN CHAS MNT |
1,262 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 120 µH @ 100 kHz | 16A | 19mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82504WA2CMC 7.5MH 2A 2LN CHAS MNT |
1,960 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 7.5 mH @ 10 kHz | 2A | 1.3Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82504WA3CMC 2MH 4A 2LN CHAS MNT |
1,016 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 2 mH @ 10 kHz | 4A | 330mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82504WA5CMC 200UH 10A 2LN CHAS MNT |
2,199 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 200 µH @ 100 kHz | 10A | 54mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82504WA7CMC 65UH 25A 2LN CHAS MNT |
2,950 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 65 µH @ 100 kHz | 25A | 9mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
