Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82796C105N265CMC 1MH 700MA 2LN TH |
2,096 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 1 mH @ 100 kHz | 700mA | 160mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796C113N201CMC 11UH 800MA 2LN TH |
2,279 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 11 µH @ 100 kHz | 800mA | 70mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796C2113N201CMC 11UH 200MA 4LN TH |
4,111 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Signal Line | 4 | - | 11 µH @ 100 kHz | 200mA | 60mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

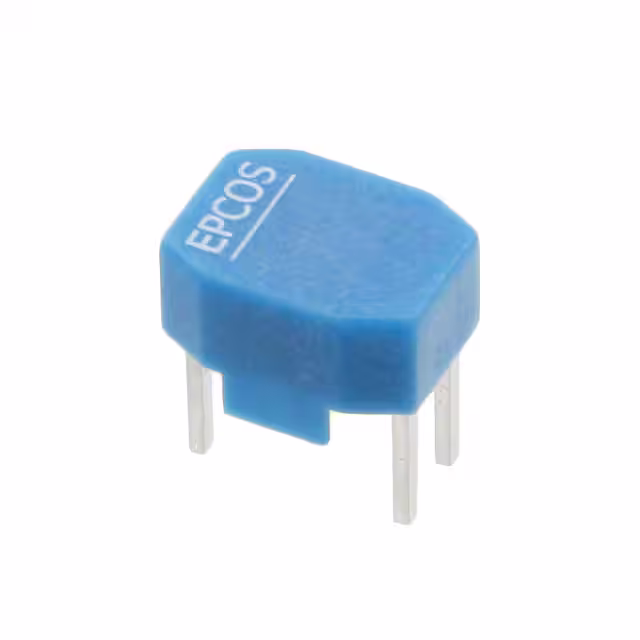

B82796C2225N265CMC 2.2MH 100MA 4LN TH |
4,715 | 0.00 |
|
Datasheet |
Horizontal, 8 PC Pin | Signal Line | 4 | - | 2.2 mH @ 10 kHz | 100mA | 400mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796C474N215CMC 470UH 700MA 2LN TH |
2,245 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 470 µH @ 100 kHz | 700mA | 170mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796C475N265CMC 4.7MH 400MA 2LN TH |
4,078 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 4.7 mH @ 10 kHz | 400mA | 520mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796S253N201CMC 25UH 800MA 2LN TH |
4,655 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 25 µH @ 100 kHz | 800mA | 100mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82796S513N201CMC 51UH 800MA 2LN TH |
2,044 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Signal Line | 2 | - | 51 µH @ 100 kHz | 800mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

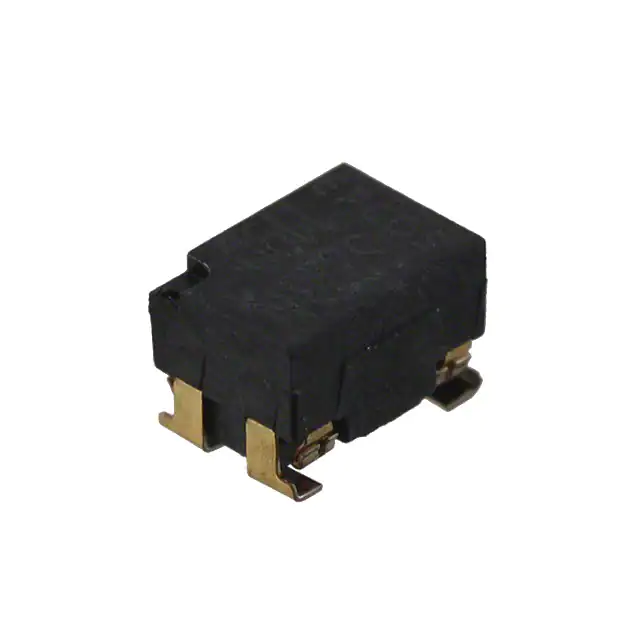

B82799C474N1CMC 470UH 200MA 2LN SMD AEC-Q200 |
3,254 | 0.00 |
|
Datasheet |
Horizontal, 4 L-Lead | Signal Line | 2 | - | 470 µH @ 100 kHz | 200mA | 320mOhm (Typ) | 80V | 42V | -55°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
P0420TCMC 3.3A 2LN SMD |
1,138 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
|
P0421TCMC 3.3A 2LN SMD |
2,928 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 3.3A | 60mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
P0422TCMC 4.7A 2LN SMD |
2,228 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 4.7A | 40mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
|
|
PE-65855TCMC 2LN SMD |
1,355 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | - | 1Ohm | - | - | - | - | - | - | - | - |
|

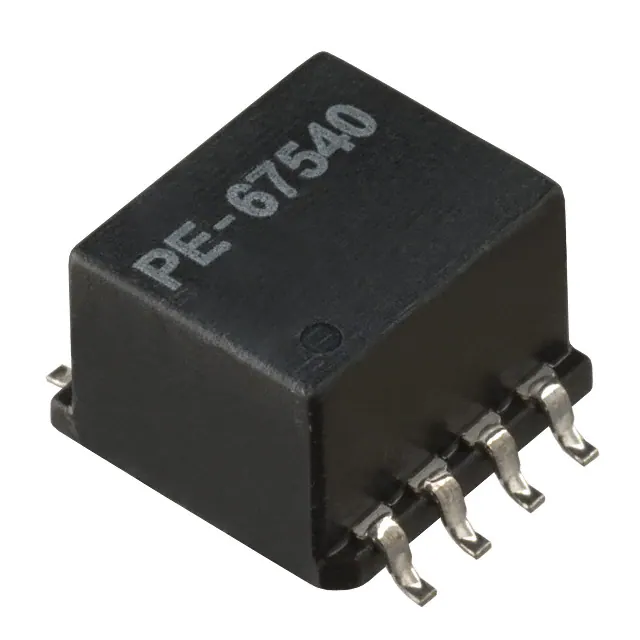

PE-67540TCMC 4LN SMD |
3,092 | 0.00 |
|
Datasheet |
Vertical, 8 Gull Wing | Signal Line | 4 | - | - | - | 600mOhm | - | - | - | - | - | - | - | - |
|
|
PE-68624TCMC 2LN SMD |
2,398 | 0.00 |
|
Datasheet |
Vertical, 6 Flat Lead | Signal Line | 2 | - | - | - | 400mOhm | - | - | - | - | - | - | - | - |
|
|
PE-69011TCMC 8LN SMD |
1,711 | 0.00 |
|
Datasheet |
Vertical, 16 Gull Wing | Signal Line | 8 | - | - | - | 350mOhm | - | - | - | - | - | - | - | - |
|
23Z109SMNLCMC 10LN SMD |
4,363 | 0.00 |
|
Datasheet |
20-SOIC (0.295", 7.50mm Width) | Signal Line | 10 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|
|
B4003CMC 2LN SMD |
3,681 | 0.00 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 2 | - | - | - | 1Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
B4003TCMC 2LN SMD |
4,317 | 0.00 |
|
Datasheet |
Vertical, 8 Flat Lead | Signal Line | 2 | - | - | - | 1Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
P0351CMC 2.8A 2LN SMD |
1,544 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 2.8A | 80mOhm | - | - | -40°C ~ 120°C | - | - | - | - | - |
