Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82505WA15CMC 290UH 16A 2LN CHAS MNT |
3,152 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 290 µH @ 100 kHz | 16A | 25mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82505WA3CMC 2.2MH 6A 2LN CHAS MNT |
1,912 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 220mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82505WA6CMC 150UH 25A 2LN CHAS MNT |
3,104 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 150 µH @ 100 kHz | 25A | 15mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82505WA7CMC 56UH 40A 2LN CHAS MNT |
4,784 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 56 µH @ 100 kHz | 40A | 6mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82505WA8CMC 1.2MH 8A 2LN CHAS MNT |
1,609 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 1.2 mH @ 10 kHz | 8A | 75mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82506WA3CMC 5MH 6A 2LN CHAS MNT |
4,694 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 5 mH @ 10 kHz | 6A | 350mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82506WA4CMC 2.5MH 10A 2LN CHAS MNT |
1,642 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 2.5 mH @ 10 kHz | 10A | 125mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82506WA5CMC 1.5MH 16A 2LN CHAS MNT |
1,127 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 1.5 mH @ 10 kHz | 16A | 50mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82506WA6CMC 500UH 25A 2LN CHAS MNT |
3,711 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 500 µH @ 100 kHz | 25A | 20mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82506WA7CMC 200UH 40A 2LN CHAS MNT |
2,177 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 200 µH @ 100 kHz | 40A | 8mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82506WA8CMC 80UH 60A 2LN CHAS MNT |
2,749 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 80 µH @ 100 kHz | 60A | 3.5mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82506WA9CMC 15UH 95A 2LN CHAS MNT |
2,215 | 0.00 |
|
Datasheet |
- | Power Line | 2 | - | 15 µH @ 100 kHz | 95A | 1.5mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82522VC10CMC 330UH 2A 2LN TH |
1,829 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 330 µH @ 100 kHz | 2A | 300mOhm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82522VC2CMC 33MH 200MA 2LN TH |
1,502 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 33 mH @ 10 kHz | 200mA | 25Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82522VC3CMC 12MH 300MA 2LN TH |
1,024 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 12Ohm (Typ) | 600V | 500V | - | - | - | - | - | - |
|
|
B82523TE10CMC 1.2MH 2A 2LN TH |
3,615 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 2A | 400mOhm (Typ) | 450V | 400V | - | - | - | - | - | - |
|
|
B82523TE12CMC 220UH 4A 2LN TH |
2,004 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 4A | 100mOhm (Typ) | 450V | 400V | - | - | - | - | - | - |
|
|
B82523TE14CMC 33UH 10A 2LN TH |
2,174 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 33 µH @ 100 kHz | 10A | 20mOhm (Typ) | 450V | 400V | - | - | - | - | - | - |
|

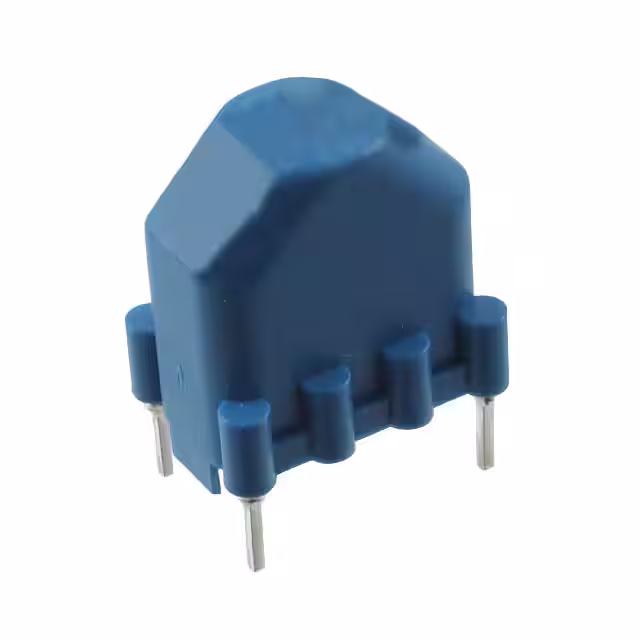

B82721K0152N001CMC 2.2MH 1.5A TH |
3,859 | 1.76 |
|
Datasheet |
Vertical, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B82721K0152N002CMC 1MH 1.5A TH |
3,775 | 1.76 |
|
Datasheet |
Vertical, 4 PC Pin | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
