Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7506-RCCMC 2MH 2.9A 2LN TH |
4,561 | 1.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 2.9A | 58mOhm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
|
7508-RCCMC 5MH 2.3A 2LN TH |
4,149 | 1.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 2.3A | 100mOhm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
|
7510-RCCMC 8MH 1.6A 2LN TH |
2,064 | 1.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 1.6A | 200mOhm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
|
7512-RCCMC 10MH 1.5A 2LN TH |
4,872 | 1.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 1.5A | 220mOhm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
|
7516-RCCMC 30MH 800MA 2LN TH |
1,169 | 1.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 1 kHz | 800mA | 760mOhm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|
|
7518-RCCMC 45MH 700MA 2LN TH |
2,230 | 1.39 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 45 mH @ 1 kHz | 700mA | 1.18Ohm | - | 250V | -55°C ~ 105°C | - | - | - | - | - |
|

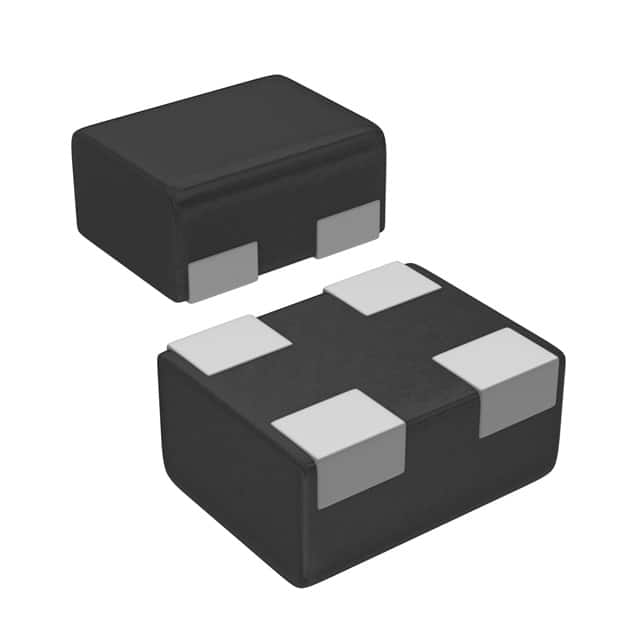

TCM0806T-060-2PCMC 100MA 2LN 6 OHM SMD |
2,644 | 0.00 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 6 Ohms @ 100 MHz | - | 100mA | 1.4Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|

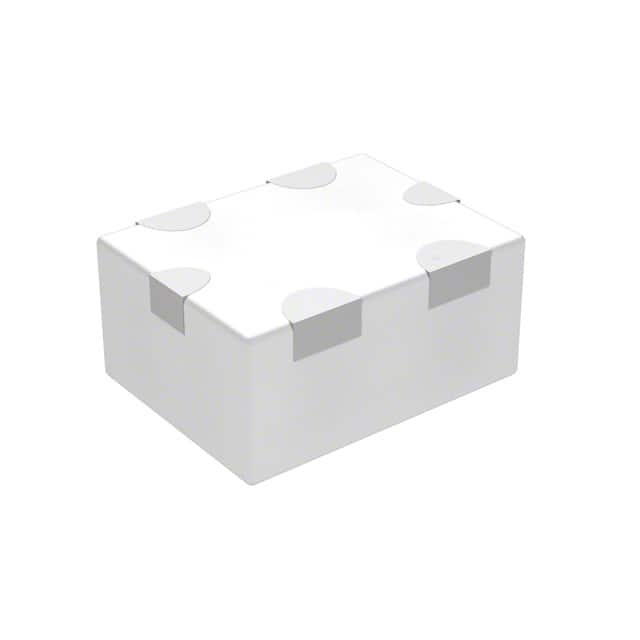

TCE0806G-900-2PCMC 100MA 2LN 90 OHM SMD ESD |
1,529 | 0.00 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3.5Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
TCE0806S-120-2PCMC 100MA 2LN 12 OHM SMD ESD |
2,716 | 0.00 |
|
Datasheet |
0302 (0806 Metric), 6 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 1Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
TCE1210G-900-2PCMC 100MA 2LN 90 OHM SMD ESD |
3,991 | 0.00 |
|
- |
0504 (1210 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 1.75Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
MCZ2010AH201L4T000CMC 100MA 4LN 200 OHM SMD |
2,808 | 0.61 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 200 Ohms @ 100 MHz | - | 100mA | 3.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CPFC54-250C-OWCMC 25UH 700MA 2LN SMD |
1,069 | 0.00 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 25 µH @ 100 kHz | 700mA | 130mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
CPFC54-250S-OWCMC 25UH 700MA 2LN SMD |
3,920 | 0.00 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 25 µH @ 100 kHz | 700mA | 130mOhm (Typ) | - | - | - | - | - | - | - | - |
|
|
CPFC54-510C-OWCMC 51UH 600MA 2LN SMD |
3,394 | 0.00 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | - | 51 µH @ 100 kHz | 600mA | 160mOhm (Typ) | - | - | - | - | - | - | - | - |
-MC-Series.jpg)
|
MCF08062G470-TCMC 100MA 2LN 47 OHM SMD |
4,211 | 0.00 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 47 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF08062G900-TCMC 100MA 2LN 90 OHM SMD |
1,873 | 0.00 |
|
Datasheet |
0302 (0806 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
.jpg)
|
MCF12102G900-TCMC 100MA 2LN 90 OHM SMD |
3,732 | 0.00 |
|
Datasheet |
0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
MCF20104G900-TCMC 100MA 4LN 90 OHM SMD |
4,043 | 0.00 |
|
Datasheet |
0804 (2010 Metric), 8 Lead | Signal Line | 4 | 90 Ohms @ 100 MHz | - | 100mA | 4.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
CAX-1.1-6.8CMC 6.8MH 1.1A 2LN TH |
4,019 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 6.8 mH @ 10 kHz | 1.1A | 342mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CAX-1.3-3.9CMC 3.9MH 1.3A 2LN TH |
2,965 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Signal Line | 2 | - | 3.9 mH @ 10 kHz | 1.3A | 230mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
