Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
AWCDMC-2321H-8CMC 8mH 6.5A 2LN TH, FLAT wire |
3,375 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 6.5A | 80mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-2321H-4CMC 4mH 11.0A 2LN TH, FLAT wire |
3,075 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 11A | 50mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-2321V-4CMC 4mH 11.0A 2LN TH, FLAT wire |
4,252 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 11A | 50mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-2321V-8CMC 8mH 6.5A 2LN TH, FLAT wire |
3,036 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 6.5A | 80mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|

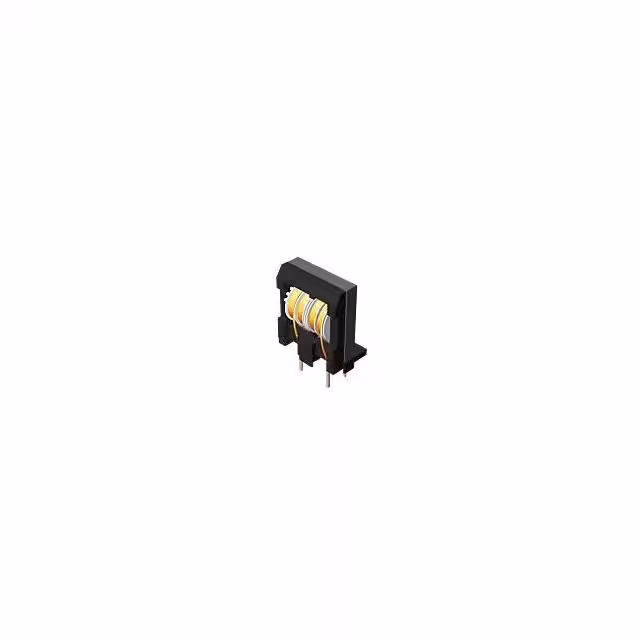

CTHF2836F-182M4R0CMC 4A 2LN TH |
4,301 | 2.89 |
|
- |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 4A | 50mOhm | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
C201021A-222NHFCMC 2.2MH 30% 62.0M 2.0A MAX. |
4,986 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 62mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201021A-332NHFCMC 3.3MH 30% 112.0M 1.5A MAX. |
2,992 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 1.5A | 112mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201021A-103NHFCMC 10.0MH 30% 345.0M 1.0A MAX. |
3,003 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 345mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201021A-203NHFCMC 20.0MH 30% 540.0M 0.5A MAX. |
1,039 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 500mA | 540mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201021A-102NHFCMC 1.0MH 30% 30.0M 3.0A MAX. |
3,188 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 3A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CTTCMCF-04CMC 10MH 2.4A 2LN TH |
1,099 | 3.19 |
|
Datasheet |
Radial, Vertical, 4 Leads (Open) | - | 2 | - | 10 mH @ 1 kHz | 2.4A | 170mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
CTHF2430F-332M2R0CMC 2A 2LN TH |
3,046 | 3.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 2A | 110mOhm | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
CTHF2430F-253M0R8CMC 800MA 2LN TH |
3,592 | 3.40 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 880mOhm | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
C201540A-102NHFCMC 1.0MH 30% 13.0M 6.0A MAX. |
3,823 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 6A | 13mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201540A-103NHFCMC 10.0MH 30% 125.0M 2.0A MAX. |
4,554 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2A | 125mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201540A-332NHFCMC 3.3MH 30% 53.0M 2.8A MAX. |
2,298 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.8A | 53mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201540A-222NHFCMC 2.2MH 30% 30.0M 4.0A MAX. |
4,828 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 4A | 30mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201540A-502NHFCMC 5.0MH 30% 95.0M 2.5A MAX. |
4,248 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 2.5A | 95mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C201540A-203NHFCMC 20.0MH 30% 270.0M 1.5A MAX. |
1,757 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 1.5A | 270mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CTDR0904F-510CMC 51UH 500MA 2LN 1.5K OHM SMD |
4,177 | 3.84 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 1.5 kOhms @ 100 MHz | 51 µH @ 100 kHz | 500mA | 300mOhm | 80V | 42V | -40°C ~ 105°C | - | - | - | - | - |
