Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

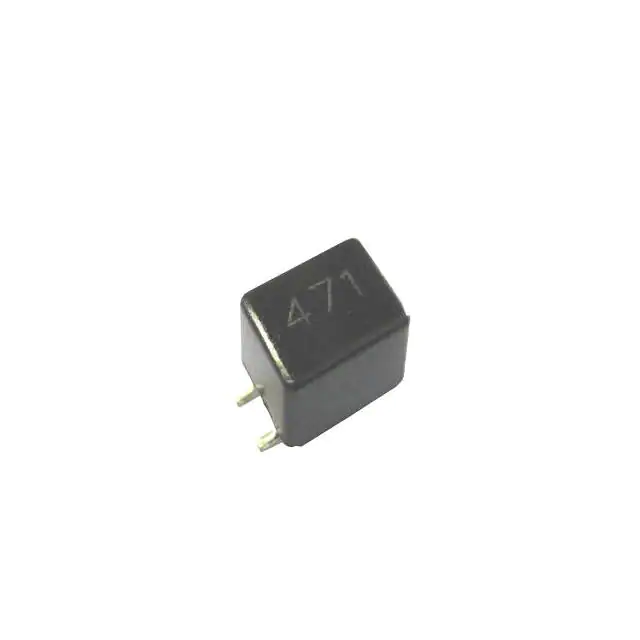

CTDR0904F-101CMC 100UH 500MA 2LN 700 OHM SMD |
4,103 | 3.84 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 700 Ohms @ 20 MHz | 100 µH @ 100 kHz | 500mA | 100mOhm | 80V | 42V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CTDR0904F-471CMC 470UH 500MA 2LN 2K OHM SMD |
2,982 | 3.84 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 2 kOhms @ 15 MHz | 470 µH @ 100 kHz | 500mA | 280mOhm | 80V | 42V | -40°C ~ 105°C | - | - | - | - | - |
|
|
CTDR0904F-110CMC 11UH 500MA 2LN 300 OHM SMD |
4,687 | 3.84 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 300 Ohms @ 300 MHz | 11 µH @ 100 kHz | 500mA | 120mOhm | 80V | 42V | -40°C ~ 105°C | - | - | - | - | - |
|

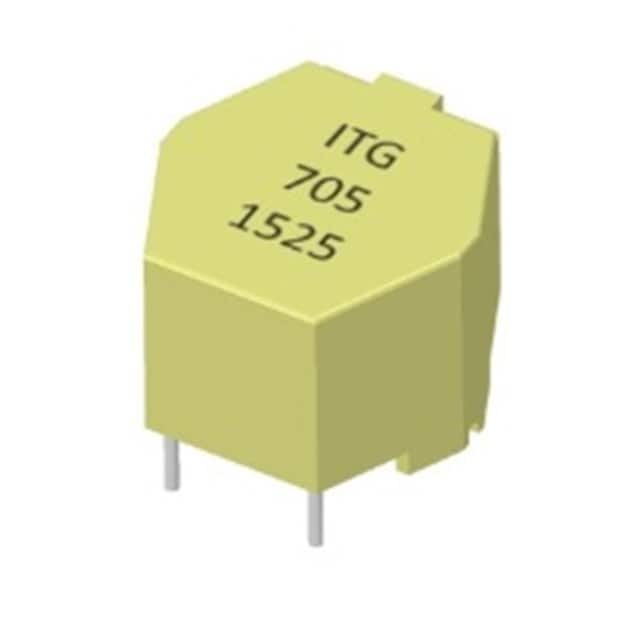

DCM282818H-203NHF20,000uH, 300mOhm, 2Amp DIP CMC |
3,041 | 5.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 10 kHz | 2A | 300mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM282818H-103NHF10,000uH,170mOhm, 2.5Amp DIP CMC |
4,932 | 5.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 2.5A | 170mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM282818H-332NHF3,300uH,55mOhm,5Amp Max. DIP CMC |
2,541 | 5.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 5A | 55mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM282818H-253NHF25,000uH,430mOhm, 1.5Amp DIP CMC |
4,908 | 5.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 25 mH @ 10 kHz | 1.5A | 430mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|

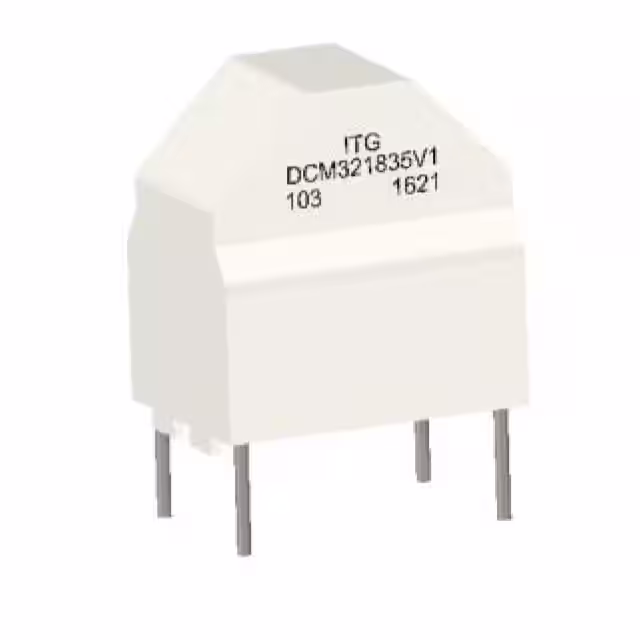

DCM321835V1-103NHF10,000uH, 155mOhm, 3Amp DIP CMC |
3,891 | 6.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 3A | 155mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM321835V1-273NHF27,000uH,400mOhm, 1.6Amp DIP CMC |
1,015 | 6.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1.6A | 400mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM321835V1-332NHF3,300uH,70mOhm,4Amp Max. DIP CMC |
4,405 | 6.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4A | 70mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
|
DCM321835V1-182NHF1,800uH,36mOhm,6Amp Max. DIP CMC |
1,979 | 6.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 6A | 36mOhm | - | 250V | -55°C ~ 130°C | - | - | - | - | - |
|
AMFC68-1NZCMC 6.8MH 1A 2LN TH |
1,603 | 3.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 1A | 160mOhm (Typ) | 2000V (2kV) | - | -25°C ~ 105°C | - | - | - | - | - |
|
|
AMFC1-1NZCMC 1MH 1A 2LN TH |
3,552 | 5.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 1A | 70mOhm (Typ) | 2000V (2kV) | - | -25°C ~ 105°C | - | - | - | - | - |
|
C20200-057,000uH, 120mOhm, 2.8Amp Max. |
3,916 | 5.50 |
|
Datasheet |
Radial, Vertical - 4 Leads | Power Line | 2 | - | 7 mH @ 1 kHz | 2.8A | 120mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
T60405-S6123-X316FERRITE CORE |
2,067 | 0.00 |
|
- |
Horizontal, 6 PC Pin | - | 3 | 2.5 kOhms @ 100 kHz | 3.1 mH @ 100 kHz | - | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
.jpg)
|
C301369B-352NUCMC 3.5mH 23.0mOhm 8.2A Max. |
4,530 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | 9.3 kOhms @ 1 MHz | 3.5 mH @ 1 kHz | 8.2A | 23mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301369B-372NUCMC 3.7mH 27.0mOhm 7.6A Max. |
3,446 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | 15.5 kOhms @ 1 MHz | 3.7 mH @ 1 kHz | 7.6A | 27mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301369B-252NUCMC 2.5mH 23.0mOhm 8.2A Max. |
2,644 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | 11.2 kOhms @ 1 MHz | 2.5 mH @ 1 kHz | 8.2A | 23mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301369B-532NUCMC 5.3mH 27.0mOhm 7.6A Max. |
1,880 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | 12.8 kOhms @ 1 MHz | 5.3 mH @ 1 kHz | 7.6A | 27mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
C301306H-521NCMC 0.52mH 3.4mOhm 35.0A Max. |
4,469 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 520 µH @ 100 kHz | 35A | 3.4mOhm | 1000V (1kV) | 600V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
