Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM5441Z161B-13FERRITE |
4,457 | 0.00 |
|
Datasheet |
Vertical, 4 PC Pin | Power, Signal Line | 2 | 160 Ohms @ 100 MHz | - | 75A | 0.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

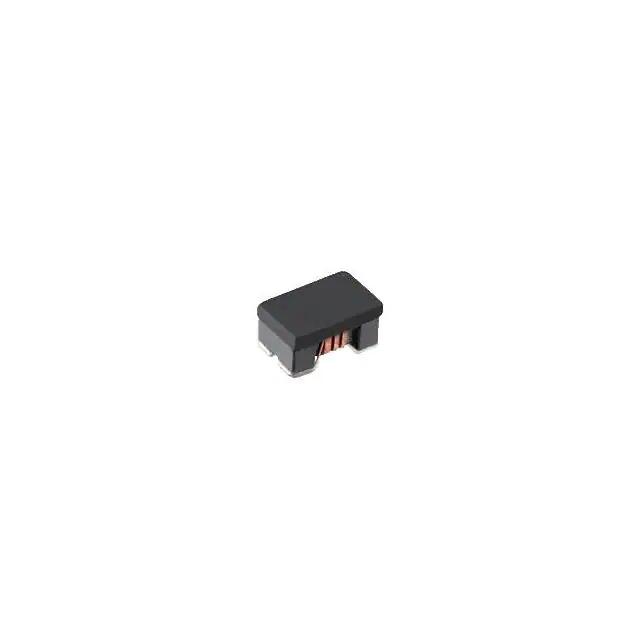

CTCM01F-121MCMC 200MA 2LN 120 OHM SMD |
1,277 | 0.43 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 200mA | 400mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|

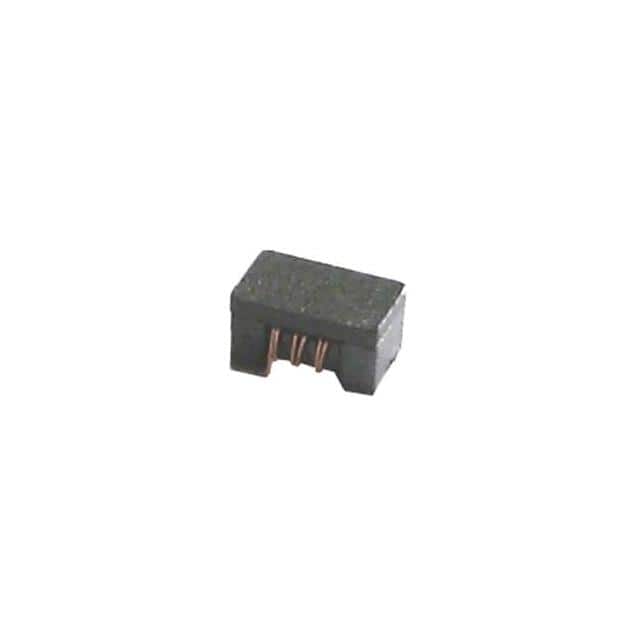

CTDLW21SF-121T04CMC 400MA 2LN 120 OHM SMD |
2,793 | 0.56 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 400mA | 300mOhm | 50V | - | -40°C ~ 105°C | - | - | - | - | - |
|

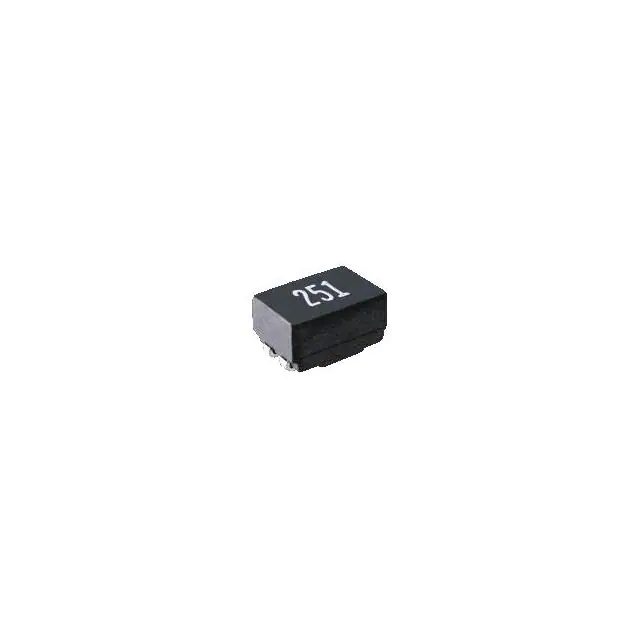

CTCMC0905F-100NCMC 10UH 1.6A 2LN 200 OHM SMD |
1,136 | 0.83 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | 200 Ohms @ 20 MHz | 10 µH @ 1 kHz | 1.6A | 80mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
AWCDMC-1314V-15CMC 15mH 1.5A 2LN TH, FLAT wire |
4,250 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 100 kHz | 1.5A | 250mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-1314H-10CMC 10mH 1.8A 2LN TH, FLAT wire |
1,188 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 1.8A | 180mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-1314V-6CMC 6mH 2.0A 2LN TH, FLAT wire |
4,188 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6 mH @ 100 kHz | 2A | 130mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-1314V-10CMC 10mH 1.8A 2LN TH, FLAT wire |
4,377 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 1.8A | 180mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-1314H-6CMC 6mH 2.0A 2LN TH, FLAT wire |
4,321 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6 mH @ 100 kHz | 2A | 130mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-1314H-15CMC 15mH 1.5A 2LN TH, FLAT wire |
3,475 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 100 kHz | 1.5A | 250mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
CTUF1515VF-153M0R8CMC 800MA 2LN TH |
1,261 | 1.72 |
|
- |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 800mA | 900mOhm | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
CTUF1015VF-302M0R9CMC 900MA 2LN TH |
1,813 | 1.81 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 900mA | 500mOhm | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
CTUF1015VF-502M0R5CMC 500MA 2LN TH |
1,133 | 1.81 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 500mA | 1.2Ohm | - | 250V | -20°C ~ 105°C | - | - | - | - | - |
|
|
AWCDMC-1616V-20CMC 20mH 1.8A 2LN TH, FLAT wire |
3,414 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 100 kHz | 1.8A | 250mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-1616H-10CMC 10mH 2.0A 2LN TH, FLAT wire |
1,646 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 2A | 160mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-1616H-20CMC 20mH 1.8A 2LN TH, FLAT wire |
2,413 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 20 mH @ 100 kHz | 1.8A | 250mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-1616V-10CMC 10mH 2.0A 2LN TH, FLAT wire |
3,447 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 2A | 160mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-2019V-7.5CMC 7.5mH 4.5A 2LN TH, FLAT wire |
4,999 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 100 kHz | 4.5A | 100mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-2019H-12CMC 12mH 3.0A 2LN TH, FLAT wire |
1,652 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 100 kHz | 3A | 150mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
AWCDMC-2019H-7.5CMC 7.5mH 4.5A 2LN TH, FLAT wire |
4,266 | 0.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 7.5 mH @ 100 kHz | 4.5A | 100mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
