Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448041104CMC 4MH 11A 2LN TH |
1,297 | 14.07 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 10 kHz | 11A | 8.8mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
7448041502CMC 2MH 15A 2LN TH |
188 | 14.07 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 15A | 5mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|
CMX1616Z171B-10CMC 176UH 62A 2LN TH |
157 | 8.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 176 µH @ 100 kHz | 62A | 0.65mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
CMX1616Z112B-10CMC 1MH 30A 2LN TH |
283 | 8.94 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 30A | 2.8mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

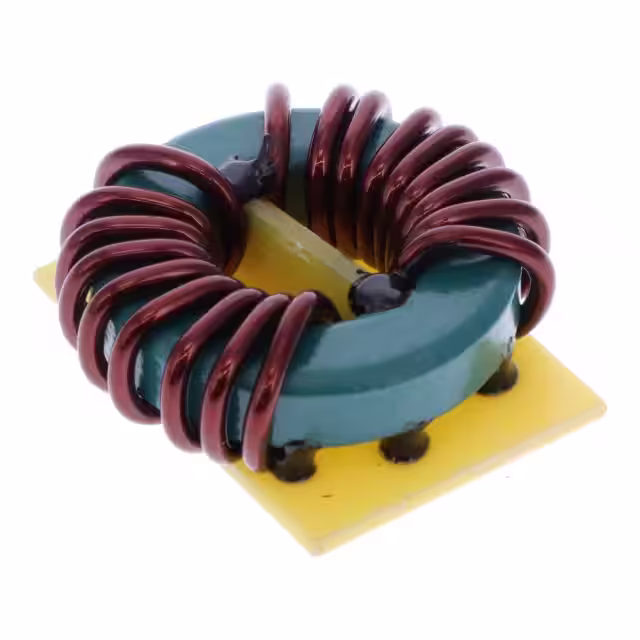

CMX1616Z701B-10CMC 704UH 33A 2LN TH |
179 | 8.99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 704 µH @ 100 kHz | 33A | 2.3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

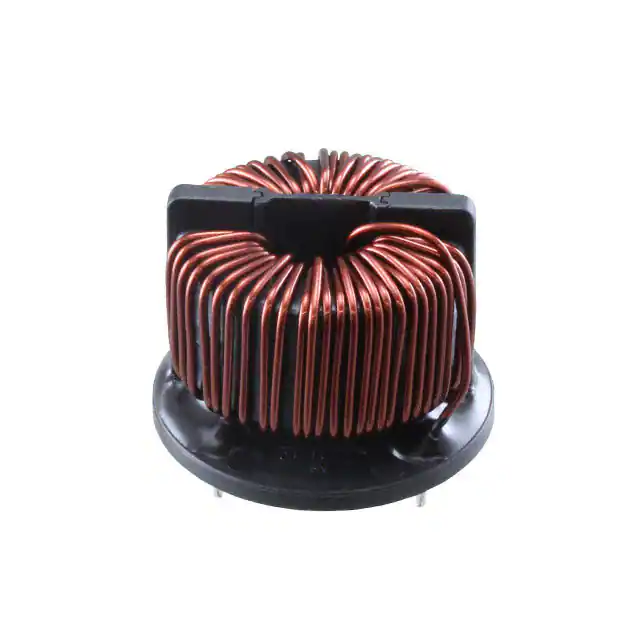

RT8122-16-4M0CMC 4MH 16A 2LN TH |
128 | 10.29 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 16A | 10mOhm (Typ) | 425V | 300V | -40°C ~ 100°C | - | - | - | - | - |
|
PE-96190NLCMC 15A (TYP) 2LN TH |
236 | 13.14 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 15A (Typ) | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
PL8202CMC 9.7A 2LN SMD |
147 | 13.36 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 9.7A | 14mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
PL8200NLCMC 14A 2LN SMD |
1,332 | 13.25 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 14A | 8mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
B82726S3543N040CMC 190UH 54A 2LN TH |
117 | 15.34 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 190 µH @ 100 kHz | 54A | 1.1mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CM6350R-475CMC 4.7MH 250MA 2LN SMD |
2,278 | 13.34 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 4.7 mH @ 10 kHz | 250mA | 1.05Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

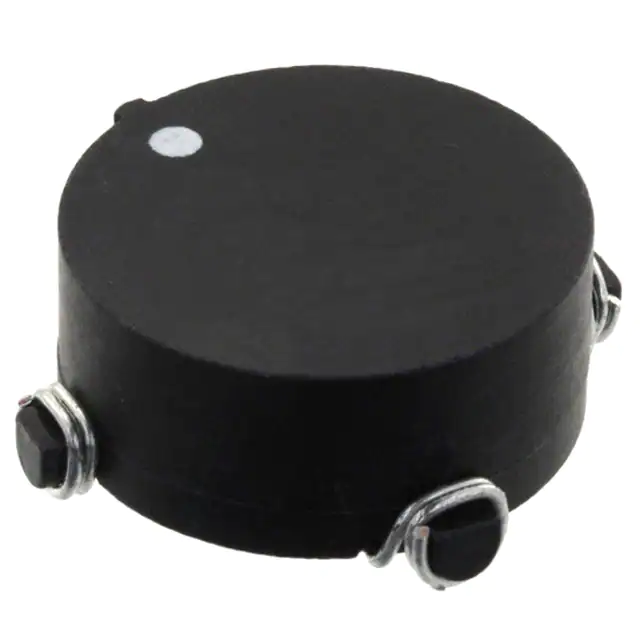

CM6296R-154CMC 150UH 9.5A 2LN SMD |
800 | 13.02 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 150 µH @ 1 kHz | 9.5A | 16mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6296R-105CMC 1MH 3.5A 2LN SMD |
149 | 13.02 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 1 kHz | 3.5A | 50mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
|
CM6350R-473CMC 47UH 5A 2LN SMD |
348 | 13.34 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 47 µH @ 10 kHz | 5A | 8mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

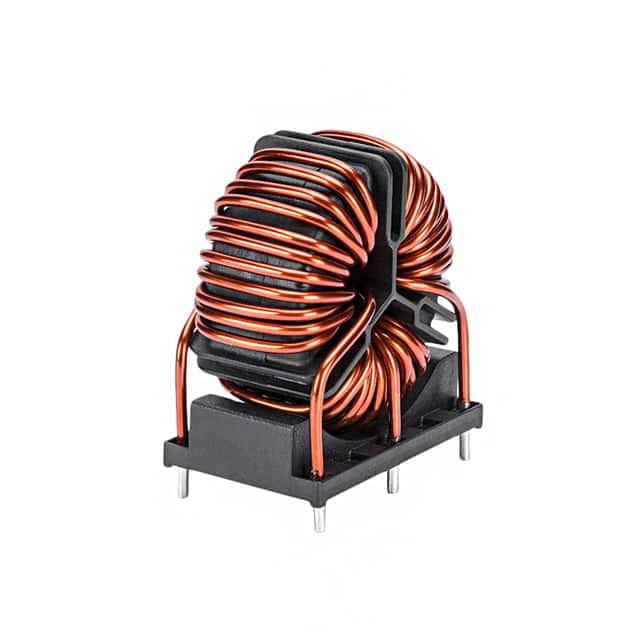

RT8532-20-2M5CMC 2.5MH 20A 3LN TH |
122 | 13.99 |
|
Datasheet |
Vertical, 6 PC Pin | Power Line | 3 | - | 2.5 mH @ 100 kHz | 20A | 7mOhm (Typ) | - | 600V | -40°C ~ 100°C | - | - | - | - | - |
|
SCF25-08-1300CMC 13MH 8A 2LN TH |
283 | 24.09 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 8A | 18mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CM6460R-225CMC 2.2MH 1.1A 2LN SMD |
522 | 16.42 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 2.2 mH @ 10 kHz | 1.1A | 150mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460R-105CMC 1MH 2.2A 2LN SMD |
396 | 16.42 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 10 kHz | 2.2A | 49mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
CM6460-105CMC 1MH 2.2A 2LN SMD |
257 | 15.06 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | 1 mH @ 10 kHz | 2.2A | 49mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

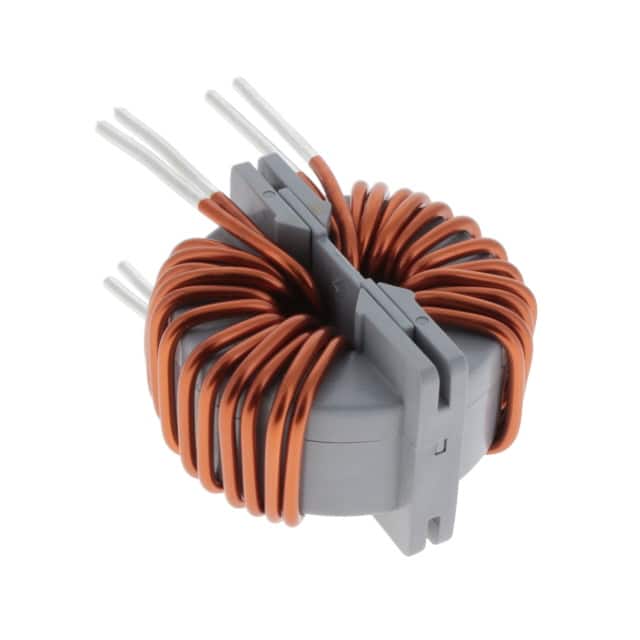

LDFL039172VJUV0ECMC 1.7MH 39A 2LN TH |
710 | 20.23 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 1.7 mH @ 100 kHz | 39A | 1.5mOhm | 700V | - | - | - | - | - | - | - |
