Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS3-7-RCMC 258UH 2.45A 2LN SMD |
593 | 5.51 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 258 µH @ 100 kHz | 2.45A | 27mOhm (Typ) | - | - | -40°C ~ 160°C | - | - | - | - | - |
|

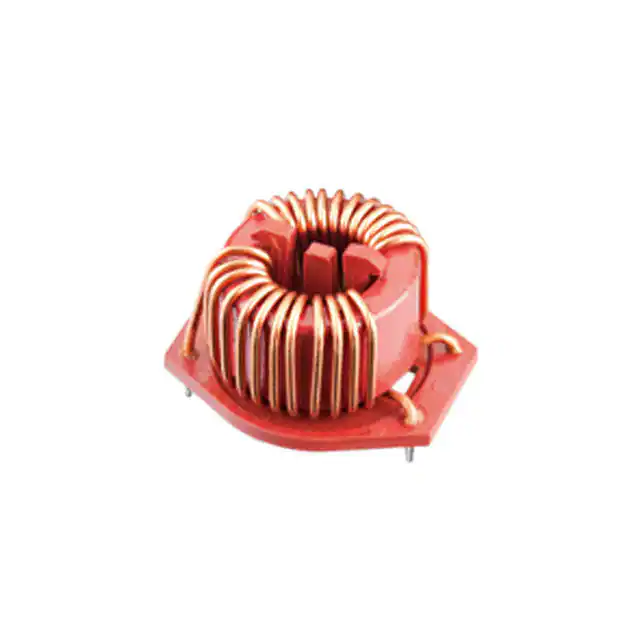

744834622CMC 2.2MH 6A 2LN TH |
109 | 6.72 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 6A | 22mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82722S0193A041CMC 160UH 19A 2LN SMD |
768 | 8.53 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 160 µH @ 100 kHz | 19A | 2.5mOhm | 80V | 48V | - | - | - | - | - | - |
|

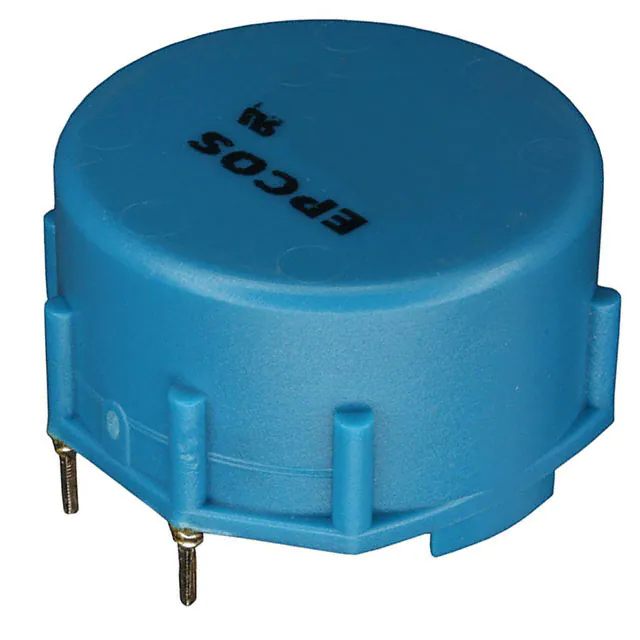

B82725A2103N001CMC 1.8MH 10A 2LN TH |
409 | 8.60 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 10A | 14mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

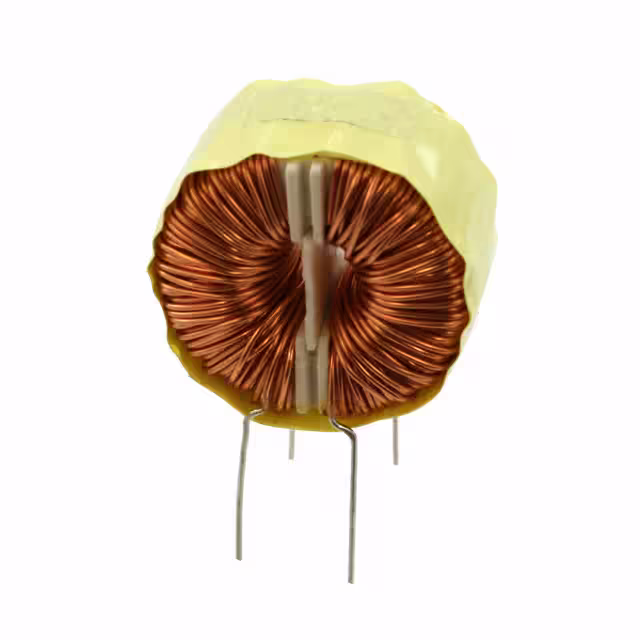

7121-RCCMC 42.5MH 2A 2LN TH |
191 | 7.29 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 42.5 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

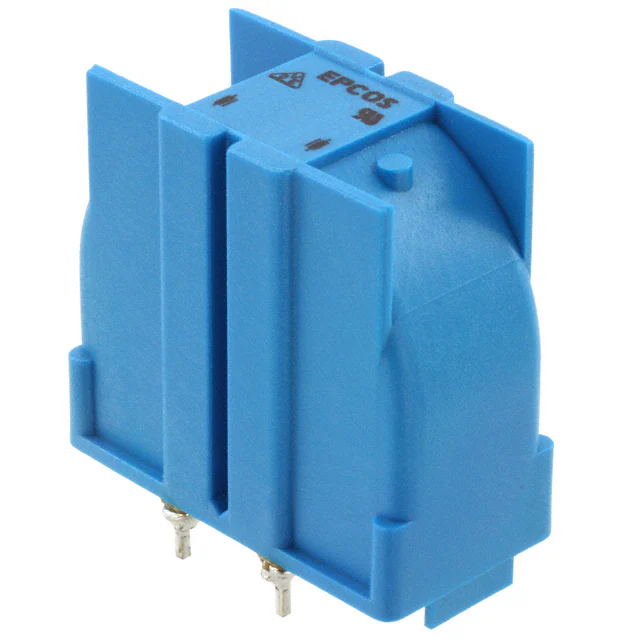

B82725J2802N020CMC 3.9MH 8A 2LN TH |
828 | 8.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 31mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82725A2402N001CMC 6.8MH 4A 2LN TH |
426 | 8.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4A | 80mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PE-62913NLCMC 1MH 6A 2LN TH |
470 | 7.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 6A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
B82725A2802N001CMC 2.7MH 8A 2LN TH |
222 | 8.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 10 kHz | 8A | 22mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
PH9455.356NLCMC 35MH 4A 2LN 21K OHM TH |
1,154 | 9.07 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 21 kOhms @ 330 kHz | 35 mH @ 330 kHz | 4A | 80mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

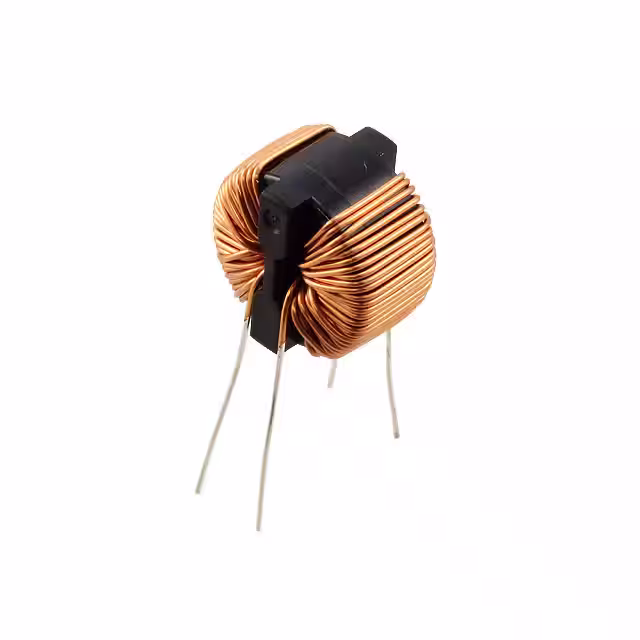

SCF-02-1300CMC 13MH 2A 2LN TH |
2,261 | 6.75 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 2A | 115mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF-03-650CMC 6.5MH 3A 2LN TH |
1,986 | 6.75 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
CMT908-V1CMC 2MH 7.5A 2LN TH ESD |
4,677 | 9.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 7.5A | 20mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CC2824E105R-10CMC 1MH 700MA 2LN 4.25KOHM SMD |
1,423 | 5.67 |
|
Datasheet |
Horizontal, 4 Flat Lead | Signal Line | 2 | 4.25 kOhms @ 7 MHz | 1 mH @ 100 kHz | 700mA | 260mOhm | 80V | 42V | -40°C ~ 125°C | - | - | - | - | - |
|

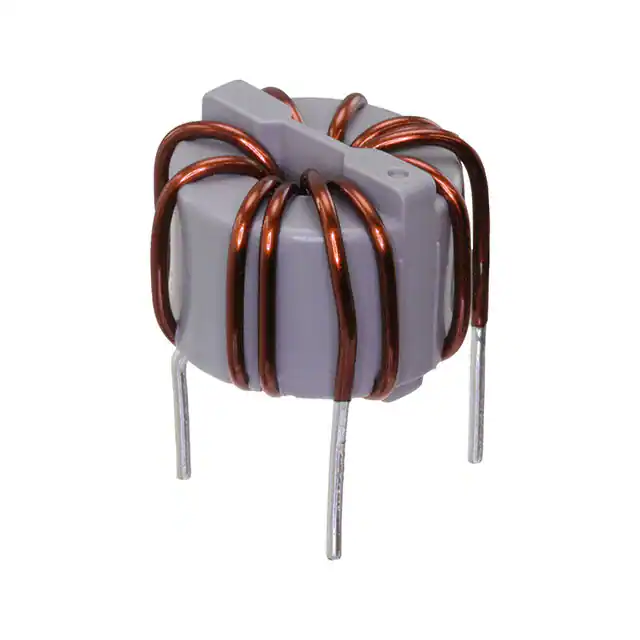

SCF-03-650HCMC 6.5MH 3A 2LN TH |
1,020 | 7.72 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 6.5 mH @ 10 kHz | 3A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

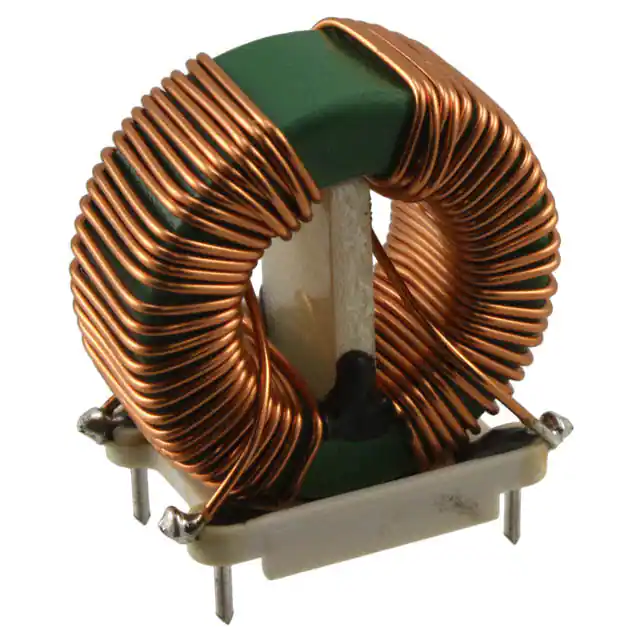

CMT-8112CMC 8MH 5.6A 2LN TH ESD |
4,286 | 9.16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 5.6A | 55mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
744834101CMC 1MH 10A 2LN TH |
5,774 | 6.72 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 10A | 12.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

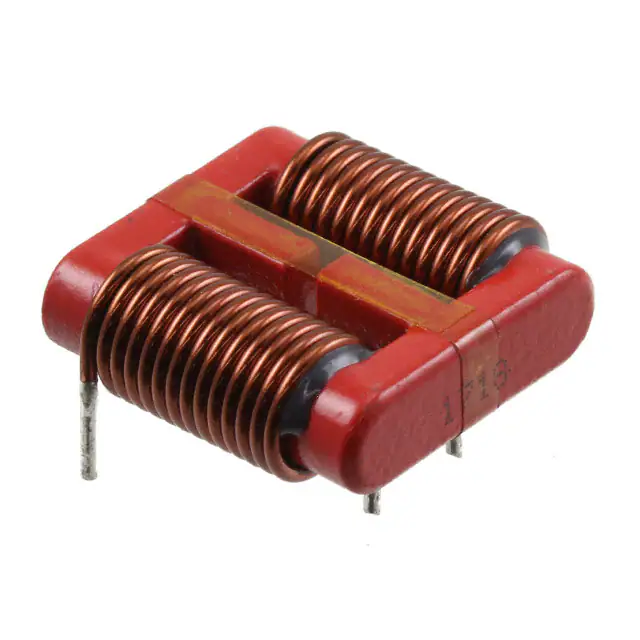

7448680100CMC 450UH 10A 2LN TH |
425 | 7.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 450 µH @ 10 kHz | 10A | 9.6mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|

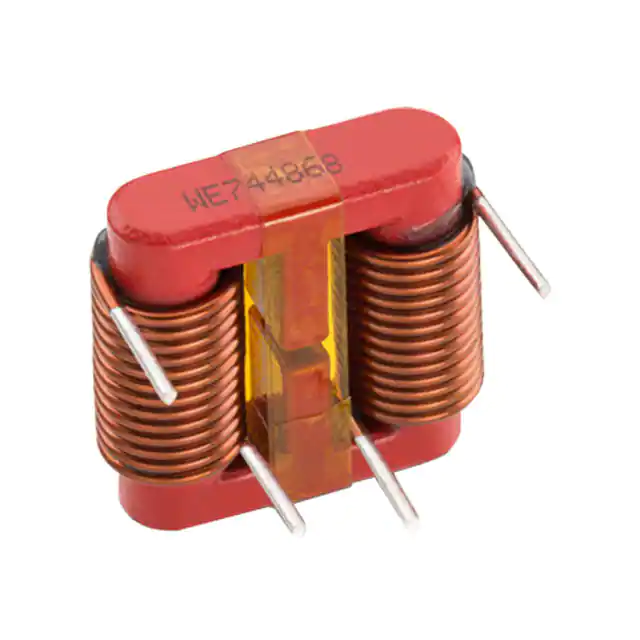

7448680140CMC 230UH 16A 2LN TH |
323 | 7.63 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 230 µH @ 10 kHz | 16A | 3.6mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
RN152-6-02-3M9CMC 3.9MH 6A 2LN TH |
140 | 6.88 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 6A | 42mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
