Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

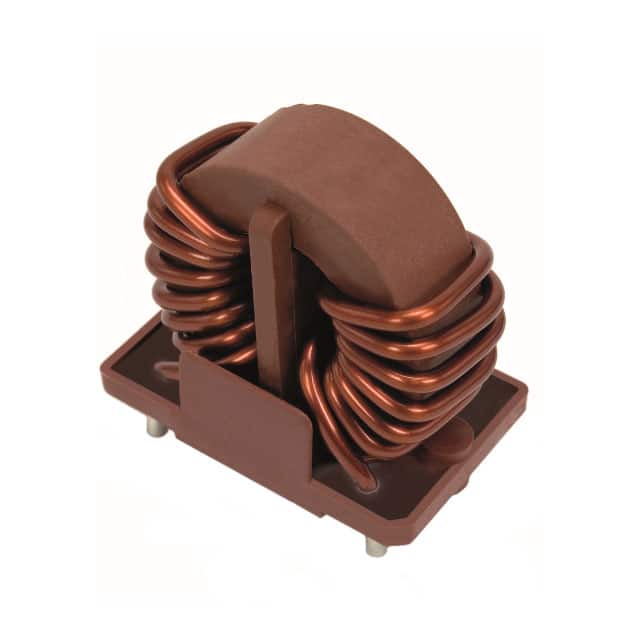

T60405R6166X033CMC 1.53MH 18A 2LN 1.6K OHM TH |
5,176 | 8.22 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.6 kOhms @ 100 kHz | 1.53 mH @ 100 kHz | 18A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
7446630047CMC 47MH 400MA 2LN SMD |
689 | 8.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 47 mH @ 10 kHz | 400mA | 2.6Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CMT-8119CMC 4MH 14.5A 2LN TH ESD |
6,312 | 10.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 14.5A | 12mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
CMT-8120CMC 2.4MH 17A 2LN TH ESD |
2,649 | 10.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 1 kHz | 17A | 8mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|

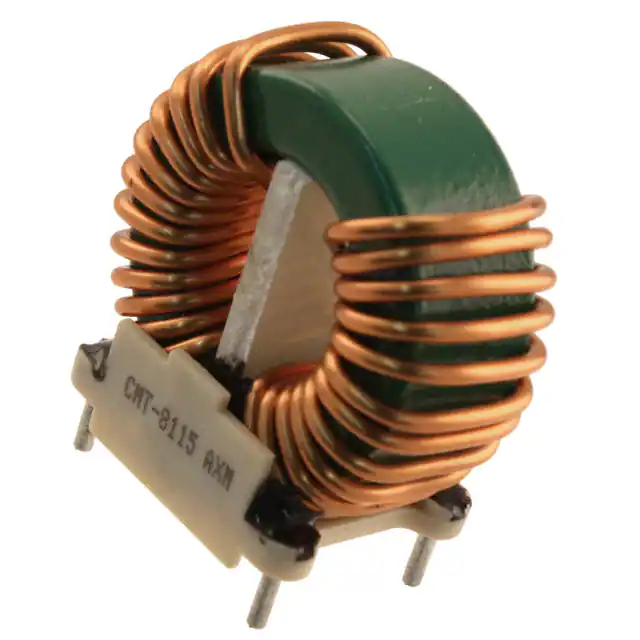

CMT-8115CMC 1.2MH 16A 2LN TH ESD |
359 | 9.16 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
PE-62893NLCMC 1MH 6A 2LN TH |
820 | 8.85 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1 mH @ 1 kHz | 6A | 20mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

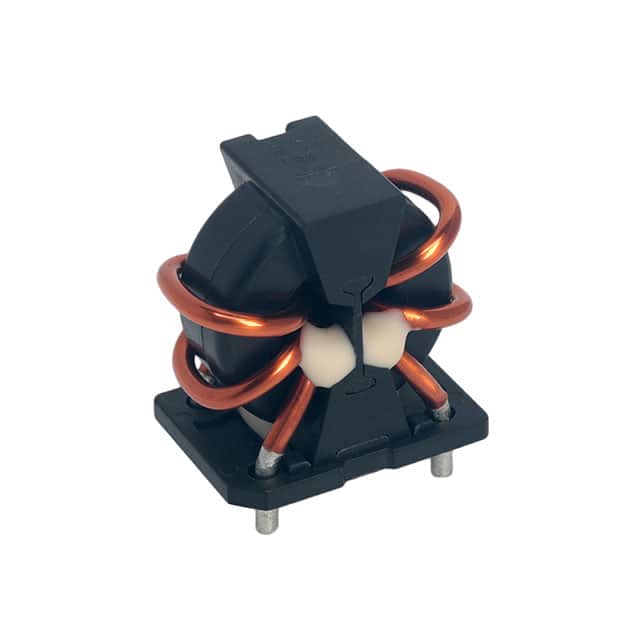

SCR19XV-100-1R1A009JVCMC 500UH 10A 2LN TH AEC-Q200 |
211 | 8.98 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 10A | 6.03mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

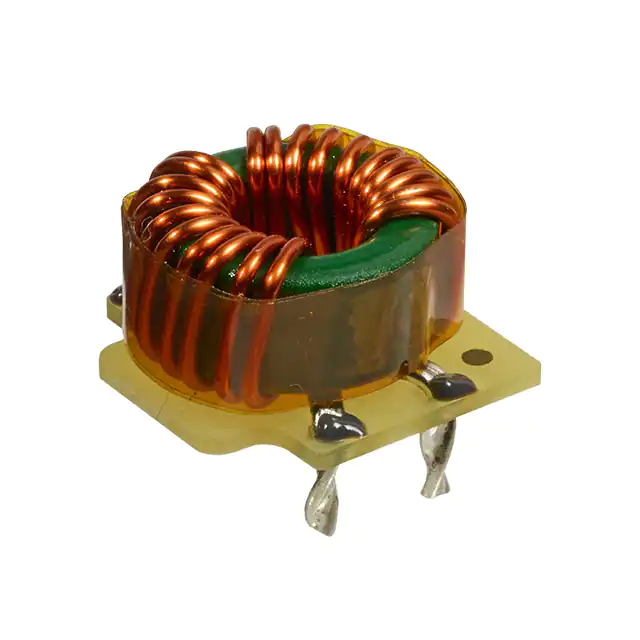

TCK-086CMC 156UH 25A 2LN TH |
885 | 7.71 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 156 µH @ 100 kHz | 25A | 2.5mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|

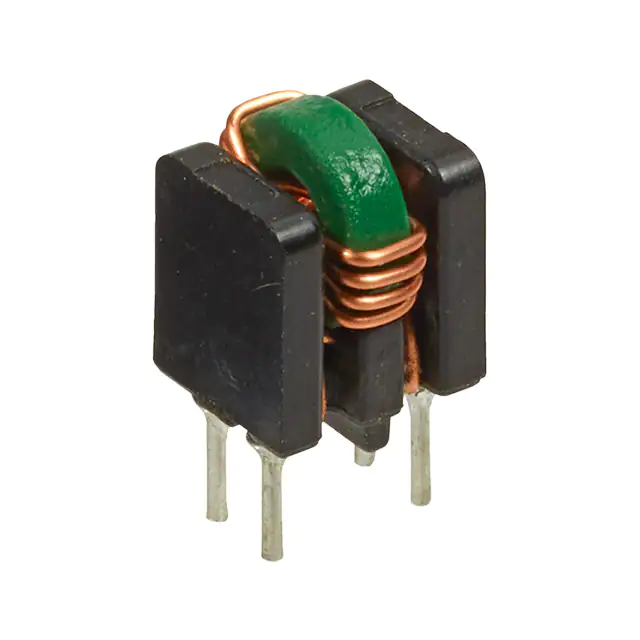

TCK-117CMC 52UH 2LN TH |
367 | 7.71 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 52 µH @ 10 kHz | - | 15mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-092CMC 45UH 2LN TH |
193 | 7.71 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 45 µH @ 100 kHz | - | 1.4mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-113CMC 806UH 5.7A 2LN TH |
150 | 7.71 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 806 µH @ 100 kHz | 5.7A | 25mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-101CMC 305UH 2LN TH |
126 | 7.71 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 305 µH @ 100 kHz | - | 10mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
PH9455.205NLCMC 2.2MH 16A 2LN 2.6K OHM TH |
528 | 9.07 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 2.6 kOhms @ 8.39 MHz | 2.2 mH @ 8.39 MHz | 16A | 4.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

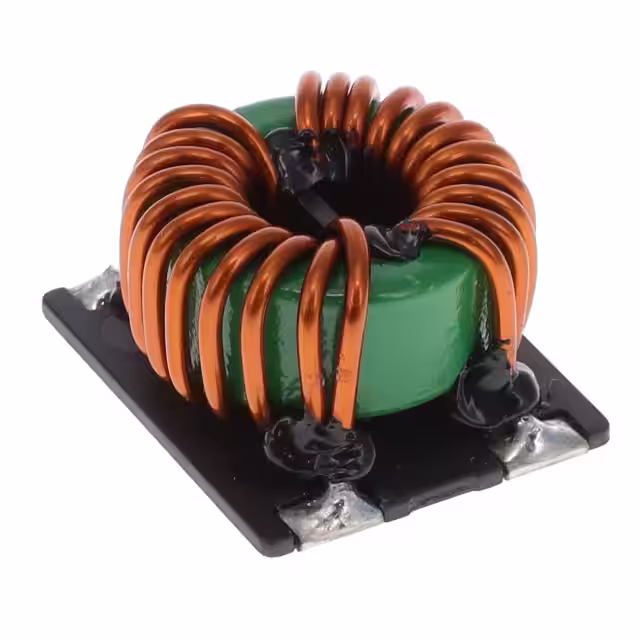

CMX1211Y801B-10CMC 800UH 16A 2LN SMD |
293 | 4.94 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 800 µH @ 100 kHz | 16A | 5.3mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
TCK-118CMC 175UH 1.76A 2LN TH |
271 | 7.95 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 175 µH @ 10 kHz | 1.76A | 34mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-128COMMON MODE CHOKE 2LN |
114 | 7.95 |
|
Datasheet |
- | - | 2 | - | - | - | - | 24V | - | - | - | - | - | - | - |
|

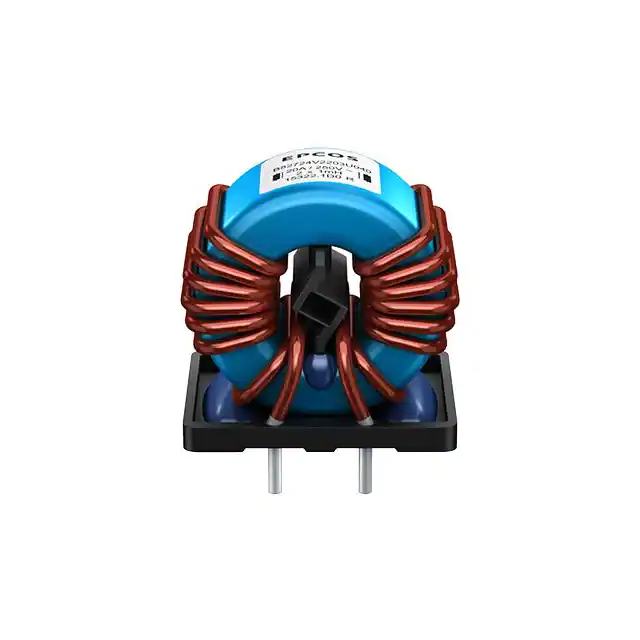

B82724V2103U040CMC 3.3MH 10A 2LN TH |
168 | 10.93 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 10A | 9.2mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PH9408.254NLTCMC 32A 2LN 580 OHM SMD |
305 | 9.45 |
|
Datasheet |
Nonstandard | - | 2 | 580 Ohms @ 2.03 MHz | - | 32A | 1.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PH9455.705NLCMC 6.5MH 9A 2LN 6.4K OHM TH |
409 | 9.07 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 6.4 kOhms @ 1.52 MHz | 6.5 mH @ 1.52 MHz | 9A | 14mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

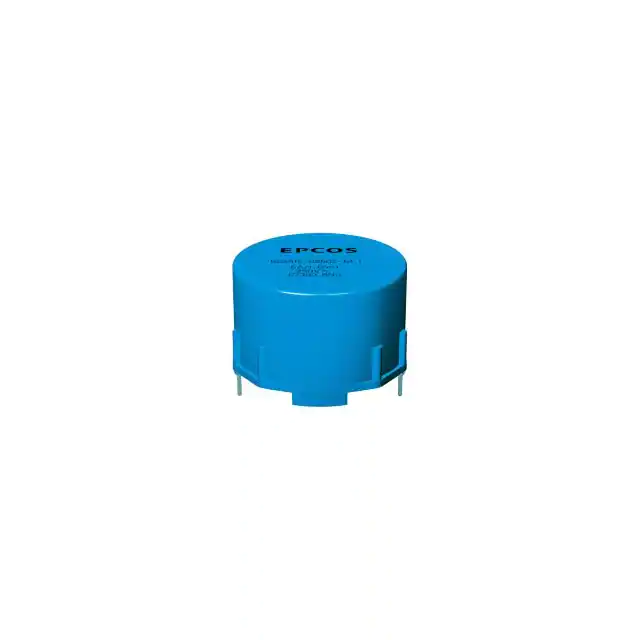

B82615B2302M001CMC 2.5MH 3A 2LN TH PFC |
207 | 6.99 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 3A | 400mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | - | - |
