Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82723J2102N001CMC 27MH 1A 2LN TH |
771 | 4.34 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 1A | 750mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82733F2701B001CMC 100MH 700MA 2LN TH |
354 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 100 mH @ 10 kHz | 700mA | 1.81Ohm (Typ) | - | 300V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
T8114NLTCMC 400MA 2LN SMD |
1,600 | 3.26 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | 400mA | 700mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

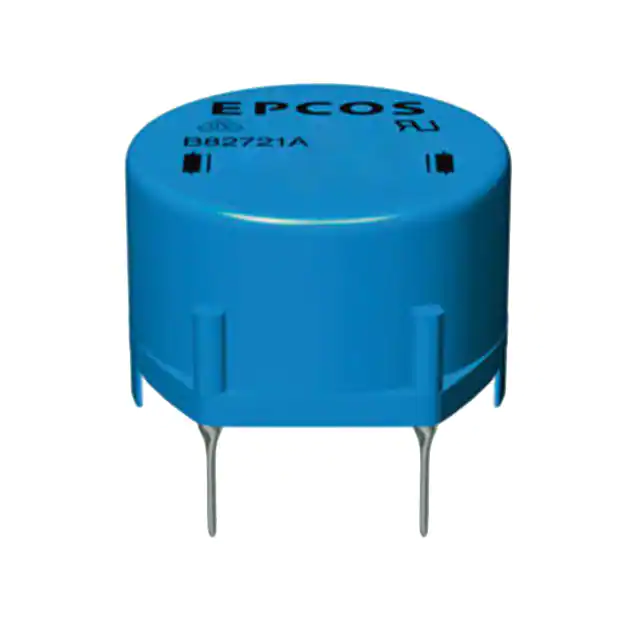

B82721A2601N020CMC 15MH 600MA 2LN TH |
182 | 3.69 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 600mA | 700mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

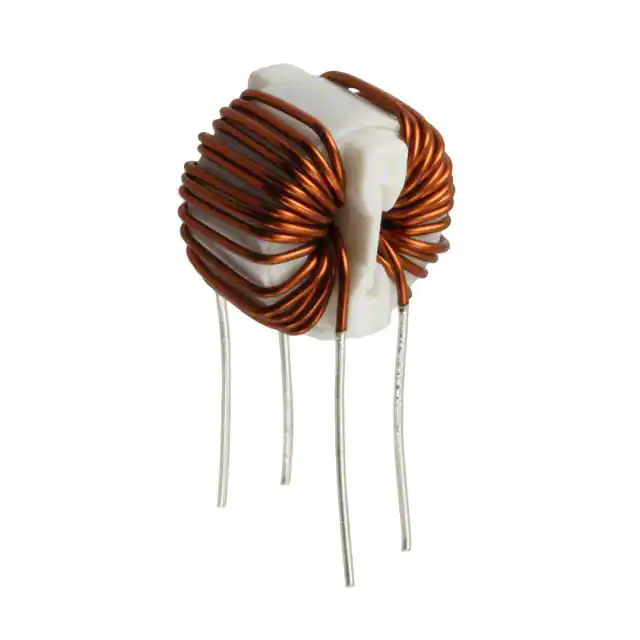

SC-03-10GCMC 1MH 3A 2LN TH |
1,389 | 2.62 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 3A | 35mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
|
T8112NLTCMC 1MH 700MA 2LN 900 OHM SMD |
765 | 3.26 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 900 Ohms @ 100 MHz | 1 mH @ 100 kHz | 700mA | 300mOhm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
SSRH24NVS-40059CMC 5.9MH 4A 2LN TH |
691 | 3.41 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 5.9 mH @ 10 kHz | 4A | 55mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
AML0820-3R7M120-S1CMC 12A 2LN TH AEC-Q200 |
380 | 3.21 |
|
Datasheet |
Radial, Horizontal Cylinder | Power Line | 2 | - | - | 12A | 7.7mOhm | - | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

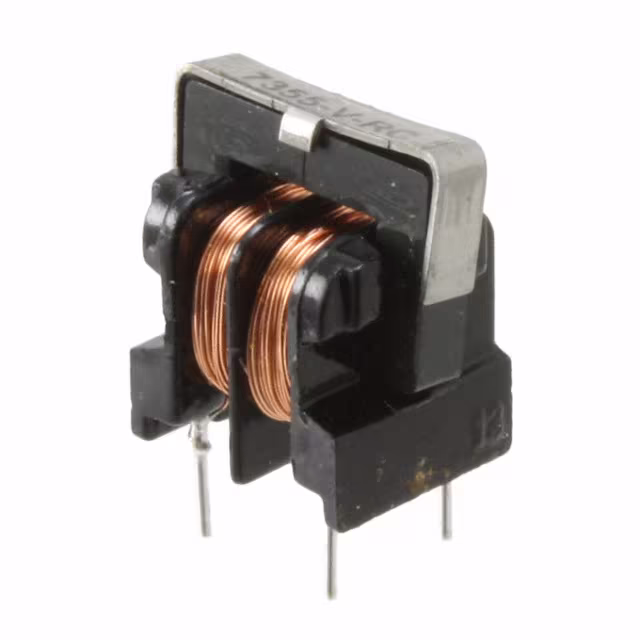

7355-V-RCCMC 10MH 350MA 2LN TH |
238 | 3.34 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 10 mH @ 1 kHz | 350mA | 2.2Ohm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

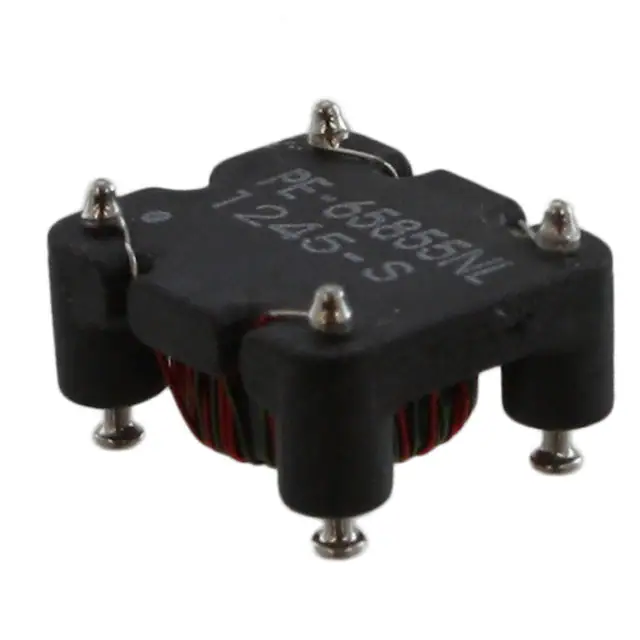

PE-65855NLCMC 2LN SMD |
993 | 4.35 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | - | 1Ohm | - | - | - | - | - | - | - | - |
|
SC-05-27JCMC 2.7MH 5A 2LN TH |
316 | 3.37 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.7 mH @ 1 kHz | 5A | 40mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
744282101CMC 100UH 900MA 2LN 40K OHM SMD |
136 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 40 kOhms @ 7 MHz | 100 µH @ 100 kHz | 900mA | 280mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

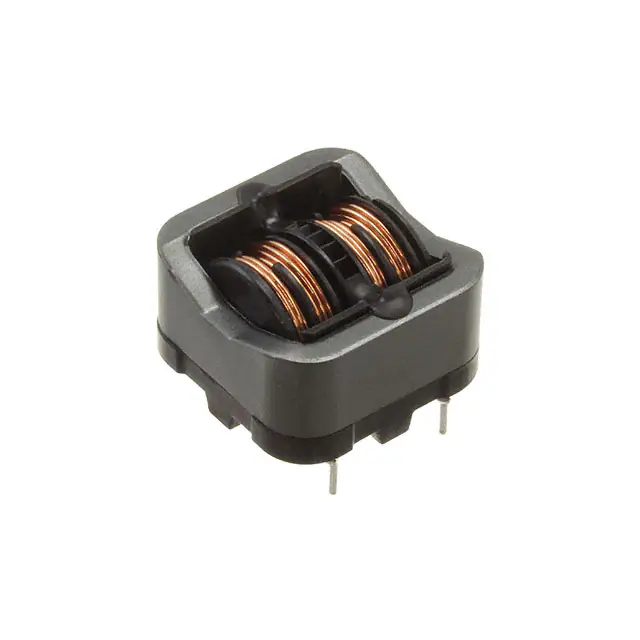

SSRH24NH-50041CMC 4.1MH 5A 2LN TH |
327 | 3.48 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 4.1 mH @ 10 kHz | 5A | 35mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NH-25205CMC 20.5MH 2.5A 2LN TH |
300 | 3.48 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 20.5 mH @ 10 kHz | 2.5A | 145mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NH-40069CMC 6.9MH 4A 2LN TH |
249 | 3.48 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 6.9 mH @ 10 kHz | 4A | 57mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SSRH24NV-16470CMC 47MH 1.6A 2LN TH |
182 | 3.48 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 47 mH @ 10 kHz | 1.6A | 327mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
PE-53911NLTCMC 1.5A 2LN SMD |
9,236 | 3.27 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 1.5A | 60mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
|

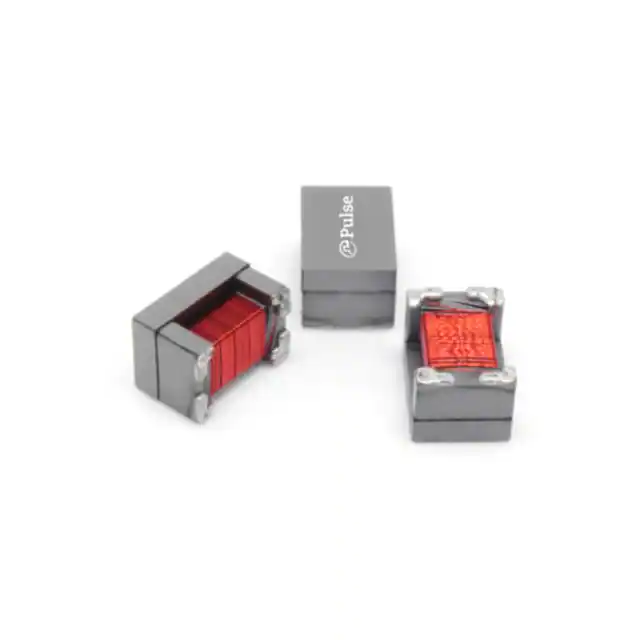

AE1210CMC 100MA 2LN SMD AEC-Q200 |
5,965 | 4.84 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | - | - | 100mA | 3.9mOhm (Typ) | 60V | - | -40°C ~ 125°C | - | - | - | Automotive | AEC-Q200 |
|
7446120027CMC 27MH 400MA 2LN TH |
1,231 | 3.32 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
PE-53910NLCMC 3.6A 2LN SMD |
775 | 3.30 |
|
Datasheet |
Horizontal, 4 PC Pad | - | 2 | - | - | 3.6A | 50mOhm | - | 250V | -40°C ~ 130°C | - | - | - | - | - |
