Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

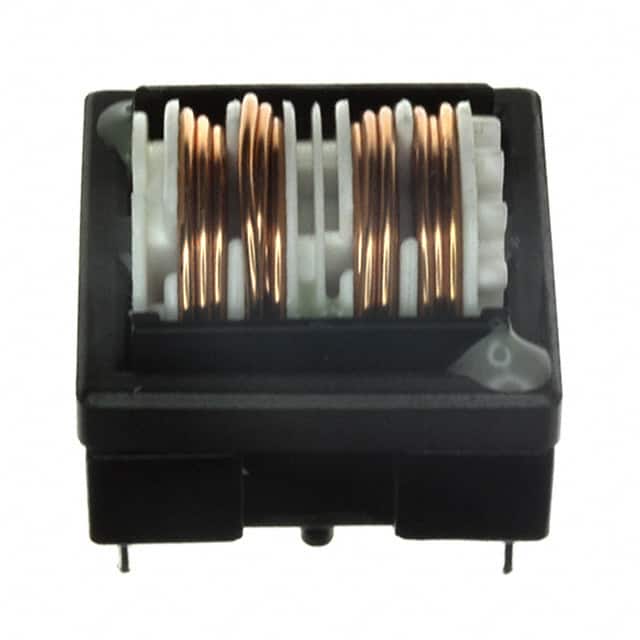

EH24-3.0-02-1M2CMC 1.2MH 3A 2LN TH |
520 | 3.08 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 400 Hz | 3A | 29mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
SC-04-E50JCMC 5.18MH 4.3A 2LN TH |
144 | 3.81 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.18 mH @ 10 kHz | 4.3A | 56.4mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
744202CMC 1MH 350MA 4LN SMD |
416 | 3.68 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 1 mH @ 100 kHz | 350mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744204CMC 250UH 600MA 4LN SMD |
266 | 3.68 |
|
Datasheet |
Horizontal, 8 Gull Wing | Signal Line | 4 | - | 250 µH @ 100 kHz | 600mA | - | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
52106CCMC 1.7A 2LN TH |
125 | 3.33 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | - | 1.7A | 193mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|

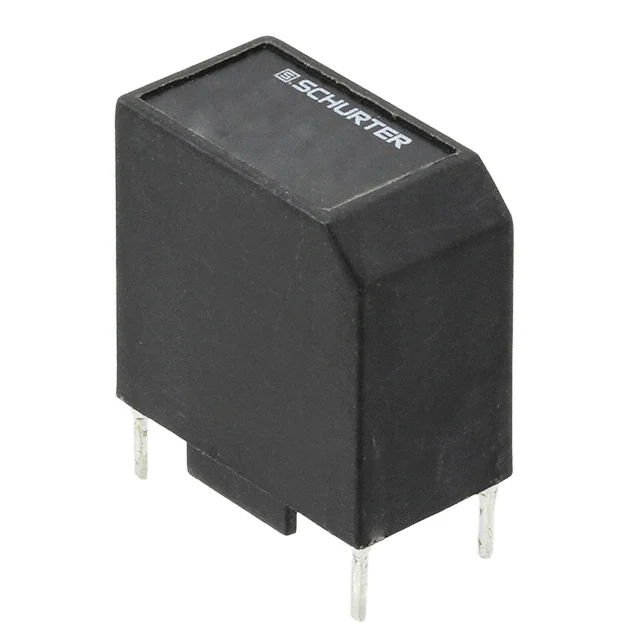

DFKH-22-0002CMC 1A 2LN TH |
350 | 3.35 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 1A | 500mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
|
DFKH-22-0003CMC 2A 2LN TH |
160 | 3.35 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 2A | 150mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
DFKH-14-0002CMC 1A 2LN TH |
858 | 3.36 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 1A | 250mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
|
DFKH-14-0003CMC 2A 2LN TH |
312 | 3.36 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 2A | 65mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|

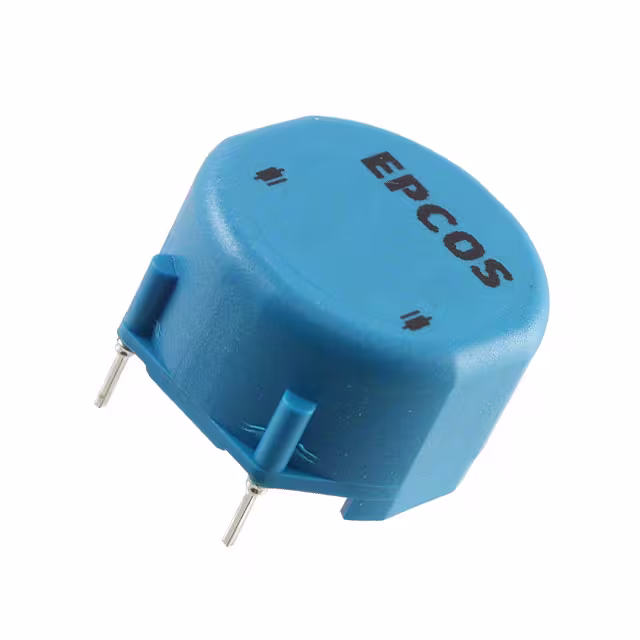

B82723A2202N001CMC 5.6MH 2A 2LN TH |
393 | 4.34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2A | 160mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82723A2802N001CMC 450UH 8A 2LN TH |
130 | 4.34 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | 8A | 11mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744284102CMC 1MH 300MA 2LN 160K OHM SMD |
679 | 3.75 |
|
Datasheet |
Horizontal, 4 PC Pad | Power, Signal Line | 2 | 160 kOhms @ 1 MHz | 1 mH @ 100 kHz | 300mA | 2.5Ohm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
744284101CMC 100UH 1A 2LN 40K OHM SMD |
140 | 3.75 |
|
Datasheet |
Horizontal, 4 PC Pad | Signal Line | 2 | 40 kOhms @ 4 MHz | 100 µH @ 100 kHz | 1A | 280mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|

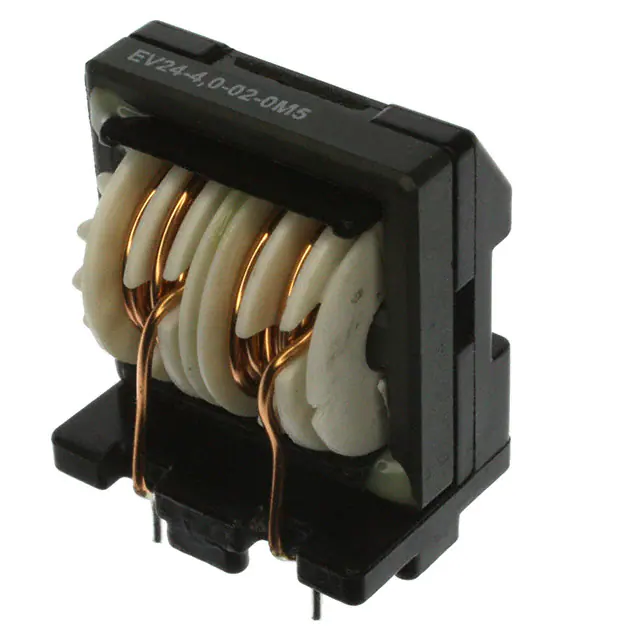

EV24-4.0-02-0M5CMC 500UH 4A 2LN TH |
410 | 2.09 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 500 µH @ 400 Hz | 4A | 16mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

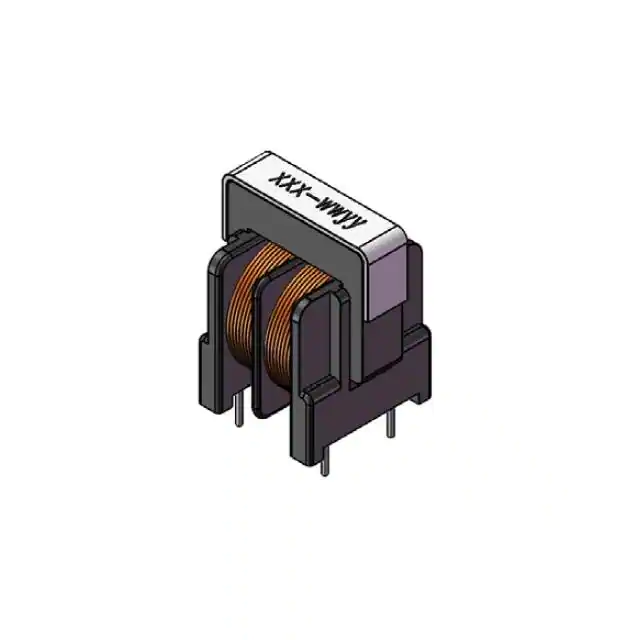

ECMT1V2023S-200-RCMC 20MH 1A 2LN TH |
121 | 3.31 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 20 mH @ 1 kHz | 1A | 550mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SC-02-15JSCMC 1.5MH 2A 2LN TH |
269 | 4.01 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 1 kHz | 2A | - | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
23Z104SMNLCMC 4LN SMD |
244 | 4.01 |
|
Datasheet |
8-SOIC (0.265", 6.73mm Width) | Signal Line | 4 | - | - | - | 200mOhm | - | - | - | - | - | - | - | - |
|

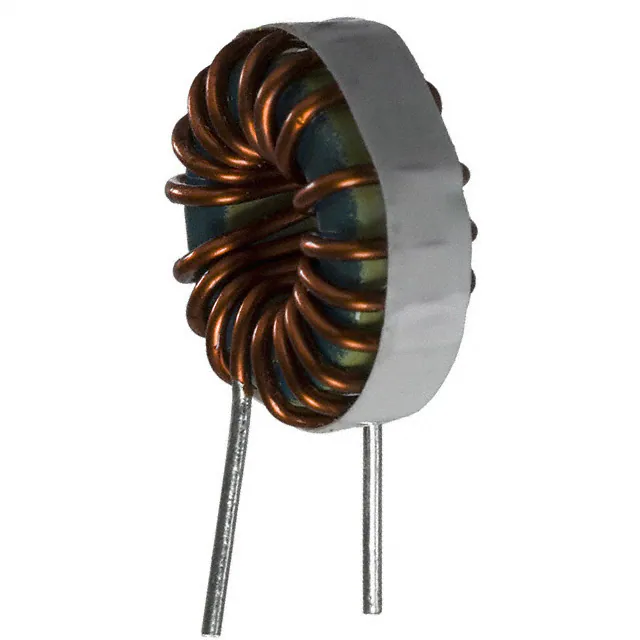

7109-RCCMC 2.55MH 2A 2LN TH |
593 | 5.21 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | - | 2 | - | 2.55 mH @ 1 kHz | 2A | 75mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

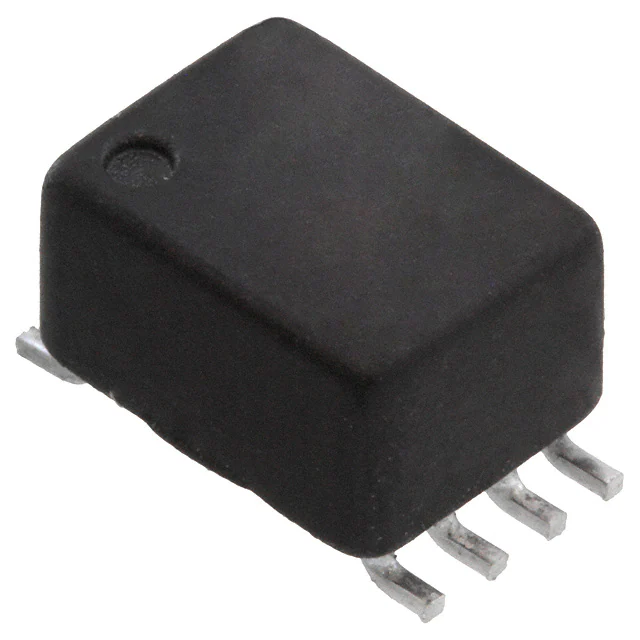

CMJ-4-102CMC 1MH 500MA 4LN SMD |
7,428 | 3.78 |
|
Datasheet |
Horizontal, 8 Flat Lead | Signal Line | 4 | - | 1 mH @ 100 kHz | 500mA | 310mOhm | - | - | 0°C ~ 70°C | - | - | - | - | - |
|

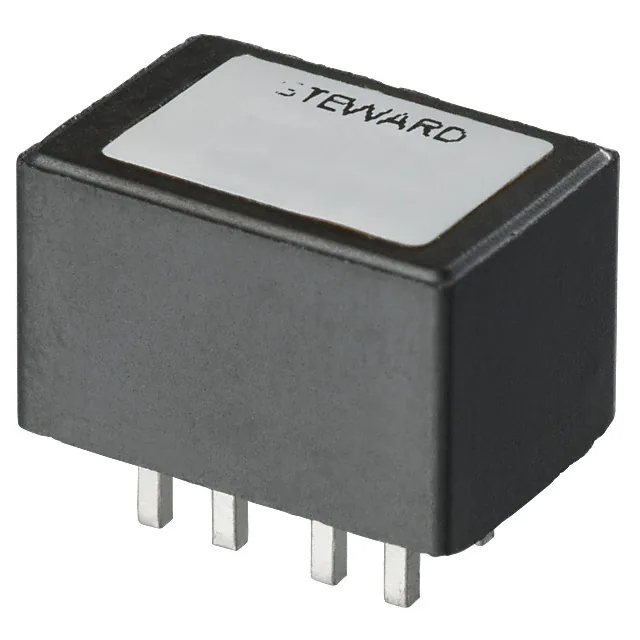

CM5740Z171B-10CMC 20A 4LN 170 OHM TH |
848 | 3.72 |
|
Datasheet |
Vertical, 8 PC Pin | Power Line | 4 | 170 Ohms @ 100 MHz | - | 20A | 1mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
