Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

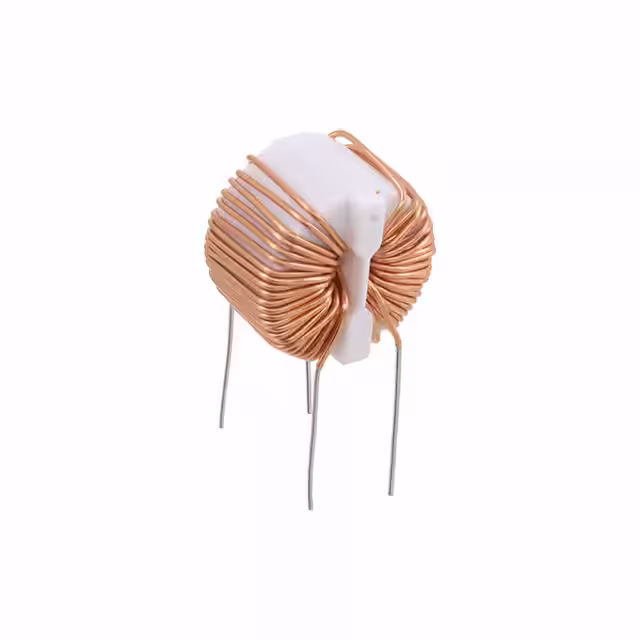

SC-04-500CMC 5MH 4A 2LN TH |
321 | 3.57 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 5 mH @ 10 kHz | 4A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
PAC6006.364NLTCMC 10A 2LN 1.6K OHM SMD |
101 | 3.53 |
|
Datasheet |
Horizontal, 4 J-Lead | - | 2 | 1.6 kOhms @ 5.5 MHz | - | 10A | 8mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
RN222-2.5-02-5M6CMC 5.6MH 2.5A 2LN TH |
8,240 | 2.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 5.6 mH @ 10 kHz | 2.5A | 110mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
|
RN222-2-02-6M8CMC 6.8MH 2A 2LN TH |
505 | 2.89 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 2A | 156mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

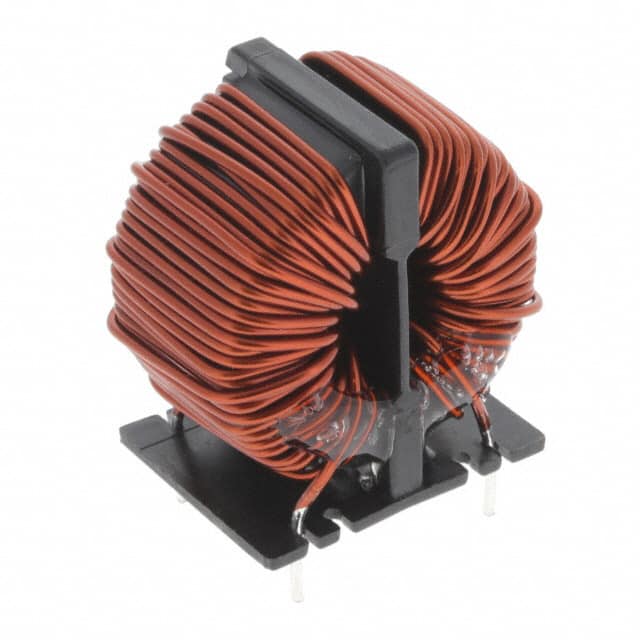

SC-05-100CMC 1MH 5A 2LN TH |
490 | 2.92 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SBS9080-509TCMC 900NH 5A 2LN SMD |
2,654 | 3.61 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 900 nH @ 100 kHz | 5A | 15mOhm | 50V | - | 25°C ~ 50°C | - | - | - | - | - |
|
SS30V-400021CMC 2.1MH 4A 2LN TH |
200 | 3.71 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2.1 mH @ 1 kHz | 4A | 70mOhm | - | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
|
RN222-3-02-4M5CMC 4.5MH 3A 2LN TH |
296 | 2.92 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.5 mH @ 10 kHz | 3A | 80mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
EH24-0.8-02-18MCMC 18MH 800MA 2LN TH |
181 | 3.00 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 18 mH @ 400 Hz | 800mA | 438mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|

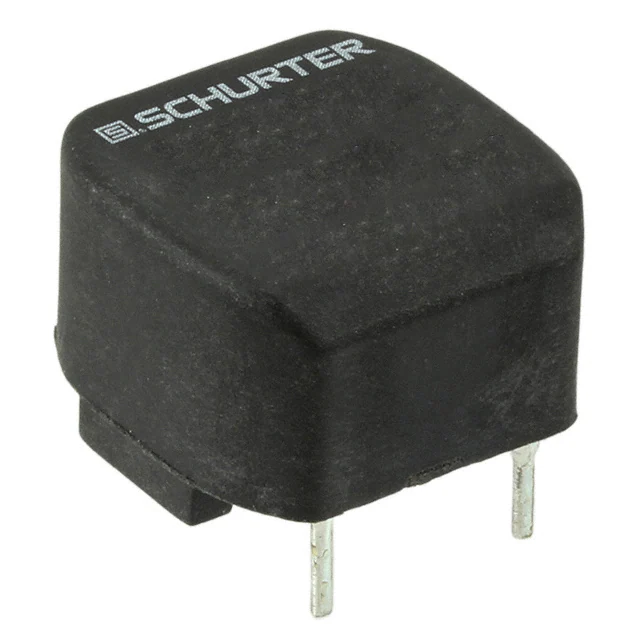

DFKF-18-0003CMC 1.2A 2LN TH |
6,236 | 3.20 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 1.2A | 200mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
B82734R2132B030CMC 47MH 1.3A 2LN TH |
1,850 | 4.51 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 47 mH @ 10 kHz | 1.3A | 560mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
B82734R2462B030CMC 3.3MH 4.6A 2LN TH |
210 | 4.51 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 4.6A | 46mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
|
DFKF-18-0001CMC 400MA 2LN TH |
102 | 3.20 |
|
Datasheet |
Radial - 4 Leads | - | 2 | - | - | 400mA | 1.2Ohm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|

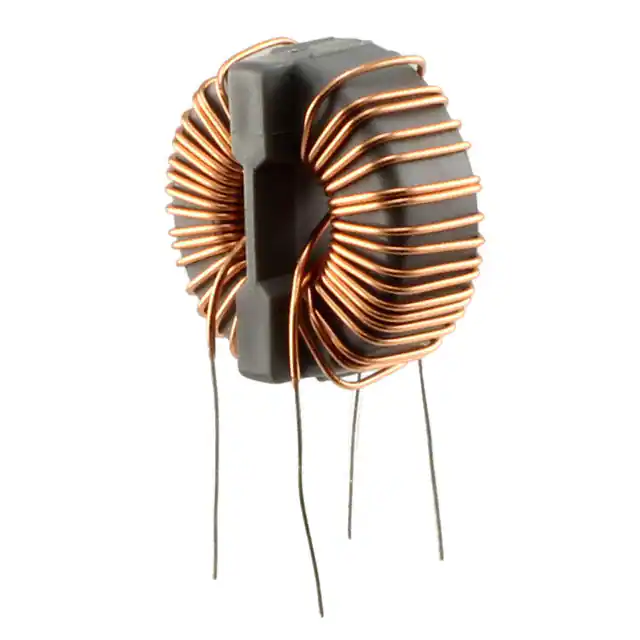

SC-02-D100CMC 100UH 2A 2LN TH |
415 | 2.93 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 100 µH @ 100 kHz | 2A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82791H2701N001CMC 4.7MH 700MA 2LN TH |
596 | 4.06 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 700mA | 440mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
744242110CMC 11UH 300MA 2LN 800 OHM SMD |
886 | 3.59 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | 800 Ohms @ 135 MHz | 11 µH @ 100 kHz | 300mA | 180mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
744242330CMC 33UH 300MA 2LN 2K OHM SMD |
155 | 3.59 |
|
Datasheet |
Horizontal, 4 Flat Lead | Power, Signal Line | 2 | 2 kOhms @ 50 MHz | 33 µH @ 100 kHz | 300mA | 270mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
B82721S0282A030CMC 1.47MH 2.8A 2LN SMD |
169 | 7.19 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 1.47 mH @ 10 kHz | 2.8A | 59mOhm | 80V | 48V | - | - | - | - | - | - |
|
M-543CTCMC 1A 4LN 700 OHM SMD |
3,534 | 3.78 |
|
Datasheet |
- | Signal Line | 4 | 700 Ohms @ 10 MHz | - | 1A | 100mOhm | 50V | - | -25°C ~ 85°C | - | - | - | - | - |
|
SSHB21HS-30013CMC 1.3MH 3A 2LN TH |
716 | 3.01 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.3 mH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
