Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

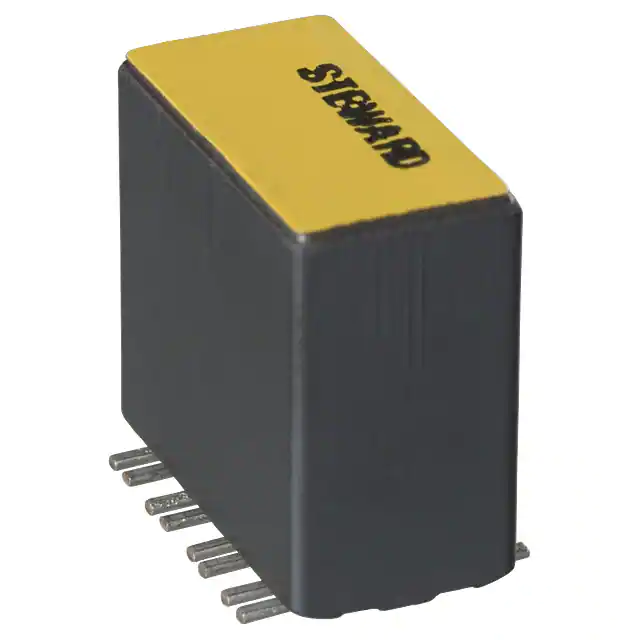

CM6032V301R-10CMC 8A 8LN 300 OHM SMD |
8,869 | 6.32 |
|
Datasheet |
Vertical, 16 Flat Lead | Power Line | 8 | 300 Ohms @ 100 MHz | - | 8A | 10mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
TCK-138CMC 16.1UH 2LN SMD |
275 | 6.29 |
|
Datasheet |
Horizontal, 4 Gull Wing | - | 2 | - | 16.1 µH @ 100 kHz | - | 10.5mOhm | - | - | - | - | - | - | - | - |
|
TCK-064CMC 1.186MH 2LN TH |
204 | 6.29 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 1.186 mH @ 100 kHz | - | - | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-075CMC 33.3UH 4A 2LN TH |
193 | 6.29 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 33.3 µH @ 100 kHz | 4A | 8.5mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-140CMC 137.5UH 2LN SMD |
117 | 6.29 |
|
Datasheet |
Horizontal, 4 Gull Wing | - | 2 | - | 137.5 µH @ 100 kHz | - | 55mOhm | - | - | - | - | - | - | - | - |
|
744834433CMC 3.3MH 5A 2LN TH |
649 | 6.72 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 10 kHz | 5A | 37mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

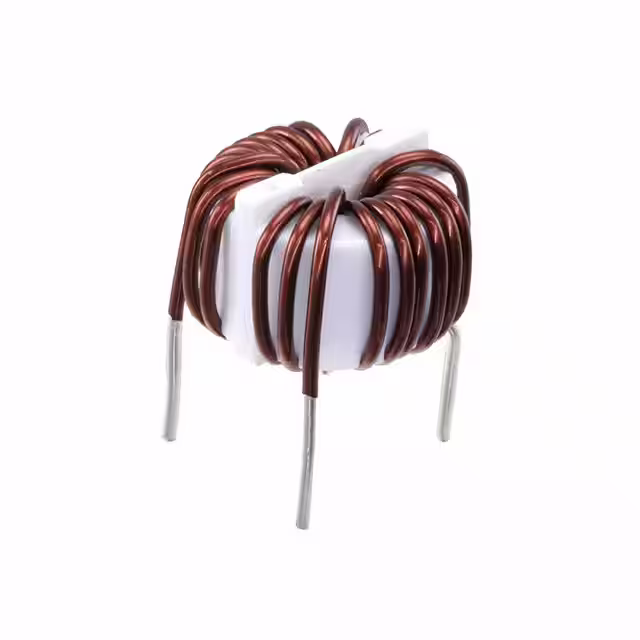

SC-18-100CMC 700UH 18A 2LN TH |
123 | 7.02 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 18A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

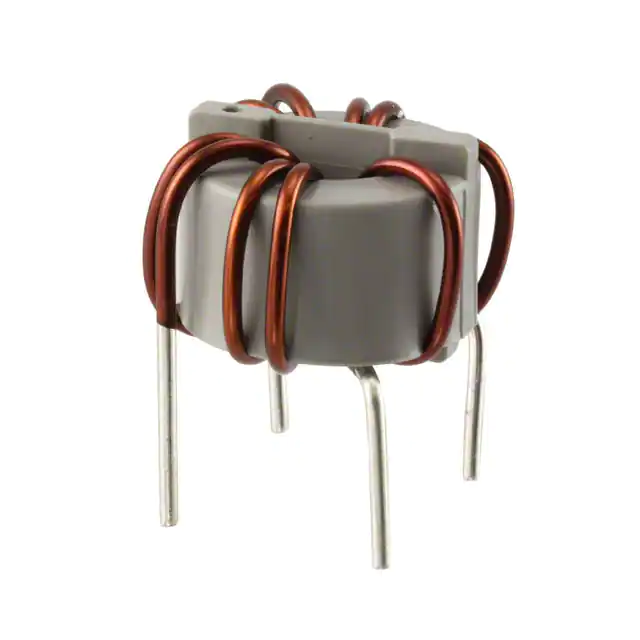

SC-20-D010CMC 10UH 20A 2LN TH |
726 | 6.06 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | 20A | 8mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

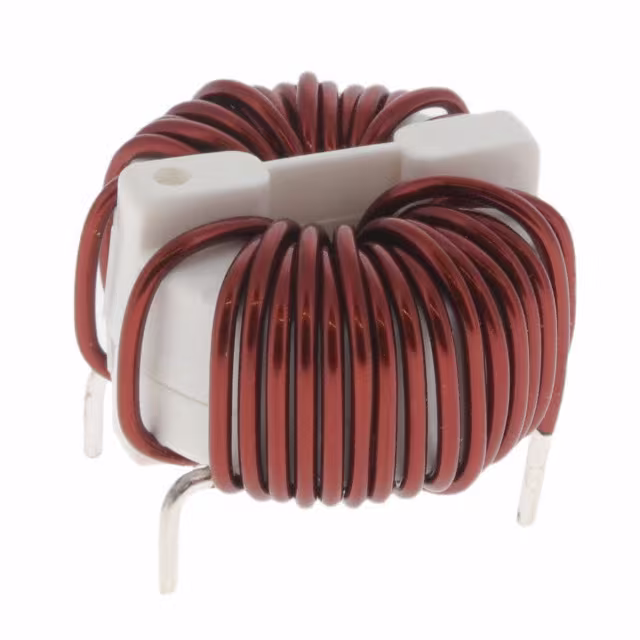

SC22-08-100CMC 1MH 8A 2LN TH |
248 | 7.07 |
|
Datasheet |
Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 8A | 20mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

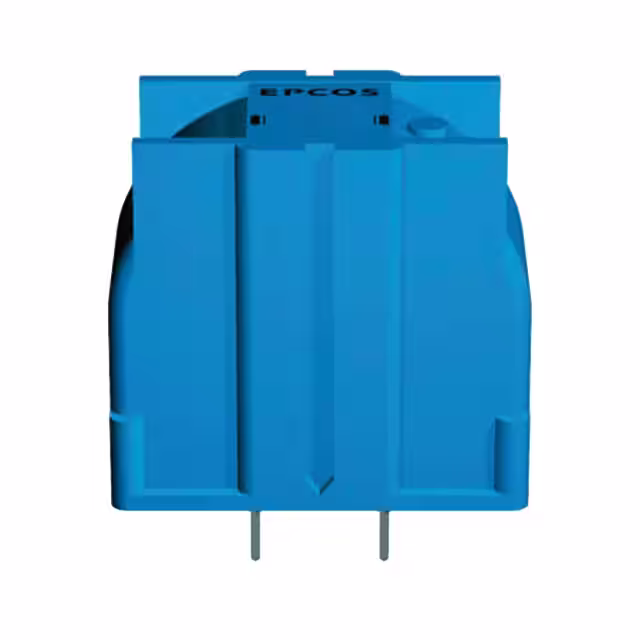

B82725J2402N020CMC 6.8MH 4A 2LN TH |
203 | 8.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4A | 75mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

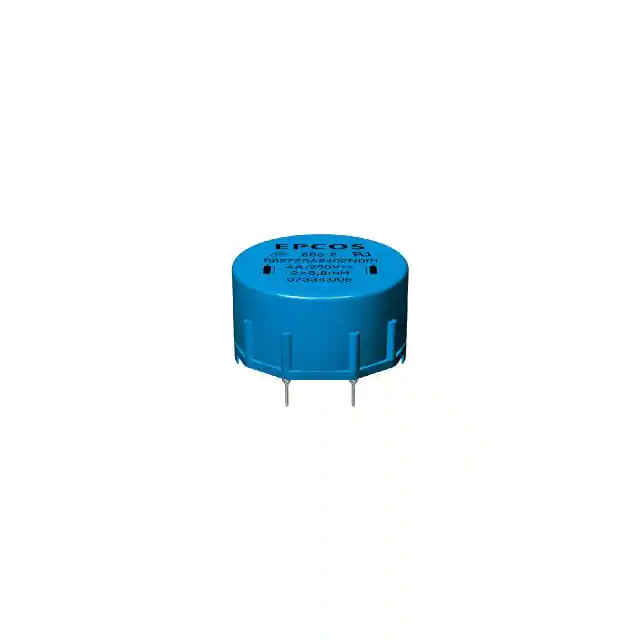

B82725A2123N001CMC 1MH 12A 2LN TH |
366 | 8.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 12A | 11mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

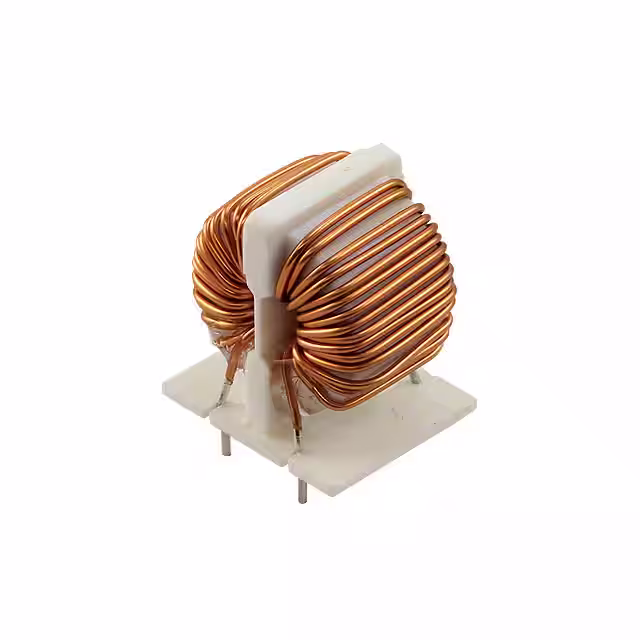

SC-05-10JCMC 1MH 5A 2LN TH |
642 | 6.36 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-04-E2000CMC 20.3MH 4A 2LN TH |
159 | 7.39 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 20.3 mH @ 10 kHz | 4A | 150mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
B82725A2602N001CMC 3.9MH 6A 2LN TH |
594 | 8.24 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 6A | 40mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

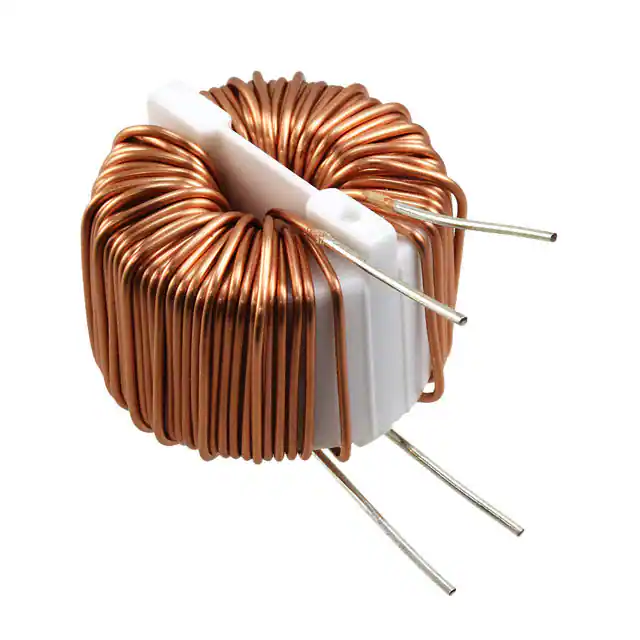

SC-05-800CMC 8MH 4A 2LN TH |
207 | 6.41 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 8 mH @ 100 kHz | 4A | 85mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82725J2103N022CMC 1.8MH 10A 2LN TH |
1,476 | 8.24 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.8 mH @ 10 kHz | 10A | 13mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|

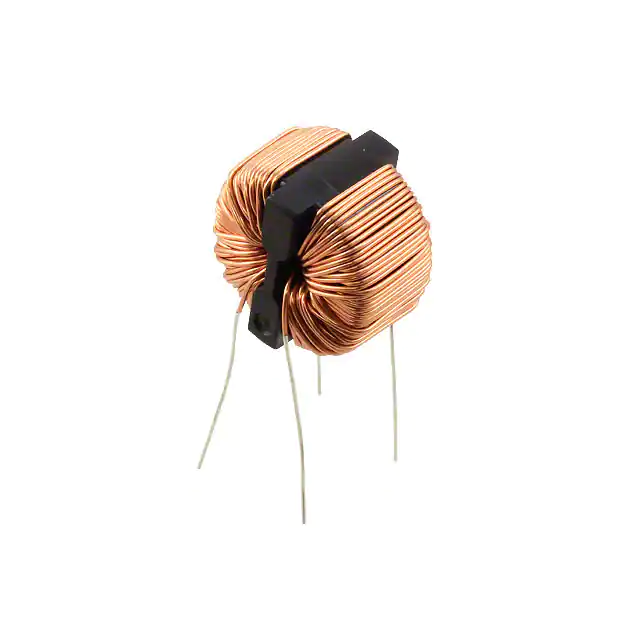

SCF-01-5000CMC 50MH 1A 2LN TH |
1,317 | 6.75 |
|
Datasheet |
Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 50 mH @ 10 kHz | 1A | 390mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

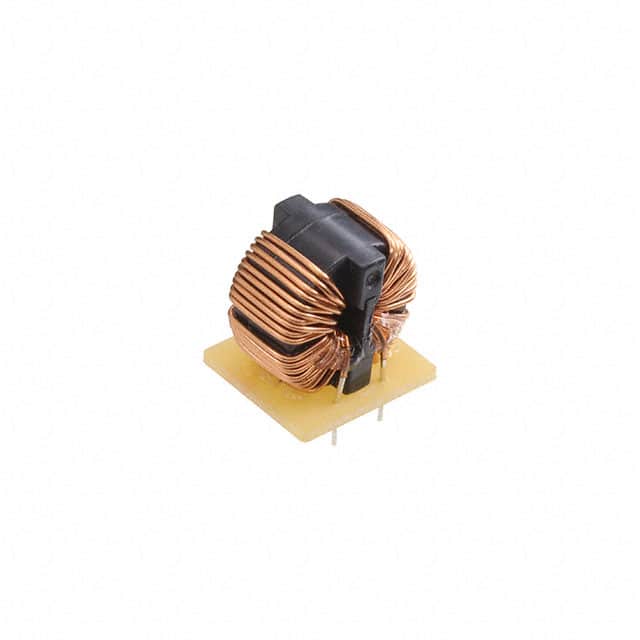

SCF-02-130JVCMC 13MH 2A 2LN TH |
266 | 7.77 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 13 mH @ 10 kHz | 2A | 115mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
RN152-4-02-6M8CMC 6.8MH 4A 2LN TH |
361 | 6.63 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 10 kHz | 4A | 87mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|
7446630027CMC 27MH 600MA 2LN SMD |
583 | 8.00 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 27 mH @ 10 kHz | 600mA | 1.2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
