Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7446631010CMC 10MH 1A 2LN SMD |
195 | 7.50 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 10 mH @ 10 kHz | 1A | 550mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446630039CMC 39MH 550MA 2LN SMD |
135 | 7.50 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 39 mH @ 10 kHz | 550mA | 1.7Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

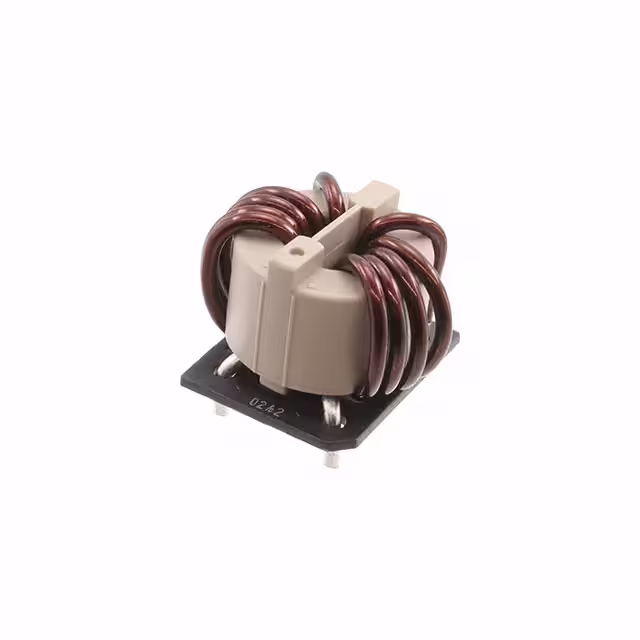

SC-35-D010JHCMC 10UH 35A 2LN TH |
273 | 8.60 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 10 µH @ 100 kHz | 35A | 1.8mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
LDFL004272VS-V0ECMC 2.7MH 3.5A 2LN TH |
157 | 8.29 |
|
Datasheet |
Radial, Vertical (Open) | Power, Signal Line | 2 | - | 2.7 mH @ 100 kHz | 3.5A | 38mOhm | 250V | - | - | - | - | - | - | - |
|

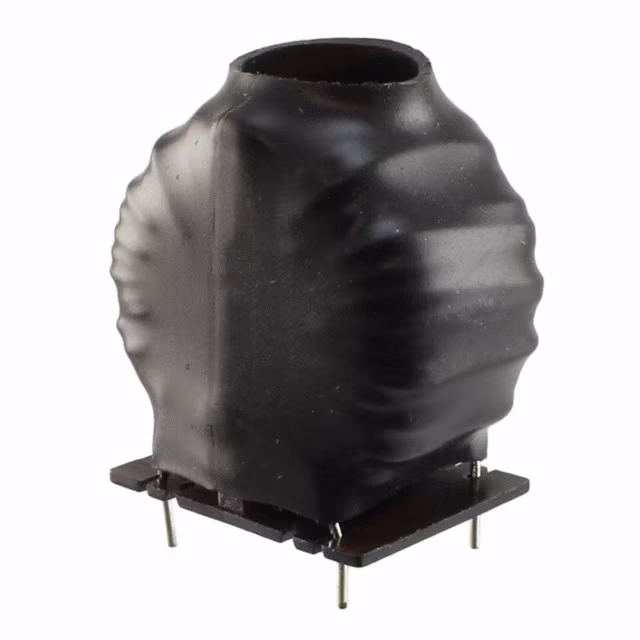

SC-04-200JVCMC 29MH 5A 2LN TH |
1,725 | 7.74 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 29 mH @ 16 kHz | 5A | 100mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
B82615B2502M001CMC 1MH 5A 2LN TH PFC |
230 | 10.91 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 5A | 150mOhm (Typ) | 350V | 250V | -40°C ~ 125°C | - | - | PFC | - | - |
|
SC-10-20JCMC 2MH 10A 2LN TH |
814 | 10.49 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 10A | 22mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-087CMC 224UH 2LN TH |
104 | 7.71 |
|
Datasheet |
Horizontal, 4 PC Pin | - | 2 | - | 224 µH @ 100 kHz | - | - | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
CMC-09CMC 3.3A 2LN TH |
233 | 9.91 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 3.3A | 10mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|

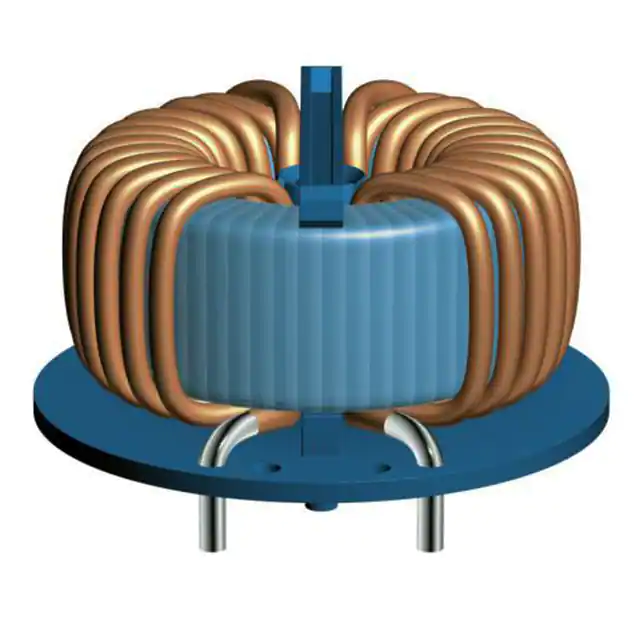

B82725S2602N002CMC 3.9MH 6A 2LN TH |
176 | 9.86 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 3.9 mH @ 10 kHz | 6A | 24mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

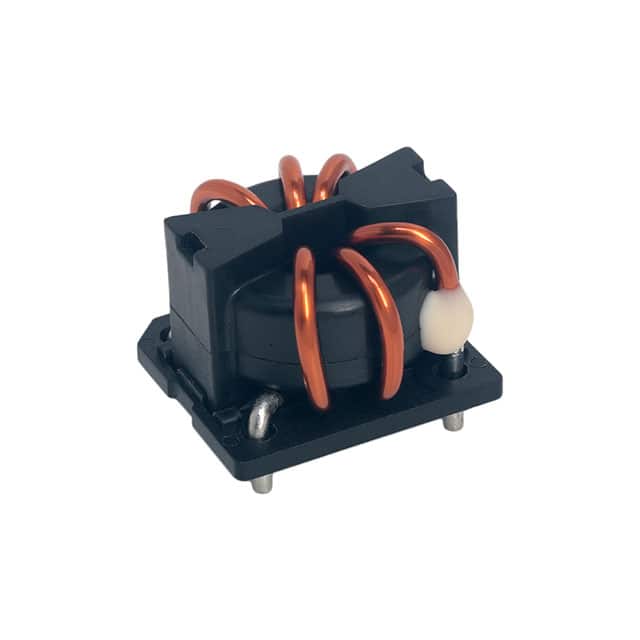

SCR19XV-300-1R9A003JHCMC 56UH 30A 2LN TH AEC-Q200 |
253 | 8.98 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 56 µH @ 100 kHz | 30A | 0.767mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
|
SCR19XV-100-1R1A009JHCMC 500UH 10A 2LN TH AEC-Q200 |
198 | 8.98 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 500 µH @ 100 kHz | 10A | 6.23mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-100-1R1A009JHCMC 300UH 10A 2LN TH AEC-Q200 |
137 | 9.43 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 100 kHz | 10A | 6.23mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

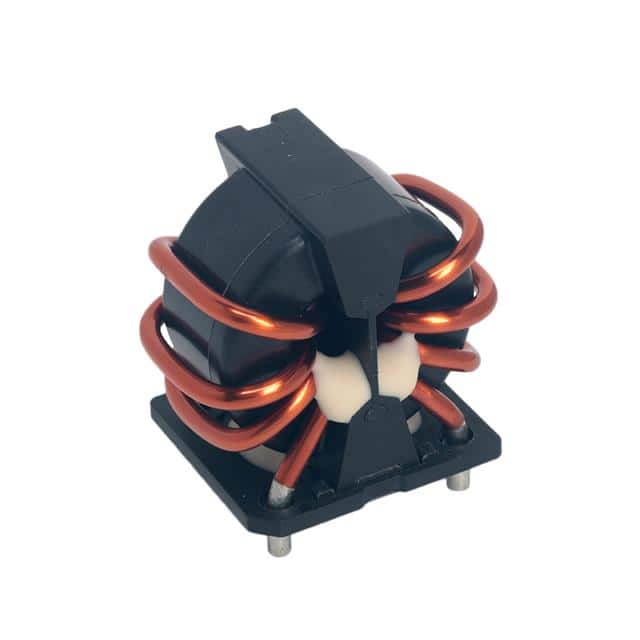

SCF25XV-220-1R9A007JVCMC 1.2MH 22A 2LN TH AEC-Q200 |
155 | 12.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 100 kHz | 22A | 2.35mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF25XV-050-1R0A027JVCMC 17.8MH 5A 2LN TH AEC-Q200 |
108 | 12.70 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 17.8 mH @ 100 kHz | 5A | 30.59mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

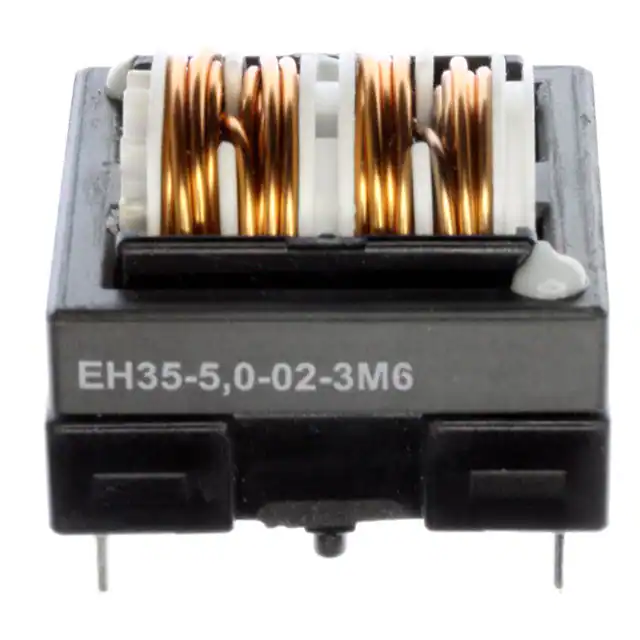

EH35-5.0-02-3M6CMC 3.6MH 5A 2LN TH |
250 | 7.36 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 3.6 mH @ 400 Hz | 5A | 33mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
|
CMT908-V3CMC 8MH 3.2A 2LN TH ESD |
291 | 9.11 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 3.2A | 120mOhm | - | 1500V (1.5kV) | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|
|
B82725S2602N041CMC 7.8MH 6A 2LN TH |
173 | 10.71 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.8 mH @ 10 kHz | 6A | 24mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744842742CMC 42UH 6.5A 2LN TH |
103 | 9.23 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 42 µH @ 100 kHz | 6.5A | 9mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
B82725V2103U041CMC 6.25MH 10A 2LN TH |
834 | 11.04 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 6.25 mH @ 10 kHz | 10A | 11mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
