Common Mode Chokes
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCT19XV-300-1R9A003JVCMC 33UH 30A 2LN TH AEC-Q200 |
392 | 9.43 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 µH @ 100 kHz | 30A | 0.747mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCT19XV-300-1R9A003JHCMC 33UH 30A 2LN TH AEC-Q200 |
150 | 9.43 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 33 µH @ 100 kHz | 30A | 0.767mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF12-025-1100JCMC 11.9MH 2.5A 2LN TH |
1,080 | 9.84 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11.9 mH @ 10 kHz | 2.5A | 82.6mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCF19XV-150-1R3A006JHCMC 440UH 15A 2LN TH AEC-Q200 |
144 | 10.01 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 440 µH @ 100 kHz | 15A | 3.01mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF19XV-220-1R6A004JHCMC 200UH 22A 2LN TH AEC-Q200 |
119 | 10.01 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 200 µH @ 100 kHz | 22A | 1.43mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
744842311CMC 110UH 3A 2LN TH |
960 | 9.60 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 110 µH @ 100 kHz | 3A | 34.1mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
CMX1211Z601B-10CMC 620UH 20A 2LN SMD |
528 | 8.89 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | 620 µH @ 100 kHz | 20A | 3.5mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

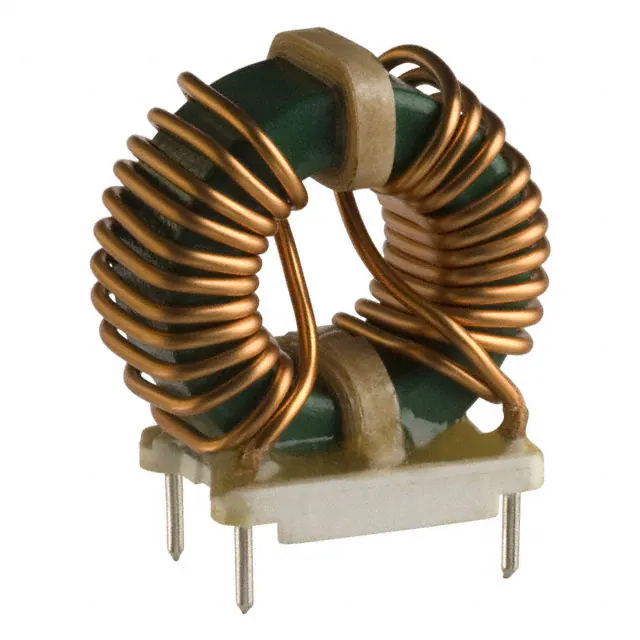

8115-RCCMC 1.2MH 16A 2LN TH |
1,032 | 11.27 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | - | 1.2 mH @ 1 kHz | 16A | 6mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|

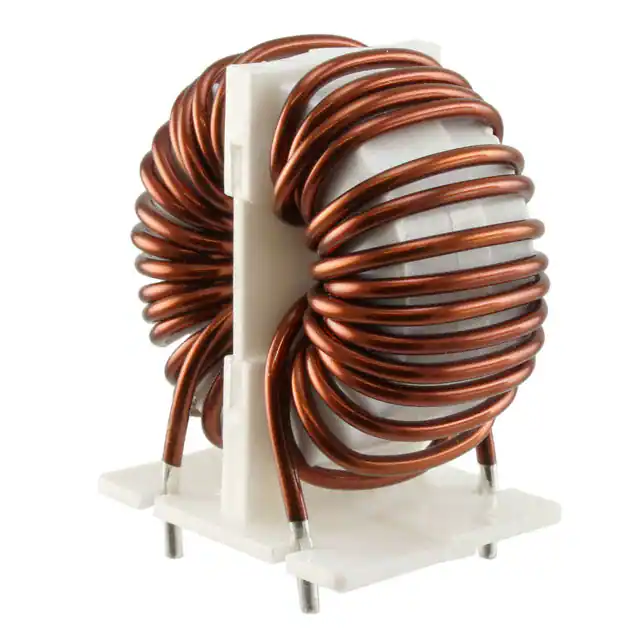

SC-15-10JCMC 1MH 15A 2LN TH |
394 | 9.33 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 15A | 12mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
T60405R6126X216CMC 1.28MH 16A 2LN 1.3K OHM TH |
2,456 | 11.60 |
|
Datasheet |
Vertical, 4 PC Pin | - | 2 | 1.3 kOhms @ 100 kHz | 1.28 mH @ 100 kHz | 16A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

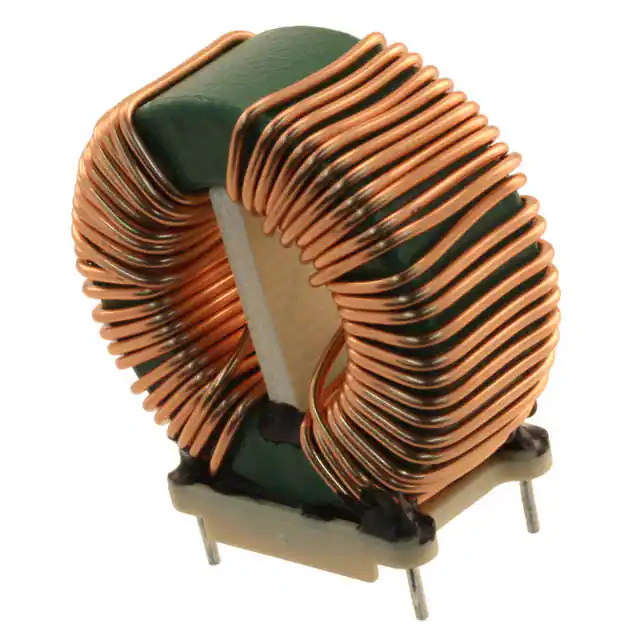

CMT-8118CMC 7.3MH 9.3A 2LN TH ESD |
1,776 | 10.08 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 7.3 mH @ 1 kHz | 9.3A | 32mOhm | - | 1500V (1.5kV) | -55°C ~ 105°C | - | CSA, IEC, UL, VDE | - | - | - |
|
CMT908-H3CMC 8MH 3.2A 2LN TH ESD |
411 | 11.79 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 3.2A | 120mOhm | - | 250V | -40°C ~ 125°C | - | CSA, IEC, UL, VDE | - | - | - |
|

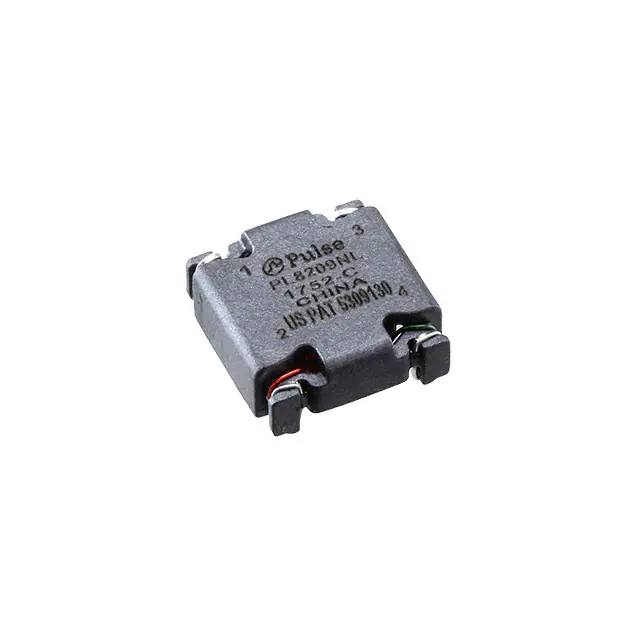

PL8209NLCMC 1.63A 2LN SMD |
170 | 9.42 |
|
Datasheet |
Horizontal, 4 PC Pad | Power Line | 2 | - | - | 1.63A | 110mOhm | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
7448011008CMC 8MH 1A 2LN TH |
224 | 10.20 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 10 kHz | 1A | 330mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

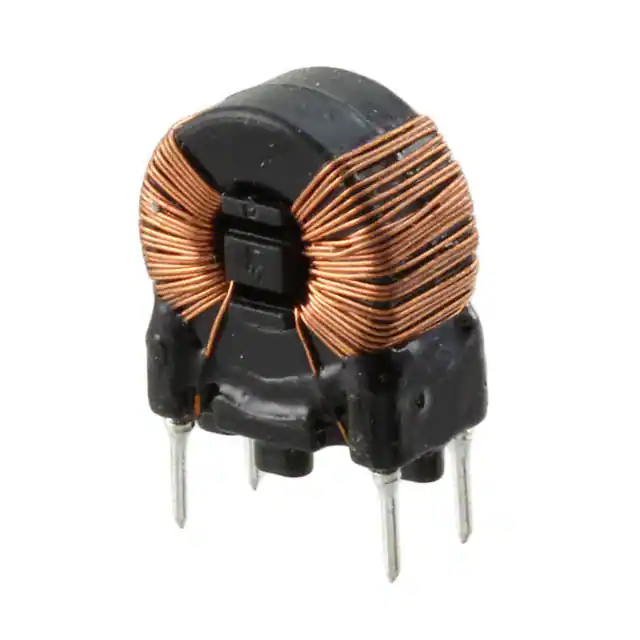

7448010911CMC 11MH 900MA 2LN TH |
138 | 10.20 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 11 mH @ 10 kHz | 900mA | 430mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
PH9408.644NLTCMC 19A 2LN 2.5K OHM SMD |
585 | 9.45 |
|
Datasheet |
Nonstandard | - | 2 | 2.5 kOhms @ 1.2 MHz | - | 19A | 5.6mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
PH9408.164NLTCMC 36A 2LN 400 OHM SMD |
427 | 9.45 |
|
Datasheet |
Nonstandard | - | 2 | 400 Ohms @ 1.76 MHz | - | 36A | 1.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
CMC-08CMC 5.2A 2LN TH |
736 | 11.03 |
|
Datasheet |
Horizontal, 4 PC Pin | Power Line | 2 | - | - | 5.2A | 31mOhm | - | - | -40°C ~ 105°C | - | - | - | - | - |
|
B82726E6263A040CMC 600UH 26A 2LN TH |
1,148 | 12.25 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 100 kHz | 26A | 1.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | UR | - | - | - |
|

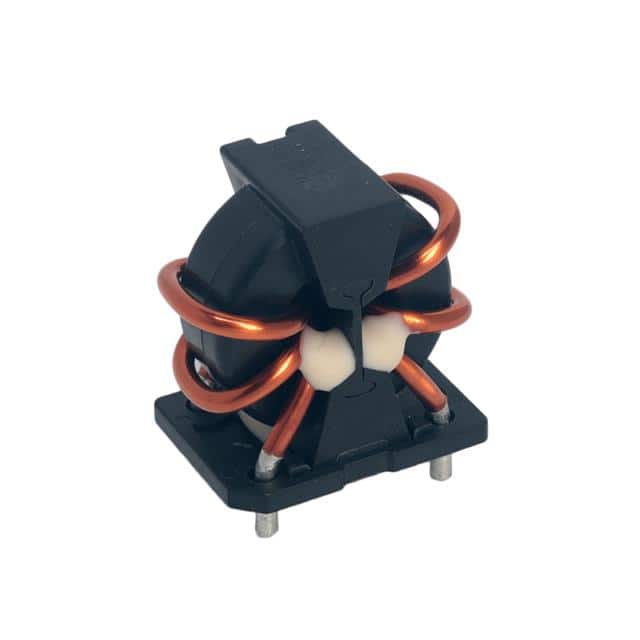

SCF19XV-080-1R0A011JVCMC 1.5MH 8A 2LN TH AEC-Q200 |
609 | 10.01 |
|
Datasheet |
Vertical, 4 PC Pin | Power Line | 2 | - | 1.5 mH @ 100 kHz | 8A | 8.7mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
