Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82801A1185A150CURR SENSE XFMR 1:150 SMD |
287 | 4.33 |
|
Datasheet |
B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 1.84 mH | 43.2VµS | 1:150 | - | 2.5mOhm Primary, 21Ohm Secondary | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
ECSTA1V0805-1050-RCURR SENSE XFMR 50:1 10A SMD |
350 | 3.02 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 500 µH | - | 50:1 | - | 700mOhm Primary, 1.85Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
|
ECSTA1V0805-1100-RCURR SENSE XFMR 100:1 10A SM |
344 | 3.02 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 2 mH | - | 100:1 | - | 700mOhm Primary, 5.5Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.330" L x 0.315" W (8.38mm x 8.00mm) | 0.217" (5.50mm) | Gull Wing |
|
SCS-1253KCURR SENSE XFMR 125:1 10A SMD |
1,000 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 3 mH | - | 125:1 | - | 700mOhm Primary, 11.5Ohm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
|
SCS-70980CURR SENSE XFMR 70:1 10A SMD |
1,000 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 10 A | 980 µH | - | 70:1 | - | 700mOhm Primary, 4.75Ohm Secondary Max | - | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
ECST1V0703-1070-RCURR SENSE XFMR 70:1 9A SMD |
350 | 3.34 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 9 A | 652 µH | - | 70:1 | - | 1.5mOhm Primary, 5.04Ohm Secondary Max | - | Surface Mount | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.118" (3.00mm) | J Lead |
|
|
ECST1V0703-1100-RCURR SENSE XFMR 100:1 9A SMD |
346 | 3.34 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 9 A | 1.33 mH | - | 100:1 | - | 1.5mOhm Primary, 10.68Ohm Secondary Max | - | Surface Mount | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.118" (3.00mm) | J Lead |
|
|
B82801A1134A040CURR SENSE XFMR SMD |
593 | 4.02 |
|
Datasheet |
B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 132 µH | - | - | - | - | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A1304A060CURR SENSE XFMR SMD |
533 | 4.02 |
|
Datasheet |
B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 295 µH | - | - | - | - | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
|
B82801A1214A050CURR SENSE XFMR SMD |
486 | 4.02 |
|
Datasheet |
B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 205 µH | - | - | - | - | - | Surface Mount | 0.185" L x 0.138" W (4.70mm x 3.50mm) | 0.138" (3.50mm) | J Lead |
|
PE-68280NLCURR SENSE XFMR 1:1:100 SMD |
870 | 3.78 |
|
Datasheet |
PE-68XXXNL | Tube | Active | 50kHz ~ 500kHz | Invasive | - | 14.8 mH | - | 1:1:100 | - | 1.15mOhm Primary, 930mOhm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|
|
ECSTA1V0703-1100-RCURR SENSE XFMR 100:1 9A SMD |
350 | 3.84 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 9 A | 1.33 mH | - | 100:1 | - | 1.5mOhm Primary, 10.68Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.118" (3.00mm) | J Lead |
|
|
ECSTA1V0703-1070-RCURR SENSE XFMR 70:1 9A SMD |
340 | 3.84 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 9 A | 652 µH | - | 70:1 | - | 1.5mOhm Primary, 5.04Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.283" L x 0.205" W (7.20mm x 5.20mm) | 0.118" (3.00mm) | J Lead |
|

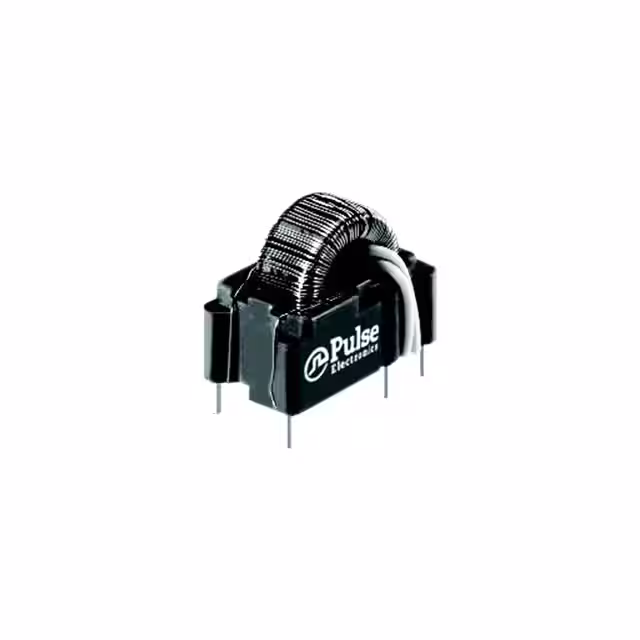

P0583NLCURR SENSE XFMR 50:1:1 36A T/H |
865 | 4.18 |
|
Datasheet |
THT | Tray | Active | 50kHz ~ 500kHz | Invasive | 36 A | 5 mH | - | 50:1:1 | - | 700mOhm Primary, 1.7mOhm Secondary | - | Through Hole | 0.810" L x 0.580" W (20.57mm x 14.73mm) | 0.750" (19.05mm) | PC Pin |
|
7492540070CURR SENSE XFMR 1:70 40A SMD |
180 | 3.91 |
|
Datasheet |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 2.74 mH | 173VµS | 1:70 | - | 0.28mOhm Primary, 367mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540030CURR SENSE XFMR 1:30 40A SMD |
419 | 4.28 |
|
Datasheet |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 504 µH | 74Vµs | 1:30 | - | 0.28mOhm Primary, 93mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
MR/C-01CURR SENSE XFMR 15A TH |
124 | 5.85 |
|
Datasheet |
MR/C | Bulk | Active | - | Invasive | 15 A | - | - | - | - | 30Ohm | - | Through Hole | 0.748" L x 0.689" W (19.00mm x 17.50mm) | 0.264" (6.70mm) | PC Pin |
|

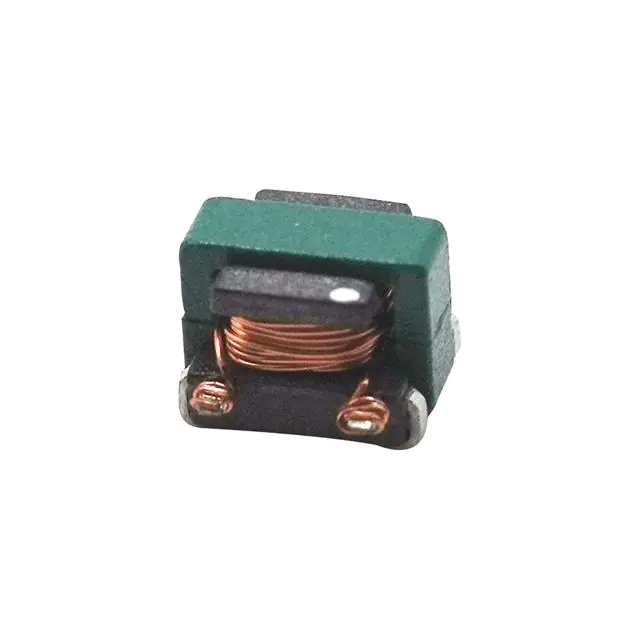

ECST1V0504-1070-RCURR SENSE XFMR 70:1 7A SMD |
350 | 5.45 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 400 µH | - | 70:1 | - | 3mOhm Primary, 4.6Ohm Secondary Max | - | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECST1V0504-1100-RCURR SENSE XFMR 100:1 7A SMD |
348 | 5.45 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 820 µH | - | 100:1 | - | 3mOhm Primary, 9.5Ohm Secondary Max | - | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECST1V0504-1050-RCURR SENSE XFMR 50:1 7A SMD |
348 | 5.45 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 205 µH | - | 50:1 | - | 3mOhm Primary, 2.5Ohm Secondary Max | - | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
