Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

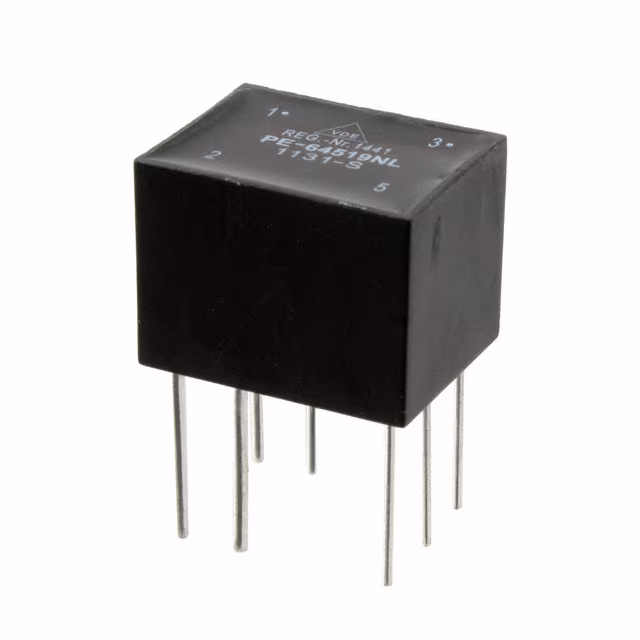

PE-64519NLCURR SENSE XFMR 20A T/H |
501 | 6.50 |
|
Datasheet |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 80 mH | - | - | 200CT:1 | 200Ohm Primary, 4.5Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
B78419A2290A003CURR SENSE XFMR 1:125 SMD |
200 | 7.12 |
|
Datasheet |
B78419 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 11 mH | - | 1:125 | - | 0.5mOhm Primary, 4Ohm Secondary | - | Surface Mount | 0.504" L x 0.535" W (12.80mm x 13.60mm) | 0.567" (14.40mm) | Gull Wing |
|
ECSTA1V0504-1070-RCURR SENSE XFMR 70:1 7A SMD |
350 | 6.26 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 400 µH | - | 70:1 | - | 3Ohm Primary, 4.6Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1100-RCURR SENSE XFMR 100:1 7A SMD |
349 | 6.26 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 820 µH | - | 100:1 | - | 3Ohm Primary, 9.5Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
ECSTA1V0504-1050-RCURR SENSE XFMR 50:1 7A SMD |
347 | 6.26 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 205 µH | - | 50:1 | - | 3Ohm Primary, 2.5Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.189" L x 0.144" W (4.80mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|

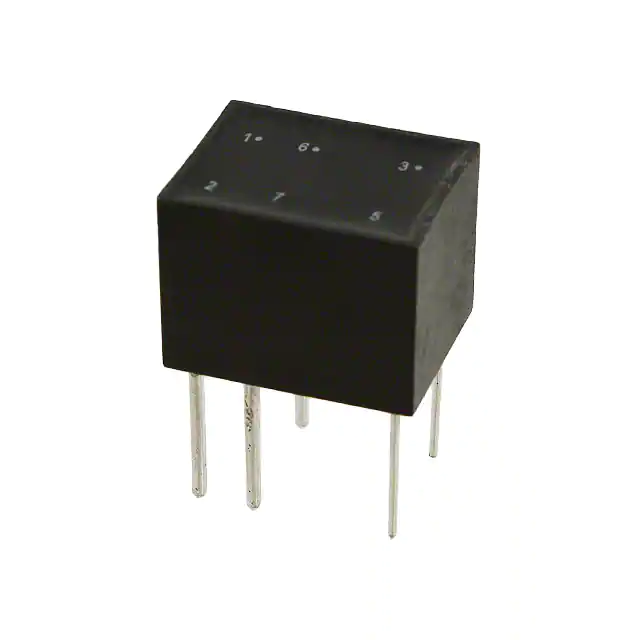

PE-64487NLCURR SENSE XFMR 20A T/H |
261 | 6.68 |
|
Datasheet |
THT | Tube | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | - | 100:1 | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
B78417A2286A003CURR SENSE XFMR 1:70 SMD |
295 | 7.28 |
|
Datasheet |
B78417 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 3 mH | - | 1:70 | - | 1.9mOhm Primary, 2.9Ohm Secondary | - | Surface Mount | 0.417" L x 0.480" W (10.60mm x 12.20mm) | 0.433" (11.00mm) | Gull Wing |
|
CT-1025CURR SENSE XFMR 25A T/H |
186 | 8.87 |
|
Datasheet |
CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 25 A | - | - | - | 1000:1 | 48Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|

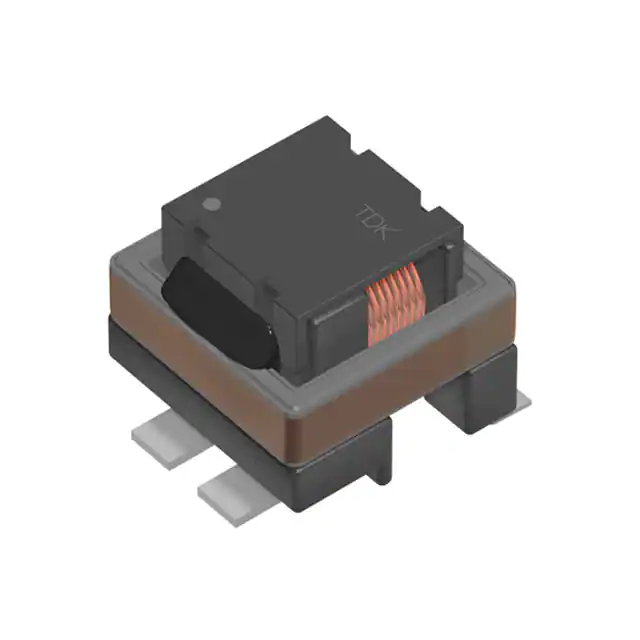

VST10/9EE-205S1C2CURRENT SENSE TRANSFORMERS, WOUN |
472 | 9.52 |
|
Datasheet |
VST | Tape & Reel (TR) | Active | - | Invasive | 20 A | 12.4 mH | - | 1:200 | - | - | - | Surface Mount | 0.476" L x 0.425" W (12.10mm x 10.80mm) | 0.394" (10.00mm) | Gull Wing |
|

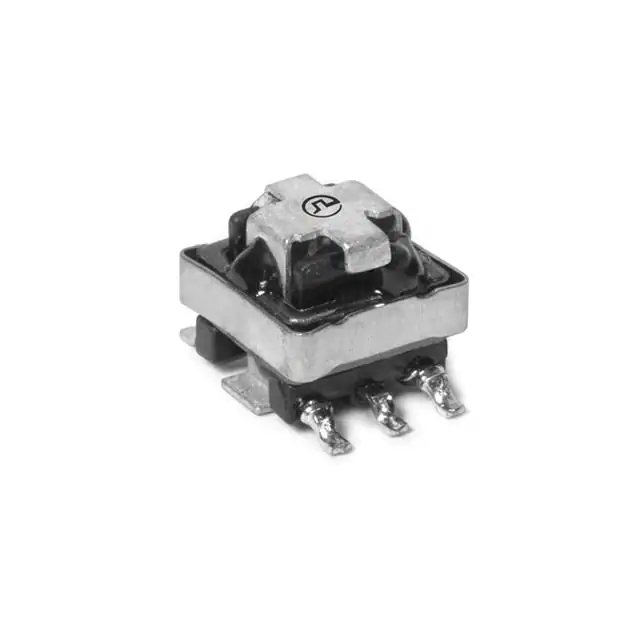

PM2165.050NLCURR SENSE XFMR 1:50 20A SMD |
431 | 0.88 |
|
Datasheet |
PM2165.XXXNL | Tray | Active | 20kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary, 1.5Ohm Secondary Max | AEC-Q200 | Surface Mount | - | 0.217" (5.50mm) | Gull Wing |
|
54050CCURR SENSE XFMR 1:1:50 15A SMD |
294 | 1.22 |
|
Datasheet |
5400 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 3.8 mH | - | 1:1:50 | - | 7mOhm Primary, 500mOhm Secondary | - | Surface Mount | 0.354" L x 0.425" W (9.00mm x 10.80mm) | 0.323" (8.20mm) | Gull Wing |
|
PA1005.060QNLCURR SENSE XFMR 1:60 20A SMD |
1,535 | 2.16 |
|
Datasheet |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 720 µH | - | 1:60 | - | 0.75mOhm Primary, 2.25Ohm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
54100CCURR SENSE XFMR 1:1:100 15A SMD |
147 | 1.44 |
|
Datasheet |
5400 | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 14.8 mH | - | 1:1:100 | - | 7mOhm Primary, 3.2Ohm Secondary | - | Surface Mount | 0.354" L x 0.425" W (9.00mm x 10.80mm) | 0.323" (8.20mm) | Gull Wing |
|
|
PA1005.050QNLCURR SENSE XFMR 1:50 20A SMD |
740 | 0.00 |
|
Datasheet |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary, 1.5Ohm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
RL-3410CURRENT SENSE XFMR 50:1 5-25KHZ |
200 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5kHz ~ 25kHz | Non-Invasive (Solid Core) | - | 5 mH | - | 1:50 | 50:1 | 700mOhm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
B82801B0984A070CURR SENSE XFMR 1:70 SMD |
700 | 1.70 |
|
Datasheet |
B82801B | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 980 µH | - | 1:70 | - | 0.8mOhm Primary, 4.75Ohm Secondary | - | Surface Mount | 0.280" L x 0.320" W (7.11mm x 8.13mm) | 0.200" (5.08mm) | Gull Wing |
|
|
RL-3420CURRENT SENSE XFMR 100:1 1.5-50K |
200 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5kHz ~ 50kHz | Non-Invasive (Solid Core) | - | 20 mH | - | 1:100 | 100:1 | 1.4Ohm | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
P8203NLTCURR SENSE XFMR 1:30 SMD |
1,918 | 2.95 |
|
Datasheet |
P820X | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 180 µH | - | 1:30 | - | 6mOhm Primary, 870mOhm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
RL-3430CURRENT SENSE XFMR 200:1 1-100KH |
193 | 0.00 |
|
Datasheet |
- | Bulk | Active | 1kHz ~ 100kHz | Non-Invasive (Solid Core) | - | 80 mH | - | 1:200 | 200:1 | 4.5Ohm Secondary | - | Through Hole | 0.670" L x 0.390" W (17.01mm x 9.90mm) | 0.800" (20.32mm) | PC Pin |
|
|
RL-7747-1000CURRENT SENSE XFMR 1000:1 TH |
1,000 | 0.00 |
|
Datasheet |
- | Bulk | Active | 47Hz ~ 400Hz | Invasive | 40 A | - | - | 1000:1 | 1:1000 | 0.3mOhm Primary, 86mOhm Secondary | - | Through Hole | 0.860" L x 0.850" W (21.84mm x 21.59mm) | 0.710" (18.03mm) | PC Pin |
