Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

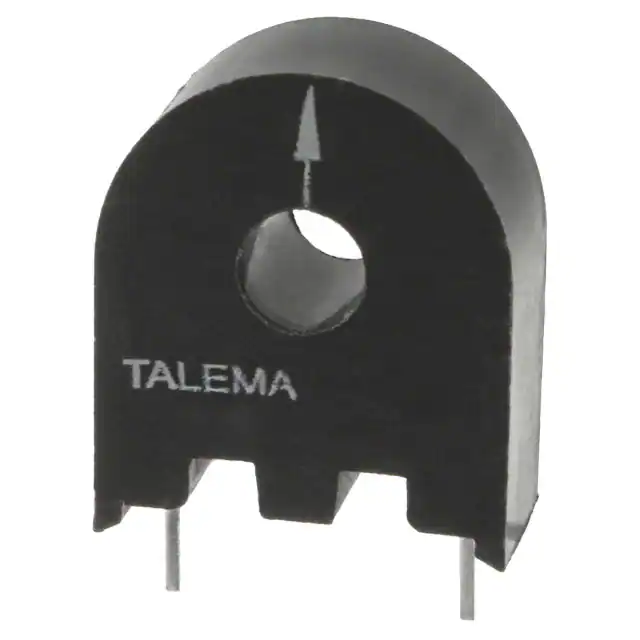

AS-103CURR SENSE XFMR 1:300 T/H |
385 | 1.63 |
|
Datasheet |
AS | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 250 mH | 900VµS | 1:300 | - | 10Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
PE-68210NLTCURR SENSE XFMR 1:1:50 SMD |
393 | 1.91 |
|
Datasheet |
PE-68XXXNL | Tape & Reel (TR) | Active | 50kHz ~ 500kHz | Invasive | - | 3.8 mH | - | 1:1:50 | - | 1.15mOhm Primary, 380mOhm Secondary | - | Surface Mount | 0.495" L x 0.490" W (12.57mm x 12.45mm) | 0.280" (7.11mm) | - |
|
RL-11385CURRENT SENSE XFMR 100:1 1.75MH |
1,000 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
B82801A1333A020CURR SENSE XFMR 1:20 SMD |
509 | 4.02 |
|
Datasheet |
B82801A | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | - | 33 µH | - | 1:20 | - | 2.5mOhm Primary, 320mOhm Secondary | - | Surface Mount | 0.138" L x 0.185" W (3.50mm x 4.70mm) | 0.138" (3.50mm) | J Lead |
|
AS-112CURR SENSE XFMR 1:200CT 15A T/H |
500 | 2.84 |
|
Datasheet |
AS | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 100 mH | 700VµS | 1:200CT | - | 2.25Ohm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
|
055650TRANSF CRNT SENSE 50:1 6MH |
120 | 0.00 |
|
Datasheet |
0556xx, Kaschke | Tray | Active | 10kHz ~ 300kHz | Invasive | - | 6 mH | 180VµS | - | - | 140Ohm | - | Through Hole | 1.063" L x 0.709" W (27.00mm x 18.00mm) | 0.689" (17.50mm) | PC Pin |
|
|
XZM-CT50A01CURRENT SENSE TRANSFORMER |
966 | 0.00 |
|
Datasheet |
XZM | Tray | Active | 50Hz ~ 60Hz | Invasive | 50 A | - | - | 1000:1 | - | - | - | Through Hole | 0.906" L x 0.906" W (23.00mm x 23.00mm) | 0.787" (20.00mm) | PC Pin |
|
|
055653TRANSF CRNT SENSE 300:1 216MH |
120 | 0.00 |
|
Datasheet |
0556xx, Kaschke | Tray | Active | 10kHz ~ 300kHz | Invasive | - | 216 mH | 1070VµS | - | - | 3.4Ohm | - | Through Hole | 1.063" L x 0.709" W (27.00mm x 18.00mm) | 0.689" (17.50mm) | PC Pin |
|
ASM-010CURR SENSE XFMR 10A T/H |
270 | 4.87 |
|
- |
ASM | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
|
|
RL-7747-500CURRENT SENSE XFMR 500:1 TH |
996 | 0.00 |
|
Datasheet |
- | Bulk | Active | 47Hz ~ 400Hz | Invasive | 40 A | - | - | 500:1 | 1:500 | 0.3mOhm Primary, 21mOhm Secondary | - | Through Hole | 0.860" L x 0.850" W (21.84mm x 21.59mm) | 0.710" (18.03mm) | PC Pin |
|
|
SCS-4-4-40T-TRSMD CURRENT TRANSFORMER 132H-TR |
1,997 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 132 µH | - | 40:1 | - | 3mOhm Primary, 1.6Ohm Secondary Max | - | Surface Mount | 0.185" L x 0.144" W (4.70mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
SCS-4-4-30T-TRSMD CURRENT TRANSFORMER 74H-TR |
1,995 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 74 µH | - | 30:1 | - | 3mOhm Primary, 800mOhm Secondary Max | - | Surface Mount | 0.185" L x 0.144" W (4.70mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
SCS-4-4-20T-TRSMD CURRENT TRANSFORMER 33H-TR |
1,989 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 33 µH | - | 20:1 | - | 3mOhm Primary, 350mOhm Secondary Max | - | Surface Mount | 0.185" L x 0.144" W (4.70mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
SCS-4-4-150T-TRSMD CURRENT TRANSFORMER 1800H-TR |
1,991 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 1.8 mH | - | 150:1 | - | 3mOhm Primary, 21Ohm Secondary Max | - | Surface Mount | 0.185" L x 0.144" W (4.70mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
SCS-4-4-125T-TRSMD CURRENT TRANSFORMER 1280H-TR |
1,978 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 1.28 mH | - | 125:1 | - | 3mOhm Primary, 13Ohm Secondary Max | - | Surface Mount | 0.185" L x 0.144" W (4.70mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
SCS-4-4-100T-TRSMD CURRENT TRANSFORMER 820H-TR |
1,448 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 820 µH | - | 100:1 | - | 3mOhm Primary, 9.5Ohm Secondary Max | - | Surface Mount | 0.185" L x 0.144" W (4.70mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
SCS-4-4-50T-TRSMD CURRENT TRANSFORMER 205H-TR |
1,992 | 0.00 |
|
Datasheet |
SCS | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 7 A | 205 µH | - | 50:1 | - | 3mOhm Primary, 2.5Ohm Secondary Max | - | Surface Mount | 0.185" L x 0.144" W (4.70mm x 3.65mm) | 0.140" (3.55mm) | J Lead |
|
|
055663TRANSF CRNT SENSE 100:1 3.1MH |
119 | 0.00 |
|
Datasheet |
0556xx, Kaschke | Tray | Active | 200kHz ~ 3MHz | Invasive | - | 3.1 mH | 360VµS | - | - | 470Ohm | - | Through Hole | 1.063" L x 0.709" W (27.00mm x 18.00mm) | 0.689" (17.50mm) | PC Pin |
|
|
055662TRANSF CRNT SENSE 50:1 0.77MH |
118 | 0.00 |
|
Datasheet |
0556xx, Kaschke | Tray | Active | 200kHz ~ 3MHz | Invasive | - | 770 µH | 180VµS | - | - | 140Ohm | - | Through Hole | 1.063" L x 0.709" W (27.00mm x 18.00mm) | 0.689" (17.50mm) | PC Pin |
|
|
AS-111CURR SENSE XFMR 1:100CT 15A T/H |
500 | 2.71 |
|
Datasheet |
AS | Bulk | Active | 20kHz ~ 200kHz | Non-Invasive (Solid Core) | - | 25 mH | 350VµS | 1:100CT | - | 550mOhm Max | - | Through Hole | 0.677" L x 0.375" W (17.20mm x 9.53mm) | 0.803" (20.40mm) | PC Pin |
