Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78419A2251A003CURR SENSE XFMR 1:100 SMD |
1,206 | 7.12 |
|
Datasheet |
B78419 | Tape & Reel (TR) | Active | 50kHz ~ 250kHz | Invasive | - | 7 mH | - | 1:100 | - | 0.5mOhm Primary, 3.1Ohm Secondary | - | Surface Mount | 0.504" L x 0.535" W (12.80mm x 13.60mm) | 0.567" (14.40mm) | Gull Wing |
|
101990065CURR SENSE XFMR 70A CHAS MNT |
4,488 | 6.90 |
|
Datasheet |
SCT013 | Bulk | Active | - | Non-Invasive (Split Core) | 70 A | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|
SPCT 50/30 200/5 A VA 3 CL 1-CU-ROHSCURR SENSE XFMR 200A DIN RAIL |
3,223 | 13.89 |
|
Datasheet |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | 200:5 | - | - | DIN Rail | 1.969" L x 1.693" W (50.00mm x 43.00mm) | 2.953" (75.00mm) | Terminal Block |
|
SPCT 62/40 400/5 A VA 3.75 CL 0.5-CU-ROHSCURR SENSE XFMR 400A DIN RAIL |
1,194 | 17.57 |
|
Datasheet |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 400 A | - | - | - | 400:5 | - | - | DIN Rail | 2.441" L x 1.811" W (62.00mm x 46.00mm) | 3.169" (80.50mm) | Terminal Block |
|

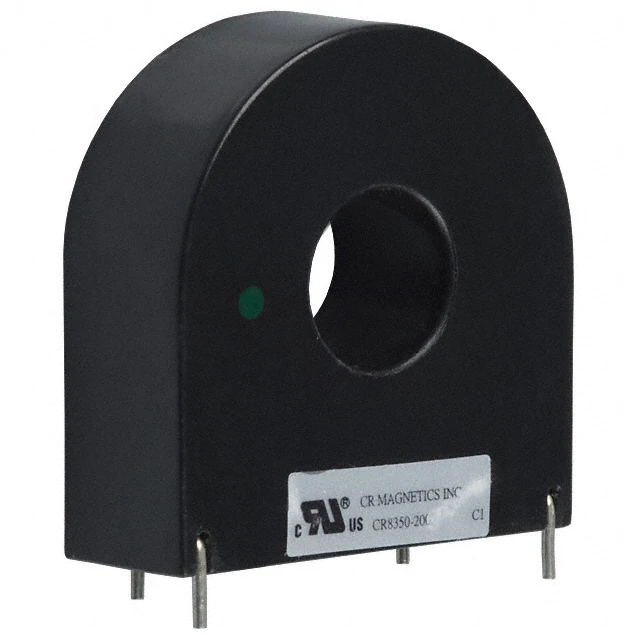

CR8350-2000CURR SENSE XFMR 200A T/H |
1,711 | 16.57 |
|
Datasheet |
CR8300 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Solid Core) | 200 A | - | - | - | 2000:1 | 73Ohm | - | Through Hole | 1.476" L x 0.551" W (37.50mm x 14.00mm) | 1.535" (39.00mm) | PC Pin |
|

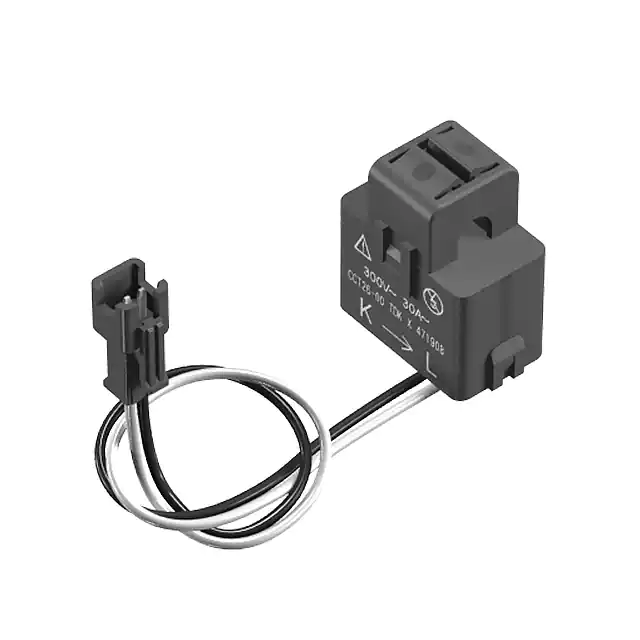

CCT261631-30-06-00CURR SENSE XFMR 30A CHAS MNT |
2,639 | 20.04 |
|
Datasheet |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 30 A | - | - | - | 3000:1 | 492Ohm | - | Chassis Mount | 1.126" L x 0.728" W (28.60mm x 18.50mm) | 1.260" (32.00mm) | Wire Leads with Connector |
|
MODEL 19CURR SENSE XFMR IN-LINE |
2,226 | 15.82 |
|
Datasheet |
PH | Bulk | Active | 50Hz ~ 1kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.039" L x 0.949" W (26.40mm x 24.10mm) | 0.461" (11.70mm) | Wire Leads |
|
CBCT-35-1-CECORE BALANCE CURRENT TRANSFORMER |
3,589 | 0.00 |
|
Datasheet |
CBCT | Box | Active | - | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Panel Mount | 2.520" L x 2.067" W (64.00mm x 52.50mm) | 3.780" (96.00mm) | Terminal Block |
|

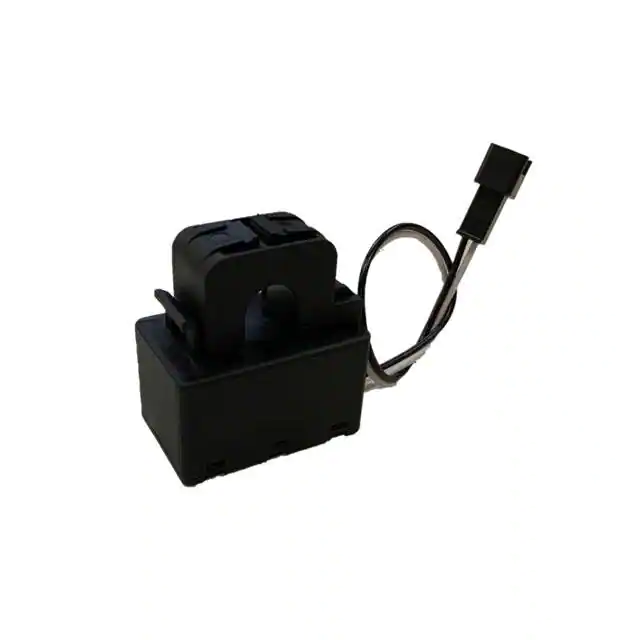

C/CT-0810CURR SENSE XFMR 3000:1 80A CHAS |
2,171 | 22.25 |
|
Datasheet |
C/CT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Split Core) | 80 A | - | - | 3000:1 | 3000:1 | - | - | Chassis Mount | 0.078" L x 0.050" W (35.30mm x 22.90mm) | 0.827" (37.50mm) | Wire Leads with Connector |
|

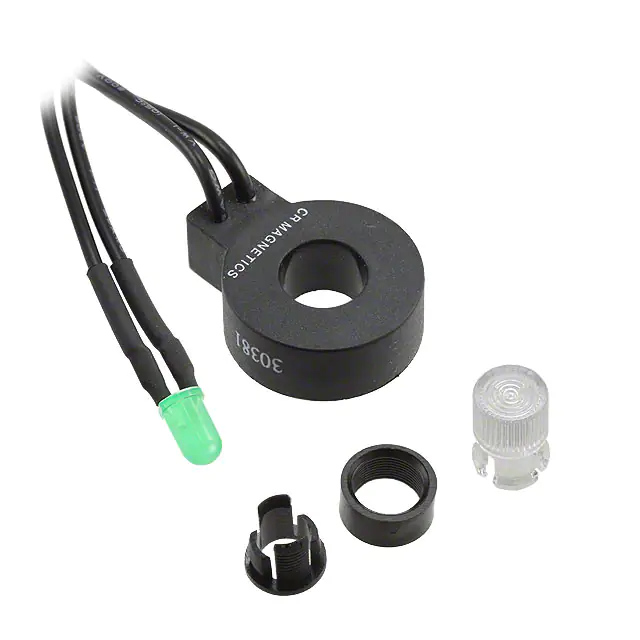

CR2550-GCURR SENSE XFMR IN-LINE |
4,121 | 18.96 |
|
Datasheet |
CR2550 | Bulk | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Free Hanging (In-Line) | 1.094" L x 0.866" W (27.80mm x 22.00mm) | - | - |
|
SPCT 62/22 30/5 A VA 1 CL 5-CU-ROHSCURR SENSE XFMR 30A DIN RAIL |
1,684 | 22.45 |
|
Datasheet |
SPCT | Box | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | 30:5 | - | - | DIN Rail | 2.441" L x 1.811" W (62.00mm x 46.00mm) | 3.169" (80.50mm) | Terminal Block |
|
|
CBCT-70-1-CECORE BALANCE CURRENT TRANSFORMER |
2,916 | 0.00 |
|
Datasheet |
CBCT | Box | Active | - | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Panel Mount | 3.858" L x 3.425" W (98.00mm x 87.00mm) | 5.157" (131.00mm) | Terminal Block |
|

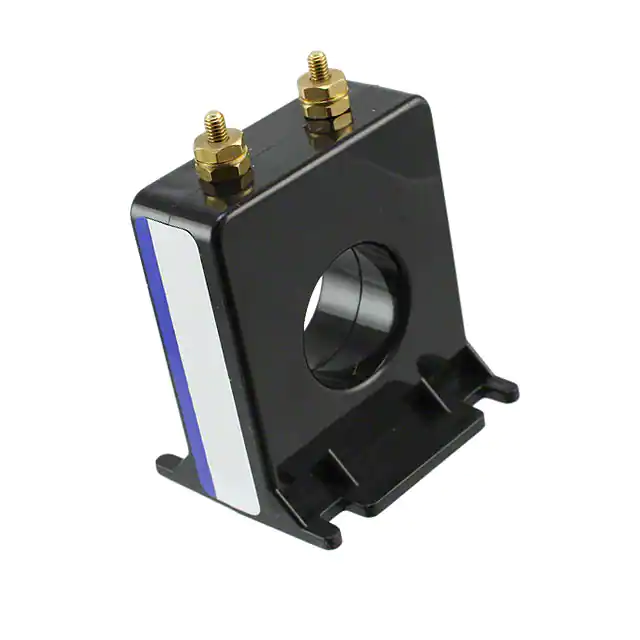

CR2SFT-101CURR SENSE XFMR 100A T/H |
3,942 | 18.89 |
|
Datasheet |
CR2 | Bulk | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 100 A | - | - | - | 100:5 | - | - | Chassis Mount | 2.681" L x 2.000" W (68.10mm x 44.50mm) | 2.681" (68.10mm) | Stud |
|
CR45-GCURR SENSE XFMR PANEL MOUNT |
1,403 | 19.14 |
|
Datasheet |
CR45 | Bulk | Active | 50Hz ~ 1kHz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Panel Mount | 0.949" L x 0.461" W (24.10mm x 11.70mm) | 1.039" (26.40mm) | - |
|

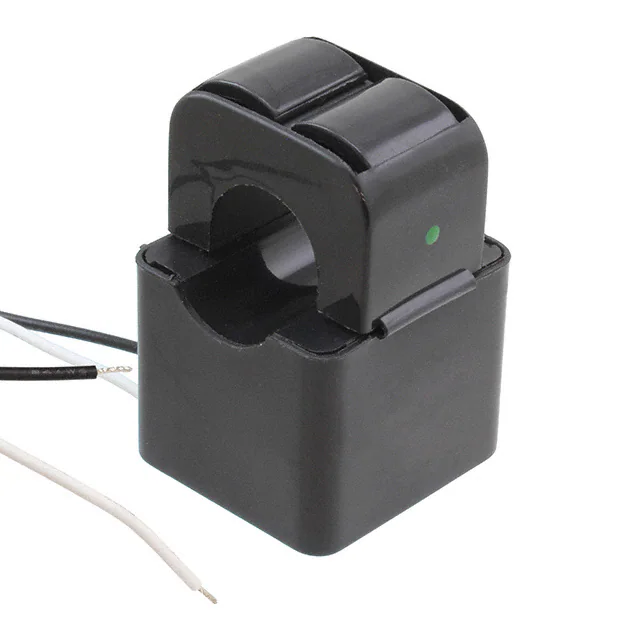

CR3111-3000CURR SENSE XFMR 100A IN-LINE |
2,070 | 25.57 |
|
Datasheet |
CR3100 | Bulk | Active | 20Hz ~ 1kHz | Non-Invasive (Split Core) | 100 A | - | - | - | - | 390Ohm | - | Free Hanging (In-Line) | 1.236" L x 1.220" W (31.40mm x 31.00mm) | 1.772" (45.00mm) | Wire Leads |
|

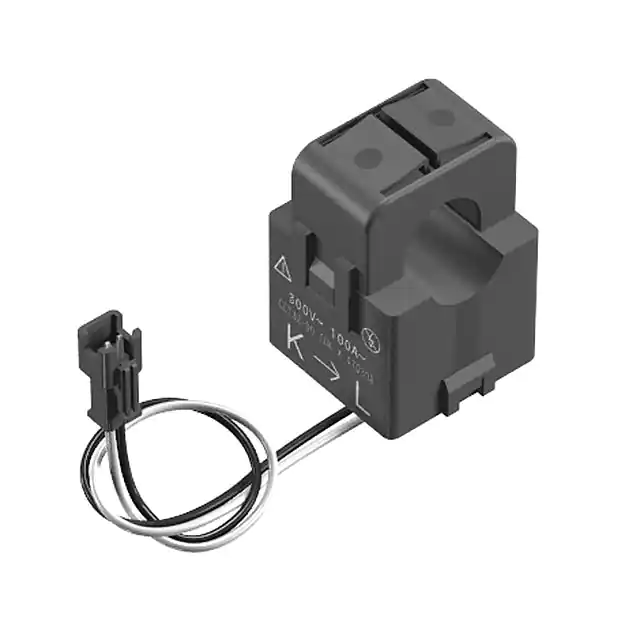

CCT323047-100-16-00CURR SENSE XFMR 100A CHAS MNT |
2,727 | 32.66 |
|
Datasheet |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 100 A | - | - | - | 3000:1 | 285Ohm | - | Chassis Mount | 1.378" L x 1.280" W (35.00mm x 32.50mm) | 1.870" (47.50mm) | Wire Leads with Connector |
|
TT 50-SDCURR SENSE XFMR |
2,388 | 32.71 |
|
Datasheet |
TT | Bulk | Not For New Designs | 50/60Hz | Non-Invasive (Split Core) | - | - | - | - | - | - | - | - | 1.280" L x 0.925" W (32.50mm x 23.50mm) | 1.693" (43.00mm) | PC Pin |
|
|
2277064CURR SENSE XFMR 1:20 100A DIN RL |
4,910 | 39.16 |
|
Datasheet |
PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 100 A | - | - | - | - | - | - | DIN Rail | 2.362" L x 1.181" W (60.00mm x 30.00mm) | 3.150" (80.00mm) | Terminal Block |
|

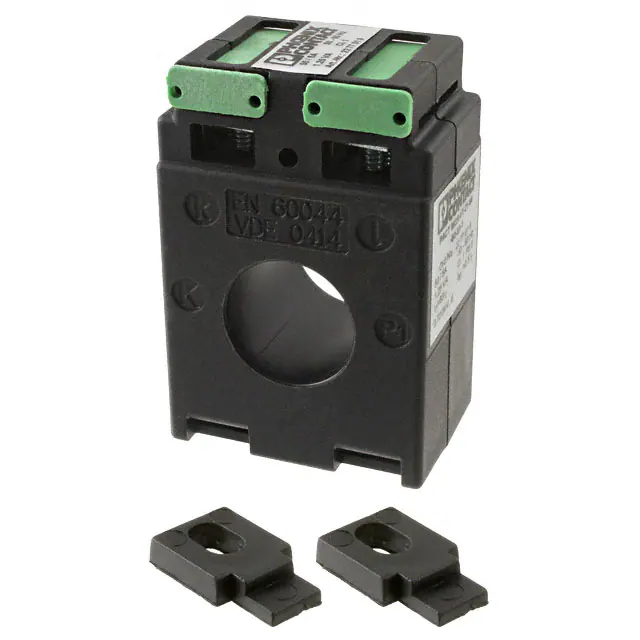

2277019CURR SENSE XFMR 1:10 50A DIN RL |
3,369 | 58.20 |
|
Datasheet |
PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | - | - | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
|
|
2277611CURR SENSE XFMR 75A DIN RAIL |
3,561 | 44.49 |
|
Datasheet |
- | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 75 A | - | - | - | - | - | - | DIN Rail | 1.732" L x 1.181" W (44.00mm x 30.00mm) | 2.598" (66.00mm) | Terminal Block |
