Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

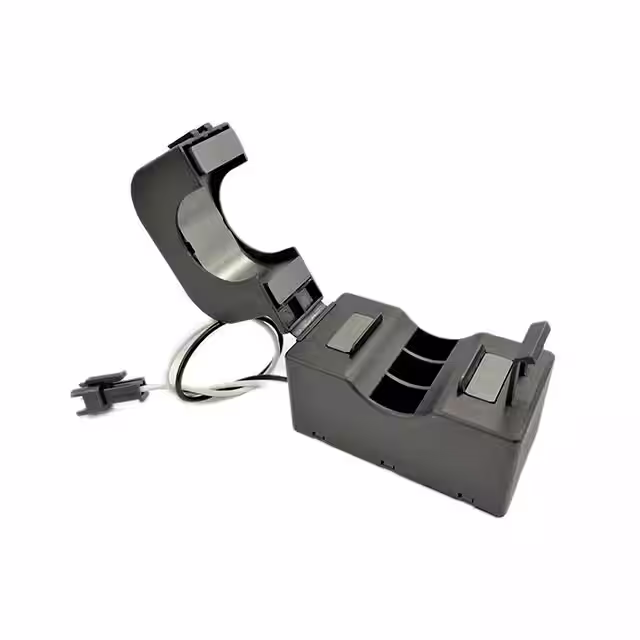

C/CT-2524CURR SENSE XFMR 250A CHAS MNT |
1,475 | 50.98 |
|
Datasheet |
C/CT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Split Core) | 250 A | - | - | - | 2000:1 | - | - | Chassis Mount | 2.276" L x 1.220" W (57.80mm x 31.00mm) | 2.161" (54.90mm) | Wire Leads with Connector |
|

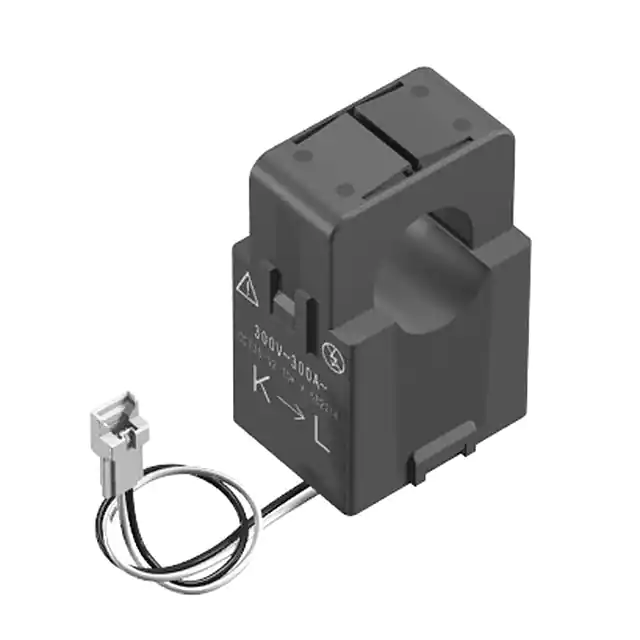

CCT354571-300-24-02CURR SENSE XFMR 300A CHAS MNT |
1,794 | 56.56 |
|
Datasheet |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 300 A | - | - | - | 3000:1 | 103Ohm | - | Chassis Mount | 1.909" L x 1.555" W (48.50mm x 39.50mm) | 2.835" (72.00mm) | Wire Leads with Connector |
|

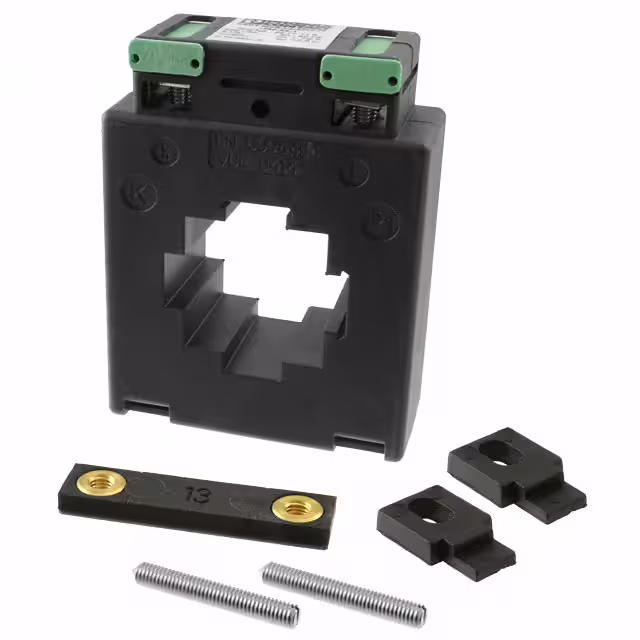

2277116CURR SENSE XFMR 1:50 250A DIN RL |
2,571 | 65.18 |
|
Datasheet |
PACT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 250 A | - | - | 1:50 | - | - | - | DIN Rail | 2.756" L x 1.181" W (70.00mm x 30.00mm) | 3.543" (90.00mm) | Terminal Block |
|
CT50ACURR SENSE XFMR 5A CHAS MNT |
4,716 | 57.36 |
|
Datasheet |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 50:5 | - | - | Chassis Mount | 3.750" L x 1.750" W (95.25mm x 44.45mm) | 3.250" (82.55mm) | Wire Leads |
|
|
CT300ACURR SENSE XFMR 5A CHAS MNT |
3,795 | 71.98 |
|
Datasheet |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 300:5 | - | - | Chassis Mount | 4.750" L x 1.750" W (120.65mm x 44.45mm) | 4.250" (107.95mm) | Wire Leads |
|

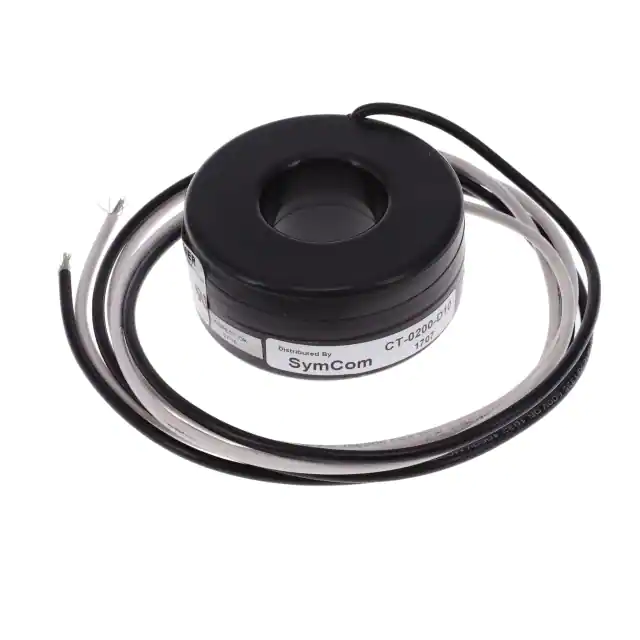

CT-0200-D10CURR SENSE XFMR 200:5 DONUT |
2,261 | 62.37 |
|
Datasheet |
CT | Bulk | Active | - | Non-Invasive (Solid Core) | 200 A | - | - | - | 200:5 | - | - | Free Hanging (In-Line) | - | - | Wire Leads |
|
CTD1X2005AXXXCURR SENSE XFMR 200A DIN RAIL |
1,638 | 0.00 |
|
Datasheet |
CTD-1X | Box | Active | 48Hz ~ 62Hz | Non-Invasive (Solid Core) | 200 A | - | - | - | - | - | - | DIN Rail | 1.811" L x 1.732" W (46.00mm x 44.00mm) | 2.567" (65.20mm) | Terminal Block |
|
CT020050CURR SENSE XFMR |
4,630 | 79.92 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 2.402" L x 2.000" W (61.00mm x 50.80mm) | 2.669" (67.80mm) | - |
|
CT005050CURR SENSE XFMR |
4,416 | 83.81 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | 2.402" L x 2.000" W (61.00mm x 50.80mm) | 2.669" (67.80mm) | - |
|
CT-0400-D20CURR SENSE XFMR 400:5 DONUT |
3,026 | 112.85 |
|
Datasheet |
CT | Bulk | Active | - | Non-Invasive (Solid Core) | 400 A | - | - | - | 400:5 | - | - | Free Hanging (In-Line) | - | - | Wire Leads |
|

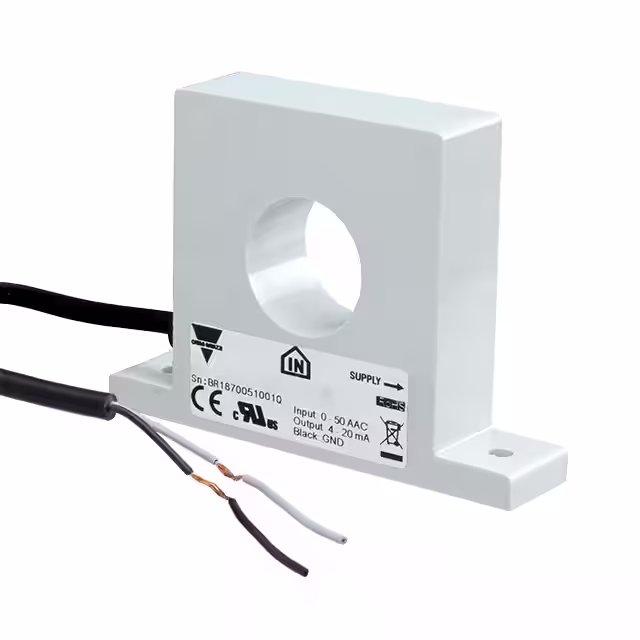

MI100CURR SENSE XFMR 100A CHAS MNT |
4,880 | 156.00 |
|
Datasheet |
- | Bag | Active | 40Hz ~ 1kHz | Non-Invasive (Solid Core) | 100 A | - | - | - | - | - | - | Chassis Mount | 3.740" L x 0.787" W (95.00mm x 20.00mm) | 2.657" (67.50mm) | Wire Leads |
|
2906231CURR SENSE XFMR 4000A DIN RAIL |
1,933 | 589.77 |
|
Datasheet |
- | Bulk | Active | 16Hz ~ 1kHz | Non-Invasive (Split Core) | 4000 A | - | - | - | - | - | - | DIN Rail | 4.744" L x 0.244" W (120.50mm x 6.20mm) | 4.350" (110.50mm) | Terminal Block |
|
P8228NLCURR SENSE XFMR 1:100 10A SMD |
2,795 | 0.00 |
|
Datasheet |
P822X | Tray | Active | 50kHz ~ 1MHz | Invasive | 10 A | 2 mH | - | 1:100 | - | 6mOhm Primary, 5.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.190" (4.83mm) | Gull Wing |
|
PA1005.050NLCURR SENSE XFMR 1:50 20A SMD |
491 | 0.00 |
|
Datasheet |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 500 µH | - | 1:50 | - | 0.75mOhm Primary, 1.5Ohm Secondary | - | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
7492540150CURR SENSE XFMR 1:150 40A SMD |
3,385 | 3.91 |
|
Datasheet |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 12.6 mH | 372Vµs | 1:150 | - | 0.28mOhm Primary, 1.9Ohm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|
|
7492540060CURR SENSE XFMR 1:60 40A SMD |
2,501 | 3.91 |
|
Datasheet |
MID-CST | Tape & Reel (TR) | Active | 1MHz | Invasive | 40 A | 2 mH | 148Vµs | 1:60 | - | 0.28mOhm Primary, 305mOhm Secondary | AEC-Q200 | Surface Mount | 0.570" L x 0.524" W (14.48mm x 13.30mm) | 0.413" (10.50mm) | Gull Wing |
|

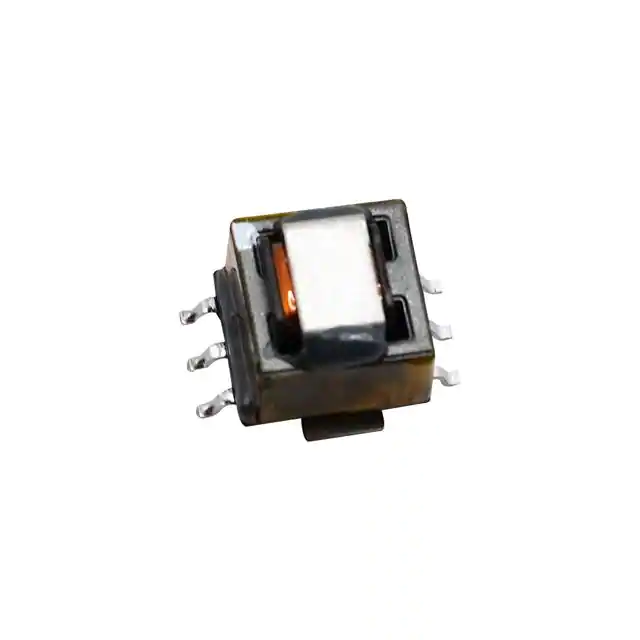

ECST1V1308-1050-RCURR SENSE XFMR 50:1 15A SMD |
1,345 | 5.26 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 1.4 mH | - | 50:1 | - | 3.9mOhm Primary, 650mOhm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
ECST1V1308-1100-RCURR SENSE XFMR 100:1 15A SMD |
3,685 | 5.26 |
|
Datasheet |
ECST | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 5.6 mH | - | 100:1 | - | 3.9mOhm Primary, 2Ohm Secondary Max | - | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
ECSTA1V1308-1050-RCURR SENSE XFMR 50:1 15A SMD |
1,388 | 5.23 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 1.4 mH | - | 50:1 | - | 3.9mOhm Primary, 650mOhm Secondary Max | AEC-Q200 | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
|
|
ECSTA1V1308-1100-RCURR SENSE XFMR 100:1 15A SMD |
2,889 | 5.23 |
|
Datasheet |
ECSTA | Tape & Reel (TR) | Active | 50kHz ~ 1MHz | Invasive | 15 A | 5.6 mH | - | 100:1 | - | 3.9mOhm Primary, 2Ohm Secondary Max | AEC-Q200 | Surface Mount | 0.512" L x 0.433" W (13.00mm x 11.00mm) | 0.307" (7.80mm) | Gull Wing |
