Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

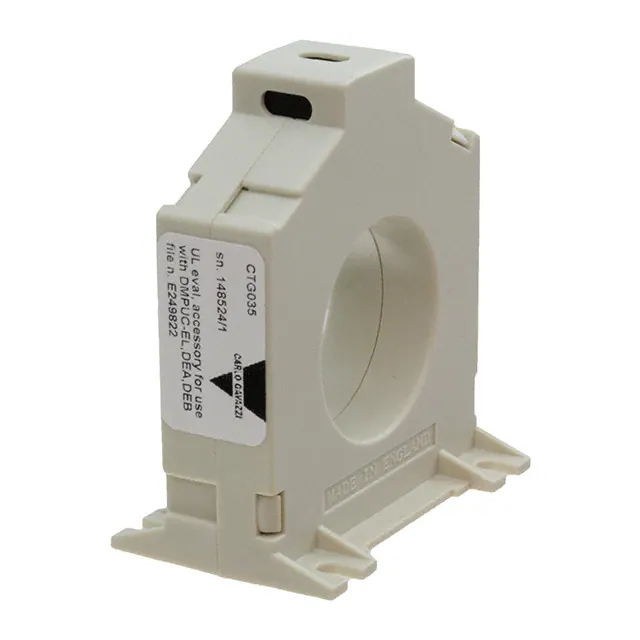

CTG035CURR SENSE XFMR SMD |
4,735 | 63.00 |
|
Datasheet |
CTG | Box | Active | - | - | - | - | - | - | - | - | - | Surface Mount | - | 2.913" (74.00mm) | - |
|

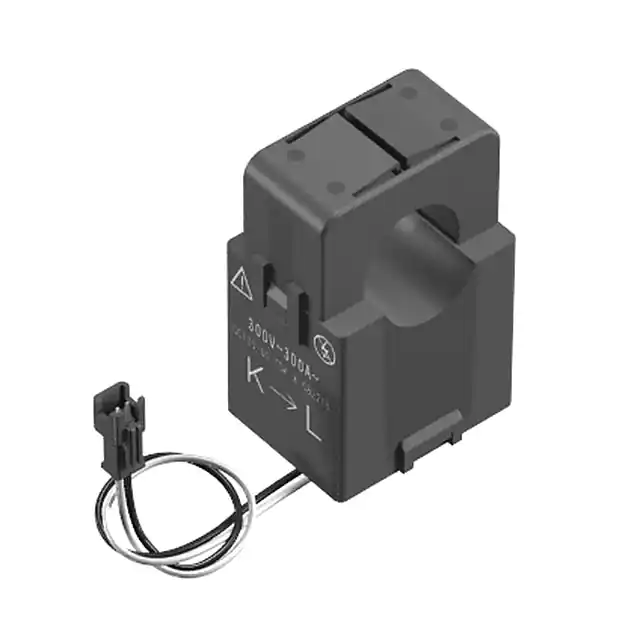

CCT354571-300-24-00CURR SENSE XFMR 300A CHAS MNT |
3,719 | 56.56 |
|
Datasheet |
CCT | Bulk | Active | 50/60Hz | Non-Invasive (Split Core) | 300 A | - | - | - | 3000:1 | 103Ohm | - | Chassis Mount | 1.909" L x 1.555" W (48.50mm x 39.50mm) | 2.835" (72.00mm) | Wire Leads with Connector |
|

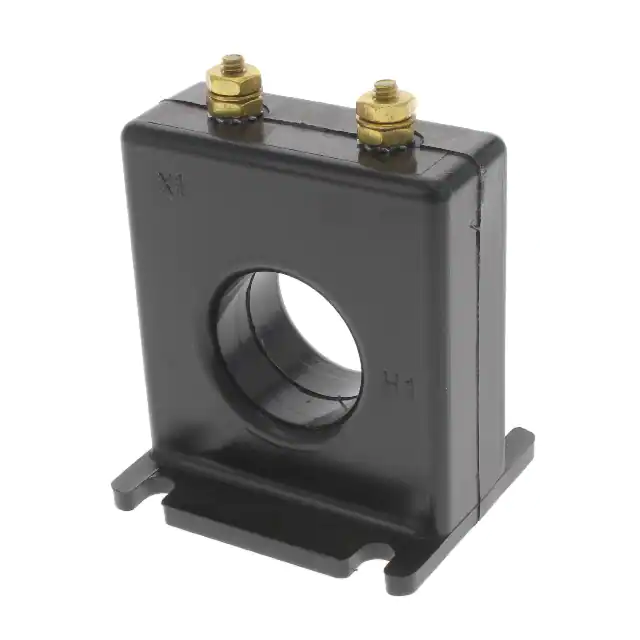

CT-0050-F10CURR SENSE XFMR 50:5 FOOTED |
3,049 | 62.37 |
|
Datasheet |
CT | Bulk | Active | - | Non-Invasive (Solid Core) | 50 A | - | - | - | 50:5 | - | - | - | - | - | Terminal Block |
|

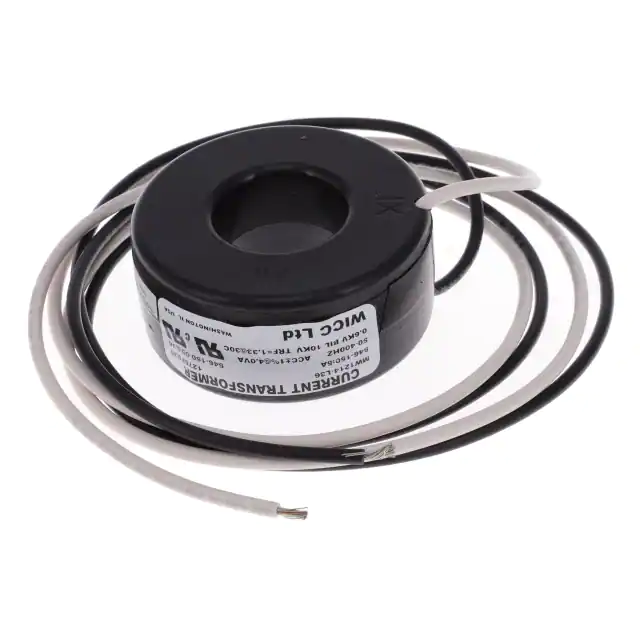

CT-0150-D10CURR SENSE XFMR 150:5 DONUT |
1,771 | 62.37 |
|
Datasheet |
CT | Bulk | Active | - | Non-Invasive (Solid Core) | 150 A | - | - | - | 150:5 | - | - | Free Hanging (In-Line) | - | - | Wire Leads |
|

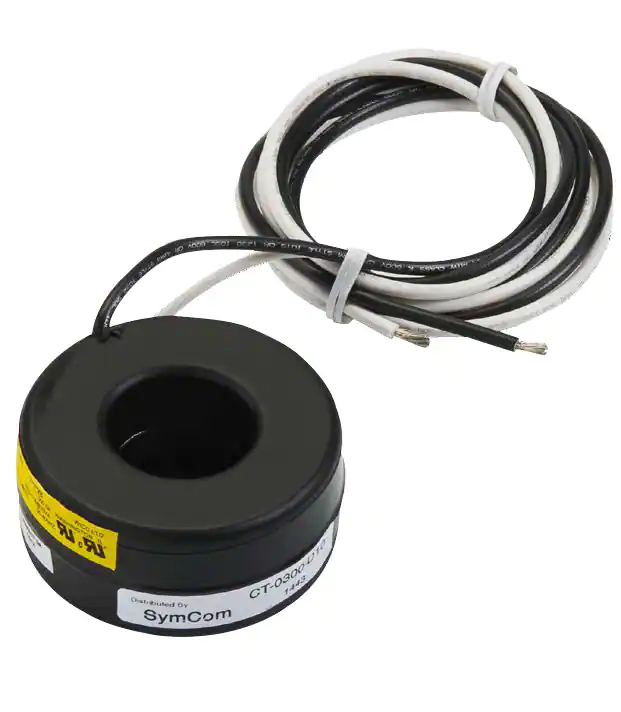

CT-0050-D10CURR SENSE XFMR 50A IN-LINE |
2,791 | 62.37 |
|
Datasheet |
- | Bulk | Active | - | Non-Invasive (Solid Core) | 50 A | - | - | - | 50:5 | - | - | Free Hanging (In-Line) | 2.461" Dia (62.50mm) | - | Wire Leads |
|
CT100ACURR SENSE XFMR 5A CHAS MNT |
1,359 | 63.46 |
|
Datasheet |
CT | Box | Active | - | Non-Invasive (Solid Core) | 5 A | - | - | - | 100:5 | - | - | Chassis Mount | 3.750" L x 1.750" W (95.25mm x 44.45mm) | 3.250" (82.55mm) | Wire Leads |
|

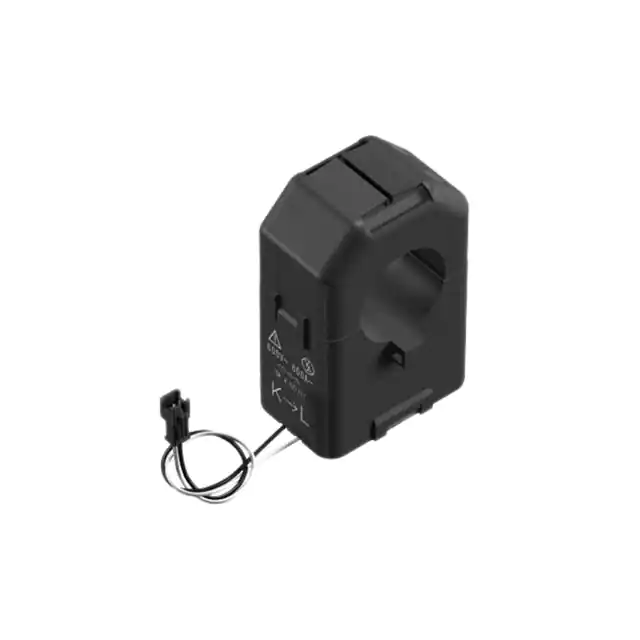

CCT406393-600-36-00CURR SENSE XFMR 600A CHAS MNT |
4,702 | 86.86 |
|
Datasheet |
CCT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 600 A | - | - | - | 3000:1 | - | - | Chassis Mount | 1.575" L x 2.480" W (40.00mm x 63.00mm) | 3.661" (93.00mm) | Wire Leads with Connector |
|

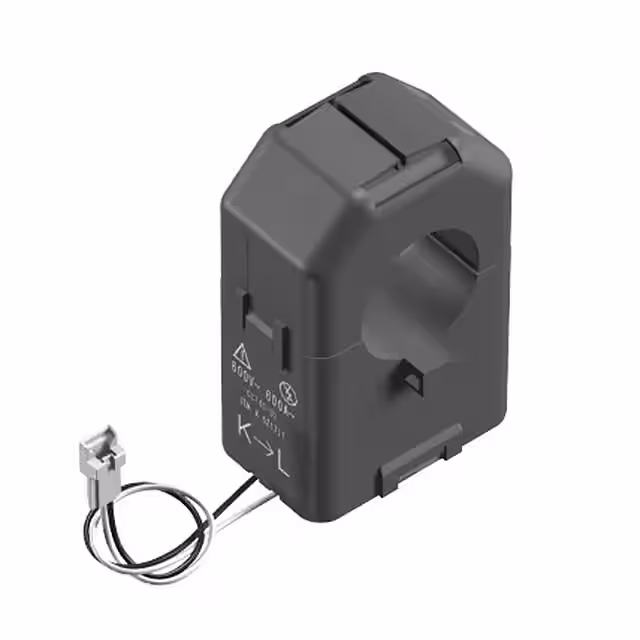

CCT406393-600-36-02CURR SENSE XFMR 600A CHAS MNT |
3,565 | 86.86 |
|
Datasheet |
CCT | Bulk | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 600 A | - | - | - | 3000:1 | - | - | Chassis Mount | 1.575" L x 2.480" W (40.00mm x 63.00mm) | 3.661" (93.00mm) | Wire Leads with Connector |
|

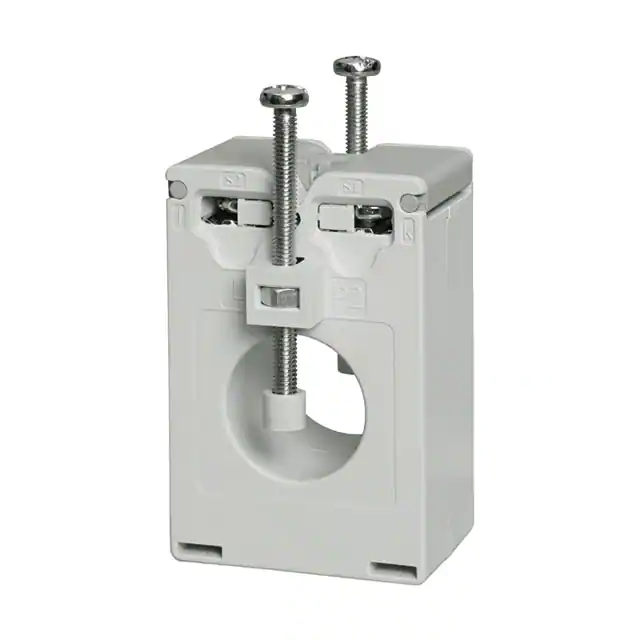

CTD1X1005AXXXCURR SENSE XFMR 100A DIN RAIL |
2,619 | 72.00 |
|
Datasheet |
- | Box | Active | 48Hz ~ 62Hz | Non-Invasive (Split Core) | 100 A | - | - | - | - | - | - | DIN Rail, Panel | 1.811" L x 1.732" W (46.00mm x 44.00mm) | 2.567" (65.20mm) | - |
|
CTD1X505AXXXCURR SENSE XFMR 50A DIN RAIL |
2,882 | 0.00 |
|
Datasheet |
CTD-1X | Box | Active | 48Hz ~ 62Hz | Non-Invasive (Solid Core) | 50 A | - | - | - | - | - | - | DIN Rail | 1.811" L x 1.732" W (46.00mm x 44.00mm) | 2.567" (65.20mm) | Terminal Block |
|
CTG120CURR SENSE XFMR SMD |
3,352 | 137.00 |
|
Datasheet |
CTG | Box | Active | - | - | - | - | - | - | - | - | - | Surface Mount | - | 6.654" (169.00mm) | - |
|
CT200CURR SENSE XFMR |
1,723 | 6.56 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PA1005.125QNLCURR SENSE XFMR 1:125 20A SMD |
147 | 2.07 |
|
Datasheet |
- | Tray | Active | 50kHz ~ 1MHz | Invasive | 20 A | 3 mH | - | 1:125 | - | 0.75mOhm Primary, 6.5Ohm Secondary | AEC-Q200 | Surface Mount | 0.284" L x 0.330" W (7.21mm x 8.38mm) | 0.217" (5.50mm) | Gull Wing |
|
|
PH9505.070NLTCURR SENSE XFMR 1:7 30A SMD |
4,777 | 2.95 |
|
Datasheet |
PH9505.XXXNL | Tape & Reel (TR) | Active | 20kHz | Invasive | 30 A | 3 mH | - | 1:7 | - | 0.5mOhm Primary, 2.1Ohm Secondary Max | - | Surface Mount | 0.504" L x 0.480" W (12.80mm x 12.20mm) | 0.567" (14.40mm) | Gull Wing |
|
|
PE-64518NLCURR SENSE XFMR 100CT:1:1 20A TH |
3,934 | 6.58 |
|
Datasheet |
THT | Tray | Active | 20kHz ~ 200kHz | Invasive | 20 A | 20 mH | - | 100CT:1:1 | - | 100Ohm Primary, 1.4Ohm Secondary | - | Through Hole | 0.900" L x 0.700" W (22.86mm x 17.78mm) | 0.700" (17.78mm) | PC Pin |
|
|
CCX-1050CURR SENSE XFMR 1:2500 50A TH |
3,397 | 37.00 |
|
Datasheet |
CCX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 50 A | - | - | 1:2500 | - | 157Ohm | - | Through Hole | 0.937" L x 0.438" W (23.80mm x 11.12mm) | 0.937" (23.80mm) | PC Pin |
|

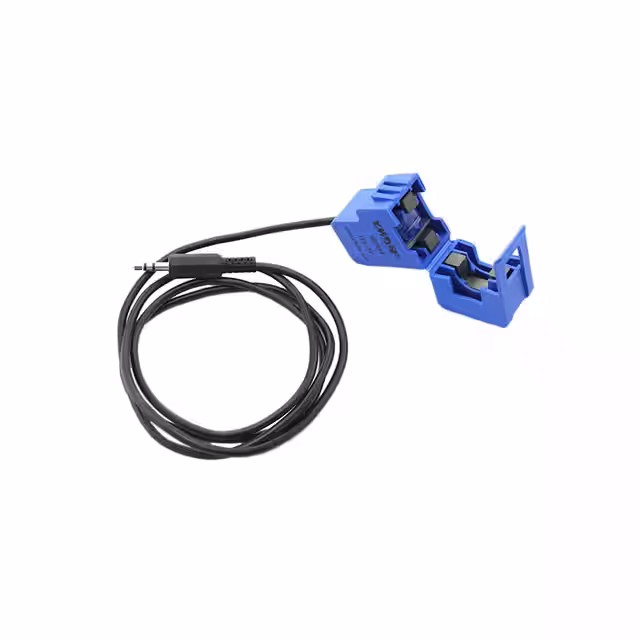

101990060CURR SENSE XFMR 15A CHAS MNT |
3,809 | 6.90 |
|
Datasheet |
- | Bulk | Active | - | Non-Invasive (Split Core) | 15 A | - | - | - | - | - | - | Chassis Mount | - | - | Wire Leads with Connector |
|
|
CCX-1075CURR SENSE XFMR 1:2500 75A TH |
3,333 | 0.00 |
|
Datasheet |
CCX | Tray | Active | 50Hz ~ 60Hz | Non-Invasive (Solid Core) | 75 A | - | - | 1:2500 | - | 218Ohm | - | Through Hole | 1.189" L x 0.563" W (30.20mm x 14.30mm) | 1.189" (30.20mm) | PC Pin |
|
CT-1050CURR SENSE XFMR 50A T/H |
2,014 | 9.66 |
|
Datasheet |
CT | Tray | Active | 50/60Hz | Non-Invasive (Solid Core) | 50 A | - | - | - | 1000:1 | 49.3Ohm | - | Through Hole | 1.374" L x 0.563" W (34.90mm x 14.30mm) | 1.374" (34.90mm) | PC Pin |
|
MR-1CURR SENSE XFMR 30A CHAS MNT |
2,439 | 13.36 |
|
Datasheet |
MR | Bulk | Active | 60Hz | Non-Invasive (Solid Core) | 30 A | - | - | - | - | 30Ohm | - | Chassis Mount | 0.882" L x 0.760" W (22.40mm x 19.30mm) | 0.327" (8.30mm) | Wire Leads |
