Current Sense Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Frequency Range | Type | Current Rating (Amps) | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Current Ratio | DC Resistance (DCR) | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

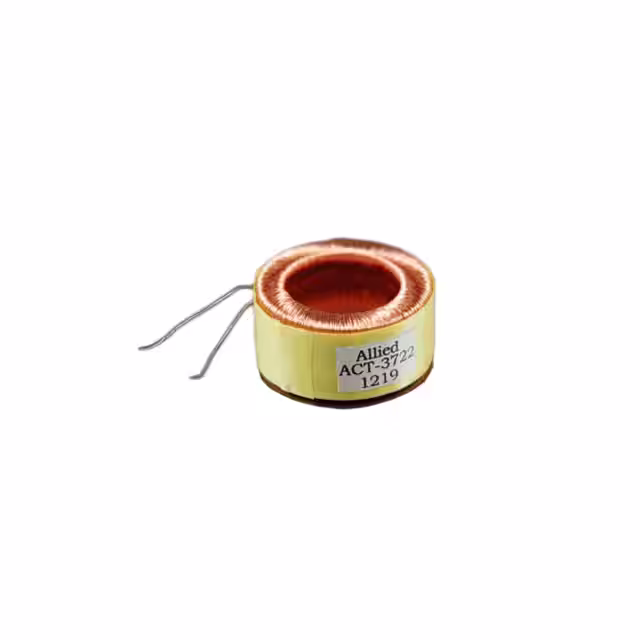

ACT-3722-2900CURR SENSE XFMR 1:3100 150A TH |
3,649 | 5.75 |
|
Datasheet |
- | Box | Active | - | Invasive | 150 A | - | - | 1:3100 | - | 150Ohm | - | Through Hole | 1.275" Dia (32.38mm) | 0.640" (16.25mm) | Wire Leads |
|
T60404B4721X02080CURR SENSE XFMR 1:50 100MA TH |
1,856 | 0.00 |
|
- |
- | Bulk | Obsolete | - | Invasive | 100 mA | 2 mH | 240VµS | 1:50 | - | 2.2mOhm Primary, 1.4Ohm Secondary | - | Through Hole | 0.701" L x 0.669" W (17.80mm x 17.00mm) | 0.531" (13.50mm) | PC Pin |
|
37027CURR SENSE XFMR CHAS MNT |
1,334 | 4.96 |
|
Datasheet |
- | Retail Package | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | 100:5 | - | - | Chassis Mount | 7.130" L x 2.220" W (181.10mm x 56.39mm) | 3.220" (81.79mm) | Stud |
|
|
01306CURR SENSE XFMR 15:1 75A IN-LINE |
4,103 | 0.00 |
|
Datasheet |
- | Retail Package | Active | - | Non-Invasive (Solid Core) | 75 A | - | - | 15:1 | - | - | - | Free Hanging (In-Line) | 3.560" Dia (90.42mm) | 1.100" (27.94mm) | Wire Leads |
|

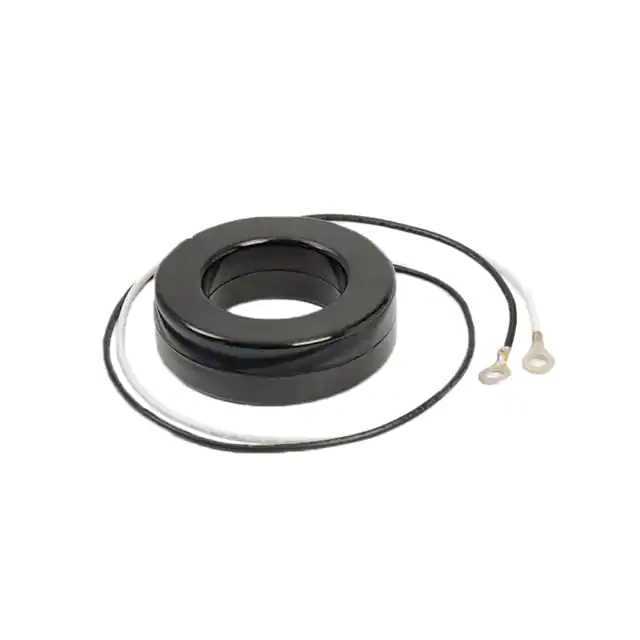

01305CURR SENSE XFMR 80:1 400A INLINE |
3,513 | 71.47 |
|
Datasheet |
- | Retail Package | Active | - | Non-Invasive (Solid Core) | 400 A | - | - | 80:1 | - | - | - | Free Hanging (In-Line) | 3.560" Dia (90.42mm) | 1.100" (27.94mm) | Wire Leads |
|
|
01299CURR SENSE XFMR 40:1 200A INLINE |
4,255 | 130.70 |
|
Datasheet |
- | Retail Package | Active | - | Non-Invasive (Solid Core) | 200 A | - | - | 40:1 | - | - | - | Free Hanging (In-Line) | 3.560" Dia (90.42mm) | 1.100" (27.94mm) | Wire Leads |
|
|
02303CURR SENS XFMR 120:1 600A INLINE |
1,737 | 53.92 |
|
Datasheet |
- | Retail Package | Active | - | Non-Invasive (Solid Core) | 600 A | - | - | 120:1 | - | - | - | Free Hanging (In-Line) | 3.560" Dia (90.42mm) | 1.100" (27.94mm) | Wire Leads |
|
37030CURR SENSE XFMR CHAS MNT |
2,921 | 183.93 |
|
Datasheet |
- | Retail Package | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | 300:5 | - | - | Chassis Mount | 7.130" L x 2.220" W (181.10mm x 56.39mm) | 3.220" (81.79mm) | Stud |
|
|
01313CURR SENSE XFMR 50:1 250A INLINE |
4,397 | 64.73 |
|
Datasheet |
- | Retail Package | Active | - | Non-Invasive (Solid Core) | 250 A | - | - | 50:1 | - | - | - | Free Hanging (In-Line) | 3.560" Dia (90.42mm) | 1.100" (27.94mm) | Wire Leads |
|
37029CURR SENSE XFMR CHAS MNT |
4,219 | 0.00 |
|
Datasheet |
- | Retail Package | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | 200:5 | - | - | Chassis Mount | 7.130" L x 2.220" W (181.10mm x 56.39mm) | 3.220" (81.79mm) | Stud |
|

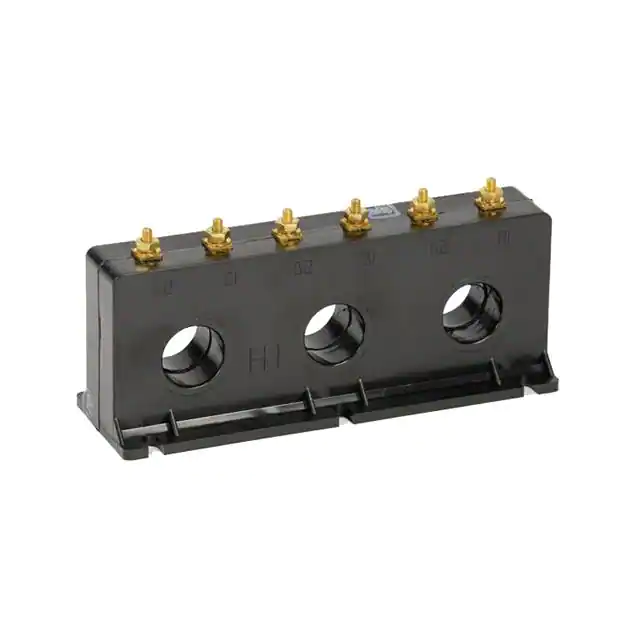

37028CURR SENSE XFMR CHAS MNT |
2,907 | 202.01 |
|
Datasheet |
- | Retail Package | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | 150:5 | - | - | Chassis Mount | 7.130" L x 2.220" W (181.10mm x 56.39mm) | 3.220" (81.79mm) | Stud |
|

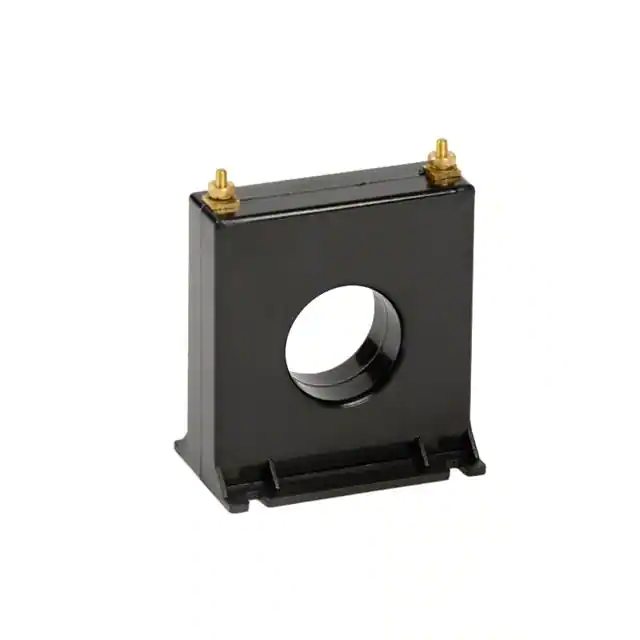

37020CURR SENSE XFMR CHAS MNT |
4,877 | 56.05 |
|
Datasheet |
- | Retail Package | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | - | - | - | - | - | - | - | Chassis Mount | 3.780" L x 3.530" W (96.01mm x 89.66mm) | 2.150" (54.61mm) | Terminal Block |
|
|
RCT24-5000CURR XFMR ROGOWSKI COIL IN-LINE |
2,665 | 0.00 |
|
Datasheet |
- | Tape & Box (TB) | Active | 20Hz ~ 5kHz | Non-Invasive (Split Core) | - | - | - | Rogowski Coil | - | - | - | Free Hanging (In-Line) | - | 0.610" (15.50mm) | Wire Leads |
|
|
ACUCT-H040-50:333CURR SENSE XFMR 50A IN-LINE |
1,696 | 0.00 |
|
- |
- | Tape & Box (TB) | Active | 50Hz ~ 60Hz | Non-Invasive (Split Core) | 50 A | - | - | - | - | - | - | Free Hanging (In-Line) | 1.024" L x 0.945" W (26.00mm x 24.00mm) | 1.654" (42.00mm) | Wire Leads |
|
|
ACT07-5-002-02-100Input 5A Output 2mA V. 4-Pin Mnt |
3,486 | 0.00 |
|
Datasheet |
- | Case | Active | 50Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | 1:2500 | - | - | - | Through Hole | 0.925" L x 0.453" W (23.50mm x 11.50mm) | 0.984" (25.00mm) | PC Pin |
|
|
ART-B22-D70/SP7CURR SENSE XFMR |
3,340 | 0.00 |
|
Datasheet |
ART | Bulk | Obsolete | - | Non-Invasive (Split Core) | - | - | - | Rogowski Coil | - | - | - | Free Hanging (In-Line) | 1.327" L x 0.744" W (33.70mm x 18.90mm) | 2.205" (56.00mm) | Wire Leads |
|
|
RT 2000/SP2SENSOR CURRENT XFMR |
1,242 | 0.00 |
|
- |
RT | Bulk | Obsolete | - | Non-Invasive (Split Core) | 2 A | 190 µH | - | Rogowski Coil | - | 60Ohm | - | Free Hanging (In-Line) | 1.354" L x 1.079" W (34.40mm x 27.40mm) | 0.618" (15.70mm) | Wire Leads |
|
|
CT-1000/5CURR SENSE XFMR 5A IN-LINE |
3,191 | 140.20 |
|
Datasheet |
CT | Bulk | Active | 25Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 1000:5 | - | - | Free Hanging (In-Line) | 4.000" Dia (101.60mm) | 1.250" (31.75mm) | Wire Leads |
|
|
CT-2500/5CURR SENSE XFMR 5A IN-LINE |
3,228 | 276.21 |
|
Datasheet |
CT | Bulk | Active | 25Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 2500:5 | - | - | Free Hanging (In-Line) | 6.500" Dia (165.10mm) | 1.688" (42.86mm) | Wire Leads |
|
|
CT-50/5CURR SENSE XFMR 5A IN-LINE |
1,570 | 115.55 |
|
Datasheet |
CT | Bulk | Active | 25Hz ~ 400Hz | Non-Invasive (Solid Core) | 5 A | - | - | - | 50:5 | - | - | Free Hanging (In-Line) | 3.875" Dia (98.43mm) | 1.250" (31.75mm) | Wire Leads |
