EMI/RFI Filters (LC, RC Networks)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height
SBSGP5000473MXT FILTER LC(PI) 0.047UF SMD Knowles Syfer	3,186	8.48	RFQ	-	SBSG	1812 (4532 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	39dB @ 100MHz	-	5 A	C = 0.047µF	No	-	General Purpose	500V	-	-	Surface Mount	0.179" L x 0.126" W (4.55mm x 3.20mm)	0.104" (2.64mm)
SBSGP1000154MXT FILTER LC(PI) 0.15UF SMD Knowles Syfer	1,828	8.48	RFQ	-	SBSG	1812 (4532 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	39dB @ 100MHz	-	5 A	C = 0.15µF	No	-	General Purpose	100V	-	-	Surface Mount	0.179" L x 0.126" W (4.55mm x 3.20mm)	0.104" (2.64mm)
SBSGP5000102MXT SURFACE MOUNT C AND PI FILTER Knowles Syfer	1,725	8.48	RFQ	-	SBSG	1812 (4532 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	39dB @ 100MHz	-	5 A	C = 1000pF	No	-55°C ~ 125°C	General Purpose	500V	-	-	Surface Mount	0.179" L x 0.126" W (4.55mm x 3.20mm)	0.104" (2.65mm)
SBSGP5000223MXT SURFACE MOUNT C AND PI FILTER Knowles Syfer	1,602	8.48	RFQ	-	SBSG	1812 (4532 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	39dB @ 100MHz	-	5 A	C = 0.022µF	No	-55°C ~ 125°C	General Purpose	500V	-	-	Surface Mount	0.179" L x 0.126" W (4.55mm x 3.20mm)	0.104" (2.65mm)
SBSMP5000683MXT SURFACE MOUNT C AND PI FILTER Knowles Syfer	1,793	7.19	RFQ	-	SBSM	2220 (5750 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	44dB @ 100MHz	-	20 A	C = 0.068µF	No	-55°C ~ 125°C	General Purpose	500V	-	-	Surface Mount	0.224" L x 0.197" W (5.70mm x 5.00mm)	0.133" (3.38mm)
105M02QB47 FILTER RC 47 OHM/1.0UF TH Cornell Dubilier Knowles	638	10.99	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	47	-	R = 47Ohms, C = 1µF	No	-55°C ~ 85°C	General Purpose	200V	-	-	Through Hole	1.449" L x 0.390" W (36.80mm x 9.90mm)	0.657" (16.70mm)
104M06QC100 FILTER RC 100 OHM/0.1UF TH Cornell Dubilier Knowles	4,476	10.36	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	100	-	R = 100Ohms, C = 0.1µF	No	-55°C ~ 85°C	General Purpose	600V	-	-	Through Hole	1.079" L x 0.390" W (27.40mm x 9.90mm)	0.657" (16.70mm)

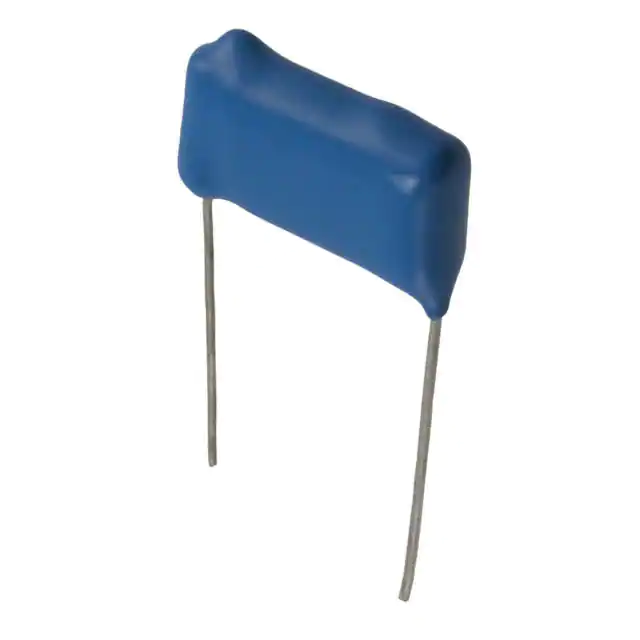

504M02QA100 FILTER RC 100 OHM/0.50UF TH Cornell Dubilier Knowles	2,002	11.66	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	100	-	R = 100Ohms, C = 0.5µF	No	-55°C ~ 85°C	General Purpose	200V	-	-	Through Hole	1.079" L x 0.390" W (27.40mm x 9.90mm)	0.642" (16.30mm)

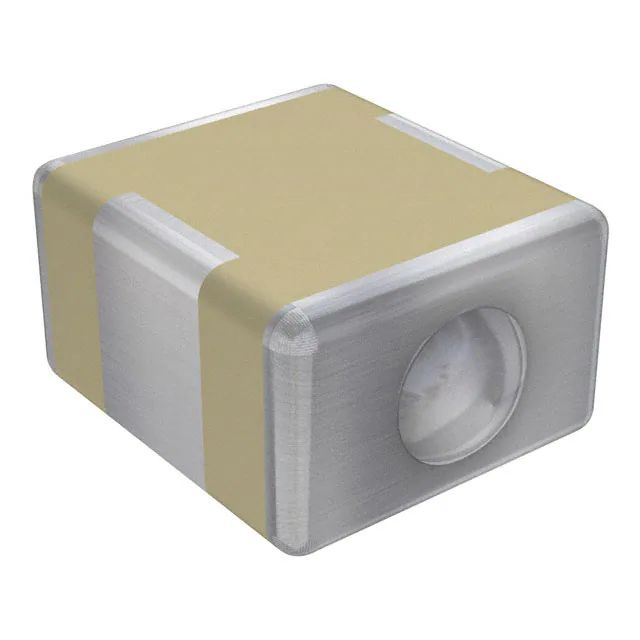

SBSMC0500474MXT SURFACE MOUNT C AND PI FILTER Knowles Syfer	2,498	12.94	RFQ	-	SBSMC	2220 (5750 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	1st	-	1	-	43dB @ 100MHz	-	20 A	C = 470nF	No	-55°C ~ 125°C	General Purpose	50V	-	-	Surface Mount	0.224" L x 0.197" W (5.70mm x 5.00mm)	0.133" (3.38mm)

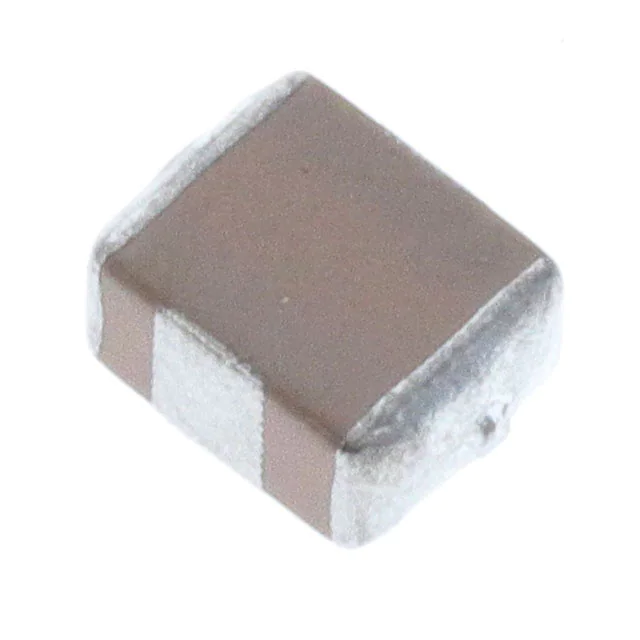

SBSMP0500474MXT SURFACE MOUNT C AND PI FILTER Knowles Syfer	5,637	13.08	RFQ	-	SBSM	2220 (5750 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	44dB @ 100MHz	-	20 A	C = 0.47µF	No	-55°C ~ 125°C	General Purpose	50V	-	-	Surface Mount	0.224" L x 0.197" W (5.70mm x 5.00mm)	0.133" (3.38mm)

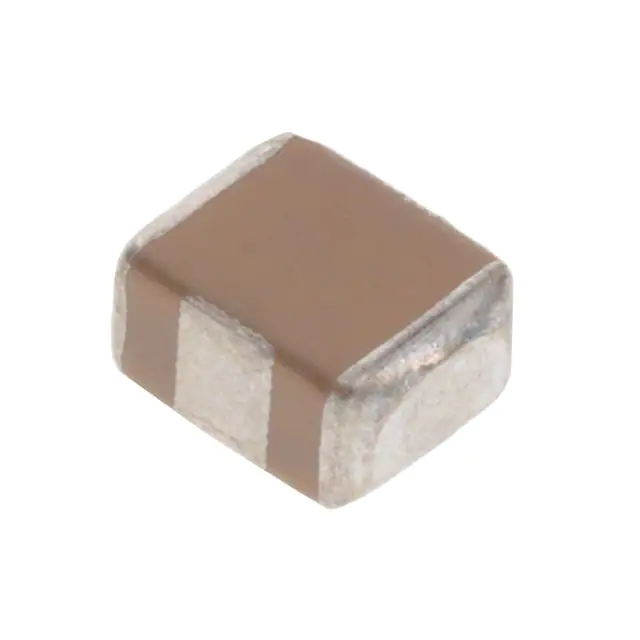

SBSMP1000224MXT SURFACE MOUNT C AND PI FILTER Knowles Syfer	1,794	13.08	RFQ	-	SBSM	2220 (5750 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	44dB @ 100MHz	-	10 A	C = 0.22µF	No	-55°C ~ 125°C	General Purpose	100V	-	-	Surface Mount	0.224" L x 0.197" W (5.70mm x 5.00mm)	0.133" (3.38mm)
SBSMP1000334MXT FILTER LC(PI) 0.33UF SMD Knowles Syfer	1,688	13.08	RFQ	-	SBSM	2220 (5750 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	1	-	44dB @ 100MHz	-	10 A	C = 0.33µF	No	-	General Purpose	100V	-	-	Surface Mount	0.224" L x 0.197" W (5.70mm x 5.00mm)	0.130" (3.30mm)

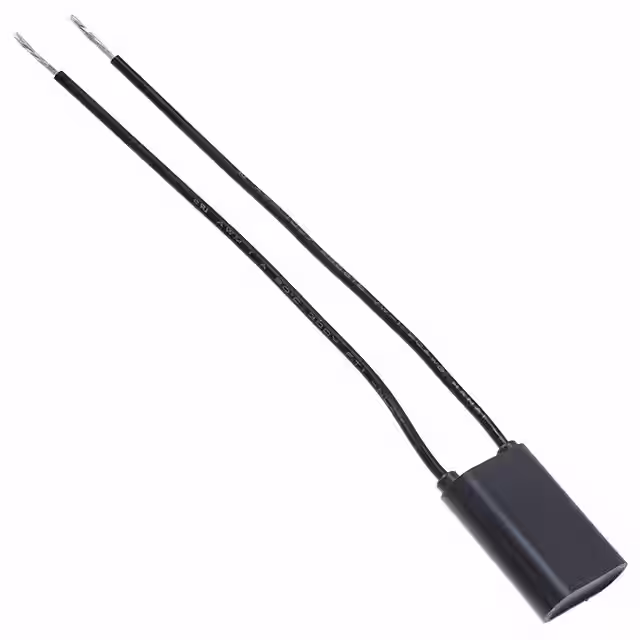

SNUB0000 FILTER RC 47 OHM/0.1UF TH Red Lion Controls	161	15.58	RFQ	-	SNUB	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	47	-	R = 47Ohms, C = 0.1µF	No	-	General Purpose	250V	-	-	Through Hole	-	-
104M06QC150 FILTER RC 150 OHM/0.1UF TH Cornell Dubilier Knowles	1,184	11.15	RFQ	-	Quencharc®	Radial	Bulk	Active	Low Pass	1st	RC	1	-	-	150	-	R = 150Ohms, C = 0.1µF	No	-55°C ~ 85°C	General Purpose	600V	-	-	Through Hole	1.079" L x 0.390" W (27.40mm x 9.90mm)	0.657" (16.70mm)

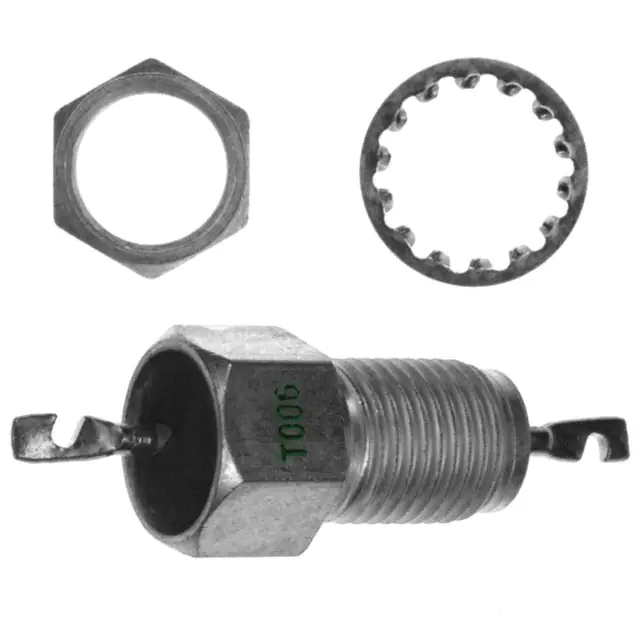

4206-001LF FILTER LC(PI) 3000PF CHASSIS Tusonix a Subsidiary of CTS Electronic Components	990	29.09	RFQ	-	4200	Axial, Bushing - 2 Notched Leads	Bulk	Active	Low Pass	3rd	LC (Pi)	1	-	55dB @ 100MHz	-	25 A	C = 3000pF	No	-55°C ~ 125°C	Data Lines for Mobile Devices	500V	-	-	Chassis Mount	0.375" Dia x 0.687" L (9.52mm x 17.44mm)	-

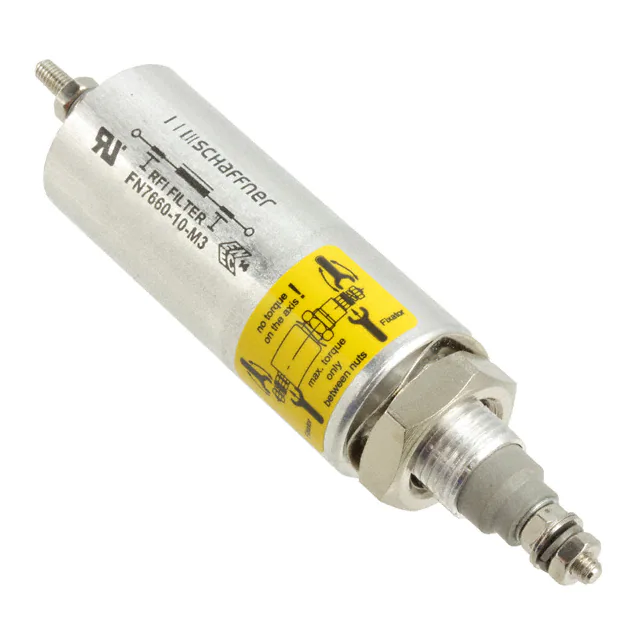

FN7660-10-M3 FILTER LC(PI) 58NH/0.01UF BOLT Schaffner EMC Inc.	133	98.21	RFQ	-	FN 766X	Axial - Threaded Terminals	Tray	Active	Low Pass	3rd	LC (Pi)	1	-	-	0.00106	10 A	L = 58nH, C = 10000pF	No	-40°C ~ 100°C	Data Lines for Mobile Devices	130V	-	-	Bolt Mount	0.787" Dia x 2.402" L (20.00mm x 61.00mm)	-

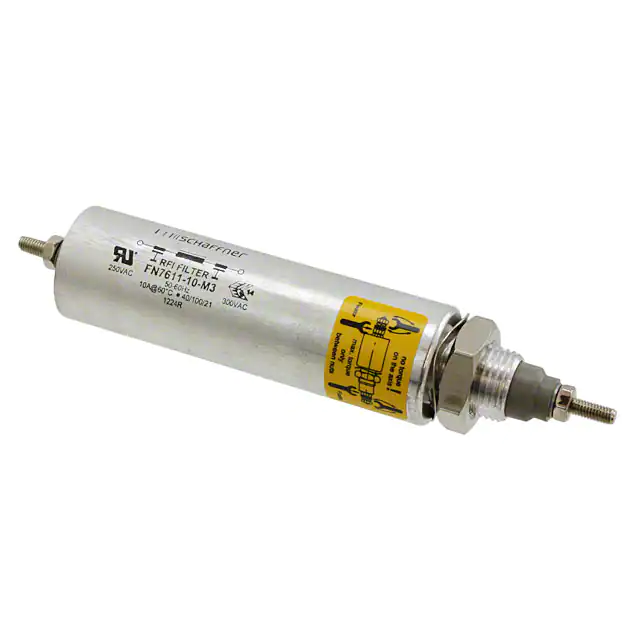

FN7611-10-M3 FILTER LC(PI) 70NH/0.01UH BOLT Schaffner EMC Inc.	3,077	117.20	RFQ	-	FN 761X	Axial - Threaded Terminals	Tray	Active	Low Pass	3rd	LC (Pi)	1	-	-	0.0012	10 A	L = 70nH, C = 10000pF	No	-40°C ~ 100°C	Data Lines for Mobile Devices	1000V (1kV)	-	-	Bolt Mount	0.787" Dia x 2.717" L (20.00mm x 69.00mm)	-
IP4256CZ5-W,115 FILTER RC(PI) 100 OHM/19PF SMD Nexperia USA Inc.	1,120	0.12	RFQ	-	-	SOT-665	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	2	-	20dB @ 800MHz ~ 3GHz	100	-	R = 100Ohms, C = 19pF (Total)	Yes	-40°C ~ 85°C	LAN, WAN	-	-	-	Surface Mount	0.063" L x 0.047" W (1.60mm x 1.20mm)	0.024" (0.60mm)
NFM21HC224R1A3D FILTER LC HI FREQ 220000PF 0805 Murata Electronics	4,495	0.38	RFQ	-	EMIFIL®, NFM21H	0805 (2012 Metric)	Tape & Reel (TR)	Active	Low Pass	2nd	LC (T-Type)	1	-	-	-	2 A	C = 0.22µF	No	-55°C ~ 125°C	-	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.037" (0.95mm)
NUF2230XV6T1G FILTER RC(PI) 100 OHM/16PF SMD onsemi	5,016	0.28	RFQ	-	-	SOT-563, SOT-666	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	2	125MHz (Cutoff)	-30dB @ 800MHz ~ 900MHz	100	-	R = 100Ohms, C = 16pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.063" L x 0.047" W (1.60mm x 1.20mm)	0.024" (0.60mm)

Total 1980 Record«Prev 1 2 3 456 7 8...99 Next»
