EMI/RFI Filters (LC, RC Networks)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height
DSS1NB32A101Q91A FILTER LC(T) 100PF TH Murata Electronics	9,816	0.28	RFQ	-	EMIFIL®, DSS1	Radial - 3 Leads	Cut Tape (CT)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	6 A	C = 100pF	No	-40°C ~ 85°C	General Purpose	100V	-	-	Through Hole	0.335" L x 0.138" W (8.50mm x 3.50mm)	0.295" (7.50mm)
DSS1NB31H104Q91A FILTER LC(T) 0.1UF TH Murata Electronics	7,844	0.28	RFQ	-	EMIFIL®, DSS1	Radial - 3 Leads	Cut Tape (CT)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	6 A	C = 0.1µF	No	-40°C ~ 85°C	General Purpose	50V	-	-	Through Hole	0.335" L x 0.138" W (8.50mm x 3.50mm)	0.295" (7.50mm)
DSS1NB32A223Q91A FILTER LC(T) 0.022UF TH Murata Electronics	6,094	0.28	RFQ	-	EMIFIL®, DSS1	Radial - 3 Leads	Cut Tape (CT)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	6 A	C = 0.022µF	No	-40°C ~ 85°C	General Purpose	100V	-	-	Through Hole	0.335" L x 0.138" W (8.50mm x 3.50mm)	0.295" (7.50mm)
MEA2010LC220T002 FILTER LC 22PF 210MHZ SMD TDK Corporation	55,619	0.58	RFQ	-	MEA	0804 (2010 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	2nd	LC	4	210MHz (Cutoff)	20dB @ 800MHz ~ 3GHz	-	100 mA	C = 22pF	No	-40°C ~ 85°C	Data Lines for Mobile Devices	6.3V	-	-	Surface Mount	0.079" L x 0.039" W (2.00mm x 1.00mm)	0.024" (0.60mm)
MEA2010PE400T001 FILTER LC 40PF 210MHZ SMD TDK Corporation	3,490	0.58	RFQ	-	MEA	0804 (2010 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	2nd	LC	4	210MHz (Cutoff)	20dB @ 470MHz ~ 3GHz	-	100 mA	C = 40pF	No	-40°C ~ 85°C	Data Lines for Mobile Devices	6.3V	-	-	Surface Mount	0.079" L x 0.039" W (2.00mm x 1.00mm)	0.031" (0.79mm)

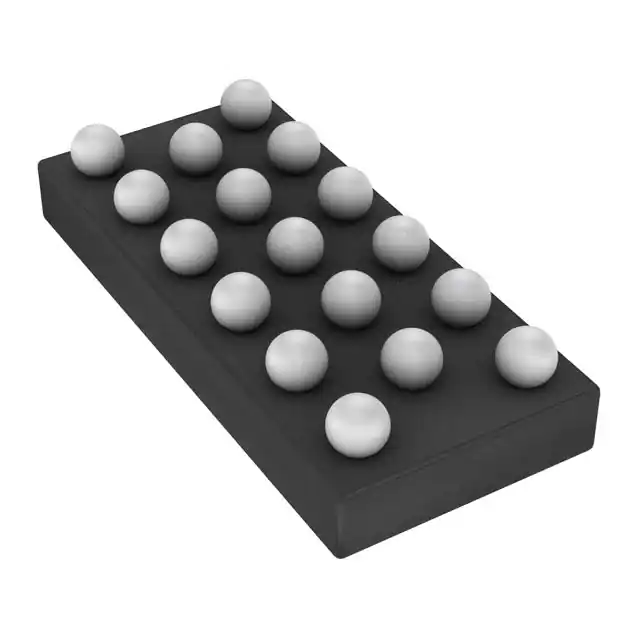

EMIF06-HSD03F3 FILTER RLC 1NH/2.5PF ESD SMD STMicroelectronics	10,119	0.66	RFQ	-	EMIF	17-WFBGA, FCBGA	Tape & Reel (TR)	Active	Low Pass	3rd	RLC	6	-	-	1	-	L = 1nH, C = 2.5pF	Yes	-30°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.094" L x 0.043" W (2.40mm x 1.10mm)	0.026" (0.65mm)
NUF6400MNTBG FILTER RC(PI) 100 OHM/50PF SMD onsemi	66,803	0.64	RFQ	-	-	12-VFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	6	35MHz (Cutoff)	-30dB @ 800MHz ~ 2.4GHz	100	20 mA	R = 100Ohms, C = 50pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.118" L x 0.053" W (3.00mm x 1.35mm)	0.039" (1.00mm)
NFE61PT361B1H9L FILTER LC(T) 360PF SMD Murata Electronics	5,641	0.66	RFQ	-	EMIFIL®, NFE61	2706 (6816 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	2 A	C = 360pF	No	-40°C ~ 85°C	General Purpose	50V	-	-	Surface Mount	0.268" L x 0.063" W (6.80mm x 1.60mm)	0.075" (1.90mm)
NFE61PT101Z1H9L FILTER LC(T) 100PF SMD Murata Electronics	5,472	0.66	RFQ	-	EMIFIL®, NFE61	2706 (6816 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	2 A	C = 100pF	No	-40°C ~ 85°C	General Purpose	50V	-	-	Surface Mount	0.268" L x 0.063" W (6.80mm x 1.60mm)	0.075" (1.90mm)

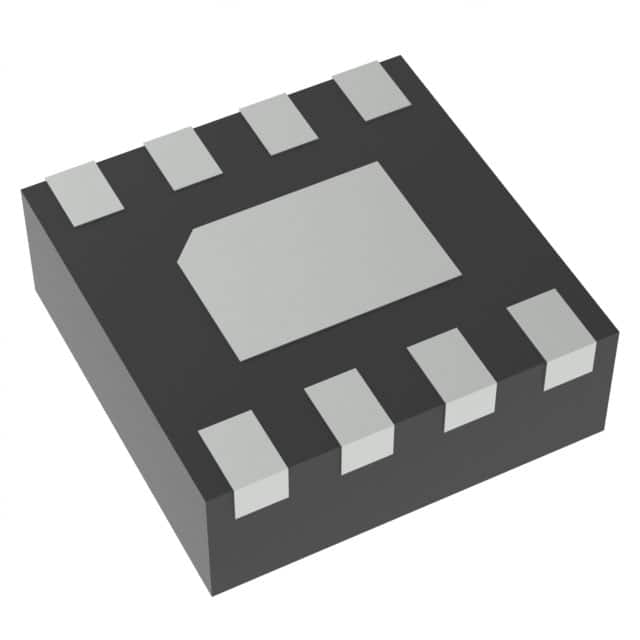

NUF4211MNT1G FILTER RC(PI) 100 OHM/8.5PF SMD onsemi	5,036	0.67	RFQ	-	-	8-VFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	4	250MHz (Cutoff)	-20dB @ 800MHz ~ 3GHz	100	-	R = 100Ohms, C = 8.5pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.079" L x 0.079" W (2.00mm x 2.00mm)	0.039" (1.00mm)
EMIF08-LCD04M16 FILTER LC(PI) 12NH/18PF ESD SMD STMicroelectronics	5,949	0.77	RFQ	-	IPAD™	16-UFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	8	400MHz (Cutoff)	-35dB @ 900MHz ~ 2GHz	12.5	-	L = 12nH, C = 18pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.130" L x 0.053" W (3.30mm x 1.35mm)	0.022" (0.55mm)

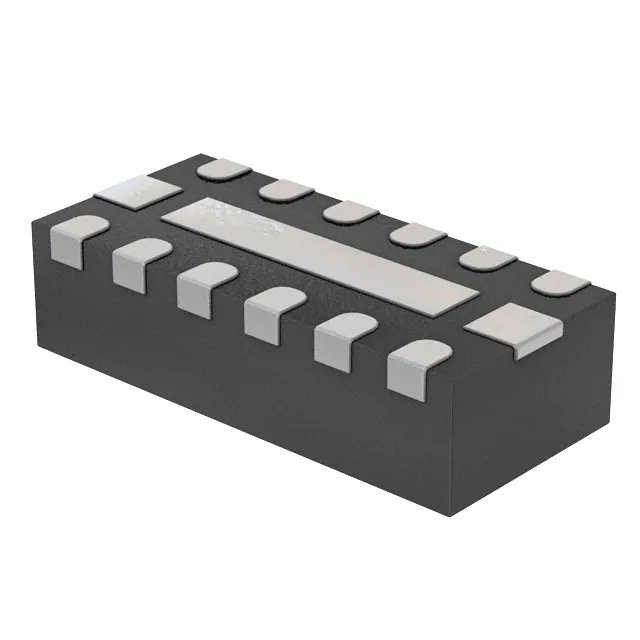

TPD6F002QDSVRQ1 FILTER RC(PI) 100 OHM/17PF SMD Texas Instruments	5,894	0.71	RFQ	-	TPD	12-WFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	6	100MHz (Cutoff)	-30dB @ 800MHz	100	-	R = 100Ohms, C = 17pF	Yes	-40°C ~ 125°C	-	-	Automotive	AEC-Q100	Surface Mount	0.118" L x 0.053" W (3.00mm x 1.35mm)	0.032" (0.81mm)
TPD8F003DQDR FILTER RC(PI) 100 OHM/8.5PF SMD Texas Instruments	6,888	0.78	RFQ	-	TPD	16-WFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	8	200MHz (Cutoff)	25dB @ 1GHz	100	-	R = 100Ohms, C = 8.5pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.130" L x 0.053" W (3.30mm x 1.35mm)	0.031" (0.79mm)

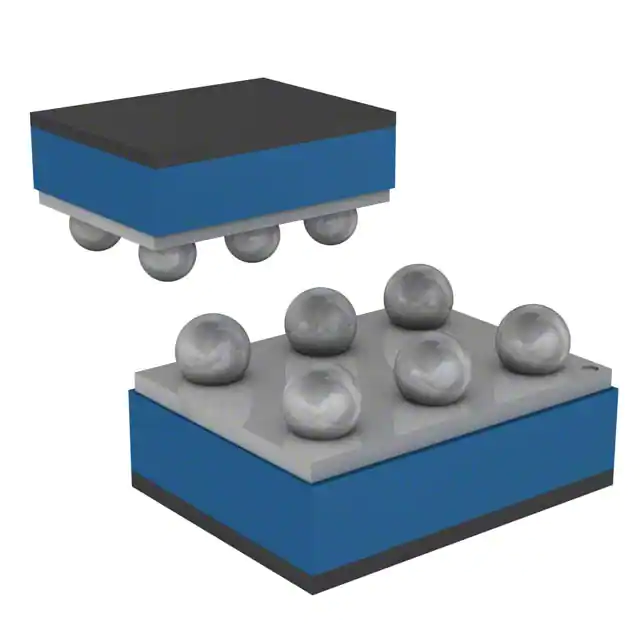

NUF2441FCT1G FILTER LC(PI) 2.9NH/250PF SMD onsemi	2,921	0.79	RFQ	-	-	6-WFBGA, FCBGA	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	2	-	-	0.28	-	L = 2.9nH, C = 250pF	Yes	-40°C ~ 125°C	Audio	-	-	-	Surface Mount	0.067" L x 0.048" W (1.72mm x 1.22mm)	0.028" (0.70mm)
NFL18ZT107H1A3D EMI SUPPRESSION FILTER MONOLITHI Murata Electronics	3,840	0.28	RFQ	-	EMIFIL®, NFL18	0603 (1608 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (T-Type)	1	100MHz (Cutoff)	-	-	75 mA	L = 150nH, C = 50pF	No	-55°C ~ 125°C	General Purpose	10V	-	-	Surface Mount	0.063" L x 0.031" W (1.60mm x 0.80mm)	0.028" (0.70mm)

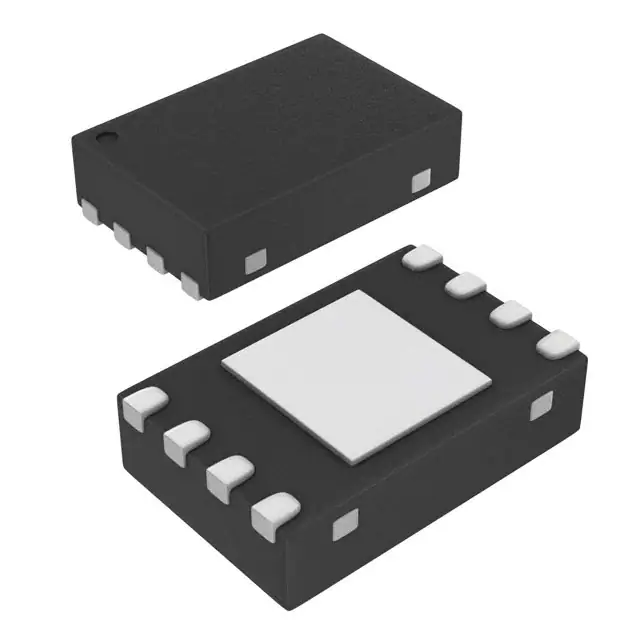

NUF4220MNT1G FILTER LC(PI) 4.9NH/205PF SMD onsemi	5,678	0.98	RFQ	-	-	8-VFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	4	16MHz (Cutoff)	-30dB @ 800MHz ~ 5GHz	0.85	-	L = 4.9nH, C = 205pF	Yes	-40°C ~ 85°C	Audio	-	-	-	Surface Mount	0.079" L x 0.079" W (2.00mm x 2.00mm)	0.039" (1.00mm)

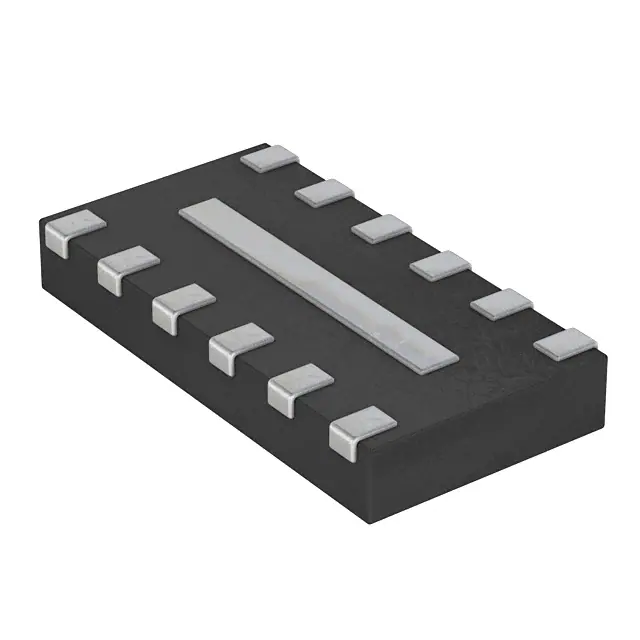

EMI7206MUTAG FILTER LC(PI) 17NH/12PF ESD SMD onsemi	27,541	0.60	RFQ	-	EMI720xMU	12-UFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	6	250MHz (Cutoff)	-23dB @ 800MHz ~ 6GHz	10	30 mA	L = 17nH, C = 12pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.098" L x 0.053" W (2.50mm x 1.35mm)	0.024" (0.60mm)
ECLAMP5033ZATFT ECLAMP5068ZATFT 5V HIGH CAP Semtech Corporation	14,856	0.21	RFQ	-	EClamp™	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
EMI5208MUTAG FILTER RC(PI) 100 OHM/7PF SMD onsemi	18,185	0.58	RFQ	-	EMI520xMU	16-UFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	8	250MHz (Cutoff)	20dB @ 800MHz ~ 5GHz	100	-	R = 100Ohms, C = 7pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.130" L x 0.053" W (3.30mm x 1.35mm)	0.022" (0.55mm)
NFE61HT102F2A9L FILTER LC(T) 1000PF SMD Murata Electronics	6,732	1.15	RFQ	-	EMIFIL®, NFE61	2706 (6816 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	2 A	C = 1000pF	No	-55°C ~ 125°C	-	100V	-	-	Surface Mount	0.268" L x 0.063" W (6.80mm x 1.60mm)	0.075" (1.90mm)

Total 1980 Record«Prev 1... 4 5 6 789 10 11...99 Next»
