EMI/RFI Filters (LC, RC Networks)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height

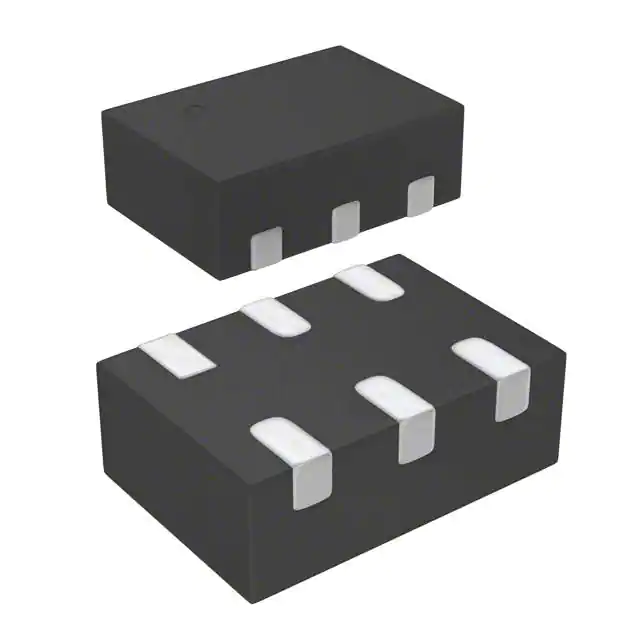

EMIF02-1003M6 IC EMI FILTER 2LINE 6-MICRO QFN STMicroelectronics	8,441	0.48	RFQ	-	EMIF	6-UFDFN	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	2	900MHz (Cutoff)	26dB @ 900MHz	100	-	R = 100Ohms, C = 30pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.057" L x 0.039" W (1.45mm x 1.00mm)	0.024" (0.60mm)
MEM2012V121RT001 FILTER LC(PI) 120MHZ SMD TDK Corporation	6,067	0.42	RFQ	-	MEM	0805 (2012 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	5th	LC (Pi)	1	120MHz (Cutoff)	20dB @ 200MHz ~ 2GHz	-	100 mA	-	No	-40°C ~ 85°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.039" (1.00mm)
MEM2012V151RT001 FILTER LC(PI) 150MHZ SMD TDK Corporation	4,137	0.20	RFQ	-	MEM	0805 (2012 Metric), 3 PC Pad	Tape & Reel (TR)	Active	Low Pass	5th	LC (Pi)	1	150MHz (Cutoff)	20dB @ 250MHz ~ 2GHz	-	100 mA	-	No	-40°C ~ 85°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.039" (1.00mm)

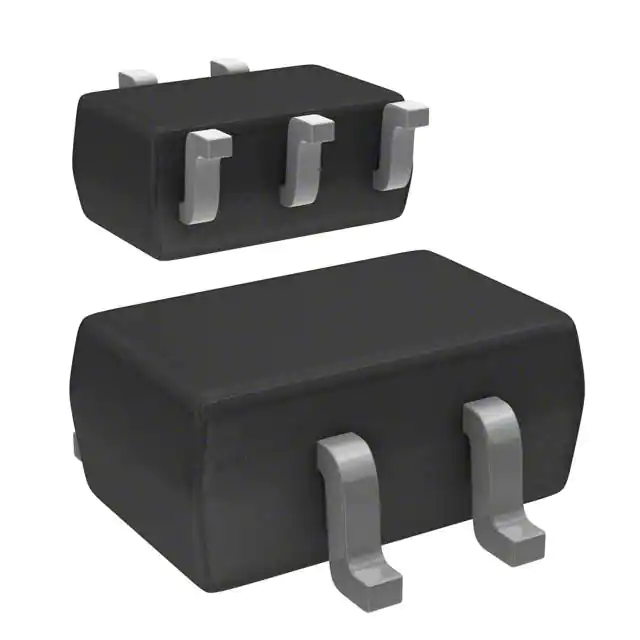

NZF220DFT1G FILTER RC(PI) 110 OHM/22PF SMD onsemi	21,332	0.50	RFQ	-	-	5-TSSOP, SC-70-5, SOT-353	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	2	220MHz (Cutoff)	-	110	-	R = 110Ohms, C = 22pF	Yes	-	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.043" (1.09mm)
NFA21SL207X1A45L FILTER LC 200MHZ SMD Murata Electronics	43,538	0.52	RFQ	-	EMIFIL®, NFA21	0805 (2012 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	2nd	LC	4	200MHz (Cutoff)	13dB @ 500MHz	-	100 mA	-	No	-55°C ~ 125°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.024" (0.60mm)
NFA21SL207X1A48L FILTER LC 200MHZ SMD Murata Electronics	8,207	0.52	RFQ	-	EMIFIL®, NFA21	0805 (2012 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	2nd	LC	4	200MHz (Cutoff)	13dB @ 500MHz	-	100 mA	-	No	-55°C ~ 125°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.037" (0.95mm)
NFA21SL307X1A45L FILTER LC 300MHZ SMD Murata Electronics	4,158	0.52	RFQ	-	EMIFIL®, NFA21	0805 (2012 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	2nd	LC	4	300MHz (Cutoff)	7dB @ 500MHz	-	100 mA	-	No	-55°C ~ 125°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.024" (0.60mm)
TPD6F002DSVR FILTER RC(PI) 100 OHM/17PF SMD Texas Instruments	21,156	0.74	RFQ	-	TPD	12-WFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	6	100MHz (Cutoff)	57dB @ 100MHz	100	-	R = 100Ohms, C = 17pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.118" L x 0.053" W (3.00mm x 1.35mm)	0.031" (0.79mm)
MEA1608PE270TA0G FILTER LC(PI) 27PF 240MHZ SMD TDK Corporation	15,867	0.50	RFQ	-	MEA	0603 (1608 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	4	240MHz (Cutoff)	20dB @ 470MHz ~ 3GHz	-	100 mA	C = 27pF	No	-40°C ~ 85°C	Data Lines for Mobile Devices	6.3V	-	-	Surface Mount	0.063" L x 0.032" W (1.60mm x 0.80mm)	0.024" (0.60mm)
NUF2101MT1G FILTER RC(PI) 30 OHM/55PF SMD onsemi	4,860	0.49	RFQ	-	-	SC-74, SOT-457	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	3	-	-	30	-	R = 30Ohms, C = 55pF (Total)	Yes	-55°C ~ 125°C	USB	-	-	-	Surface Mount	0.118" L x 0.059" W (3.00mm x 1.50mm)	0.043" (1.09mm)
NFA18SL137V1A45L FILTER LC 130MHZ SMD Murata Electronics	3,500	0.50	RFQ	-	EMIFIL®, NFA18	0603 (1608 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	2nd	LC	4	130MHz (Cutoff)	25dB @ 900MHz	-	50 mA	-	No	-40°C ~ 85°C	General Purpose	10V	-	-	Surface Mount	0.063" L x 0.032" W (1.60mm x 0.80mm)	0.026" (0.65mm)
MEA1608PE150TA0G FILTER LC(PI) 15PF 270MHZ SMD TDK Corporation	2,519	0.50	RFQ	-	MEA	0603 (1608 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	3rd	LC (Pi)	4	270MHz (Cutoff)	-	-	100 mA	C = 15pF	No	-40°C ~ 85°C	Data Lines for Mobile Devices	6.3V	-	-	Surface Mount	0.063" L x 0.032" W (1.60mm x 0.80mm)	0.024" (0.60mm)
MEA1608L75R0TA0G FILTER LC 75MHZ SMD TDK Corporation	33,875	0.50	RFQ	-	MEA	0603 (1608 Metric), Array, 10 PC Pad	Tape & Reel (TR)	Active	Low Pass	1st	LC	4	75MHz (Cutoff)	20dB @ 600MHz ~ 2GHz	-	100 mA	-	No	-40°C ~ 85°C	Data Lines for Mobile Devices	6.3V	-	-	Surface Mount	0.063" L x 0.032" W (1.60mm x 0.80mm)	0.024" (0.60mm)
IP4254CZ16-8-TTL,1 FILTER RC(PI) 100 OHM/30PF SMD Nexperia USA Inc.	7,002	0.55	RFQ	-	-	16-UFDFN Exposed Pad	Tape & Reel (TR)	Last Time Buy	Low Pass	2nd	RC (Pi)	8	-	28dB @ 800MHz ~ 3GHz	100	-	R = 100Ohms, C = 30pF (Total)	Yes	-40°C ~ 85°C	LAN, WAN	-	-	-	Surface Mount	0.130" L x 0.053" W (3.30mm x 1.35mm)	0.022" (0.55mm)
DSS1NB32A271Q91A FILTER LC(T) 270PF TH Murata Electronics	11,763	0.28	RFQ	-	EMIFIL®, DSS1	Radial - 3 Leads	Cut Tape (CT)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	6 A	C = 270pF	No	-40°C ~ 85°C	General Purpose	100V	-	-	Through Hole	0.335" L x 0.138" W (8.50mm x 3.50mm)	0.295" (7.50mm)
NUF6410MNT1G FILTER RC(PI) 100 OHM/7PF SMD onsemi	5,791	0.57	RFQ	-	-	12-VFDFN Exposed Pad	Tape & Reel (TR)	Active	Low Pass	2nd	RC (Pi)	6	250MHz (Cutoff)	-20dB @ 800MHz ~ 3GHz	100	-	R = 100Ohms, C = 7pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.118" L x 0.053" W (3.00mm x 1.35mm)	0.039" (1.00mm)

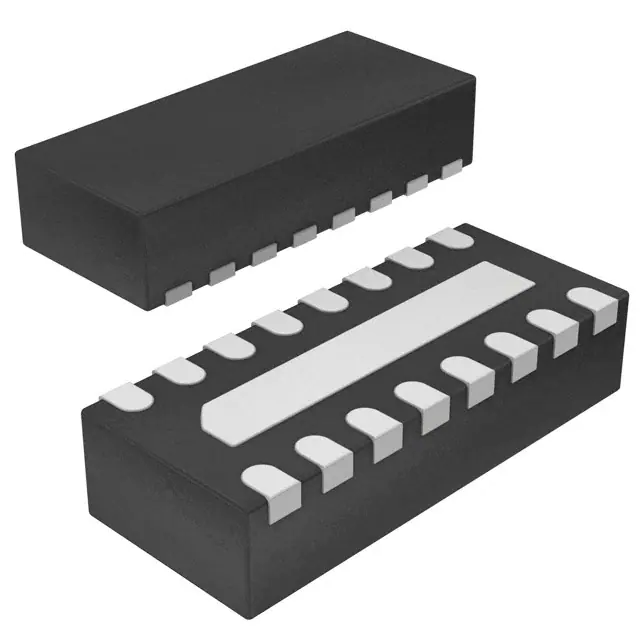

VEMI85AA-HGK-GS08 FILTER RC(PI) 100 OHM/36PF SMD Vishay General Semiconductor - Diodes Division	37,181	0.59	RFQ	-	-	16-UFDFN Exposed Pad	Tape & Reel (TR)	Last Time Buy	Low Pass	2nd	RC (Pi)	8	100MHz (Cutoff)	-	100	4 A	R = 100Ohms, C = 36pF	Yes	-40°C ~ 125°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.130" L x 0.053" W (3.30mm x 1.35mm)	0.024" (0.60mm)
DSS1NB32A221Q91A FILTER LC(T) 220PF TH Murata Electronics	21,578	0.28	RFQ	-	EMIFIL®, DSS1	Radial - 3 Leads	Cut Tape (CT)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	6 A	C = 220pF	No	-40°C ~ 85°C	General Purpose	100V	-	-	Through Hole	0.335" L x 0.138" W (8.50mm x 3.50mm)	0.295" (7.50mm)
DSS1NB32A102Q91A FILTER LC(T) 1000PF TH Murata Electronics	18,702	0.28	RFQ	-	EMIFIL®, DSS1	Radial - 3 Leads	Cut Tape (CT)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	6 A	C = 1000pF	No	-40°C ~ 85°C	General Purpose	100V	-	-	Through Hole	0.335" L x 0.138" W (8.50mm x 3.50mm)	0.295" (7.50mm)
DSS1NB32A471Q91A FILTER LC(T) 470PF TH Murata Electronics	9,967	0.28	RFQ	-	EMIFIL®, DSS1	Radial - 3 Leads	Cut Tape (CT)	Active	Low Pass	3rd	LC (T-Type)	1	-	-	-	6 A	C = 470pF	No	-40°C ~ 85°C	General Purpose	100V	-	-	Through Hole	0.335" L x 0.138" W (8.50mm x 3.50mm)	0.295" (7.50mm)

Total 1980 Record«Prev 1 2 3 4 5 678 9 10...99 Next»
