EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
, Array, 6 PC Pad.jpg)
|
MEA1210PE220T001FILTER LC(PI) 22PF 250MHZ SMD |
4,770 | 0.00 |
|
- |
MEA | 0504 (1210 Metric), Array, 6 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 2 | 250MHz (Cutoff) | 20dB @ 470MHz ~ 3GHz | - | 100 mA | C = 22pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.047" L x 0.039" W (1.20mm x 1.00mm) | 0.024" (0.60mm) |
|
|
MEA1210PE360T001FILTER LC(PI) 36PF 220MHZ SMD |
4,576 | 0.00 |
|
- |
MEA | 0504 (1210 Metric), Array, 6 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (Pi) | 2 | 220MHz (Cutoff) | 20dB @ 470MHz ~ 3GHz | - | 100 mA | C = 36pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.047" L x 0.039" W (1.20mm x 1.00mm) | 0.024" (0.60mm) |
|
DSS1NB32A153Q91AFILTER LC(T) 0.015UF TH |
3,572 | 0.14 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 0.015µF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
|
DSS1NB32A680Q91AFILTER LC(T) 68PF TH |
3,132 | 0.14 |
|
- |
EMIFIL®, DSS1 | Radial - 3 Leads | Cut Tape (CT) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 6 A | C = 68pF | No | -40°C ~ 85°C | General Purpose | 100V | - | - | Through Hole | 0.335" L x 0.138" W (8.50mm x 3.50mm) | 0.295" (7.50mm) |
|
CM1457-08CPFILTER LC(PI) 70NH/12.5PF SMD |
3,944 | 0.57 |
|
- |
- | 20-WFBGA, WLCSP | Tape & Reel (TR) | Obsolete | Low Pass | 5th | LC (Pi) | 8 | 300MHz (Cutoff) | -35dB @ 800MHz ~ 2.7GHz | 45 | 15 mA | L = 70nH (Total), C = 12.5pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.129" L x 0.041" W (3.27mm x 1.05mm) | 0.027" (0.69mm) |
|
NFL18ST307H1A3DFILTER LC(T) 74NH/16PF SMD |
1,324 | 0.53 |
|
- |
EMIFIL®, NFL18 | 0603 (1608 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | 300MHz (Cutoff) | 6dB @ 0MHz ~ 300MHz | - | 100 mA | L = 74nH, C = 16pF | No | -55°C ~ 125°C | General Purpose | 10V | - | - | Surface Mount | 0.063" L x 0.032" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
NFE61HT680R2A9LFILTER LC(T) 68PF SMD |
1,791 | 0.55 |
|
- |
EMIFIL®, NFE61 | 2706 (6816 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (T-Type) | 1 | - | - | - | 2 A | C = 68pF | No | -55°C ~ 125°C | - | 100V | - | - | Surface Mount | 0.268" L x 0.063" W (6.80mm x 1.60mm) | 0.075" (1.90mm) |
|
EMIF08-0402T16FILTER RC(PI) 40 OHM/9PF ESD SMD |
3,980 | 0.00 |
|
- |
IPAD™ | 16-UFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Low Pass | 2nd | RC (Pi) | 8 | - | - | 40 | 50 mA | R = 40Ohms, C = 9pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.130" L x 0.053" W (3.30mm x 1.35mm) | 0.022" (0.55mm) |
|
EMIF06-HMC01F2FILTER RC(PI) 50 OHM/20PF SMD |
1,531 | 0.00 |
|
- |
IPAD™ | 16-WFBGA, FCBGA | Tape & Reel (TR) | Discontinued at Digi-Key | Low Pass | 2nd | RC (Pi) | 6 | - | - | 50 | - | R = 50Ohms, C = 20pF (Total) | Yes | -40°C ~ 85°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.076" L x 0.076" W (1.92mm x 1.92mm) | 0.028" (0.70mm) |
|
ACH32C-100-TFILTER LC(T) 10PF SMD |
2,713 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -15dB @ 2GHz ~ 6GHz | 0.002 | 6 A | C = 10pF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
|
|
ACH32C-101-T001FILTER LC(T) 100PF SMD |
3,972 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -20dB @ 450MHz ~ 1.3GHz | 0.002 | 6 A | C = 100pF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
|
|
ACH32C-102-TFILTER LC(T) 1000PF SMD |
2,721 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -25dB @ 100MHz ~ 350MHz | 0.002 | 6 A | C = 1000pF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
|
|
ACH32C-103-T001FILTER LC(T) 0.01UF SMD |
4,689 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -25dB @ 30MHz ~ 200MHz | 0.002 | 6 A | C = 10000pF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
|
|
ACH32C-104-T001FILTER LC(T) 0.1UF SMD |
2,283 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -25dB @ 3.5MHz ~ 200MHz | 0.002 | 6 A | C = 0.1µF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
|
|
ACH32C-220-TFILTER LC(T) 22PF SMD |
4,349 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -15dB @ 1.3GHz ~ 2.5GHz | 0.002 | 6 A | C = 22pF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
|
|
ACH32C-222-T001FILTER LC(T) 2200PF SMD |
1,894 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -25dB @ 55MHz ~ 300MHz | 0.002 | 6 A | C = 2200pF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
|

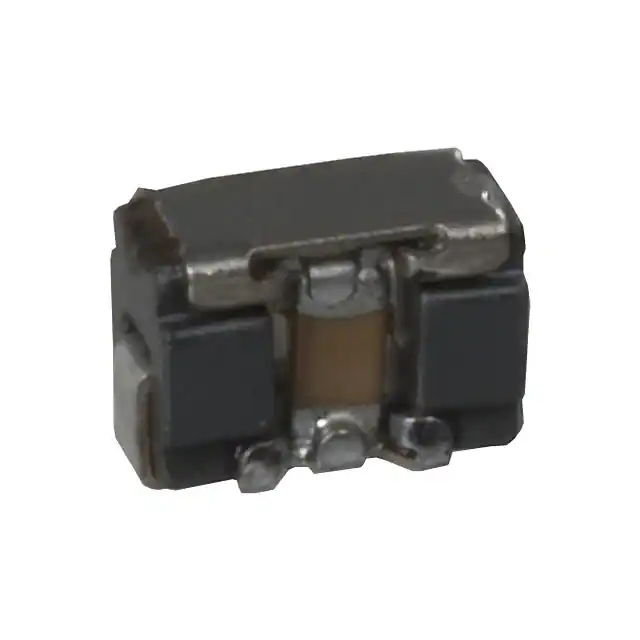

ACH32C-331-T001FILTER LC(T) 330PF SMD |
3,427 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -20dB @ 200MHz ~ 800MHz | 0.002 | 6 A | C = 330pF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
|
|
ACH32C-333-T001FILTER LC(T) 0.033UF SMD |
2,451 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -25dB @ 10MHz ~ 300MHz | 0.002 | 6 A | C = 0.033µF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
|
|
ACH32C-470-T001FILTER LC(T) 47PF SMD |
4,974 | 0.00 |
|
- |
ACH | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Obsolete | Low Pass | 3rd | LC (T-Type) | 1 | - | -15dB @ 650MHz ~ 2.5GHz | 0.002 | 6 A | C = 47pF | No | -40°C ~ 125°C | General Purpose | 50V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.091" (2.30mm) |
, Array, 10 PC Pad.jpg)
|
MEA2010PE360T001FILTER LC 36PF 220MHZ SMD |
4,518 | 0.28 |
|
- |
MEA | 0804 (2010 Metric), Array, 10 PC Pad | Tape & Reel (TR) | Active | Low Pass | 2nd | LC | 4 | 220MHz (Cutoff) | 20dB @ 470MHz ~ 3GHz | - | 100 mA | C = 36pF | No | -40°C ~ 85°C | Data Lines for Mobile Devices | 6.3V | - | - | Surface Mount | 0.079" L x 0.039" W (2.00mm x 1.00mm) | 0.031" (0.79mm) |
