EMI/RFI Filters (LC, RC Networks)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Filter Order	Technology	Number of Channels	Center / Cutoff Frequency	Attenuation Value	Resistance - Channel (Ohms)	Current	Values	ESD Protection	Operating Temperature	Applications	Voltage - Rated	Grade	Qualification	Mounting Type	Size / Dimension	Height
NFL18SP157X1A3D FILTER LC(PI) 100NH/34PF SMD Murata Electronics	2,668	0.42	RFQ	-	EMIFIL®, NFL18	0603 (1608 Metric), 3 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (Pi)	1	150MHz (Cutoff)	-	-	100 mA	L = 100nH, C = 34pF	No	-55°C ~ 125°C	General Purpose	10V	-	-	Surface Mount	0.063" L x 0.032" W (1.60mm x 0.80mm)	0.028" (0.70mm)
EMIF02-USB01F2 FILTER RC(PI) ESD SMD STMicroelectronics	2,788	0.31	RFQ	-	IPAD™	8-WFBGA, FCBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	2	-	-	33, 1.3k	-	R = 33Ohms, 1.3kOhms, C = 40pF	Yes	-40°C ~ 85°C	USB	-	-	-	Surface Mount	0.076" L x 0.050" W (1.97mm x 1.27mm)	0.028" (0.70mm)
CM1693-08DE FILTER LC(PI) 26NH/22PF ESD SMD onsemi	4,936	1.00	RFQ	-	-	16-UFDFN Exposed Pad	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (Pi)	8	300MHz (Cutoff)	-30dB @ 800MHz ~ 6GHz	-	30 mA	L = 26nH, C = 22pF (Total)	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.130" L x 0.053" W (3.30mm x 1.35mm)	0.022" (0.55mm)
EMIF09-SD01F3 FILTER RC(PI) 40 OHM/20PF SMD STMicroelectronics	100	0.70	RFQ	-	IPAD™	24-WFBGA, FCBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	9	-	-	40	-	R = 40Ohms, C = 20pF	Yes	-30°C ~ 85°C	General Purpose	-	-	-	Surface Mount	0.076" L x 0.076" W (1.92mm x 1.92mm)	0.026" (0.65mm)
EMIF06-MSD01F2 FILTER RC(PI) 40 OHM/17PF SMD STMicroelectronics	3,315	0.64	RFQ	-	IPAD™	16-WFBGA, FCBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	6	-	-	40	-	R = 40Ohms, C = 17pF (Total)	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.076" L x 0.076" W (1.92mm x 1.92mm)	0.028" (0.70mm)

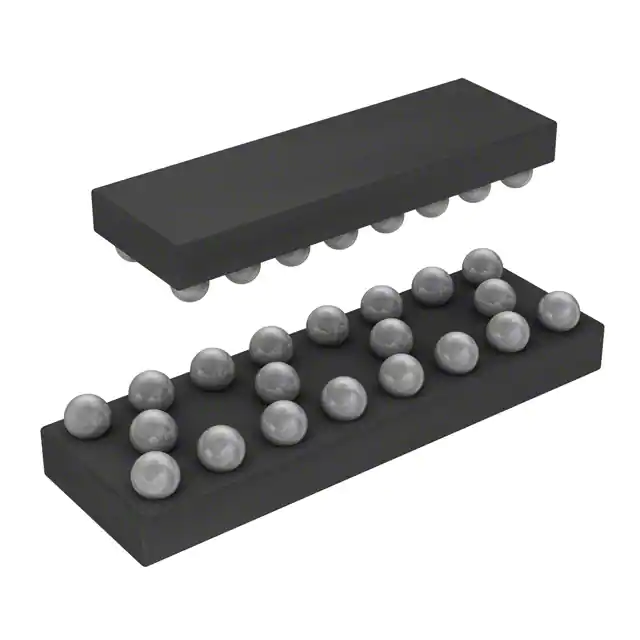

CM1422-03CP FILTER RC(PI) 100 OHM/15PF SMD onsemi	4,768	0.51	RFQ	-	-	20-WFBGA, WLCSP	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	8	120MHz (Cutoff)	30dB @ 1GHz ~ 3GHz	100	-	R = 100Ohms, C = 15pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.157" L x 0.057" W (4.00mm x 1.46mm)	0.026" (0.65mm)
MEM2012W181R FILTER LC(PI) 180MHZ SMD TDK Corporation	4,895	0.58	RFQ	-	MEM	0805 (2012 Metric), 3 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	5th	LC (Pi)	1	180MHz (Cutoff)	-	-	100 mA	-	No	-40°C ~ 85°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.087" (2.20mm)
IP5020CX16/LF,135 FILTER RC(PI) ESD SMD NXP USA Inc.	1,172	0.00	RFQ	-	-	16-UFBGA, CSPBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	2	-	-	5, 20	-	R = 5Ohms, 20Ohms, C = 550pF	Yes	-	Audio	-	-	-	Surface Mount	0.079" L x 0.075" W (2.01mm x 1.91mm)	0.026" (0.65mm)
BGH 182M E6327 FILTER LC ESD SMD Infineon Technologies	2,175	0.00	RFQ	-	-	6-XFDFN Exposed Pad	Tape & Reel (TR)	Obsolete	Low Pass	6th	LC	3	-	-	-	-	-	Yes	-	Data Lines for Mobile Devices	-	-	-	Surface Mount	-	-
BGH 92M E6327 FILTER LC ESD SMD Infineon Technologies	2,361	0.00	RFQ	-	-	6-XFDFN Exposed Pad	Tape & Reel (TR)	Obsolete	Low Pass	6th	LC	3	-	-	-	-	-	Yes	-	Data Lines for Mobile Devices	-	-	-	Surface Mount	-	-

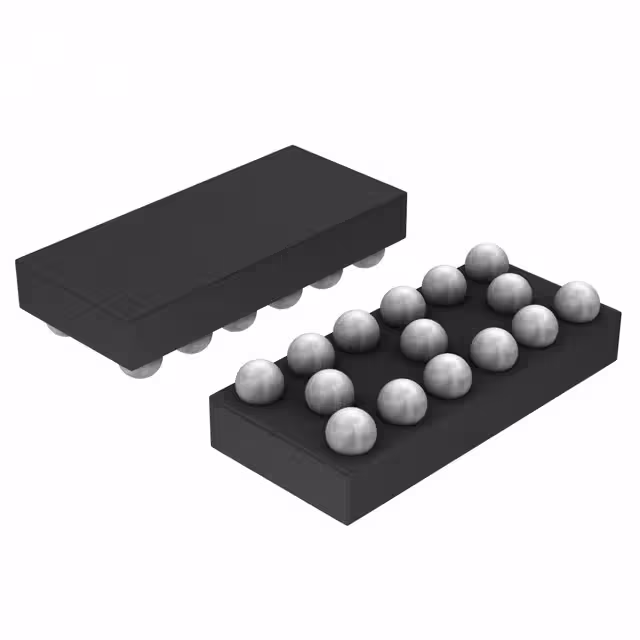

EMIF06-VID01F2 IC FILTER EMI 6LINE ESD FLIPCHIP STMicroelectronics	4,281	0.35	RFQ	-	EMIF	15-WFBGA, FCBGA	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	6	-	40dB @ 900MHz	100	10 mA	R = 100Ohms, C = 16pF (Total)	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.115" L x 0.051" W (2.92mm x 1.29mm)	0.028" (0.70mm)
MEM2012T101R FILTER LC(T) 100MHZ SMD TDK Corporation	1,321	0.00	RFQ	-	MEM	0805 (2012 Metric), 3 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (T-Type)	1	100MHz (Cutoff)	20dB @ 400MHz ~ 1.7GHz	-	250 mA	-	No	-40°C ~ 85°C	Data Lines for Mobile Devices	10V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.087" (2.20mm)
NFL21SP157X1C3D FILTER LC(PI) 128NH/28PF SMD Murata Electronics	4,764	0.31	RFQ	-	EMIFIL®, NFL21	0805 (2012 Metric), 3 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (Pi)	1	150MHz (Cutoff)	-	-	200 mA	L = 128nH, C = 28pF	No	-55°C ~ 125°C	General Purpose	16V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.037" (0.95mm)
NFL21SP507X1C3D FILTER LC(PI) 31NH/12PF SMD Murata Electronics	2,856	0.31	RFQ	-	EMIFIL®, NFL21	0805 (2012 Metric), 3 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (Pi)	1	500MHz (Cutoff)	-	-	300 mA	L = 31nH, C = 12pF	No	-55°C ~ 125°C	General Purpose	16V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.037" (0.95mm)
KNH21C106DA3TS FILTER LC 10UF SMD KYOCERA AVX	2,991	0.00	RFQ	-	KNH, Kyocera	0805 (2012 Metric)	Tape & Reel (TR)	Obsolete	Low Pass	-	LC	-	-	-	0.01	6 A	C = 10µF	No	-40°C ~ 85°C	General Purpose	6.3V	-	-	Surface Mount	0.079" L x 0.049" W (2.00mm x 1.25mm)	0.039" (1.00mm)

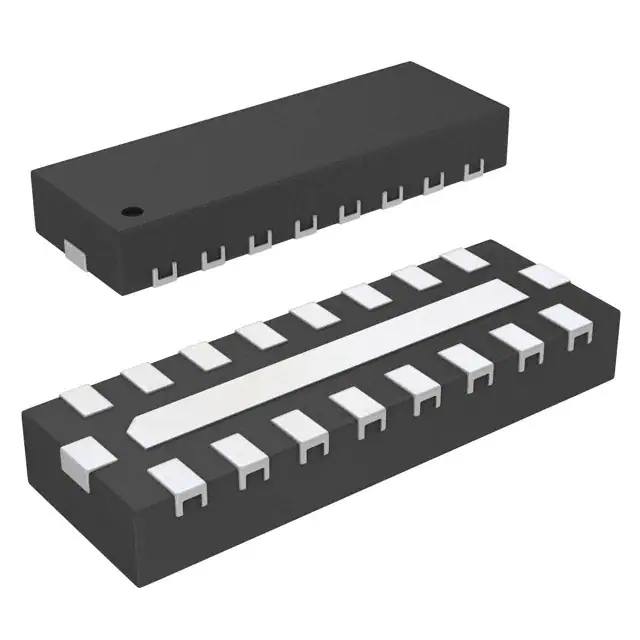

AOZ8040DI FILTER RC(PI) 100 OHM/9PF SMD Alpha & Omega Semiconductor Inc.	1,386	0.00	RFQ	-	-	16-UFDFN Exposed Pad	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	8	250MHz (Cutoff)	-20dB @ 1GHz ~ 3GHz	100	20 mA	R = 100Ohms, C = 9pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	5V	-	-	Surface Mount	0.138" L x 0.047" W (3.50mm x 1.20mm)	0.024" (0.60mm)

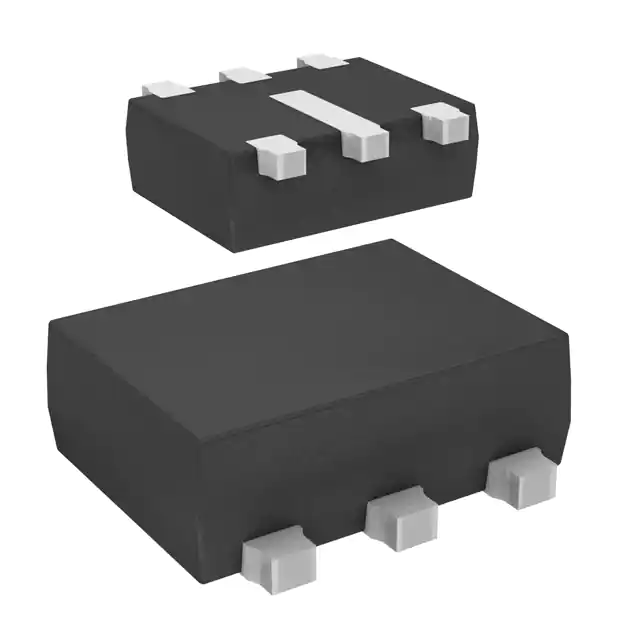

USBUF01P6 FILTER RC(PI) 33 OHM/47PF SMD STMicroelectronics	4,959	0.00	RFQ	-	USBUF	SOT-563, SOT-666	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	2	-	-25dB @ 900MHz	33	-	R = 33Ohms, C = 47pF	Yes	-40°C ~ 85°C	USB	-	-	-	Surface Mount	0.065" L x 0.065" W (1.66mm x 1.65mm)	0.024" (0.60mm)

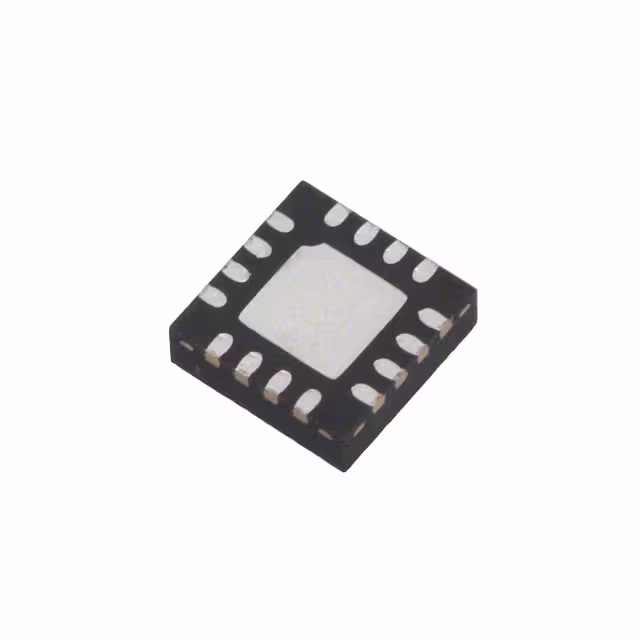

ECLAMP2357N.TCT FILTER RC(PI) 100 OHM/12PF SMD Semtech Corporation	3,636	0.00	RFQ	-	EClamp™	16-VFQFN Exposed Pad	Tape & Reel (TR)	Obsolete	Low Pass	2nd	RC (Pi)	6	-	20dB @ 1GHz ~ 3GHz	100	-	R = 100Ohms, C = 12pF	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.118" L x 0.118" W (3.00mm x 3.00mm)	0.039" (1.00mm)
ACF321825-471-TD01 FILTER LC(T) SMD TDK Corporation	2,306	0.00	RFQ	-	ACF	1210 (3225 Metric), 3 PC Pad	Tape & Reel (TR)	Obsolete	Low Pass	3rd	LC (T-Type)	1	-	25dB @ 120MHz ~ 180MHz	0.15	300 mA	-	No	-25°C ~ 85°C	Data Lines for Mobile Devices	20V	-	-	Surface Mount	0.126" L x 0.098" W (3.20mm x 2.50mm)	0.079" (2.00mm)
CM1624-08DE FILTER RLC 40 OHM/12PF/20NH SMD onsemi	3,621	0.79	RFQ	-	-	16-UFDFN Exposed Pad	Tape & Reel (TR)	Obsolete	Low Pass	3rd	RLC	6	300MHz (Cutoff)	-	40	-	R = 40Ohms, C = 12pF, L = 20nH	Yes	-40°C ~ 85°C	Data Lines for Mobile Devices	-	-	-	Surface Mount	0.130" L x 0.053" W (3.30mm x 1.35mm)	0.022" (0.55mm)

Total 1980 Record«Prev 1... 59 60 61 626364 65 66...99 Next»
