EMI/RFI Filters (LC, RC Networks)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Filter Order | Technology | Number of Channels | Center / Cutoff Frequency | Attenuation Value | Resistance - Channel (Ohms) | Current | Values | ESD Protection | Operating Temperature | Applications | Voltage - Rated | Grade | Qualification | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4701-001MFILTER LC(PI) 0.1UH/8200PF SMD |
3,012 | 0.00 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 65dB @ 100MHz | - | 10 A | L = 0.1µH, C = 8200pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.394" L x 0.090" W (10.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4701-002MFILTER LC(PI) 0.1UH/6800PF SMD |
3,219 | 0.00 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 60dB @ 100MHz | - | 10 A | L = 0.1µH, C = 6800pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.394" L x 0.090" W (10.00mm x 2.29mm) | 0.095" (2.41mm) |
|
|
4700-005MFILTER LC(PI) 0.1UH/1000PF SMD |
2,060 | 0.00 |
|
- |
4700 | Pill, Square | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 40dB @ 100MHz | - | 10 A | L = 0.1µH, C = 1000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.090" W (8.00mm x 2.29mm) | 0.095" (2.41mm) |
|
4420P-601-101/201FILTER RC(T) 100 OHM/200PF SMD |
3,645 | 0.00 |
|
- |
601 | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC (T-Type) | 8 | - | - | 100 | - | R = 100Ohms, C = 200pF | No | 10°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.510" L x 0.295" W (12.95mm x 7.50mm) | 0.114" (2.90mm) |
|
|
4420P-601-250/201FILTER RC(T) 25 OHM/200PF SMD |
3,044 | 0.00 |
|
- |
601 | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC (T-Type) | 8 | - | -3dB @ 21MHz | 25 | - | R = 25Ohms, C = 200pF | No | 10°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.510" L x 0.295" W (12.95mm x 7.50mm) | 0.114" (2.90mm) |
|
|
4420P-601-101/101FILTER RC(T) 100 OHM/100PF SMD |
3,287 | 0.00 |
|
- |
601 | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC (T-Type) | 8 | - | - | 100 | - | R = 100Ohms, C = 100pF | No | 10°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.510" L x 0.295" W (12.95mm x 7.50mm) | 0.114" (2.90mm) |
|
|
4420P-601-250/101FILTER RC(T) 25 OHM/100PF SMD |
2,302 | 0.00 |
|
- |
601 | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC (T-Type) | 8 | - | - | 25 | - | R = 25Ohms, C = 100pF | No | 10°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.510" L x 0.295" W (12.95mm x 7.50mm) | 0.114" (2.90mm) |
|
|
4420P-601-250/181FILTER RC(T) 25 OHM/180PF SMD |
4,651 | 0.00 |
|
- |
601 | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC (T-Type) | 8 | - | - | 25 | - | R = 25Ohms, C = 180pF | No | 10°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.510" L x 0.295" W (12.95mm x 7.50mm) | 0.114" (2.90mm) |
|
|
4420P-601-820/201FILTER RC(T) 82 OHM/200PF SMD |
3,348 | 0.00 |
|
- |
601 | 20-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | 1st | RC (T-Type) | 8 | - | - | 82 | - | R = 82Ohms, C = 200pF | No | 10°C ~ 85°C | General Purpose | 25V | - | - | Surface Mount | 0.510" L x 0.295" W (12.95mm x 7.50mm) | 0.114" (2.90mm) |
|

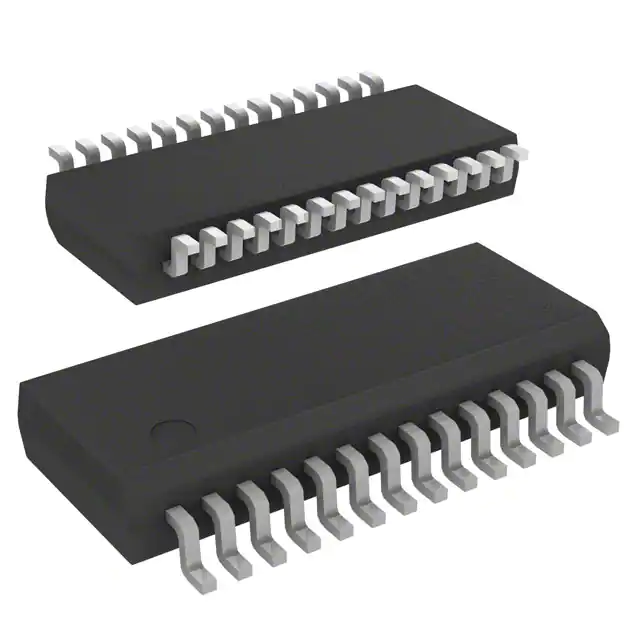

ST1284-01A8RLFILTER RC ESD SMD |
1,788 | 0.00 |
|
- |
ST1284 | 28-LSSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | - | RC | 17 | - | - | - | - | R = 33Ohms, 4.7kOhms, C = 180pF | Yes | 0°C ~ 70°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.389" L x 0.154" W (9.89mm x 3.90mm) | 0.069" (1.75mm) |
|
|
ST1284-02A8RLFILTER RC ESD SMD |
1,897 | 0.00 |
|
- |
ST1284 | 28-LSSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Low Pass | - | RC | 17 | - | - | - | - | R = 33Ohms, 4.7kOhms, C = 180pF | Yes | 0°C ~ 70°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.389" L x 0.154" W (9.89mm x 3.90mm) | 0.069" (1.75mm) |
|
|
SBSPP1000101MCRSURFACE MOUNT PI FILTER |
3,120 | 1.38 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 7dB @ 100MHz | - | 1 A | C = 100pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000471MCRSURFACE MOUNT PI FILTER |
4,909 | 1.38 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 25dB @ 100MHz | - | 1 A | C = 470pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000102MXRSURFACE MOUNT PI FILTER |
2,184 | 1.39 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 1000pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000222MXRSURFACE MOUNT PI FILTER |
3,197 | 1.39 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 2200pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
SBSPP1000472MXRSURFACE MOUNT PI FILTER |
4,431 | 1.39 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 37dB @ 100MHz | - | 1 A | C = 4700pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.071" (1.80mm) |
|
|
ST1284-01A8FILTER RC ESD SMD |
3,566 | 0.00 |
|
- |
ST1284 | 28-LSSOP (0.154", 3.90mm Width) | Tube | Obsolete | Low Pass | - | RC | 17 | - | - | - | - | R = 33Ohms, 4.7kOhms, C = 180pF | Yes | 0°C ~ 70°C | Data Lines for Mobile Devices | - | - | - | Surface Mount | 0.389" L x 0.154" W (9.89mm x 3.90mm) | 0.069" (1.75mm) |
|
|
SBSPP1000470MCBSURFACE MOUNT PI FILTER |
3,536 | 1.69 |
|
- |
SBSP | 1206 (3216 Metric), 3 PC Pad | Bulk | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 7dB @ 100MHz | - | 1 A | C = 100pF | No | - | General Purpose | 100V | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | 0.071" (1.80mm) |
|
P409CP104M275AH471FILTER RC 470 OHM/0.1UF TH |
1,982 | 1.35 |
|
- |
P409 | Radial | Bulk | Active | Low Pass | 1st | RC | 1 | - | - | 470 | - | R = 470Ohms, C = 0.1µF | No | -40°C ~ 85°C | General Purpose | 275VAC | - | - | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) |
|
|
4700-056MFILTER LC(PI) 0.1UH/5000PF SMD |
2,303 | 0.00 |
|
- |
4700 | Pill, Round | Tape & Reel (TR) | Active | Low Pass | 3rd | LC (Pi) | 1 | - | 55dB @ 100MHz | - | 10 A | L = 0.1µH, C = 5000pF | No | -55°C ~ 125°C | General Purpose | 100V | - | - | Surface Mount | 0.315" L x 0.085" W (8.00mm x 2.16mm) | 0.090" (2.28mm) |
