DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLV61070AEVM-095EVAL BOARD FOR TLV61070A |
2,874 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1A | 3.6V | Boost | - | Board(s), Cable(s) | TLV61070A |
|

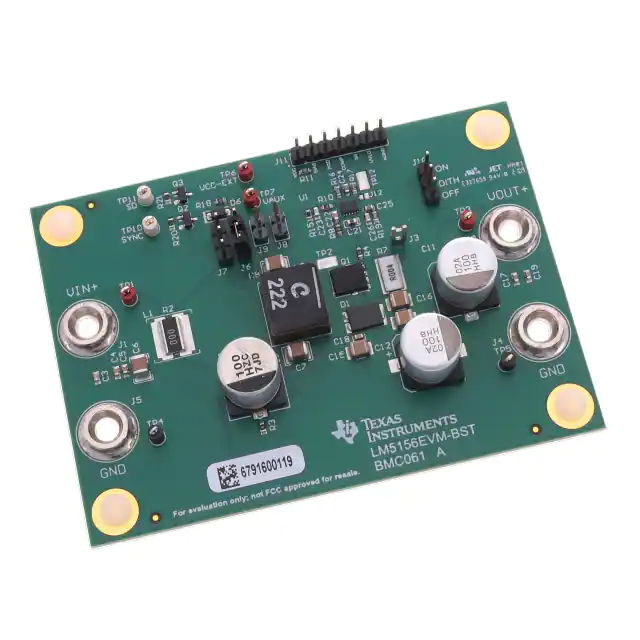

LM5156EVM-BSTEVAL BOARD FOR LM5156 |
3,070 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 3A | 3V ~ 12V | Boost | 440kHz | Board(s) | LM5156 |
|

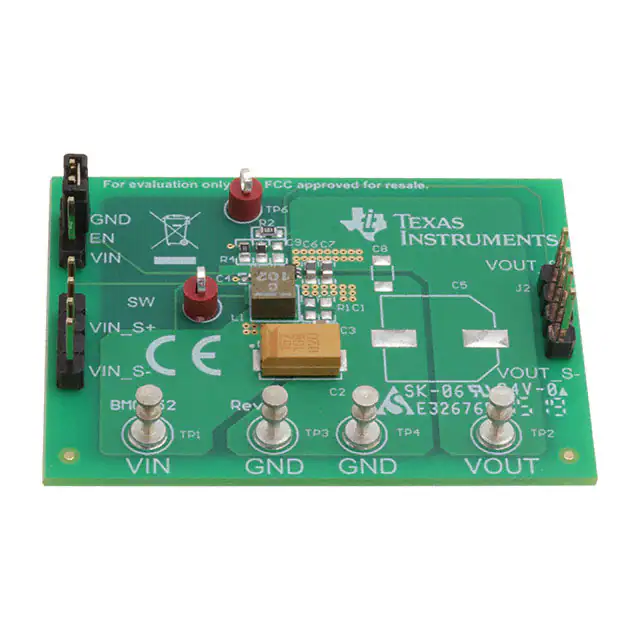

TPS61023EVM-052EVAL BOARD FOR TPS61023 |
3,758 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1.5A, 1A | 0.5V ~ 5.5V | Boost | 1MHz | Board(s) | TPS61023 |
|

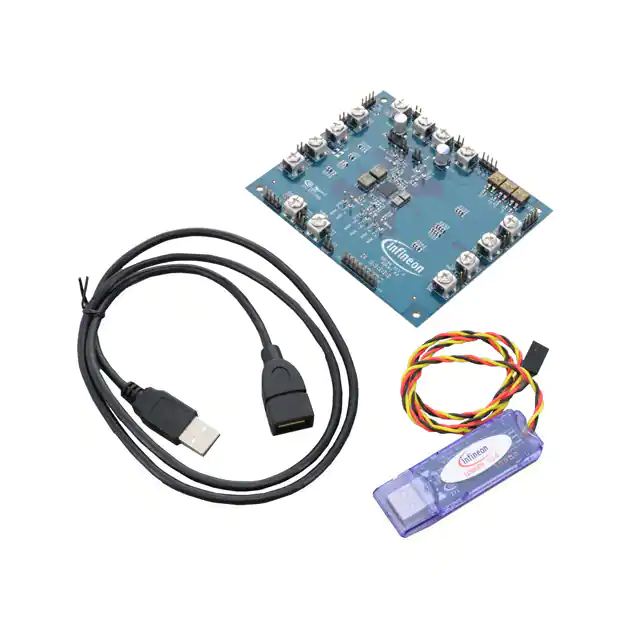

EVALPS5401INTTOBO1EVAL BOARD FOR IRPS5401 |
1,429 | 123.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 5 Non-Isolated Outputs | - | 0.25V ~ 5.1V | 4A, 4A, 2A, 2A, 500mA | 6V ~ 12V | Buck | - | Board(s) | IRPS5401 |
|
|
TPSM83100EVM-114EVAL BOARD FOR TPSM83100 |
4,858 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 1.6V ~ 5.5V | Buck-Boost | - | Board(s) | TPSM83100 |
|

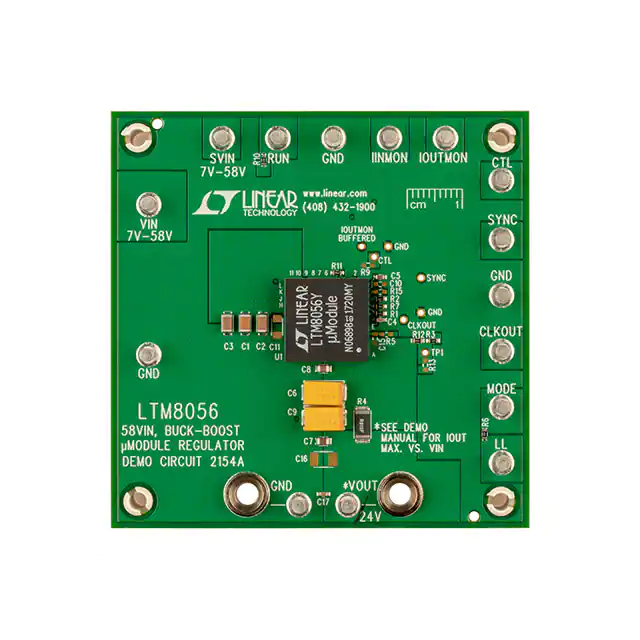

DC2154AEVAL BOARD FOR LTM8056 |
4,000 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 3A | 7V ~ 58V | Buck-Boost | 525kHz | Board(s) | LTM8056 |
|

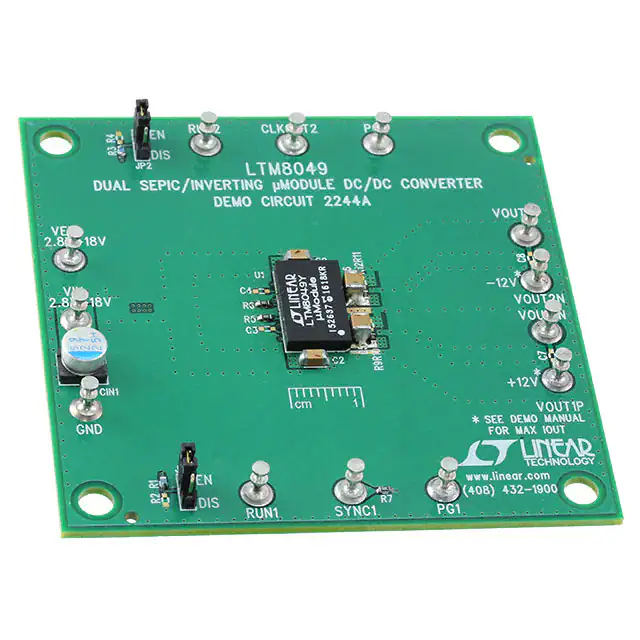

DC2244AEVAL BOARD FOR LTM8049 |
4,085 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Positive and Negative | 1 Non-Isolated Output | - | ±12V | 1A, 1A | 2.8V ~ 18V | SEPIC, Inverting | 1MHz | Board(s) | LTM8049 |
|

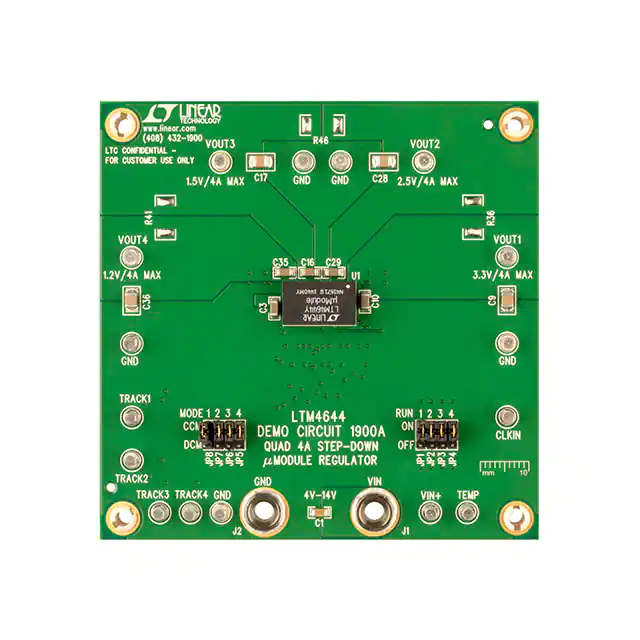

DC1900AEVAL BOARD FOR LTM4644 |
4,600 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 2.5V, 3.3V | 4A, 4A, 4A, 4A | 4V ~ 14V | Buck | 1MHz | Board(s) | LTM4644 |
|
DC2859AEVAL BOARD FOR LTM8083 |
1,483 | 76.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1.5A | 3V ~ 36V | Buck-Boost | 1MHz | Board(s) | LTM8083 |
|

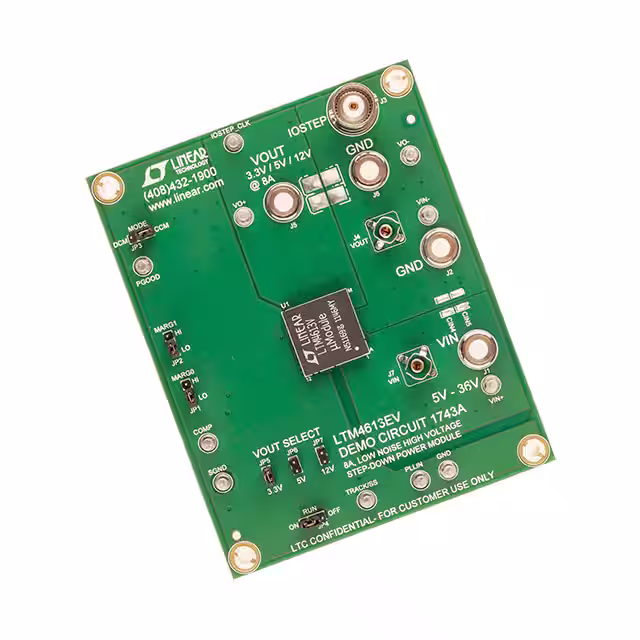

DC1743AEVAL BOARD FOR LTM4613 |
2,081 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 5V ~ 36V | Buck | 250kHz | Board(s) | LTM4613 |
|

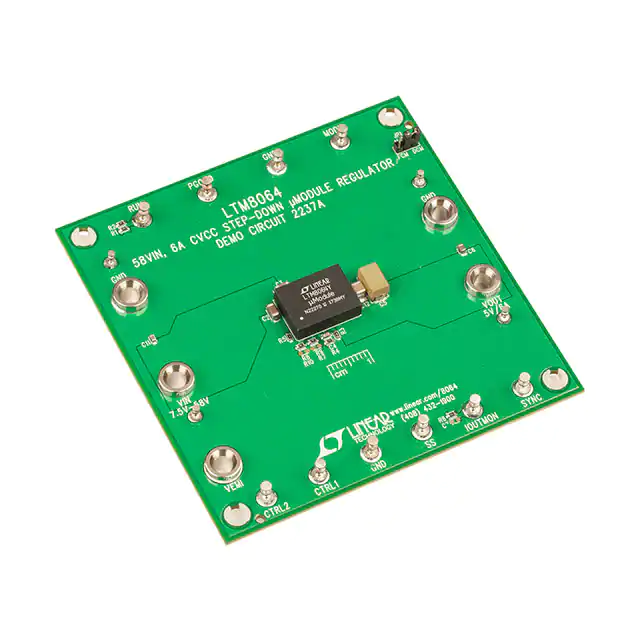

DC2237AEVAL BOARD FOR LTM8064 |
3,803 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 7.5V ~ 58V | Buck | 325kHz | Board(s) | LTM8064 |
|
DC2594AEVAL BOARD FOR LTM4655 |
2,545 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±12V | 4A, 2.5A | 13V ~ 28V | - | 1.2MHz | Board(s) | LTM4655 |
|
|
DC3071AEVAL BOARD FOR LTM8080 |
3,733 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 3.3V | 500mA, 500mA | 4V ~ 40V | Buck | - | Board(s) | LTM8080 |
|

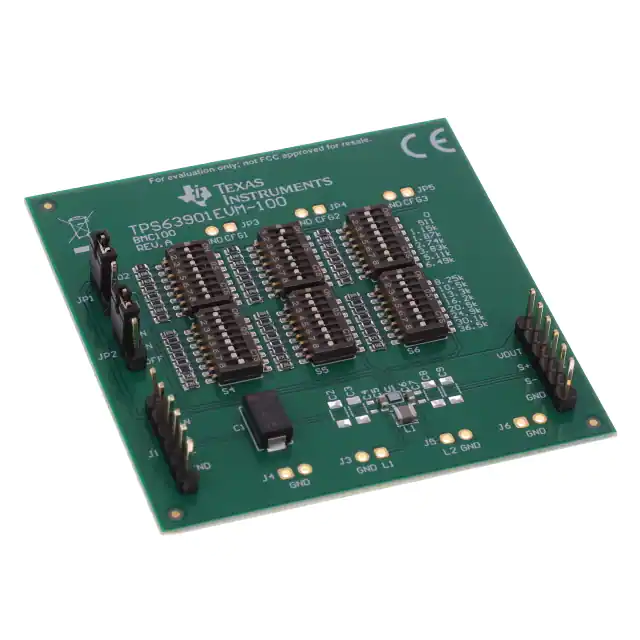

TPS63901EVM-100EVAL BOARD FOR TPS63901 |
1,501 | 82.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V ~ 5V | 330mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | TPS63901 |
|

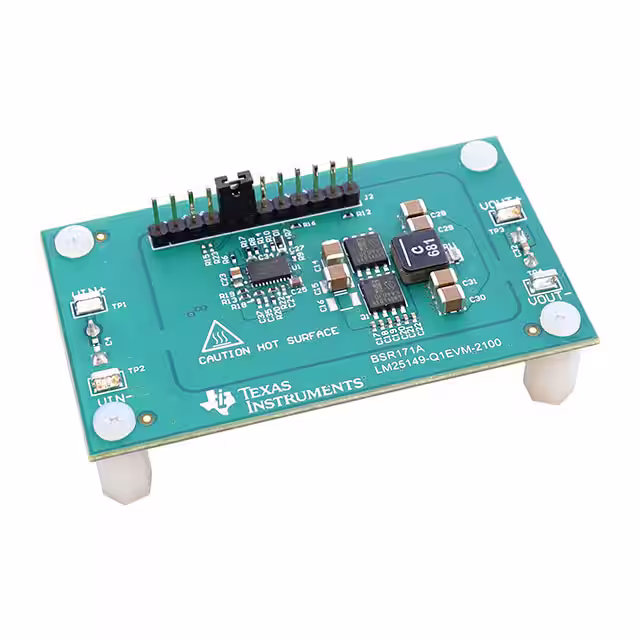

LM25149-Q1EVM-2100EVAL BOARD FOR LM25149Q1 |
2,665 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 3.5V ~ 42V | Buck | 2.1MHz | Board(s) | LM25149-Q1 |
|

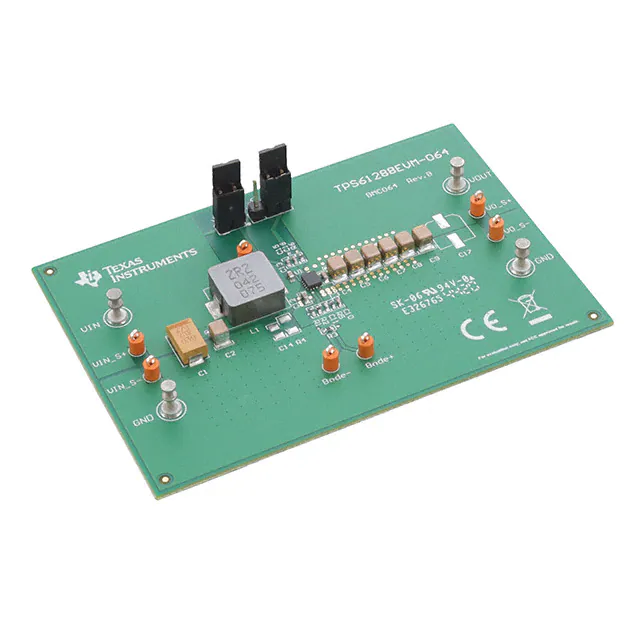

TPS61288EVM-064EVAL BOARD FOR TPS61288 |
1,348 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 13V | 15A | 2.7V ~ 8.8V | Boost | 500kHz | Board(s) | TPS61288 |
|

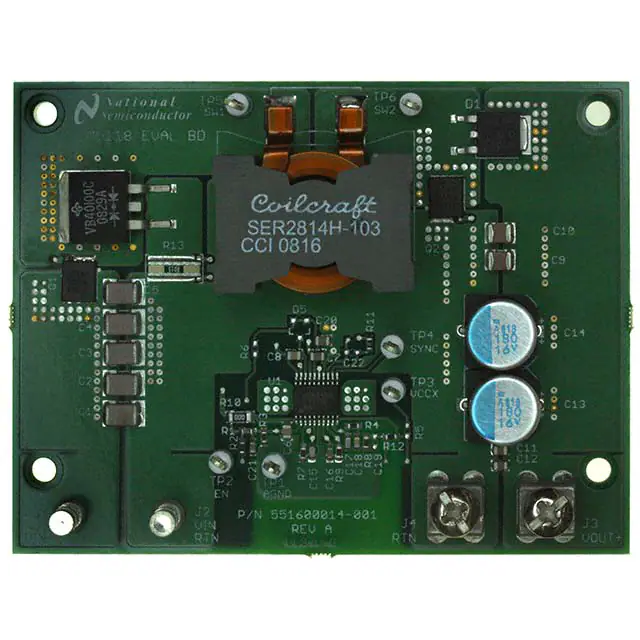

LM5118EVAL/NOPBEVAL BOARD FOR LM5118 |
2,831 | 90.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 3A | 5V ~ 75V | Buck-Boost | 300kHz | Board(s) | LM5118 |
|
|
TPS61299EVM-103EVAL BOARD FOR TPS61299 |
2,357 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1.2A | 0.7V ~ 5.5V | Boost | - | Board(s) | TPS61299 |
|

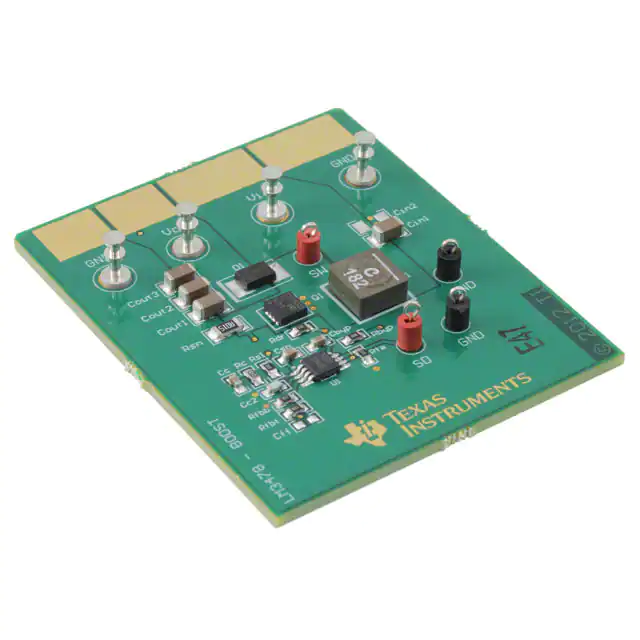

LM3478EVAL/NOPBEVAL BOARD FOR LM3478 |
2,918 | 94.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 4.5V ~ 5.5V | Boost | 1MHz | Board(s) | LM3478 |
|
|
ISL9122AIRN-EVZEVAL BOARD FOR ISL9122A |
2,911 | 94.88 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL9122A |
