DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

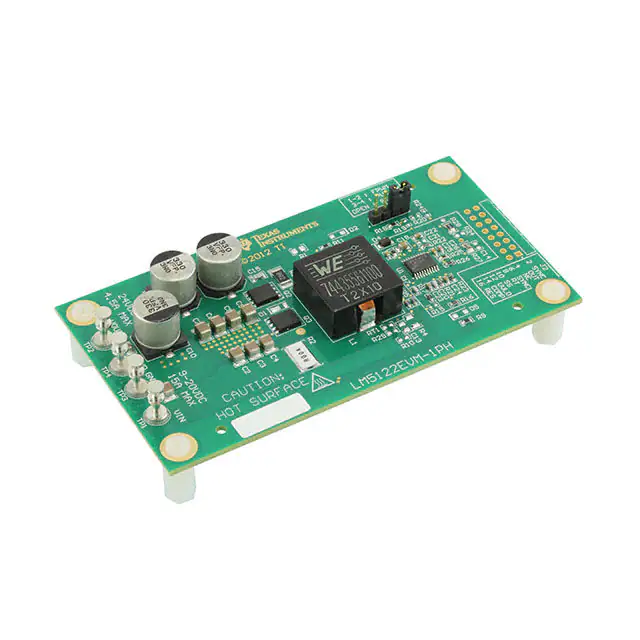

LM5122EVM-1PHEVAL BOARD FOR LM5122 |
2,877 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 4.5A | 9V ~ 20V | Boost | 250kHz | Board(s) | LM5122 |
|
LM5117EVAL/NOPBEVAL BOARD FOR LM5117 |
1,238 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 9A | 15V ~ 55V | Buck | 50kHz ~ 750kHz | Board(s) | LM5117 |
|
LM5185EVM-SIOEVAL BOARD FOR LM5185Q1 |
1,146 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 16.4V | 1.8A, 1.5A, 1A | 20V ~ 60V | Flyback | 350kHz | Board(s) | LM5185-Q1 |
|

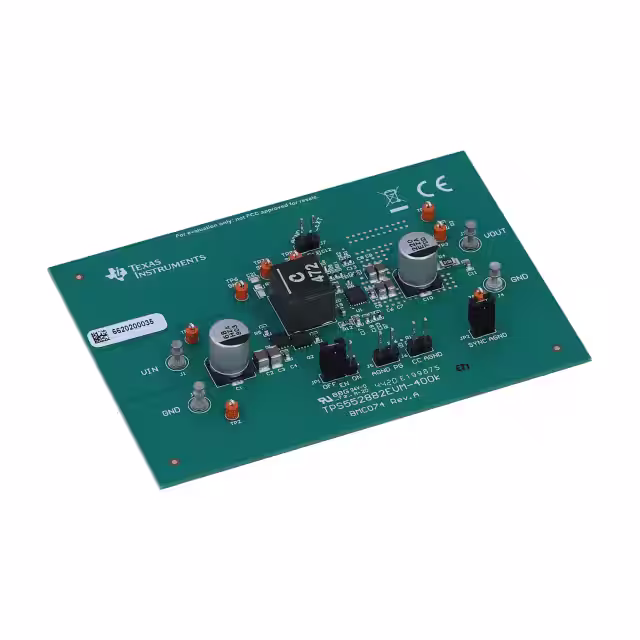

TPS552882EVM-400KEVAL BOARD FOR TPS552882 |
4,260 | 118.80 |
|
- |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 20V | 5A | 2.7V ~ 36V | Buck-Boost | 400kHz | Board(s) | TPS552882 |
|

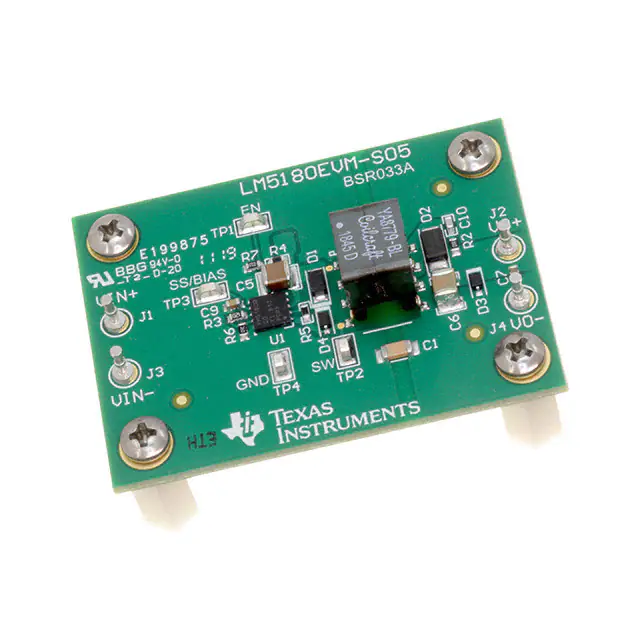

LM5180EVM-S05EVAL BOARD FOR LM5180Q1 |
2,893 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 1A | 10V ~ 65V | Flyback | 350kHz | Board(s) | LM5180-Q1 |
|

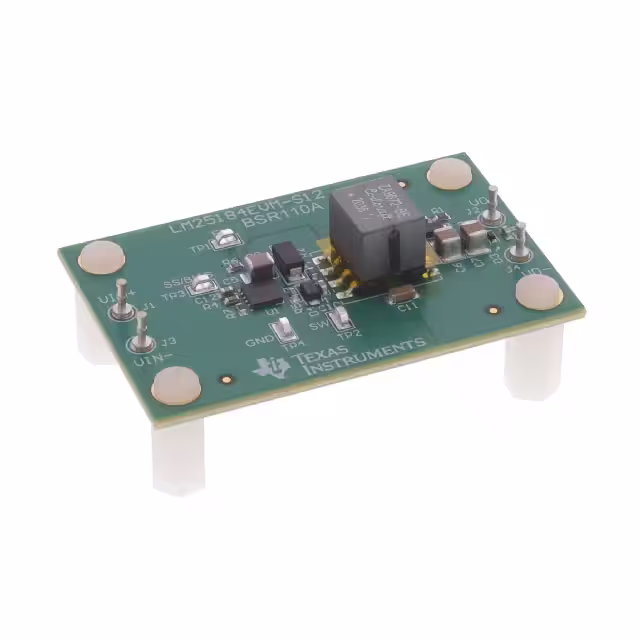

LM25184EVM-S12EVAL BOARD FOR LM25184Q1 |
3,169 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 1A | 6V ~ 42V | Flyback | 350kHz | Board(s) | LM25184-Q1 |
|
|
TPS62876EVM-198EVAL BOARD FOR TPS62876Q1 |
4,706 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V | 25A | 2.7V ~ 6V | Buck | 2.25MHz | Board(s) | TPS62876-Q1 |
|

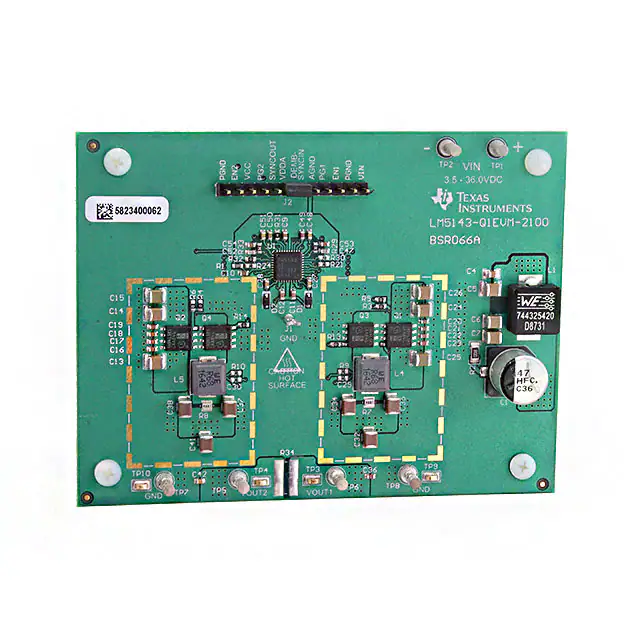

LM5143-Q1EVM-2100EVAL BOARD FOR LM5143Q1 |
1,642 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 7A, 7A | 5.5V ~ 36V | Buck | 2.1MHz | Board(s) | LM5143-Q1 |
|

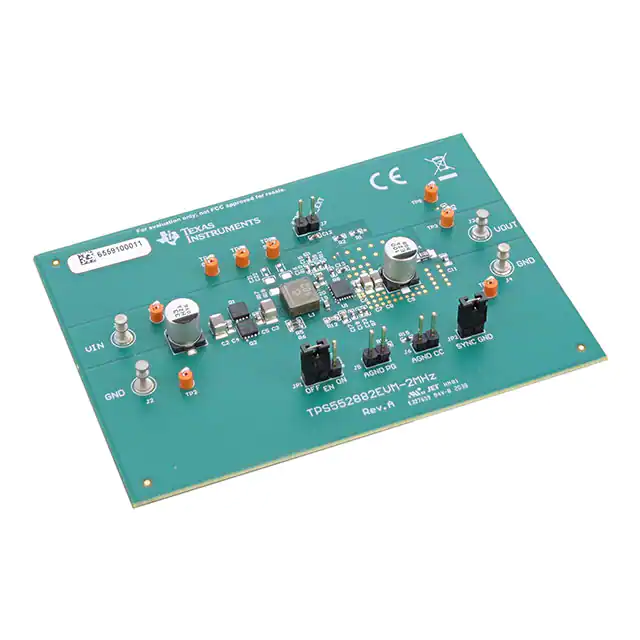

TPS552882EVM-2MHZEVAL BOARD FOR TPS552882 |
1,354 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 0.8V ~ 21.26V | 16A | 2.7V ~ 36V | Buck-Boost | 2MHz | Board(s) | TPS552882 |
|

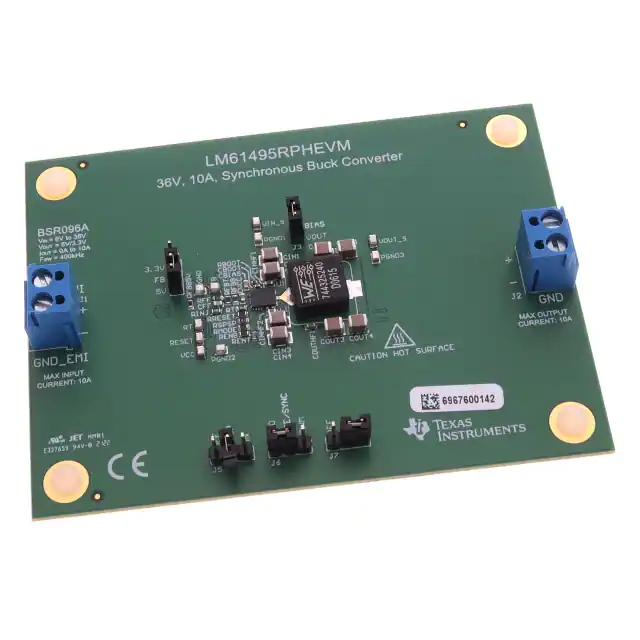

LM61495RPHEVMEVAL BOARD FOR LM61495Q1 |
1,065 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 3V ~ 36V | Buck | 400kHz | Board(s) | LM61495-Q1 |
|

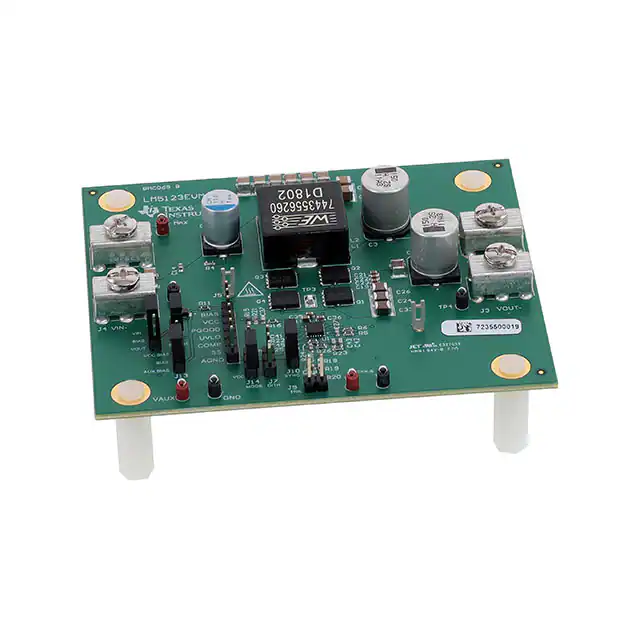

LM5123EVM-BSTEVAL BOARD FOR LM5123Q1 |
3,594 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | 100 W | 24V | - | 9V ~ 18V | Boost | 440kHz | Board(s) | LM5123-Q1 |
|
LM5116-12EVAL/NOPBEVAL BOARD FOR LM5116 |
4,235 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 5A | 15V ~ 80V | Buck | 250kHz | Board(s) | LM5116 |
|

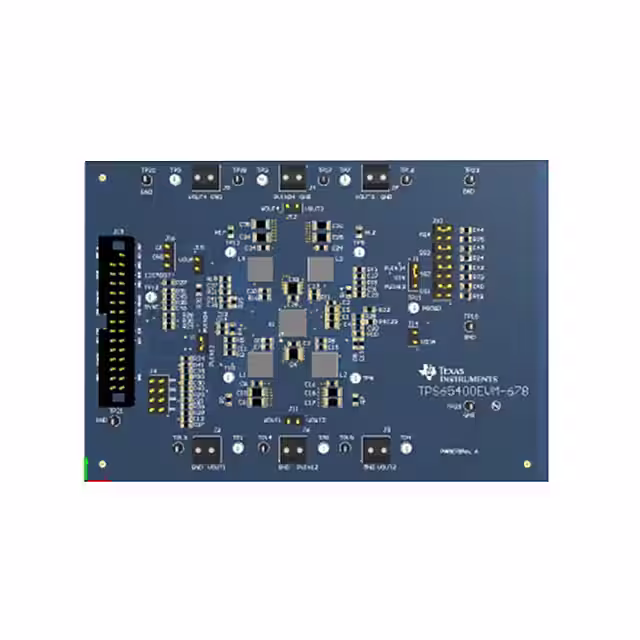

TPS65400EVM-678EVAL BOARD FOR TPS65400 |
3,396 | 118.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V | 4A, 4A, 2A, 2A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS65400 |
|

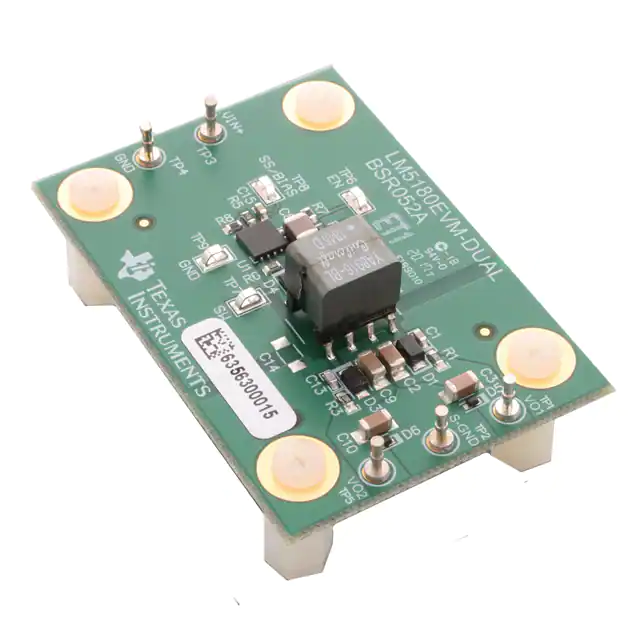

LM5180EVM-DUALEVAL BOARD FOR LM5180Q1 |
4,391 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 2 Isolated Outputs | - | 15V, -7.7V | 200mA, 200mA | 10V ~ 65V | Flyback | - | Board(s) | LM5180-Q1 |
|
|
LM5149-Q1EVM-400EVAL BOARD FOR LM5149Q1 |
3,540 | 120.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 15V ~ 72V | Buck | 400kHz | Board(s) | LM5149-Q1 |
|
|
TPS552872EVM-029EVAL BOARD FOR TPS552872 |
4,845 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 12V | 2.5A | 3V ~ 36V | Buck-Boost | 2MHz | Board(s) | TPS552872 |
|

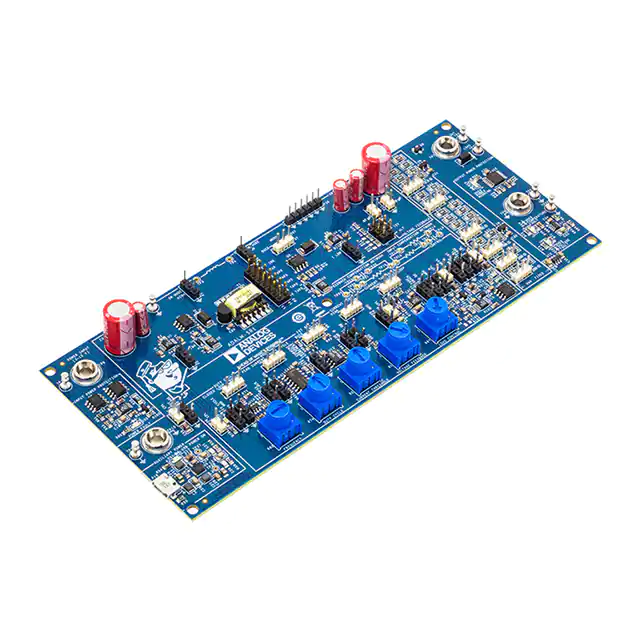

ADALM-SR1SWITCH REGULATOR ACTIVE LEARNING |
4,321 | 125.06 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | - | - | - | Buck-Boost | - | Board(s) | - |
|
|
MAX20403EVKIT#EVAL BOARD FOR MAX20403 |
3,165 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3.5A | 3V ~ 36V | Buck | 2.1MHz | Board(s) | MAX20403 |
|
|
UCC28750EVM-071EVAL BOARD FOR UCC287502 |
1,721 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC Converter | 1 Non-Isolated Output | 60 W | 22.8V ~ 25.2V | 2.5A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC287502 |
|

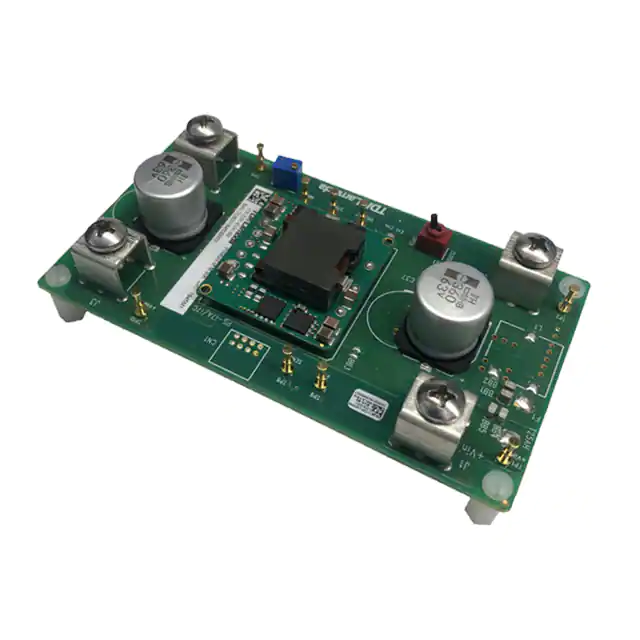

I7C12A-C03-EVK-S1EVAL BOARD FOR I7C4W012A050V003R |
1,026 | 138.47 |
|
Datasheet |
I7c (300W) | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 300 W | 5V ~ 28V | 12.5A | 9V ~ 53V | Buck-Boost | 250kHz | Board(s) | i7C4W012A050V-003-R |
