DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1222AEVAL BOARD FOR LT3682 |
2,015 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.9V ~ 36V | Buck | 800kHz | Board(s) | LT3682 |
|

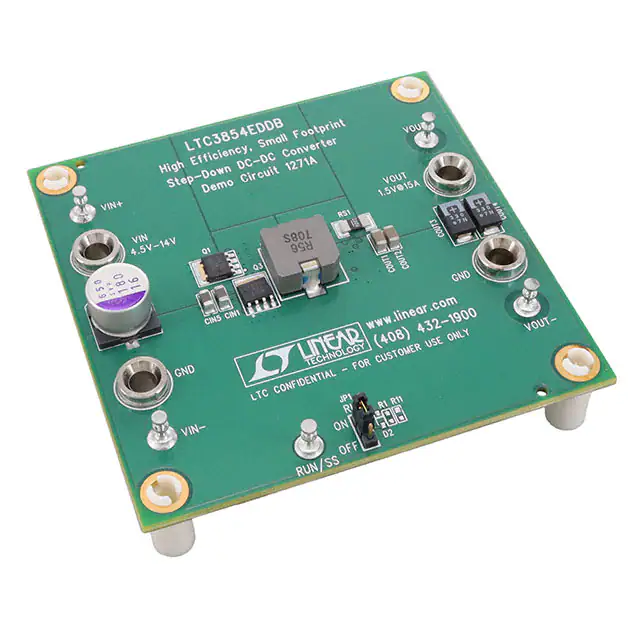

DC1271AEVAL BOARD FOR LTC3854 |
2,525 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3854 |
|
DC1353AEVAL BOARD FOR LTC3601 |
1,580 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.5A | 4V ~ 15V | Buck | 4MHz | Board(s) | LTC3601 |
|
DC1454AEVAL BOARD FOR LTC3601 |
3,326 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.5A | 4V ~ 15V | Buck | 1MHz | Board(s) | LTC3601 |
|

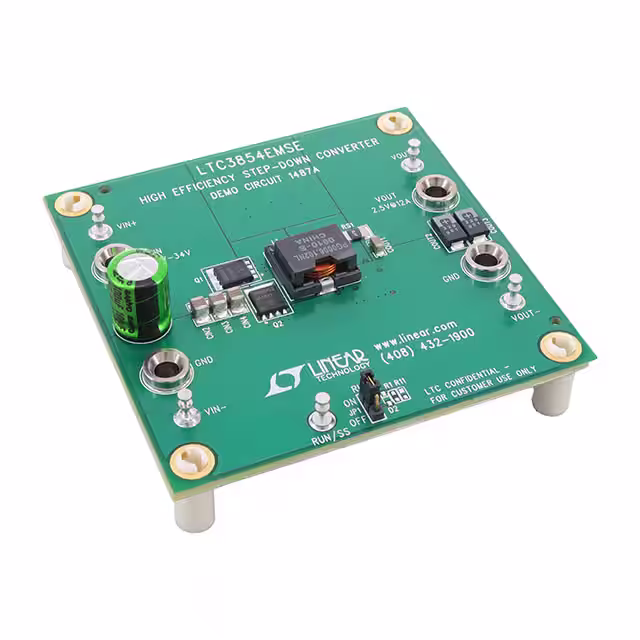

DC1487AEVAL BOARD FOR LTC3854 |
2,892 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 12A | 4.5V ~ 34V | Buck | 400kHz | Board(s) | LTC3854 |
|
DC1727AEVAL BOARD FOR LT3641 |
3,479 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 5V | 1A, 800mA | 7V ~ 42V | Buck | 2MHz | Board(s) | LT3641 |
|
|
DC378AEVAL BOARD FOR LTC1778 |
3,723 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 10A | 4V ~ 36V | Buck | 200kHz | Board(s) | LTC1778 |
|

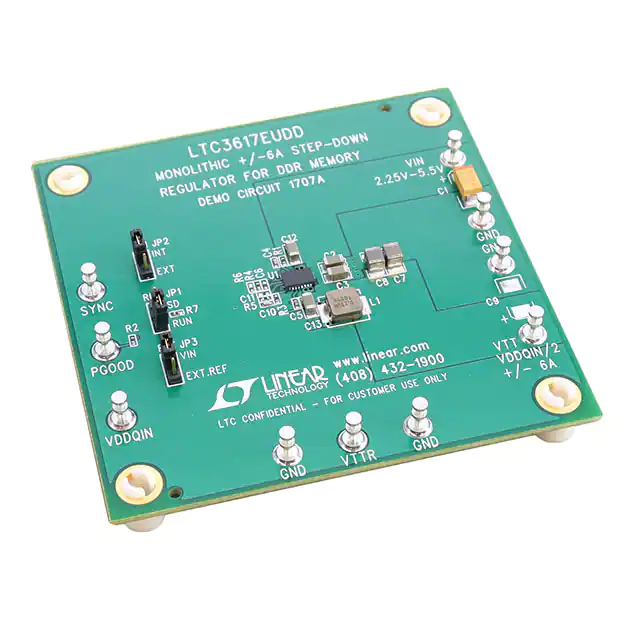

DC1707AEVAL BOARD FOR LTC3617 |
3,178 | 147.12 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 2 Non-Isolated Outputs | - | - | 6A, 10mA | 2.25V ~ 5.5V | Buck | 1MHz | Board(s) | LTC3617 |
|

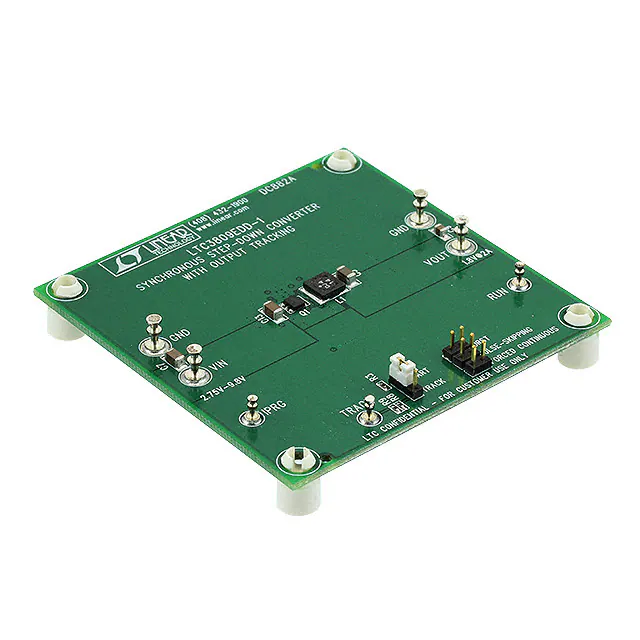

DC882AEVAL BOARD FOR LTC38091 |
3,248 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.75V ~ 9.8V | Buck | 550kHz | Board(s) | LTC3809-1 |
|
|
DC1435AEVAL BOARD FOR LTC3615 |
4,768 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V | 3A, 3A | 2.25V ~ 5.5V | Buck | - | Board(s) | LTC3615 |
|

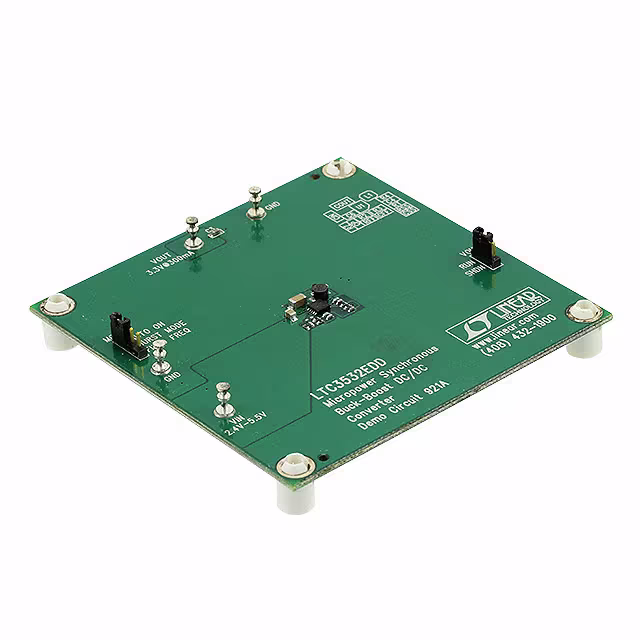

DC921AEVAL BOARD FOR LTC3532 |
3,720 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 2.4V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3532 |
|

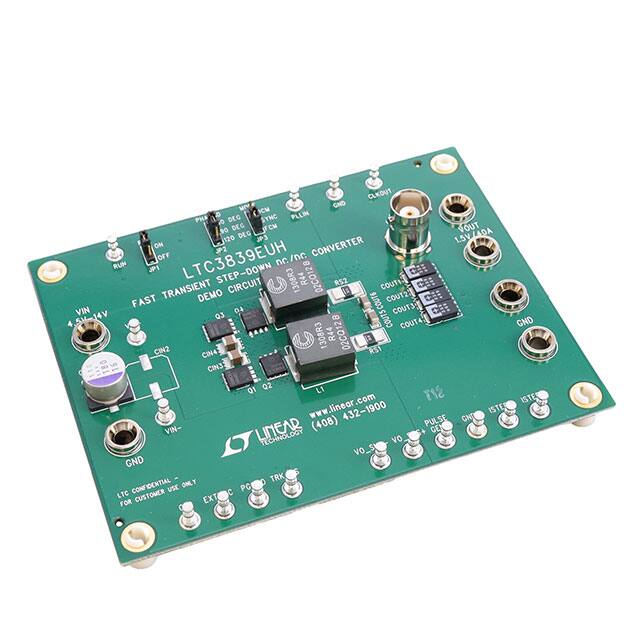

DC1632AEVAL BOARD FOR LTC3839 |
4,068 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 40A | 4.5V ~ 14V | Buck | 300kHz | Board(s) | LTC3839 |
|
|
LM644A2QEVM-S2100TEVAL BOARD FOR LM644A2Q1 |
2,182 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 12A | 6V ~ 36V | Buck | 2.1MHz | Board(s) | LM644A2-Q1 |
|
|
EVAL-LTC7890-BZEVAL BOARD FOR LTC7890 |
4,911 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 20A, 20A | 16V ~ 72V | Buck | 500kHz | Board(s) | LTC7890 |
|
|
DC3190B-EEVAL BOARD FOR LTP88002 |
2,472 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V | 135A | 45V ~ 65V | Buck | 700kHz | Board(s) | LTP8800-2 |
|
|
DC3203AEVAL BOARD FOR LTC3304A |
1,094 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3304A |
|
|
ACT41000-104-REF01EVAL BOARD FOR ACT41000 |
3,975 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3V ~ 22V | 4A | 24V ~ 40V | Buck | 450kHz | Board(s) | ACT41000 |
|
|
MAX42403EVKIT#EVAL BOARD FOR MAX42402 MAX42403 |
4,558 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3.5A | 4.5V ~ 36V | Buck | 1.5MHz | Board(s) | MAX42402, MAX42403 |
|

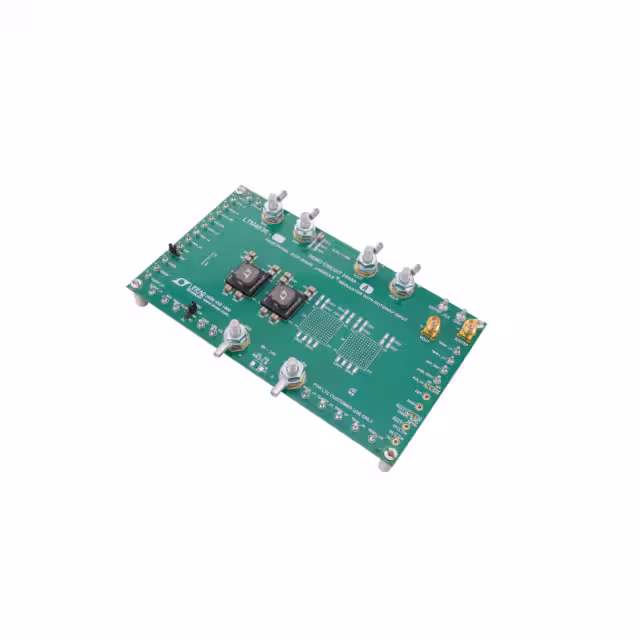

DC2448A-AEVAL BOARD FOR LTM4636 |
4,179 | 154.49 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 80A | 4.7V ~ 15V | Buck | 350kHz | Board(s) | LTM4636 |
|
|
LM25137F-Q1-EVM5D3EVAL BOARD FOR LM25137Q1 |
2,440 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 20A, 20A | 6.5V ~ 36V | Buck | 440kHz | Board(s) | LM25137-Q1 |
