DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX20431EVKIT#EVAL BOARD FOR MAX20431 |
2,169 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Up or Down | 4 Non-Isolated Outputs | - | 0.5V ~ 3.6875V, 3.3V, 5V | 3A, 3A, 2.5A, 500mA | 3.5V ~ 36V | Boost, Buck | 2.1MHz | Board(s) | MAX20431 |
|

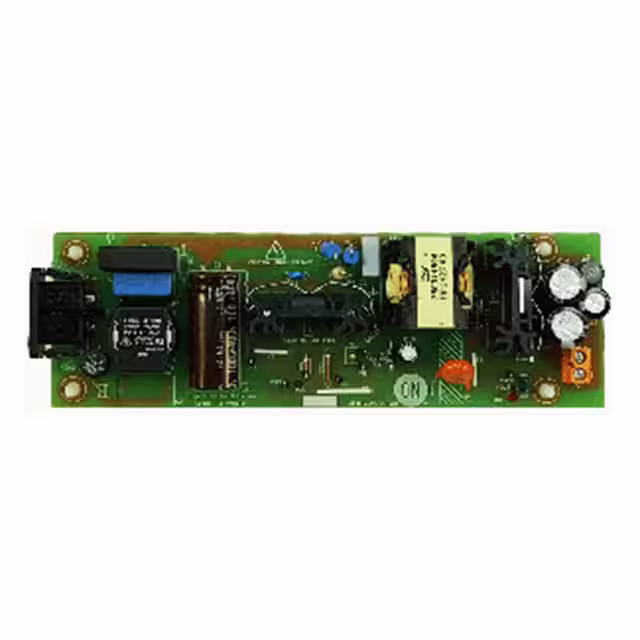

NCP1239B65WGEVBEVAL BOARD FOR NCP1239 |
4,141 | 156.25 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 3.4A | 85 ~ 265 VAC | Flyback | - | Board(s) | NCP1239 |
|
|
MAX20499AEKIT#EVAL BOARD FOR MAX20499 |
2,564 | 174.90 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 1.275V | 8A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20499 |
|
|
DC2229A-AEVAL BOARD FOR LTC3877 |
3,784 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 1.23V, 1.5V | 30A | 6V ~ 14V | Buck | 400kHz | Board(s) | LTC3877 |
|

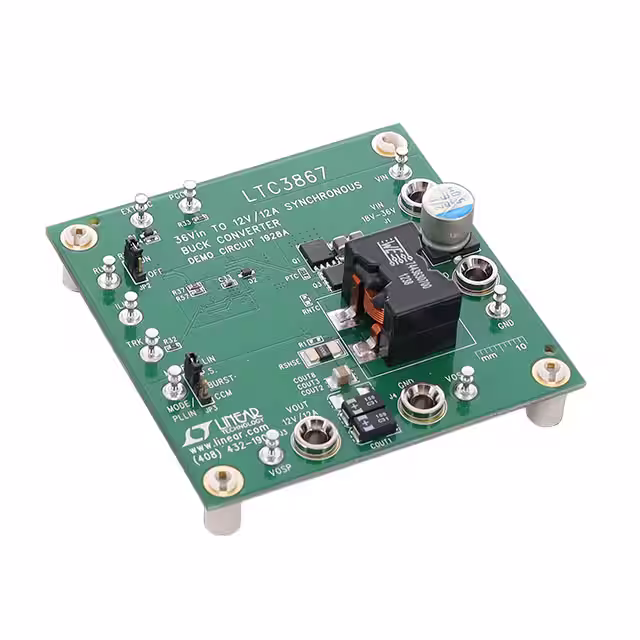

DC1928AEVAL BOARD FOR LTC3867 |
3,694 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 12A | 18V ~ 36V | Buck | 250kHz | Board(s) | LTC3867 |
|
DC2186A-BEVAL BOARD FOR LT8580 |
4,933 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 150mA | 5V ~ 12V | Inverting | 1.5MHz | Board(s) | LT8580 |
|
|
DC2757AEVAL BOARD FOR LT3154 |
4,583 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 5A | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | LT3154 |
|

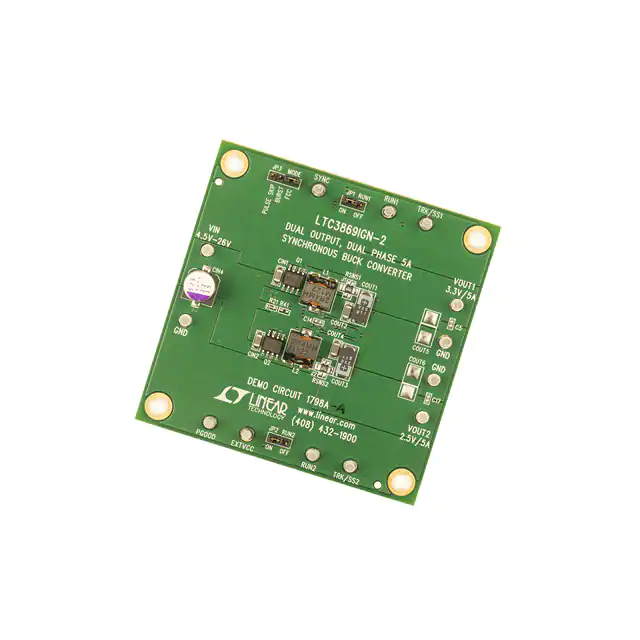

DC1798A-AEVAL BOARD FOR LTC38692 |
1,494 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 5A, 5A | 4.5V ~ 26V | Buck | 400kHz | Board(s) | LTC3869-2 |
|
DC2000AEVAL BOARD FOR LTC3875 |
3,116 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 30A, 30A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3875 |
|

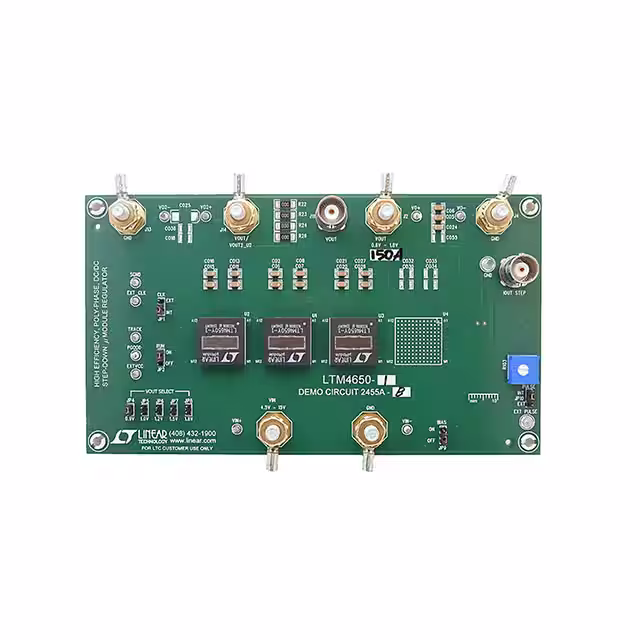

DC2455A-BEVAL BOARD FOR LTM46501 |
4,833 | 158.90 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 150A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
|
DC2229A-BEVAL BOARD FOR LTC3874 LTC3877 |
1,816 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 1.23V | 120A | 6V ~ 14V | Buck | 400kHz | Board(s) | LTC3874, LTC3877 |
|

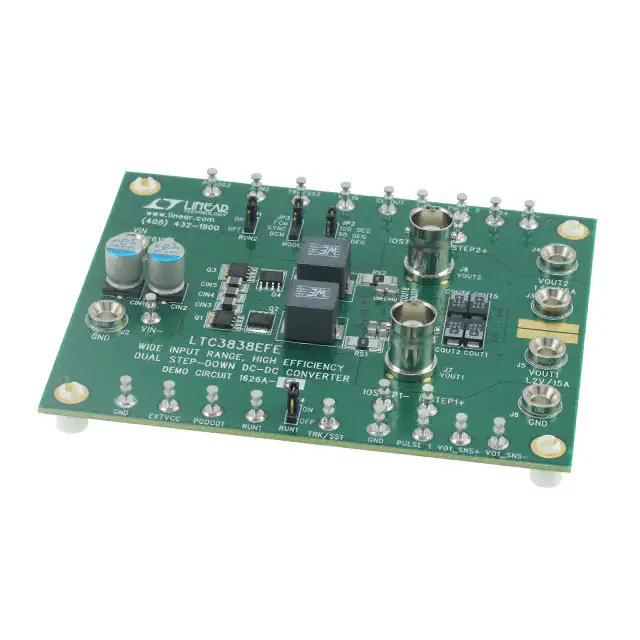

DC1626A-BEVAL BOARD FOR LTC3838 |
1,581 | 160.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 4.5V ~ 26V | Buck | 300kHz | Board(s) | LTC3838 |
|

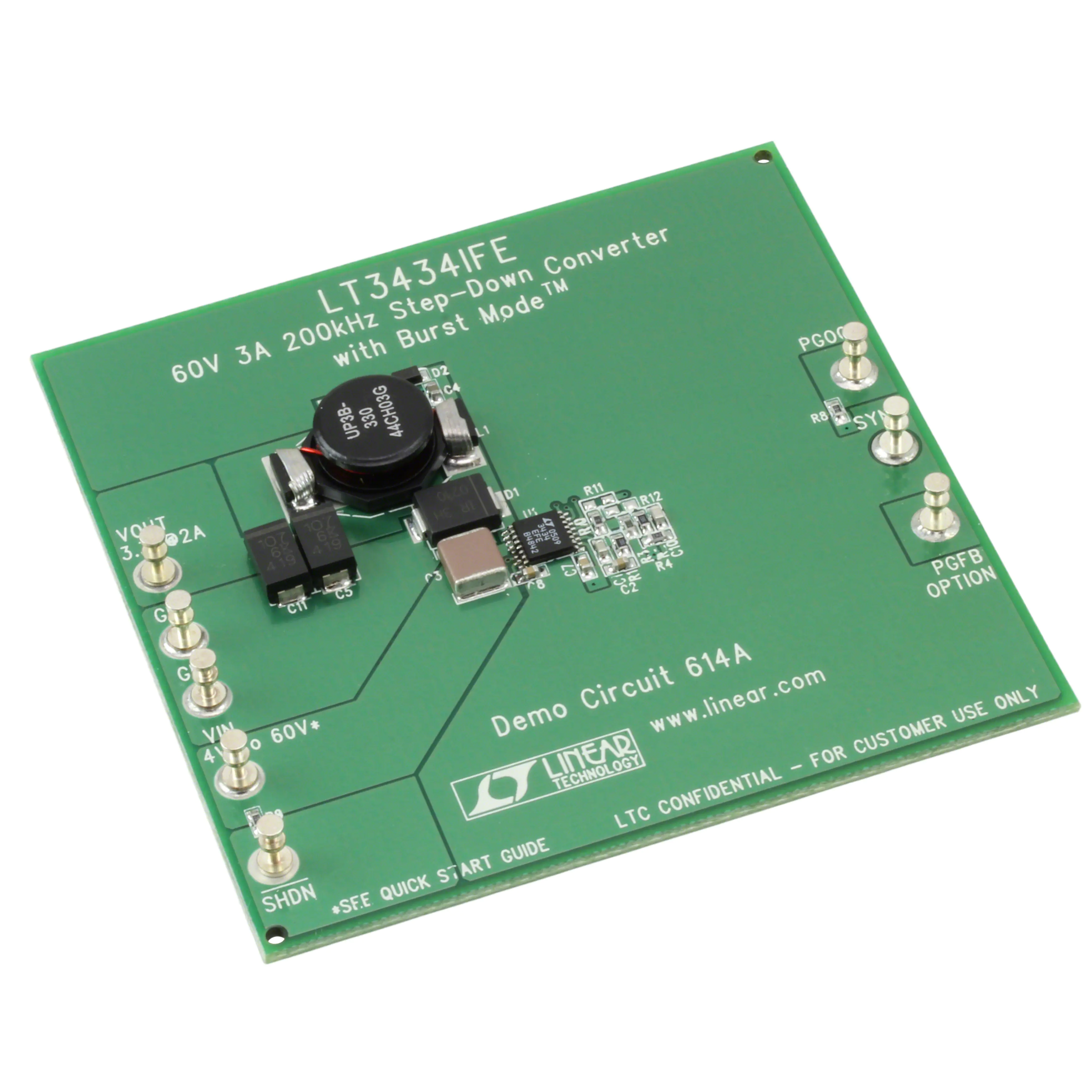

DC614AEVAL BOARD FOR LT3434 |
3,120 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4V ~ 42V | Buck | 200kHz | Board(s) | LT3434 |
|
|
LMR43620RQ5EVM-400EVAL BOARD FOR LMR43620Q1 |
4,939 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 3V ~ 36V | Buck | 400kHz | Board(s) | LMR43620-Q1 |
|

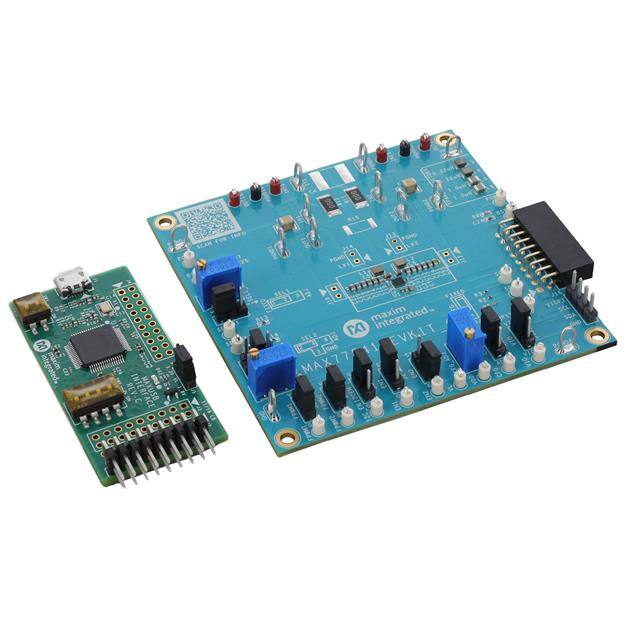

MAX77541EVKIT#EVAL BOARD FOR MAX77541 |
2,117 | 90.36 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.65V, 1.1V | 3A, 3A | 2.2V ~ 5.5V | Buck | 1.6MHz | Board(s), Cable(s) | MAX77541 |
|
|
MAX77720EVKIT#EVAL BOARD FOR MAX774 |
1,459 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | - | - | 2.5V ~ 5.5V | Buck-Boost | - | Board(s) | MAX774 |
|

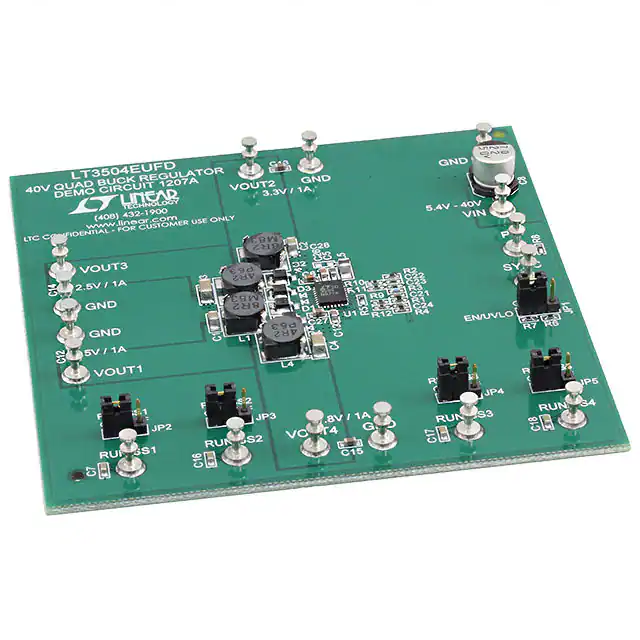

DC1207AEVAL BOARD FOR LT3504 |
1,550 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.8V, 2.5V, 3.3V, 5V | 1A, 1A, 1A, 1A | 5.4V ~ 40V | Buck | 1MHz | Board(s) | LT3504 |
|
|
EV44M28AEVAL BOARD FOR DSPIC33 |
2,038 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 20 W | - | 2A | 8V ~ 18V | Buck-Boost | - | Board(s) | dsPIC33 |
|

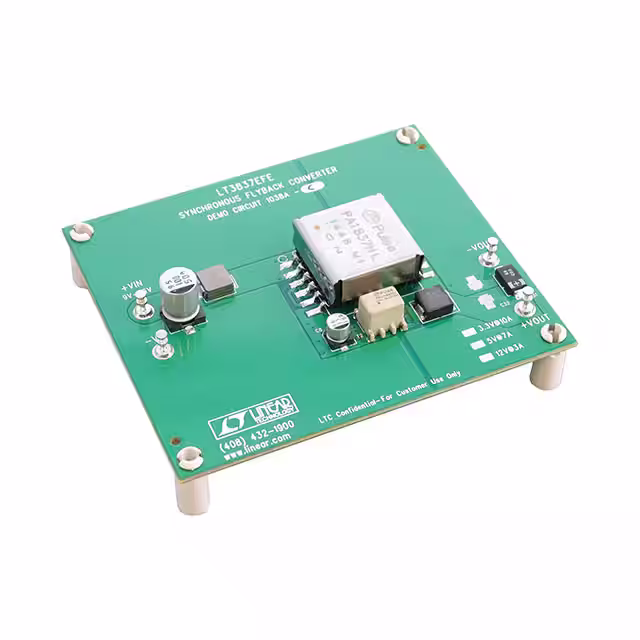

DC1038A-CEVAL BOARD FOR LT3837 |
2,375 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 3A | 9V ~ 36V | Flyback | 200kHz | Board(s) | LT3837 |
|
|
MAX77857WGEVKIT#EVAL BOARD FOR MAX77857 |
1,312 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 7A | 2.5V ~ 16V | Buck-Boost | 1.8MHz | Board(s) | MAX77857 |
