DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

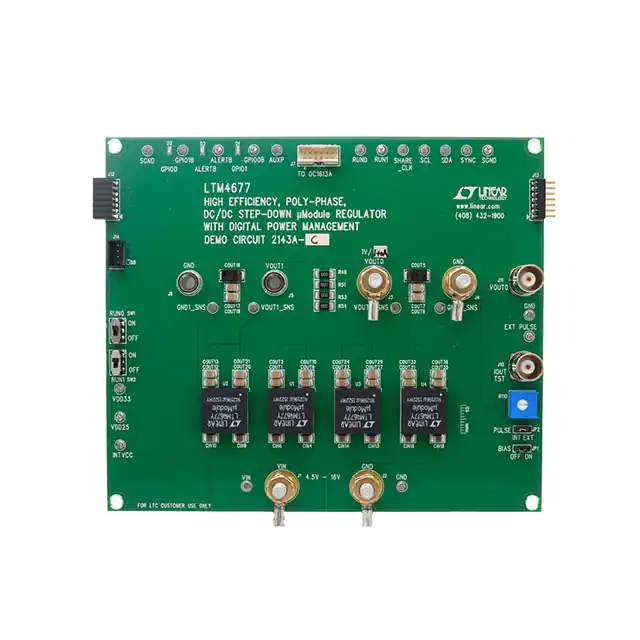

DC2143A-CEVAL BOARD FOR LTM4677 |
2,680 | 194.20 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 144A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4677 |
|
EVAL-LTM4712-A2ZEVAL BOARD FOR LTM4712 |
2,083 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 48A, 24A | 5V ~ 36V | Buck-Boost | 400kHz | Board(s) | LTM4712 |
|
MAX20812EVKIT#EVAL BOARD FOR MAX20812 |
3,224 | 184.18 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.5V ~ 5.8V | 6A | 2.7V ~ 16V | Buck | - | Board(s) | MAX20812 |
|
|
DC2341AEVAL BOARD FOR LTC7130 |
2,262 | 198.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 20A | 4.5V ~ 20V | Buck | 530kHz | Board(s) | LTC7130 |
|
DC1798A-BEVAL BOARD FOR LTC38692 |
4,058 | 198.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 5A, 5A | 4.5V ~ 26V | Buck | 400kHz | Board(s) | LTC3869-2 |
|
|
DC2448A-BEVAL BOARD FOR LTM4636 |
3,251 | 198.62 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.3V | - | 4.7V ~ 15V | Buck | - | Board(s) | LTM4636 |
|
|
EVAL-LT8292-AZDUAL-PHASE 60V BUCK-BOOST CNTLR |
1,519 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | 600 W | 12V | 50A | 9V ~ 36V | Buck-Boost | 100kHz | Board(s) | LT8292 |
|
|
MAX15159EVKIT#EVAL BOARD FOR MAX15159 |
3,445 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 54V | 1.6A | 40V ~ 60V | Boost, Flyback | - | Board(s) | MAX15159 |
|
|
EVAL-LTC7893-AZLTC7893 DEMO BOARD |
4,172 | 0.00 |
|
- |
- | Box | Active | DC/DC, Step Up | 1 Isolated Output | - | 48.3V | 18A, 11A, 5.5A, 3.5A | 8V ~ 36V | Boost | 500kHz | Board(s) | LTC7893 |
|
|
DC3190A-DEVAL BOARD FOR LTP88031A |
4,349 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.15V | 160A | 45V ~ 65V | Buck | 600kHz | Board(s) | LTP8803-1A |
|

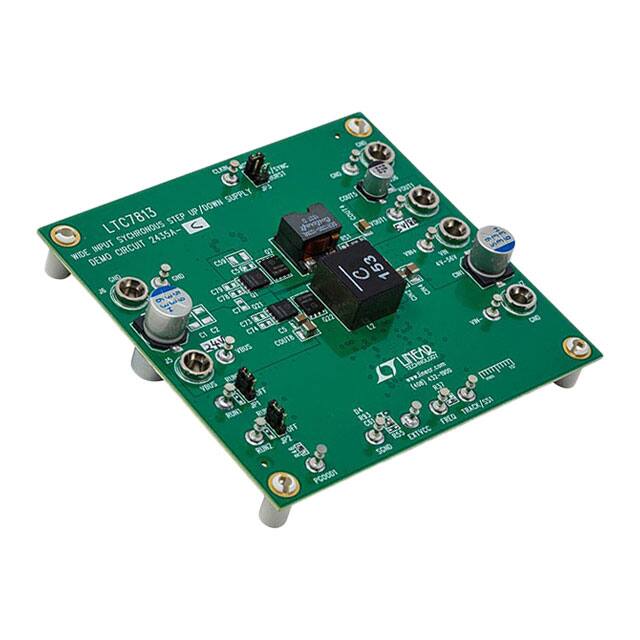

DC2435A-BEVAL BOARD FOR LTC7813EUH |
3,082 | 202.45 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 20 ~ 28V | - | 4V ~ 56V | Boost, Buck | 200kHz | Board(s) | LTC7813EUH |
|
|
DC1424A-BEVAL BOARD FOR LT3581 |
4,656 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 750mA | 5V ~ 12V | Inverting | 1.2MHz | Board(s) | LT3581 |
|
|
DC1781AEVAL BOARD FOR LT3507 |
1,037 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.8V, 2.5V, 3.3V, 5V | 2.7A, 1.8A, 1.5A, 300mA | 7V ~ 36V | Buck | 450kHz | Board(s) | LT3507 |
|
|
BM2P13B1J-EVK-001EVAL BOARD FOR BM2P13B1J |
1,442 | 0.00 |
|
- |
- | Bulk | Active | AC/DC Converter | 1 Isolated Output | 16.8 W | 12V | 1.4A | 90 ~ 264 VAC | Flyback | - | Board(s) | BM2P13B1J |
|
|
EVAL-LTC3313EV-MULTI-A2ZEVAL BOARD FOR LTC3313 |
3,859 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 60A, 45A, 30A | 3V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3313 |
|
|
BM2P10B1J-EVK-001EVAL BOARD FOR BM2P10B1 |
3,873 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 24 W | 12V | 2A | 90 ~ 264 VAC | Flyback | - | Board(s) | BM2P10B1 |
|

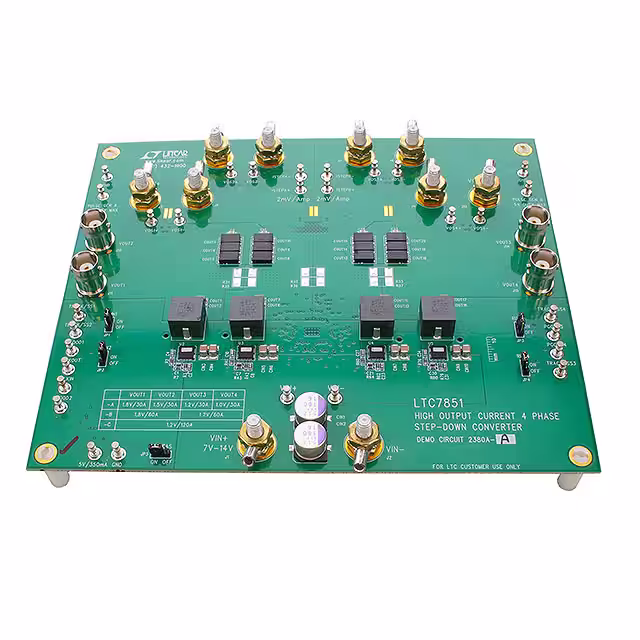

DC2380A-AEVAL BOARD FOR LTC7851 |
2,216 | 208.65 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 1.8V | 30A, 30A, 30A, 30A | 7V ~ 14V | Buck | 400kHz | Board(s) | LTC7851 |
|

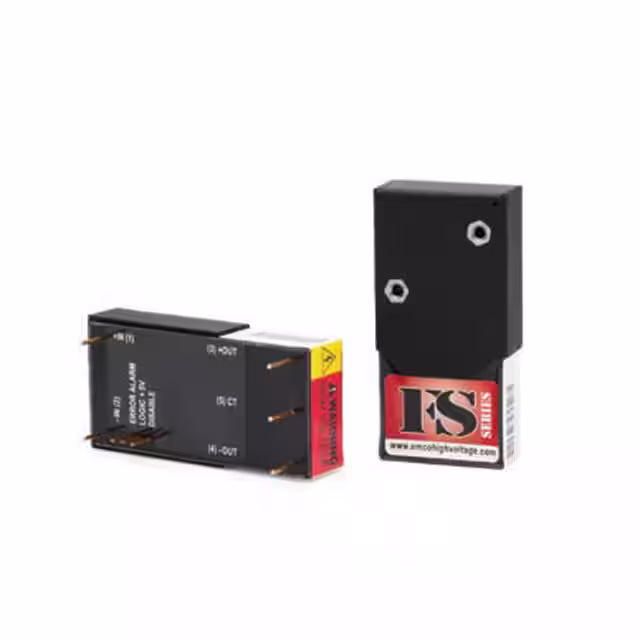

FS-VMEVAL BOARD FOR FS SERIES |
3,845 | 209.86 |
|
Datasheet |
FS | Box | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | FS Series |
|
|
DC3126AEVAL BOARD FOR LT8686S |
2,972 | 0.00 |
|
Datasheet |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 5V | 2A, 2A, 2A, 2A | 12V | Buck | 2MHz | Partially Populated Board(s) | LT8686S |
|
DC2205AEVAL BOARD FOR LT8495 |
3,209 | 211.15 |
|
Datasheet |
- | Tray | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1A | 3V ~ 60V | Boost | 450kHz | Board(s) | LT8495 |
