DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLV61220EVM-120EVAL BOARD FOR TLV61220 |
1,041 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | - | 0.7V ~ 3.3V | Boost | - | Board(s) | TLV61220 |
|

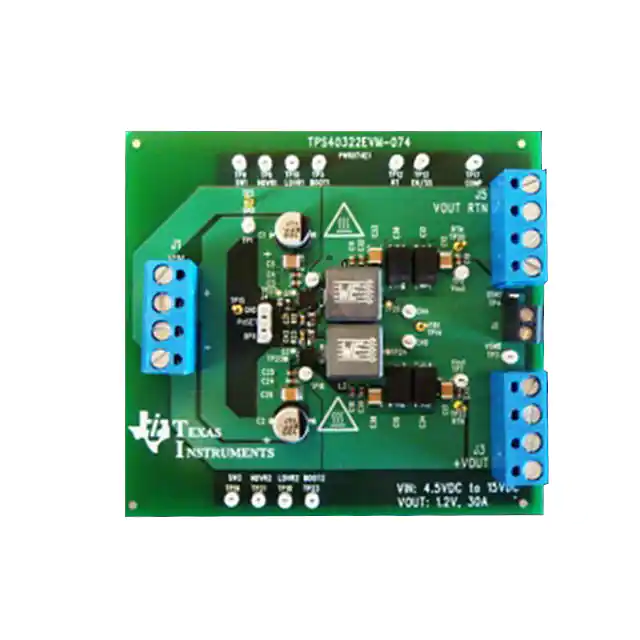

TPS40322EVM-074EVAL BOARD FOR TPS40322 |
3,127 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 30A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | TPS40322 |
|

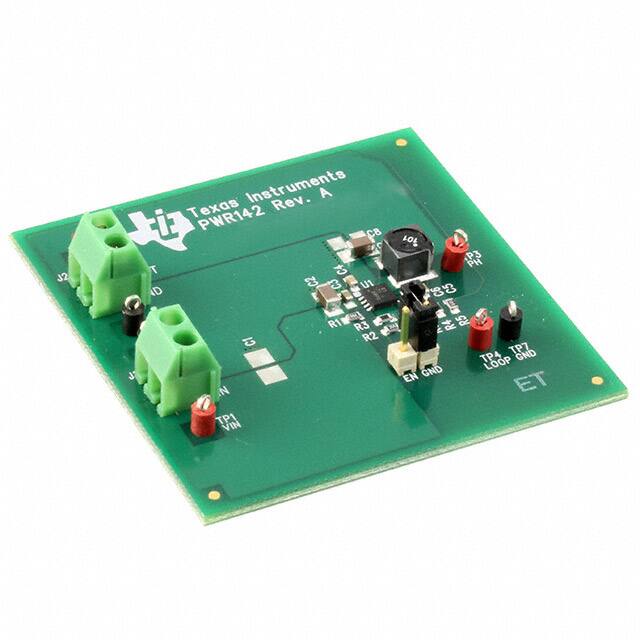

TPS54061EVM-142EVAL BOARD FOR TPS54061 |
3,512 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 200mA | 8V ~ 60V | Buck | 400kHz | Board(s) | TPS54061 |
|

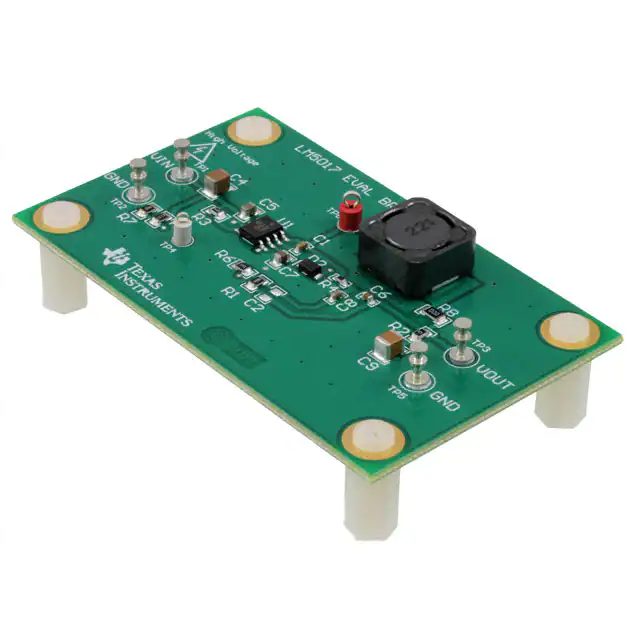

LM5017EVAL/NOPBEVAL BOARD FOR LM5017 |
3,181 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 600mA | 12.5V ~ 100V | Buck | 200kHz | Board(s) | LM5017 |
|

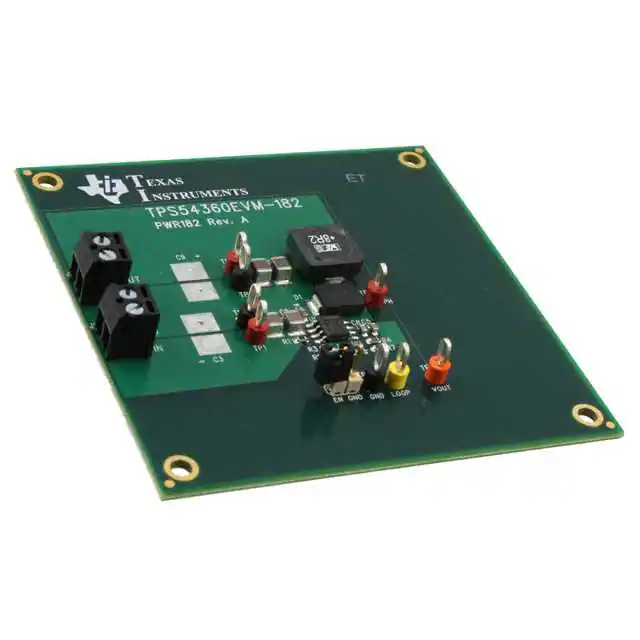

TPS54360EVM-182EVAL BOARD FOR TPS54360 |
4,370 | 58.80 |
|
Datasheet |
Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 8.5V ~ 60V | Buck | 600kHz | Board(s) | TPS54360 |
|

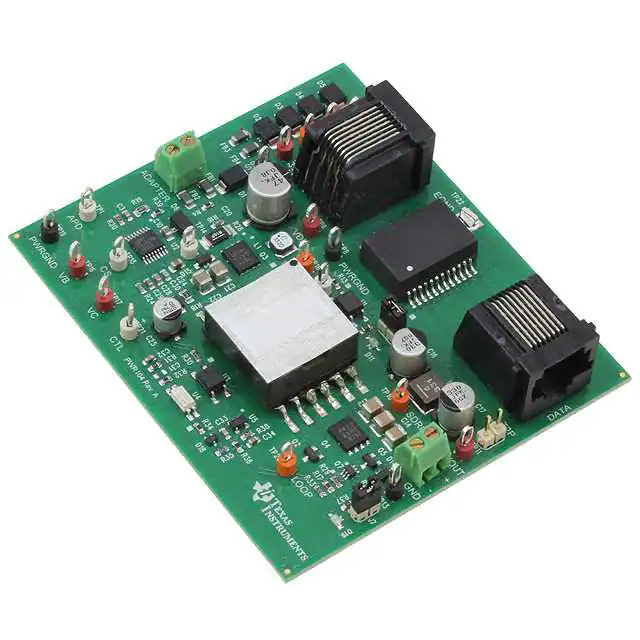

TPS23751EVM-104EVAL BOARD FOR TPS23751 |
3,308 | 58.80 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | 22.5 W | 5V | 4.5A | 21.6V ~ 57V | Flyback | 250kHz | Board(s) | TPS23751 |
|

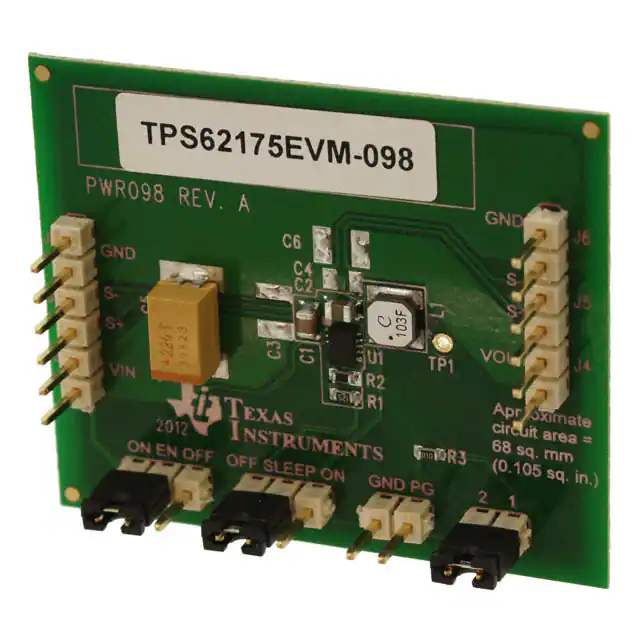

TPS62175EVM-098EVAL BOARD FOR TPS62175 |
2,430 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.33V | 500mA | 4.75V ~ 28V | Buck | 1MHz | Board(s) | TPS62175 |
|

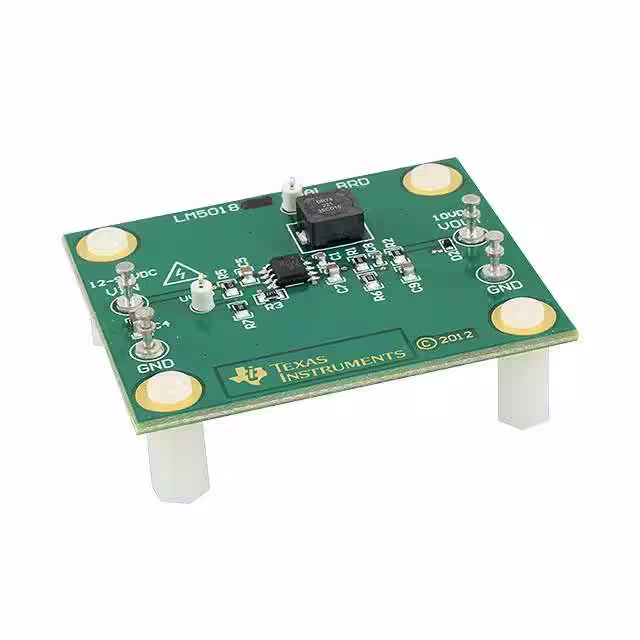

LM5018EVAL/NOPBEVAL BOARD FOR LM5018 |
1,226 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 300mA | 12.5V ~ 100V | Buck | 440kHz | Board(s) | LM5018 |
|
TPS43060EVM-199EVAL BOARD FOR TPS43060 |
1,840 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 40V | 3A | 10V ~ 38V | Boost | 300kHz | Board(s) | TPS43060 |
|

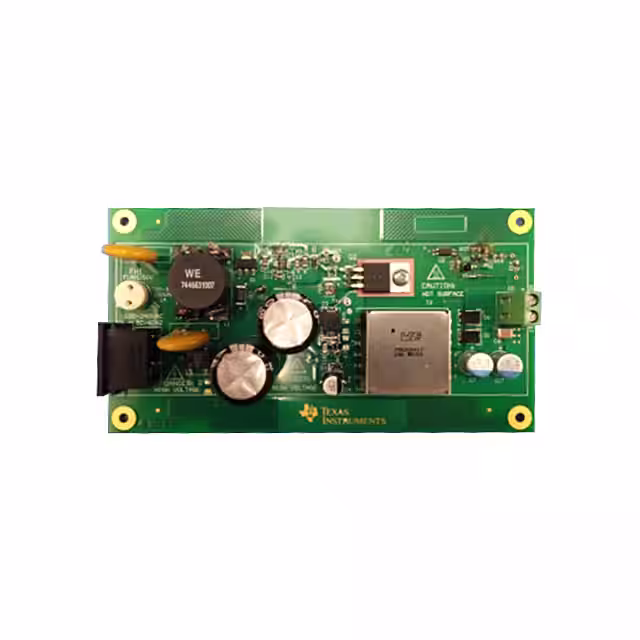

LM5023-2NBEVMEVAL BOARD FOR LM5023 |
4,524 | 58.80 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19V | 3.43A | - | Flyback | - | Board(s) | LM5023 |
|
TPS54531EVM-530EVAL BOARD FOR TPS54531 |
4,101 | 58.80 |
|
Datasheet |
SWIFT™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 8V ~ 28V | Buck | 570kHz | Board(s) | TPS54531 |
|

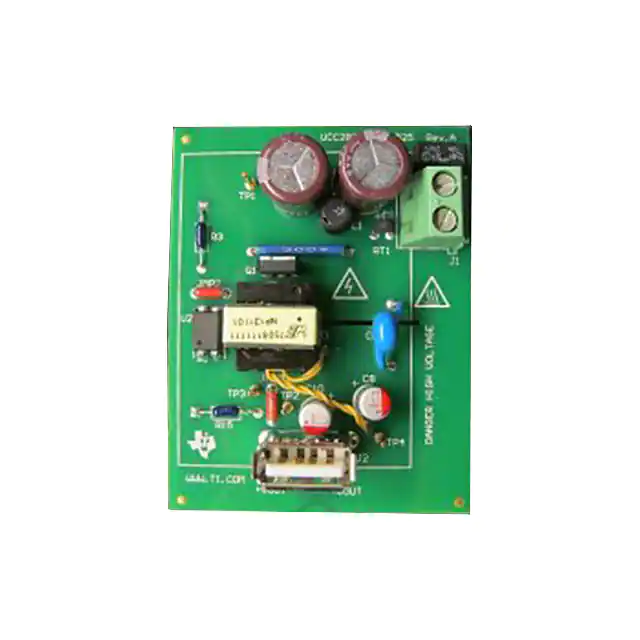

UCC28740EVM-525EVAL BOARD FOR UCC28740 |
1,932 | 58.80 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 5V | 2.1A | 85 ~ 265 VAC | Flyback | - | Board(s) | UCC28740 |
|

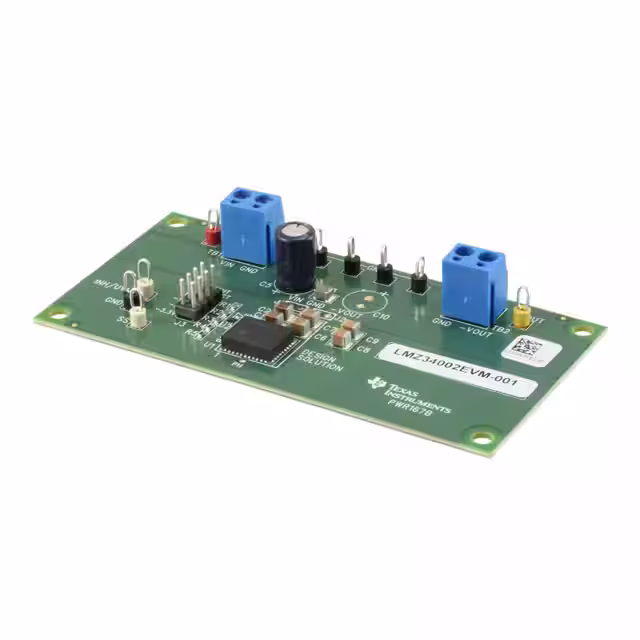

LMZ34002EVM-001EVAL BOARD FOR LMZ34002 |
4,357 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -3.3V, -5V, -12V, -15V | 2A | 4.5V ~ 40V | Inverting | 800kHz | Board(s) | LMZ34002 |
|

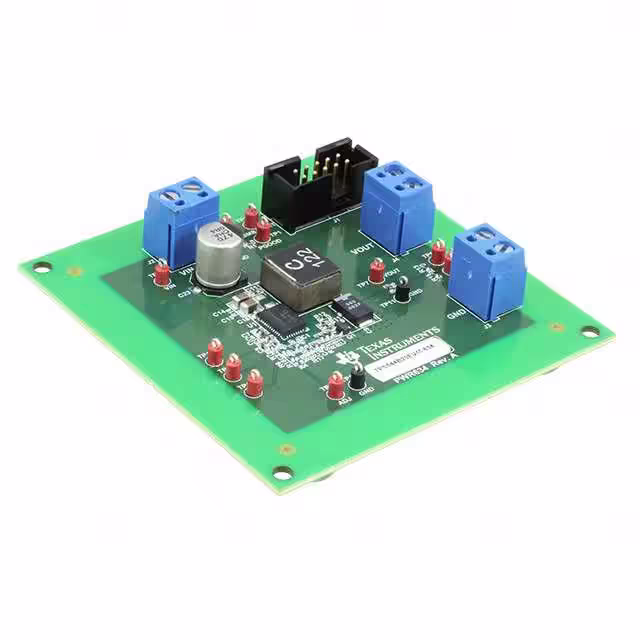

TPS544B20EVM-634EVAL BOARD FOR TPS544B20 |
2,990 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP™, D-CAP2™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 8V ~ 14V | Buck | 500kHz | Board(s) | TPS544B20 |
|

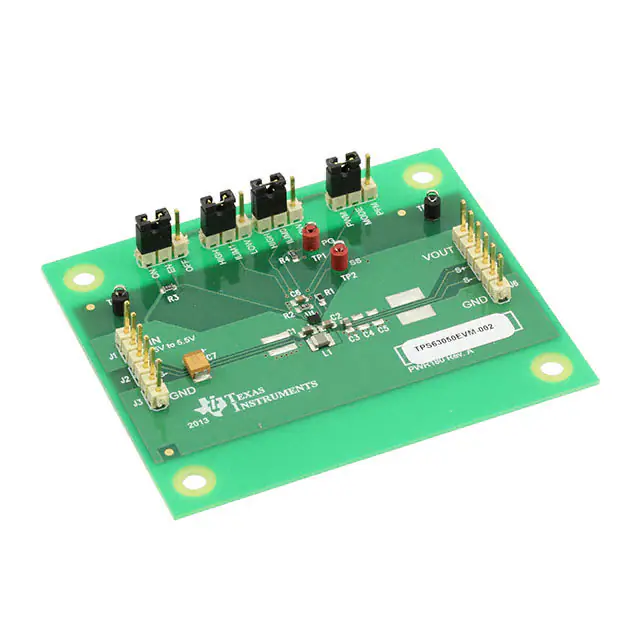

TPS63050EVM-180EVAL BOARD FOR TPS63050 |
4,878 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | TPS63050 |
|

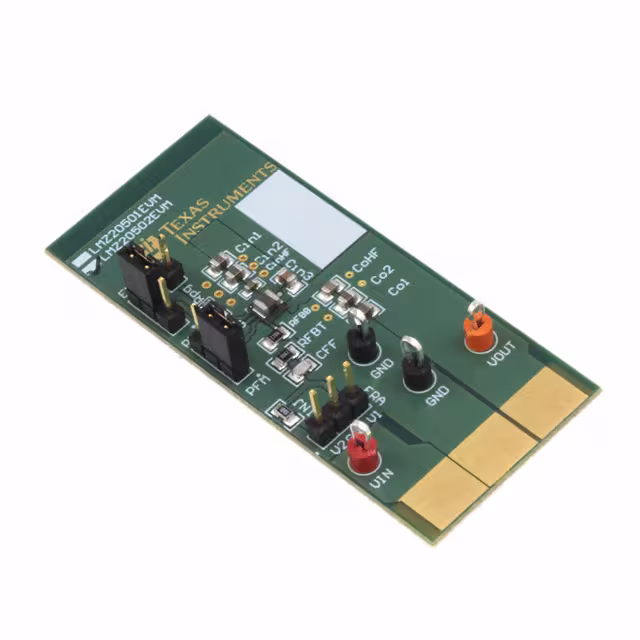

LMZ20502EVMEVAL BOARD FOR LMZ20502 |
2,421 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 3MHz | Board(s) | LMZ20502 |
|

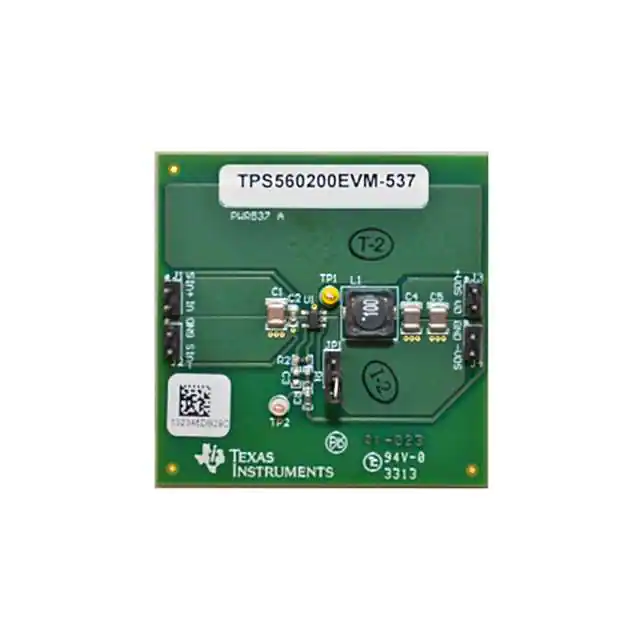

TPS560200EVM-537EVAL BOARD FOR TPS560200 |
4,470 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 500mA | 4.5V ~ 17V | Buck | 600kHz | Board(s) | TPS560200 |
|
LM43602PWPEVMEVAL BOARD FOR LM43602 |
2,090 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 3.5V ~ 36V | Buck | 500kHz | Board(s) | LM43602 |
|

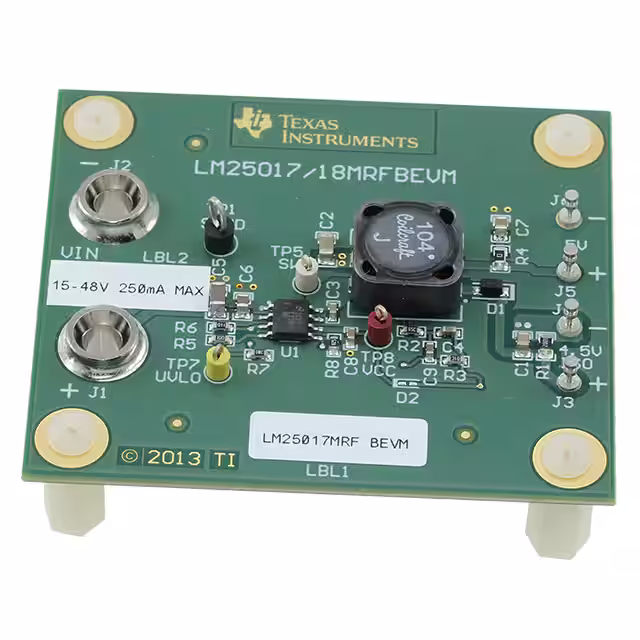

LM25017MRFBEVMEVAL BOARD FOR LM25017 |
4,041 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 4.5V, 5V | - | 15V ~ 48V | Buck | 500kHz | Board(s) | LM25017 |
|

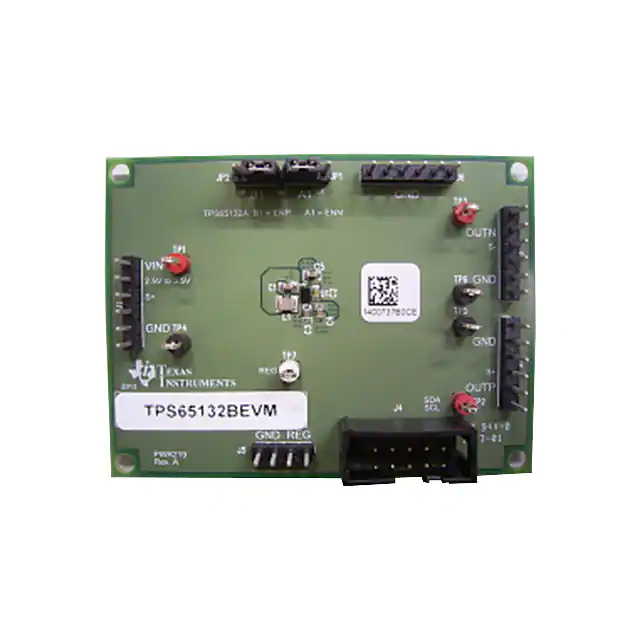

TPS65132BEVMEVAL BOARD FOR TPS65132 |
4,937 | 58.80 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 2 Non-Isolated Outputs | - | ±5.4V | 40mA, 40mA | 2.5V ~ 5.5V | Buck | 1.6MHz | Board(s) | TPS65132 |
