DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS82740BEVM-617EVAL BOARD FOR TPS82740B |
3,560 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.6V ~ 3.3V | 300mA | 2.2V ~ 5.5V | Buck | - | Board(s) | TPS82740B |
|

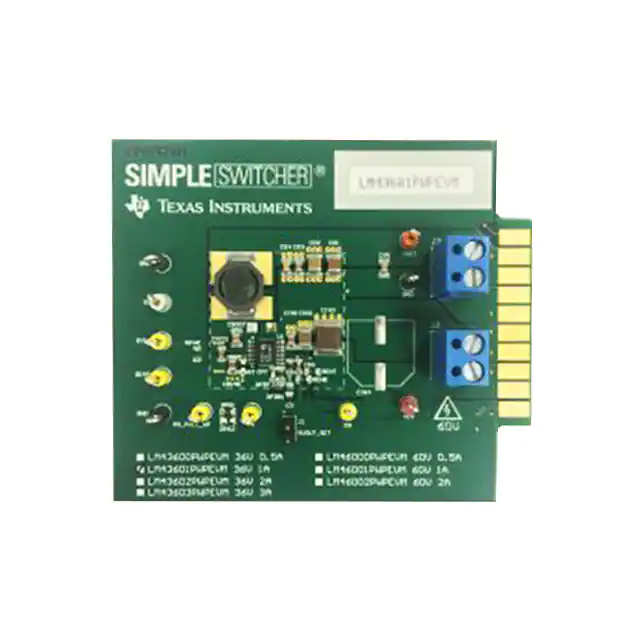

LM43601PWPEVMEVAL BOARD FOR LM43601 |
1,988 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3.5V ~ 36V | Buck | 500kHz | Board(s) | LM43601 |
|

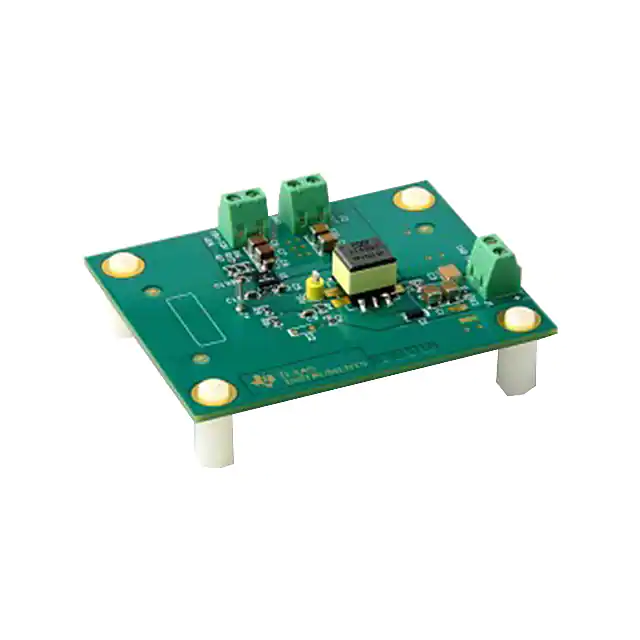

LM5160DNTFBKEVMEVAL BOARD FOR LM5160 |
2,262 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output, 1 Non-Isolated Output | - | 8V, 12V | 2A | 18V ~ 32V | Buck | 300kHz | Board(s) | LM5160 |
|
LMR16006YEVMEVAL BOARD FOR LMR16006 |
4,349 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 6V ~ 60V | Buck | 2.1MHz | Board(s) | LMR16006 |
|
TPS563200EVM-652EVAL BOARD FOR TPS563200 |
1,956 | 58.80 |
|
Datasheet |
D-CAP2™, Eco-Mode™, SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 17V | Buck | 650kHz | Board(s) | TPS563200 |
|
LMR14020SEVMEVAL BOARD FOR LMR14020S |
3,734 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2A | 7V ~ 30V | Buck | 1.6MHz | Board(s) | LMR14020S |
|

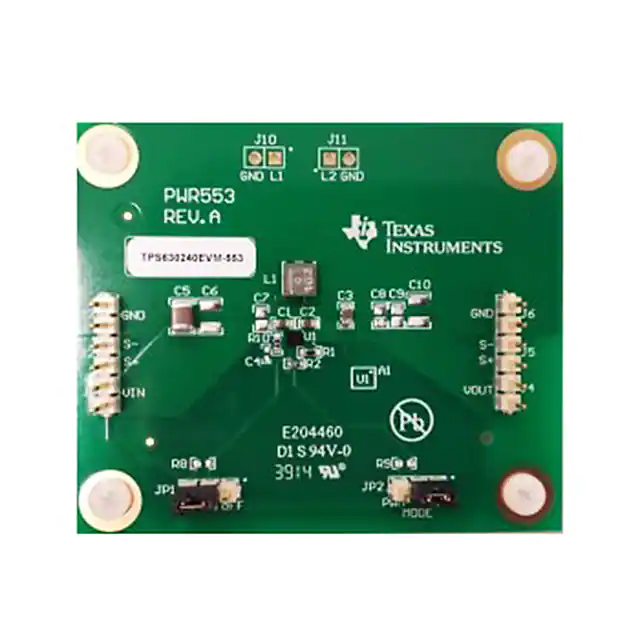

TPS630240EVM-553EVAL BOARD FOR TPS63024X |
3,804 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | TPS63024x |
|

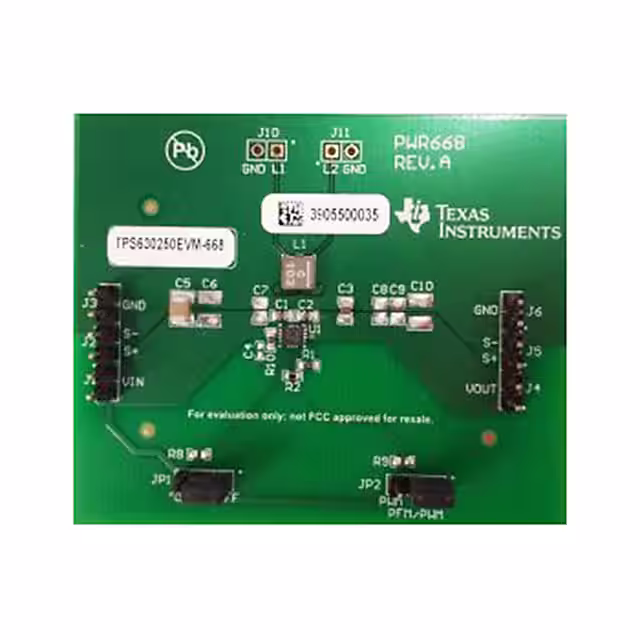

TPS630250EVM-668EVAL BOARD FOR TPS63025X |
2,820 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2A | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | TPS63025x |
|

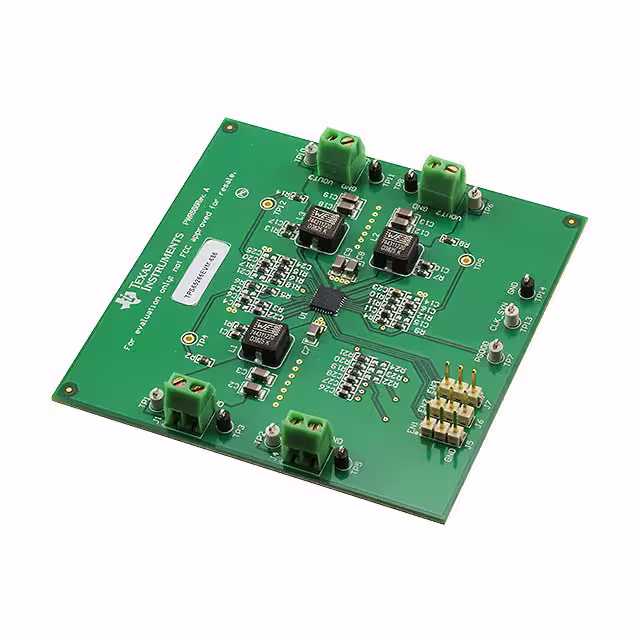

TPS65266EVM-686EVAL BOARD FOR TPS65266 |
1,686 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1V, 1.5V, 1.8V | 3A, 2A, 2A | 2.7V ~ 6.5V | Buck | 1MHz | Board(s) | TPS65266 |
|

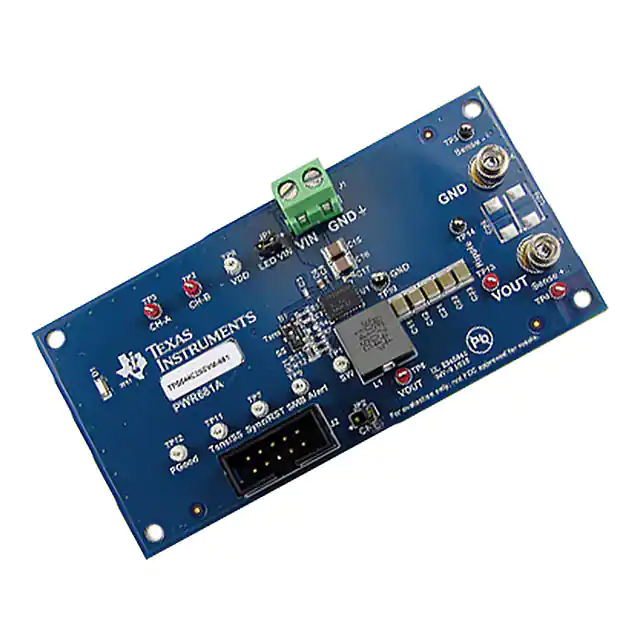

TPS544C25EVM-681EVAL BOARD FOR TPS544C25 |
2,969 | 58.80 |
|
Datasheet |
SWIFT™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.95V | 30A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS544C25 |
|

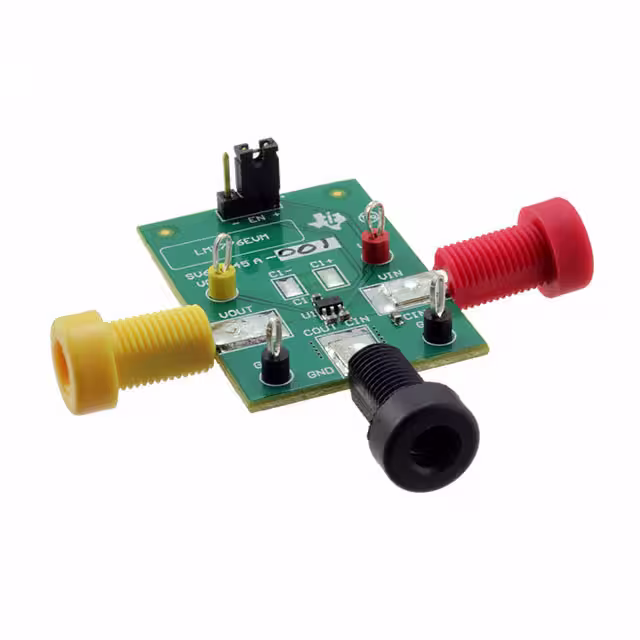

LM2776EVMEVAL BOARD FOR LM2776 |
4,791 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | - | 200mA | 2.7V ~ 5.5V | Inverting | 2MHz | Board(s) | LM2776 |
|

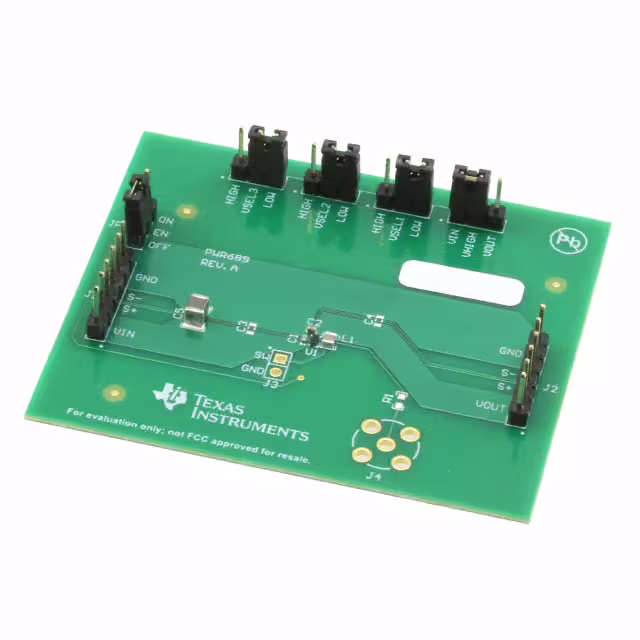

TPS62743EVM-689EVAL BOARD FOR TPS62743 |
2,047 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V ~ 3.3V | 300mA | 2V ~ 5.5V | Buck | 1.2MHz | Board(s) | TPS62743 |
|

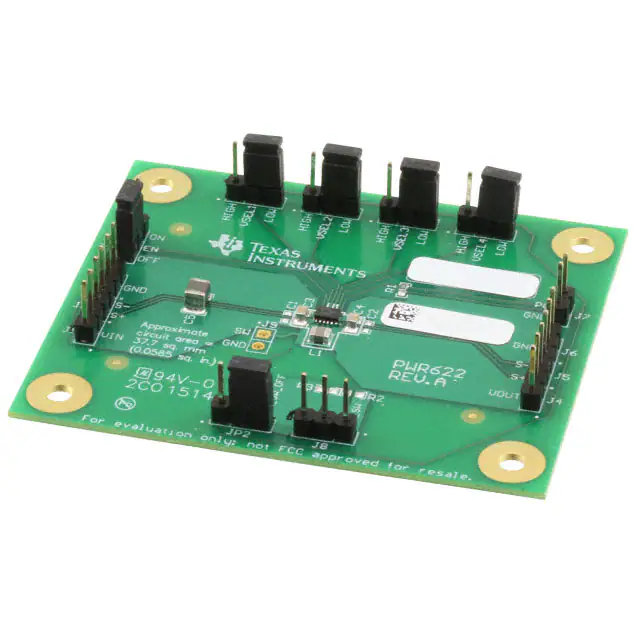

TPS62745EVM-622EVAL BOARD FOR TPS62745 |
2,862 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V ~ 3.3V | 300mA | 3.3V ~ 10V | Buck | - | Board(s) | TPS62745 |
|

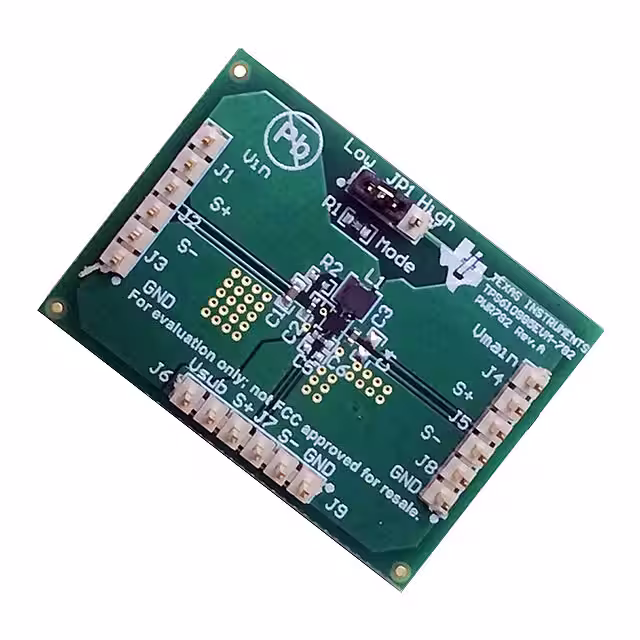

TPS610985EVM-782EVAL BOARD FOR TPS610985 |
3,169 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3V, 3V | 200mA, 200mA | 0.7V ~ 4.5V | Boost | - | Board(s) | TPS610985 |
|
TPS56C215EVM-762EVAL BOARD FOR TPS56C215 |
2,261 | 58.80 |
|
Datasheet |
SWIFT™, D-CAP2™, Eco-Mode™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 4.5V ~ 17V | Buck | 1.2MHz | Board(s) | TPS56C215 |
|

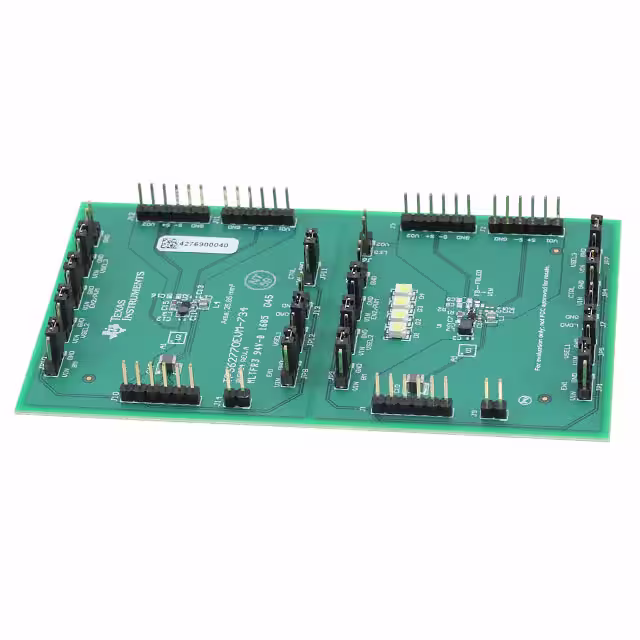

TPS62770EVM-734EVAL BOARD FOR TPS62770 |
4,800 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | - | - | 2.5V ~ 5.5V | Buck-Boost | - | Board(s) | TPS62770 |
|

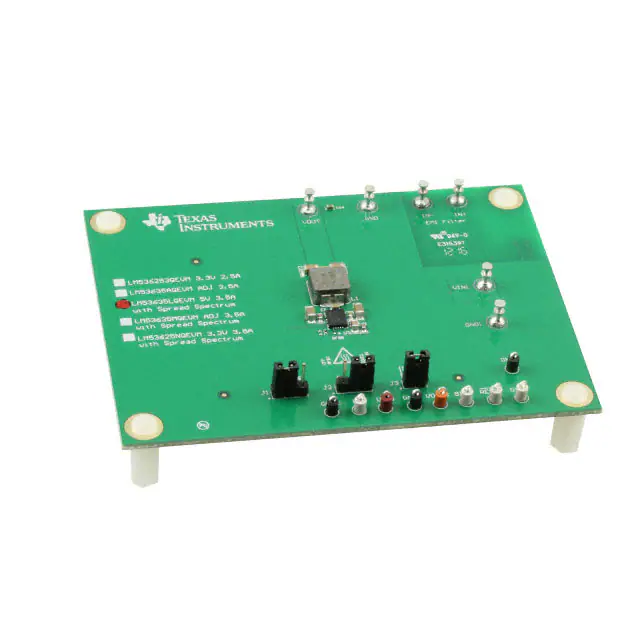

LM53635LQEVMEVAL BOARD FOR LM53635LQ1 |
4,216 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.8V ~ 36V | Buck | - | Board(s) | LM53635L-Q1 |
|
TPS54302EVM-716EVAL BOARD FOR TPS54302 |
1,681 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 8V ~ 28V | Buck | 400kHz | Board(s) | TPS54302 |
|

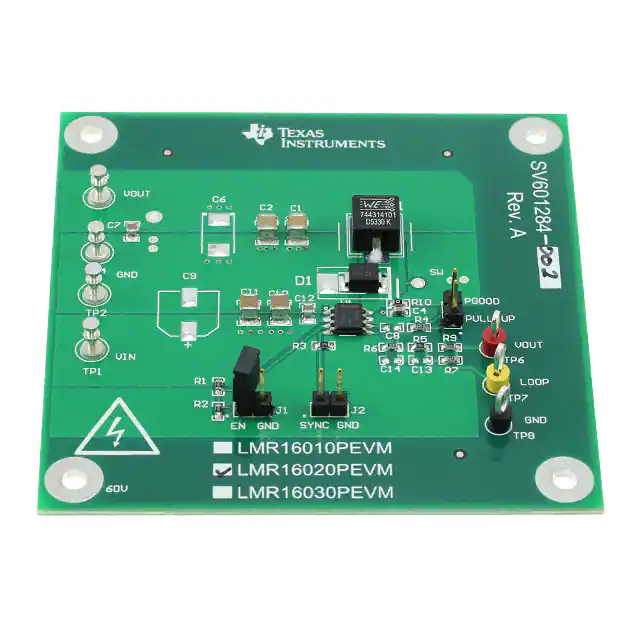

LMR16020PEVMEVAL BOARD FOR LMR16020 |
2,757 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 7V ~ 60V | Buck | 600kHz | Board(s) | LMR16020 |
|

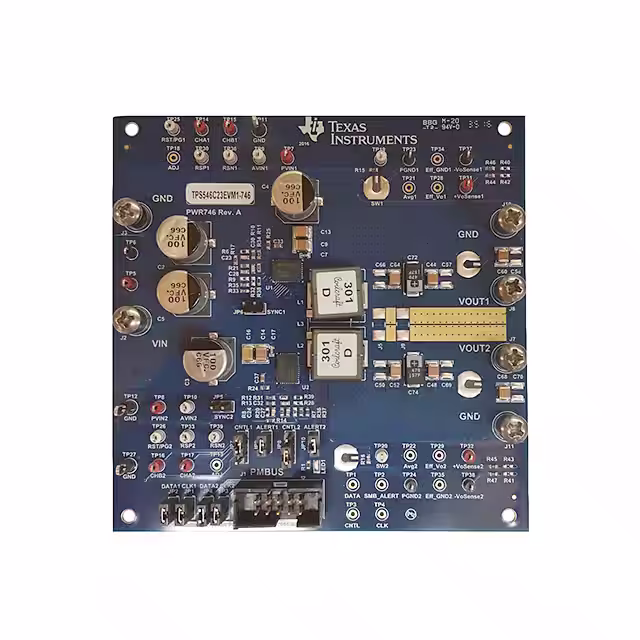

TPS546C23EVM1-746EVAL BOARD FOR TPS546C23 |
3,744 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.9V, 0.9V | 35A, 35A | 5V ~ 18V | Buck | 500kHz | Board(s) | TPS546C23 |
