DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

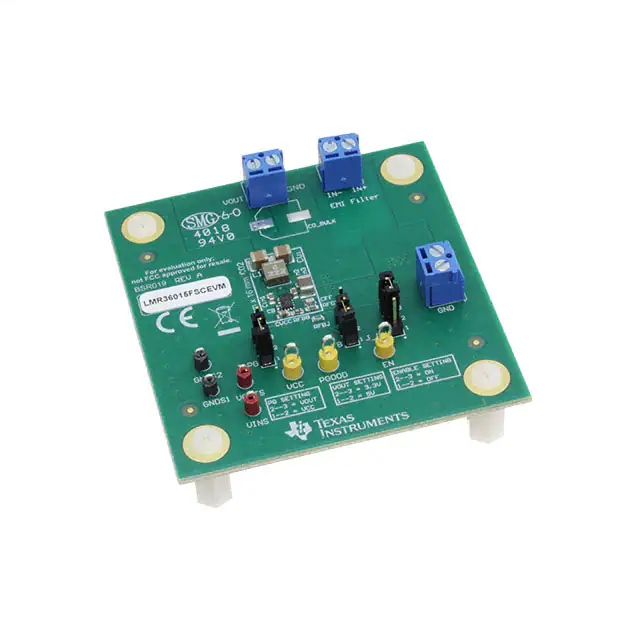

LMR36015FSCEVMEVAL BOARD FOR LMR36015Q1 |
4,463 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.5A | 4.2V ~ 60V | Buck | 2.1MHz | Board(s) | LMR36015-Q1 |
|

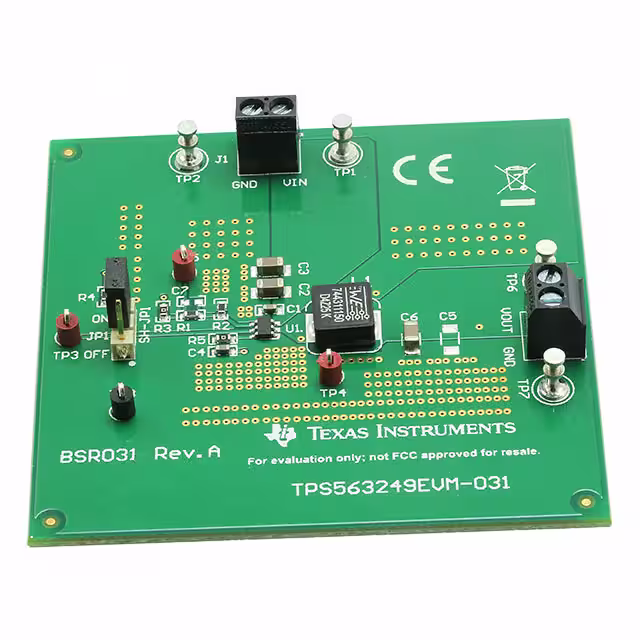

TPS563249EVM-031EVAL BOARD FOR TPS563249 |
1,038 | 58.80 |
|
Datasheet |
D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 17V | Buck | 1.4MHz | Board(s) | TPS563249 |
|

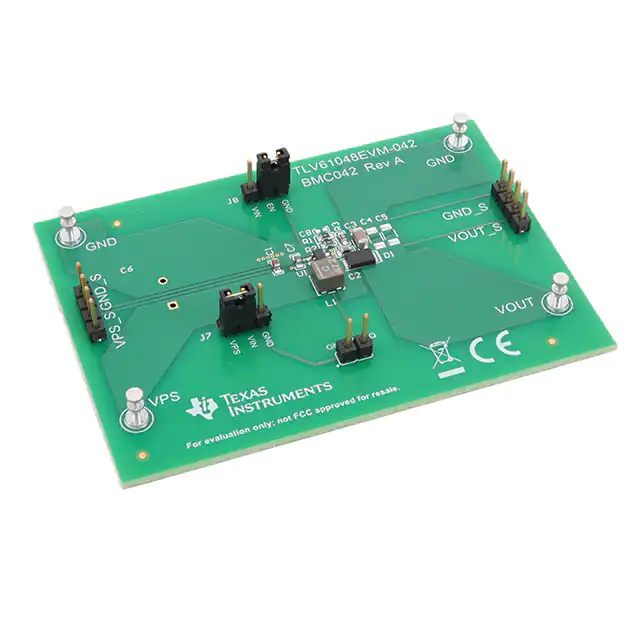

TLV61048EVM-042EVAL BOARD FOR TLV61048 |
2,800 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 200mA | 2.65V ~ 5.5V | Boost | - | Board(s) | TLV61048 |
|

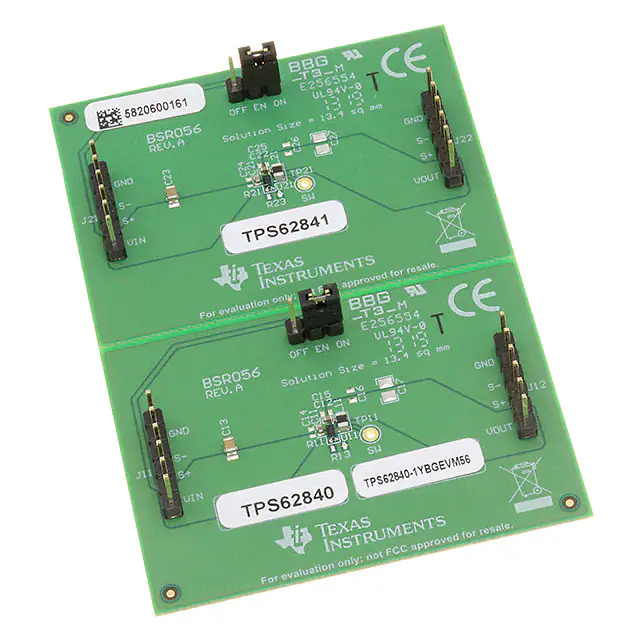

TPS62840-1YBGEVM56EVAL BOARD FOR TPS6284X |
1,886 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 750mA | 1.8V ~ 6.5V | Buck | - | Board(s) | TPS6284x |
|

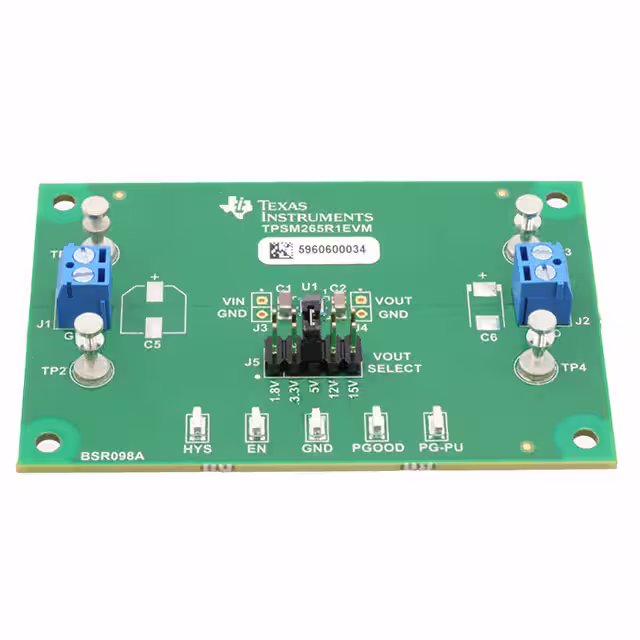

TPSM265R1EVMEVAL BOARD FOR TPSM265R1 |
4,031 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V, 5V, 12V, 15V | 100mA | 3V ~ 65V | Buck | 500kHz | Board(s) | TPSM265R1 |
|

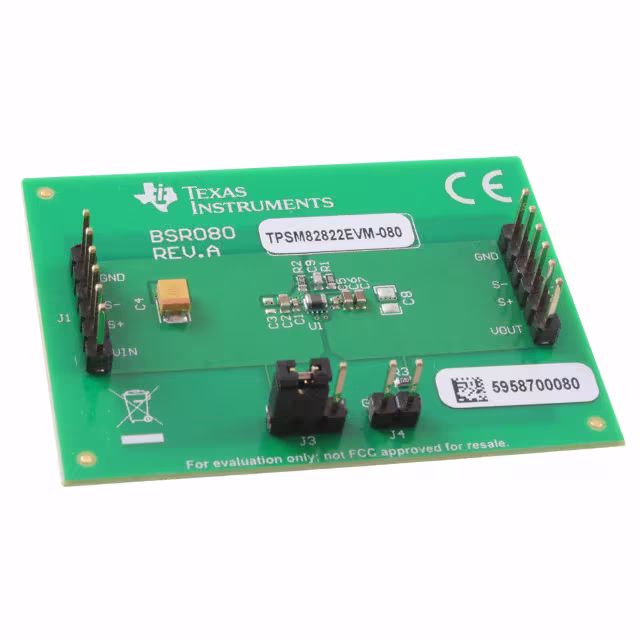

TPSM82822EVM-080EVAL BOARD FOR TPSM82822 |
1,497 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPSM82822 |
|

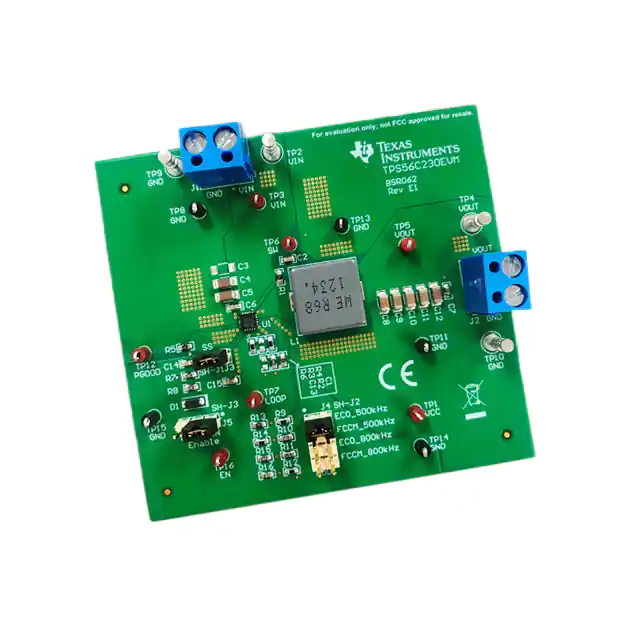

TPS56C230EVMEVAL BOARD FOR TPS56C230 |
2,395 | 62.30 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS56C230 |
|
TPS63811EVMEVAL BOARD FOR TPS63811 |
2,484 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V ~ 5.2V | 2.5A | 2.2V ~ 5.5V | Buck-Boost | - | Board(s) | TPS63811 |
|

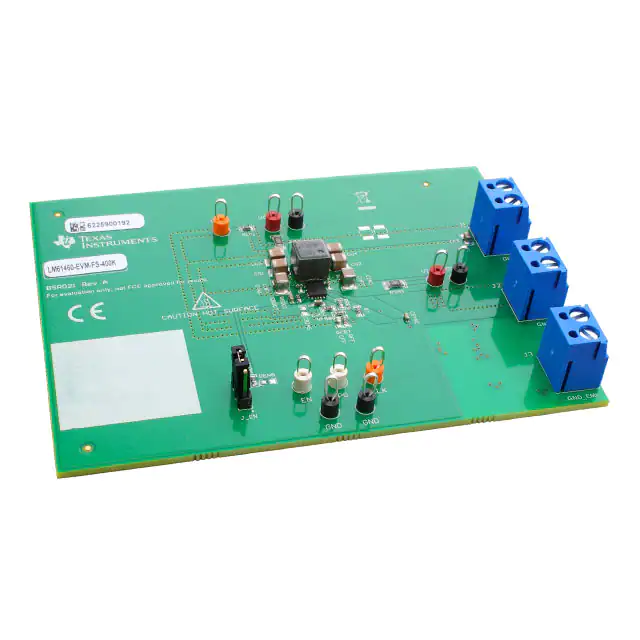

LM61460EVM-FS-400KEVAL BOARD FOR LM61460Q1 |
4,237 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 3V ~ 36V | Buck | 400kHz | Board(s) | LM61460-Q1 |
|

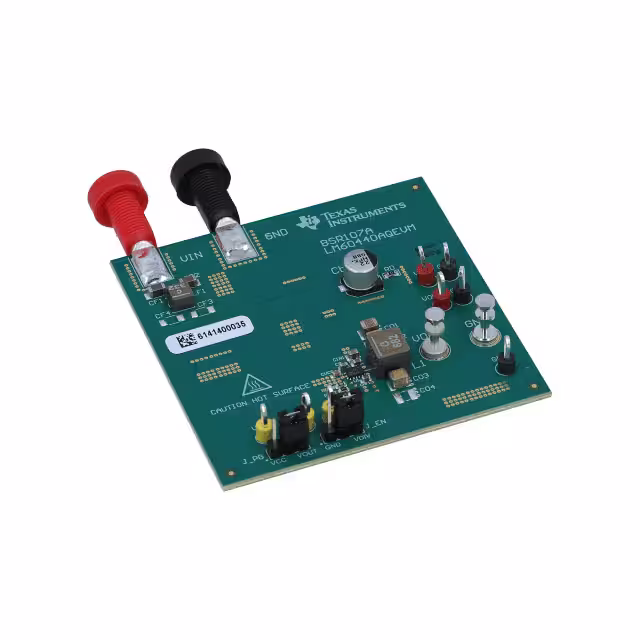

LM60440AQEVMEVAL BOARD FOR LM60440Q1 |
4,730 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 3.8V ~ 36V | Buck | 400kHz | Board(s) | LM60440-Q1 |
|
LM62440EVM-PP-2MHZEVAL BOARD FOR LM62440Q1 |
1,941 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 6V ~ 36V | Buck | 2MHz | Board(s) | LM62440-Q1 |
|

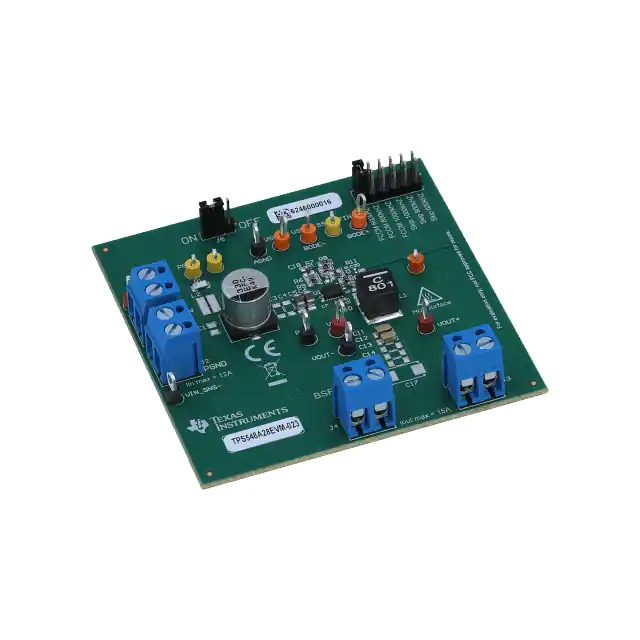

TPS548A28EVM-023EVAL BOARD FOR TPS548A28 |
2,517 | 58.80 |
|
Datasheet |
D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 15A | 1.5V ~ 20V | Buck | - | Board(s) | TPS548A28 |
|

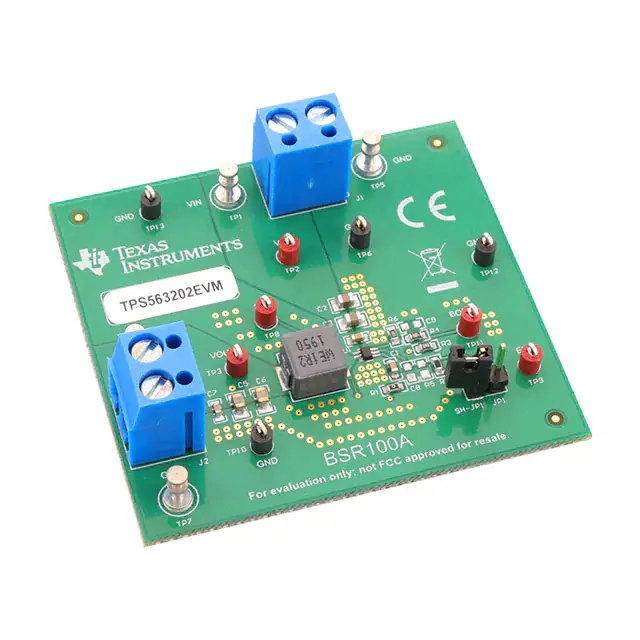

TPS563202EVMEVAL BOARD FOR TPS563202 |
1,761 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.3V ~ 17V | Buck | 600kHz | Board(s) | TPS563202 |
|

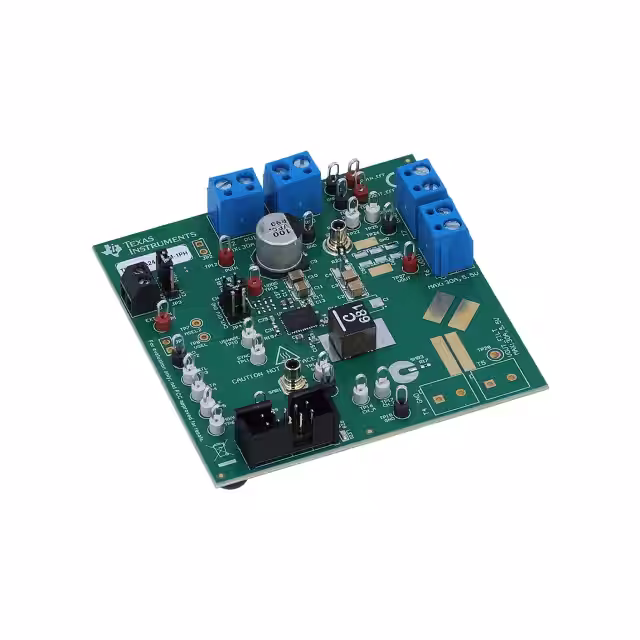

TPS546A24AEVM-1PHEVAL BOARD FOR TPS546A24A |
4,256 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 10A | 2.95V ~ 18V | Buck | 650kHz | Board(s) | TPS546A24A |
|
TPS51397AEVMEVAL BOARD FOR TPS51397A |
2,998 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 10A | 4.5V ~ 24V | Buck | - | Board(s) | TPS51397A |
|

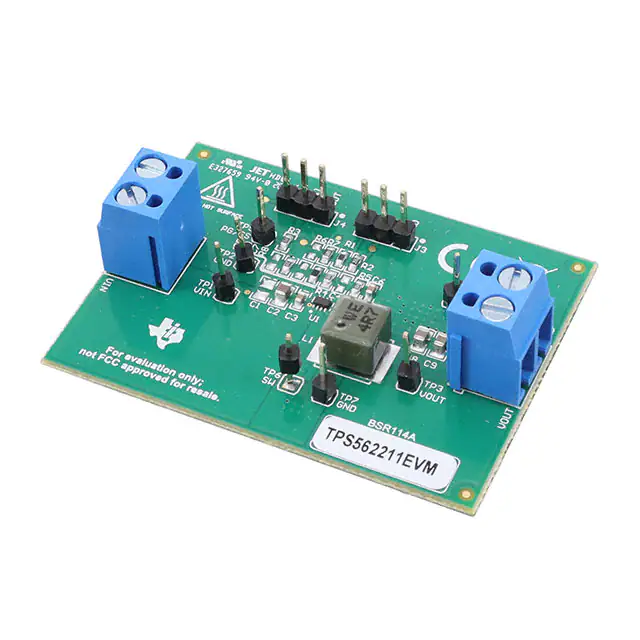

TPS562211EVMEVAL BOARD FOR TPS562211 |
1,222 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 4.2V ~ 18V | Buck | 600kHz | Board(s) | TPS562211 |
|

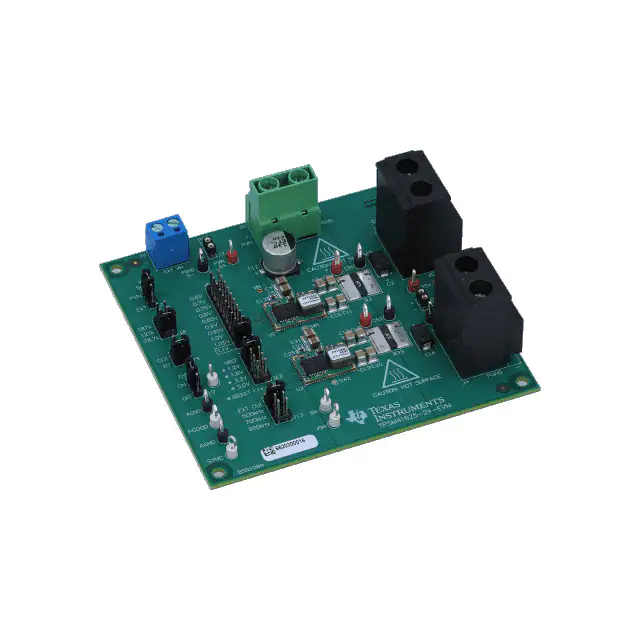

TPSM41625-2X-EVMEVAL BOARD FOR TPSM41625 |
4,116 | 61.20 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 7.1V | 50A | 4V ~ 16V | Buck | 500kHz | Board(s) | TPSM41625 |
|
TPSM5601R5HEVMEVAL BOARD FOR TPSM5601R5H |
3,916 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 4.2V ~ 60V | Buck | 1MHz | Board(s) | TPSM5601R5H |
|

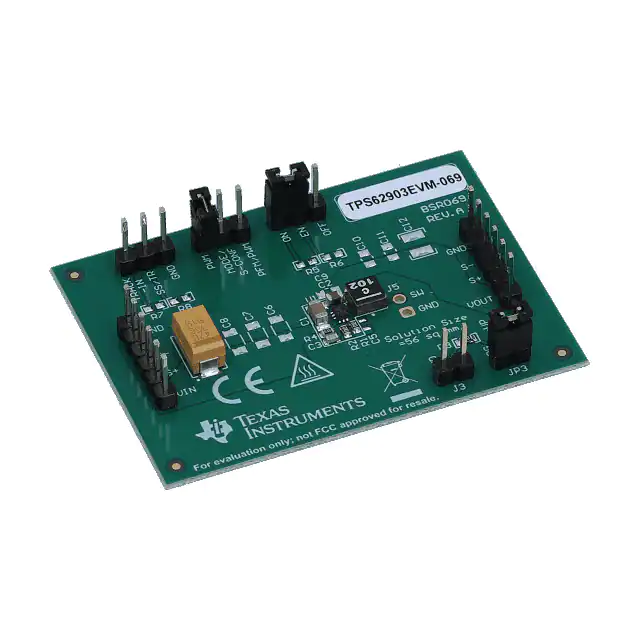

TPS62903EVM-069EVAL BOARD FOR TPS62903 |
2,230 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 3A | 17V | Buck | - | Board(s) | TPS62903 |
|

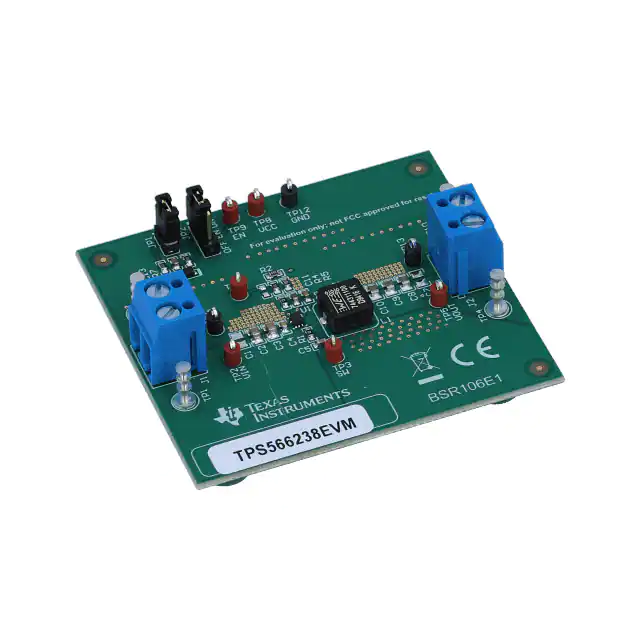

TPS566238EVMEVAL BOARD FOR TPS566238 |
2,404 | 58.80 |
|
Datasheet |
D-CAP3™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 6A | 3V ~ 17V | Buck | 600kHz | Board(s) | TPS566238 |
