DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

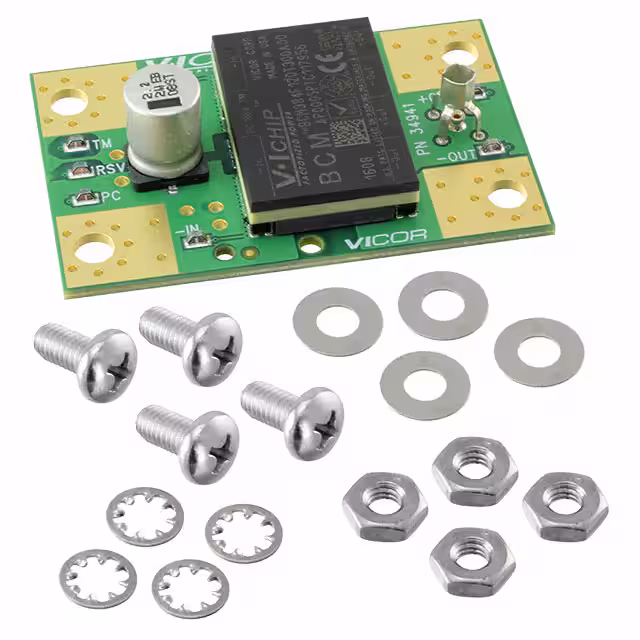

BCD384F120T300A00EVAL BOARD FOR BCM384X120Y300A00 |
4,344 | 0.00 |
|
Datasheet |
VI Chip® BCM® | Box | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 12V | 27.7A | 360V ~ 400V | Buck | 1.95MHz | Board(s) | BCM384x120y300A00 |
|

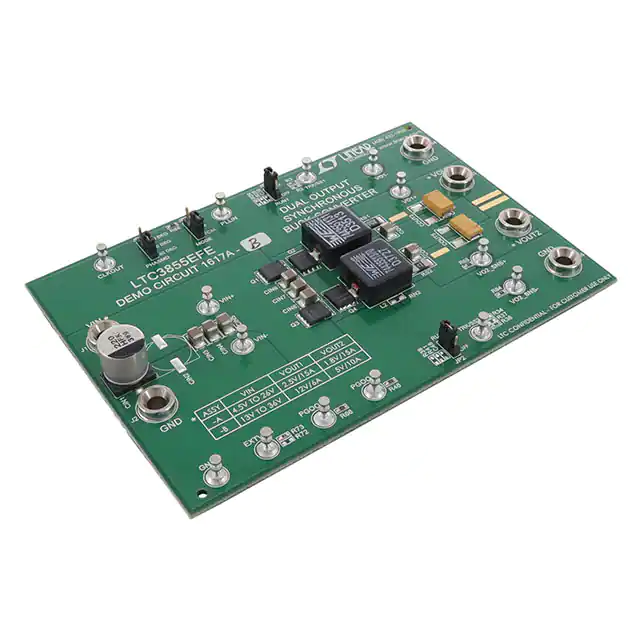

DC1617A-BEVAL BOARD FOR LTC3855 |
4,976 | 188.32 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 10A, 6A | 13V ~ 36V | Buck | 250kHz | Board(s) | LTC3855 |
|

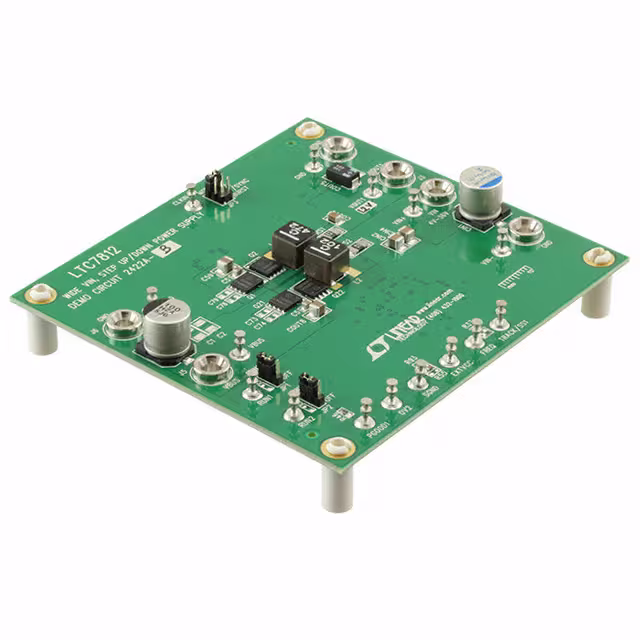

DC2422A-BEVAL BOARD FOR LTC7812 |
2,714 | 188.32 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 10V ~ 16V | 8A | 4V ~ 36V | Boost, Buck | - | Board(s) | LTC7812 |
|

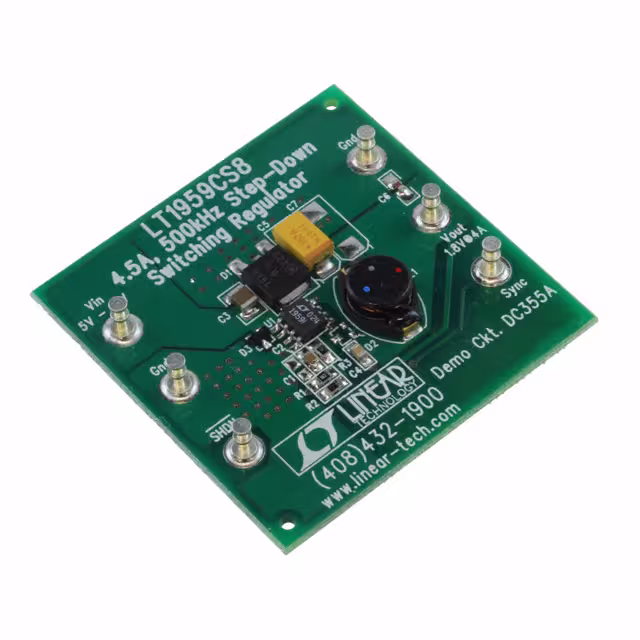

DC355AEVAL BOARD FOR LT1959 |
3,536 | 196.11 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4.3A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LT1959 |
|

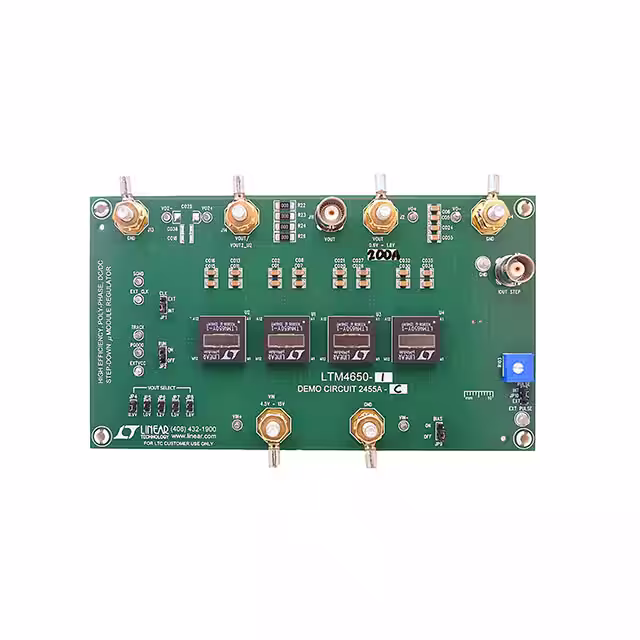

DC2455A-CEVAL BOARD FOR LTM46501 |
4,538 | 194.20 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
|

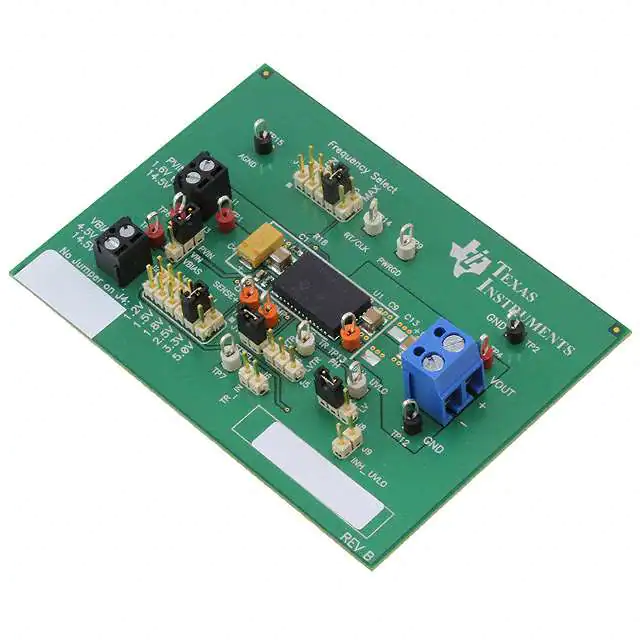

LMZ31506EVM-692EVAL BOARD FOR LMZ31506 |
3,083 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V | 6A | 2.95V ~ 6V | Buck | - | Board(s) | LMZ31506 |
|

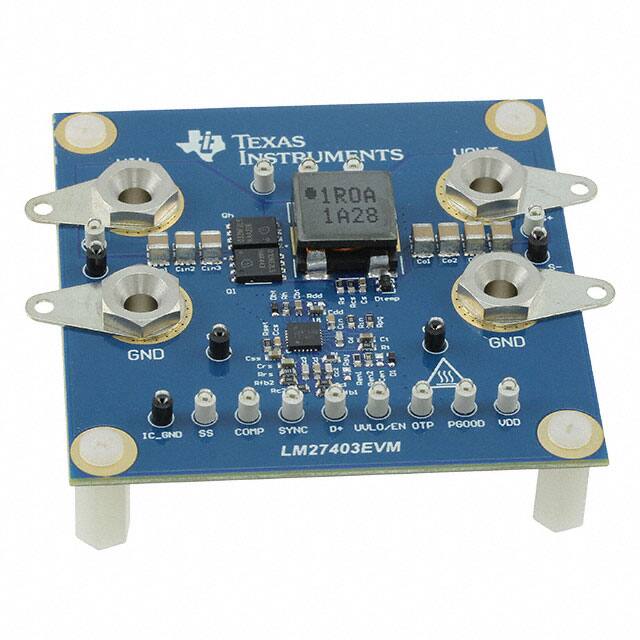

LM27403EVMEVAL BOARD FOR LM27403 |
4,802 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 3V ~ 20V | Buck | 250kHz | Board(s) | LM27403 |
|

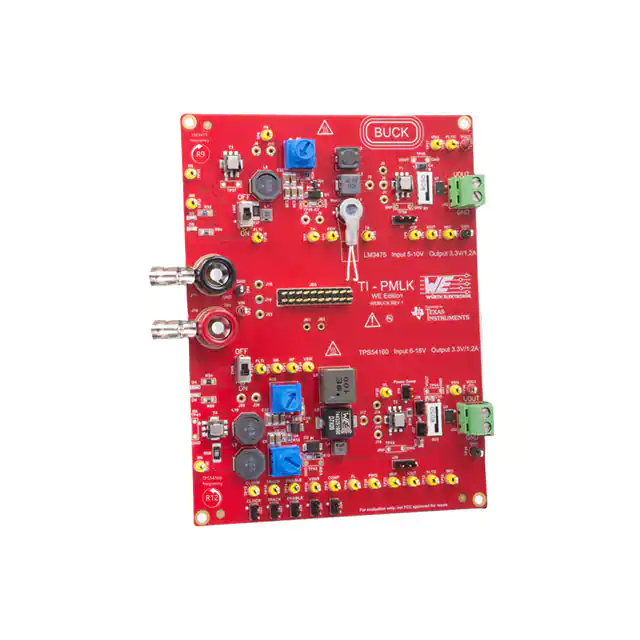

744732TI-PMLK BUCK WURTH ELEKTRONIK ED |
1,760 | 191.71 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | - |
|

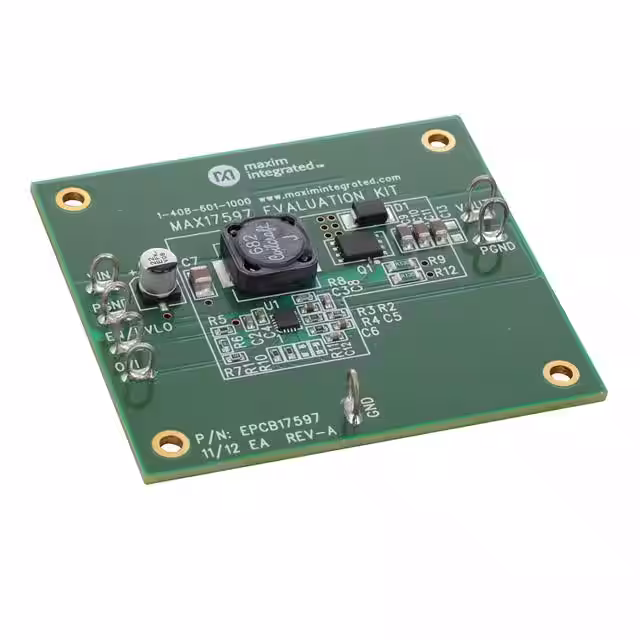

MAX17597EVKIT#EVAL BOARD FOR MAX17597 |
1,395 | 229.56 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 1A | 8V ~ 14V | Boost | 600kHz | Board(s) | MAX17597 |
|
DC2814A-BEVAL BOARD FOR LT8210 |
3,036 | 211.86 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V ~ 34V | 2.5A | 9V ~ 80V | Boost, Buck | 385kHz | Board(s) | LT8210 |
|

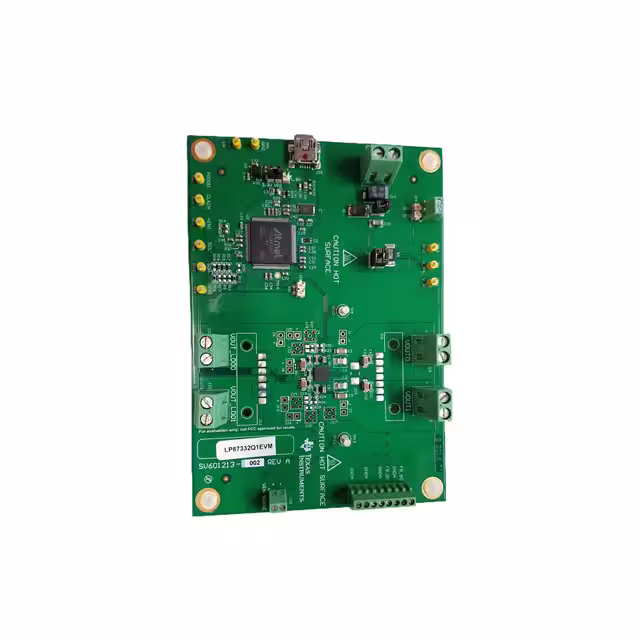

LP87332Q1EVMEVAL BOARD FOR LP87332DRHDRQ1 |
4,695 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 3A | - | Buck | 2MHz | Board(s) | LP87332DRHDRQ1 |
|
LGA80D-EVAL-KITEVAL BOARD FOR LGA80D |
2,290 | 198.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1V, 1V, 1V | 80A, 40A, 40A | 7.5V ~ 14V | Buck | 457kHz | Board(s) | LGA80D |
|

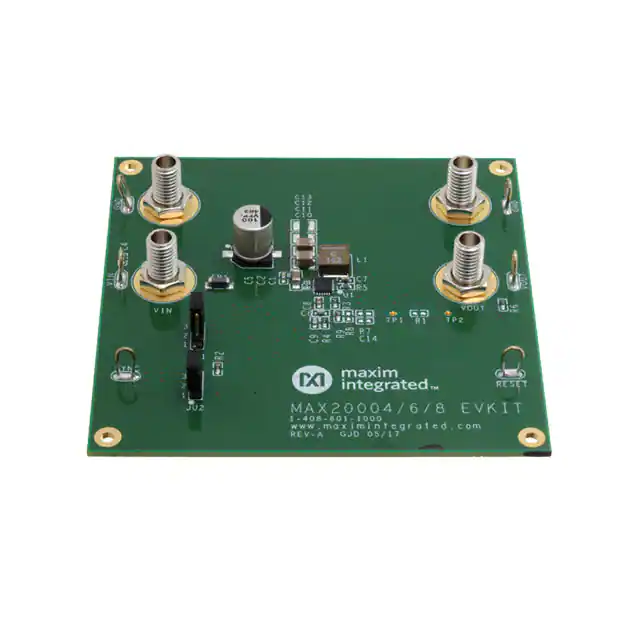

MAX20006EVKIT#EVAL BOARD FOR MAX20006 |
4,367 | 208.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 3.5V ~ 36V | Buck | 2.2MHz | Board(s) | MAX20006 |
|

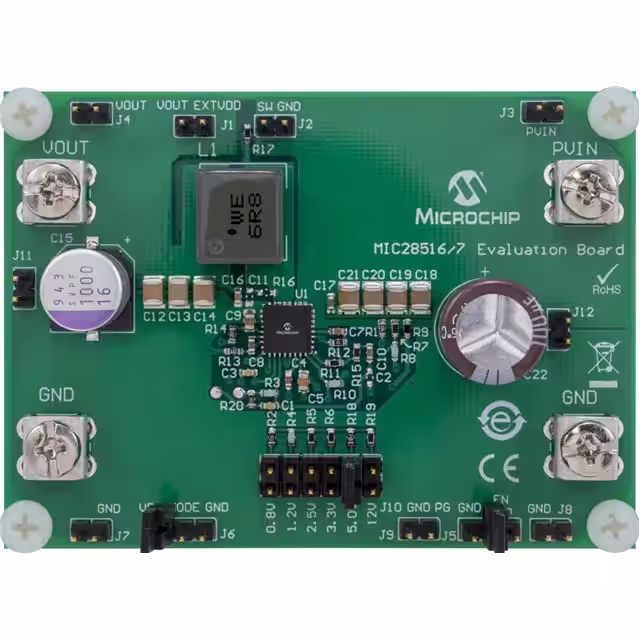

ADM00929EVAL BOARD FOR MIC28516 |
1,967 | 194.09 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 32V | 8A | 4.5V ~ 70V | Buck | - | Board(s) | MIC28516 |
|
DC2225AEVAL BOARD FOR LTC3875 |
3,732 | 229.51 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 160A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3875 |
|
BM2SC123FP2-EVK-001EVAL BOARD FOR BM2SC123 |
3,253 | 238.75 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 48 W | 24V | 2A | 210 ~ 480VAC, 300V ~ 900V | Flyback | 120kHz | Board(s) | BM2SC123 |
|
TPS5431EVM-173EVAL BOARD FOR TPS5431 |
3,759 | 12.00 |
|
Datasheet |
SWIFT™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 9V ~ 21V | Buck | 500kHz | Board(s) | TPS5431 |
|

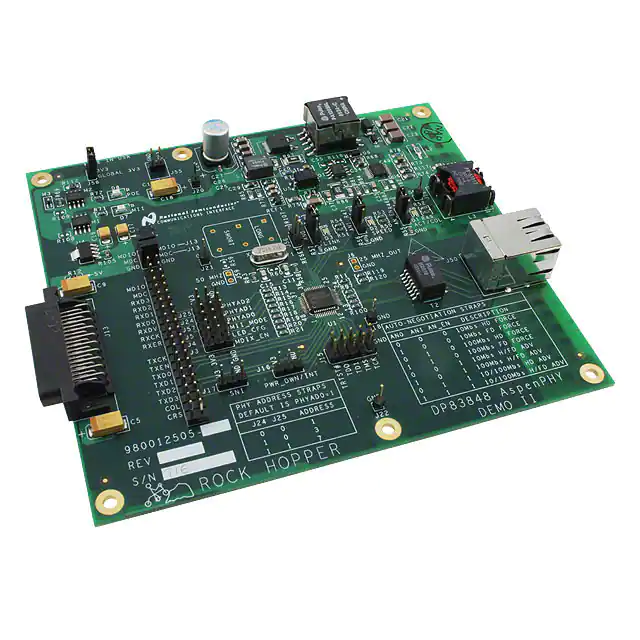

DP83848I-POE-EKEVAL BOARD FOR DP83848I |
2,602 | 238.80 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 24 W | 3.3V | 7.3A | 39V ~ 57V | Flyback | 250kHz | Board(s) | DP83848I |
|

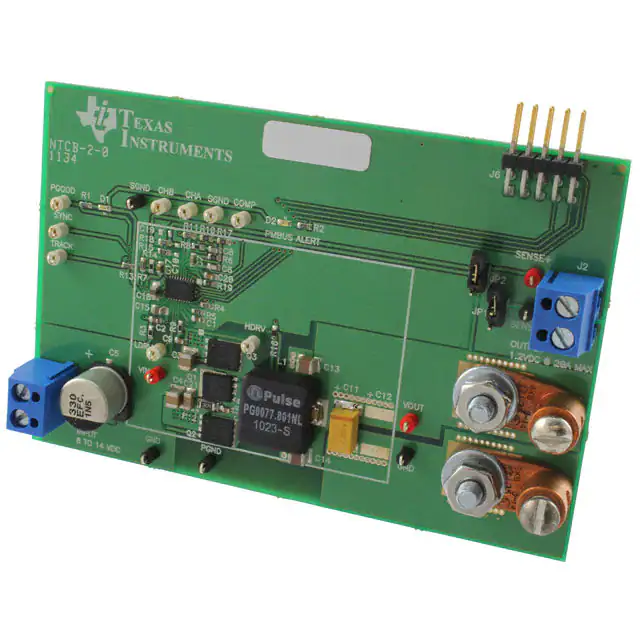

TPS40400EVM-351EVAL BOARD FOR TPS40400 |
4,734 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | - | - | 1.2V | 20A | 8V ~ 14V | Buck | 200kHz ~ 2MHz | Board(s) | TPS40400 |
|

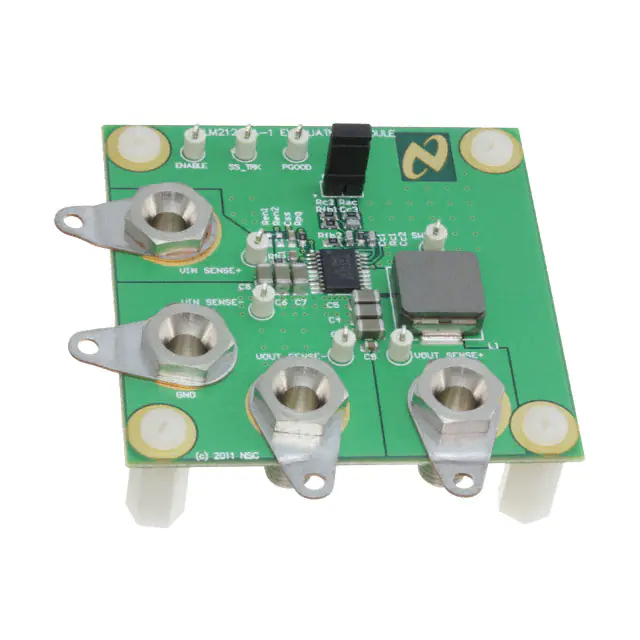

LM21215A-1EVM/NOPBEVAL BOARD FOR LM21215A1 |
2,864 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 15A | 2.95V ~ 5.5V | Buck | - | Board(s) | LM21215A-1 |
