DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

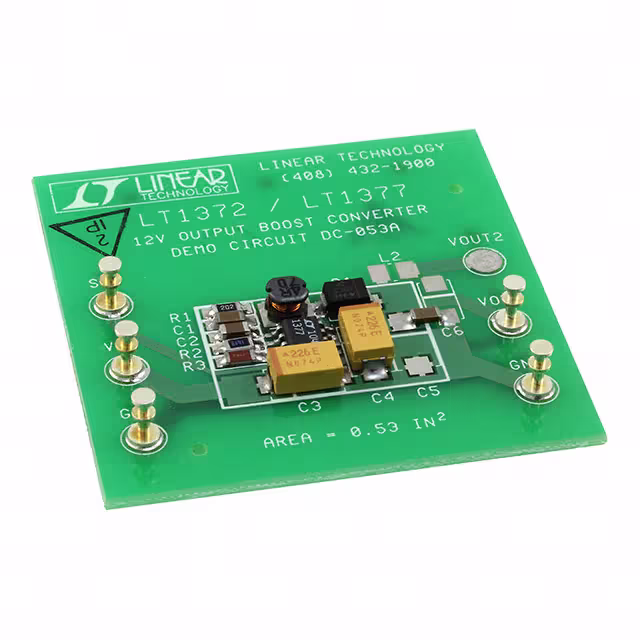

DC053A-BEVAL BOARD FOR LT1377 |
1,367 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 250mA | 2.7V ~ 11V | Boost | 1MHz | Board(s) | LT1377 |
|

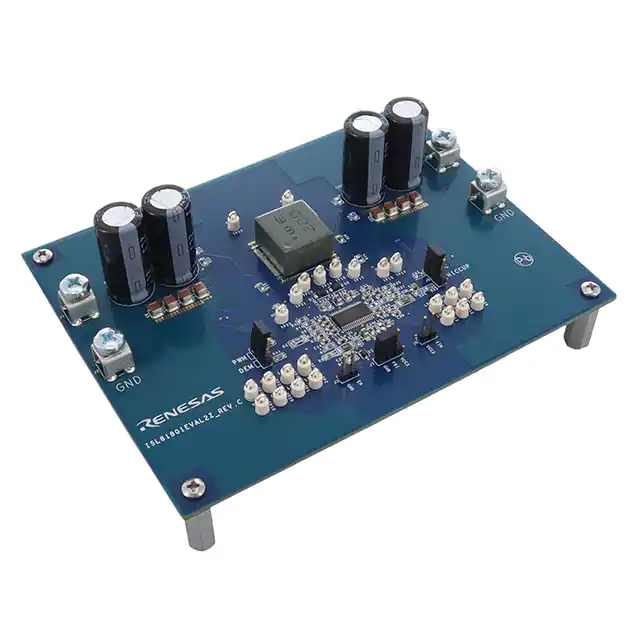

ISL81801EVAL2ZEVAL BOARD FOR ISL81801 |
2,443 | 123.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 240 W | 48V | 5A | 32V ~ 80V | Buck-Boost | 200kHz | Board(s) | ISL81801 |
|
DC1989B-AEVAL BOARD FOR LTM4676A |
4,655 | 123.59 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 4.5V ~ 17V | Buck | 350kHz | Board(s) | LTM4676A |
|

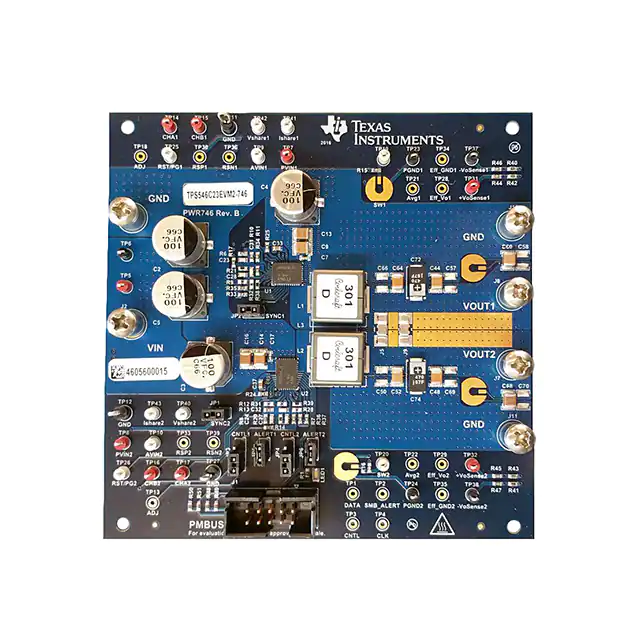

TPS546C23EVM2-746EVAL BOARD FOR TPS546C23 |
2,174 | 118.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 70A | 5V ~ 18V | Buck | 500kHz | Board(s) | TPS546C23 |
|

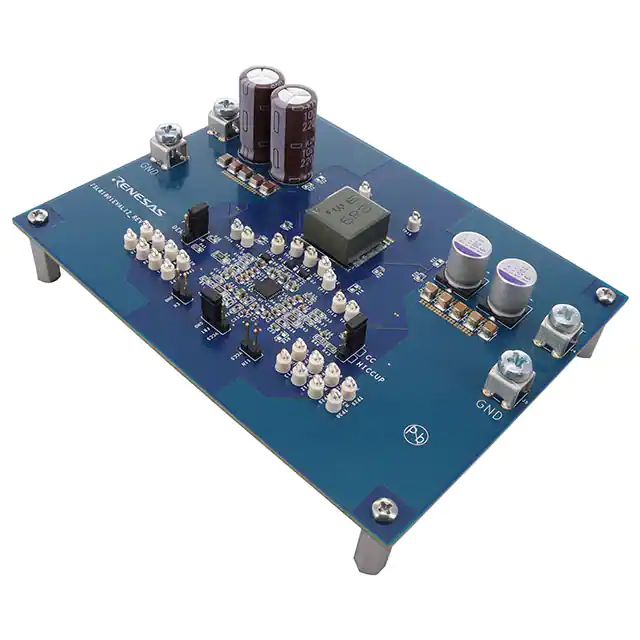

ISL81801EVAL1ZEVAL BOARD FOR ISL81801 |
3,904 | 123.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 120 W | 12V | 10A | 9V ~ 80V | Buck-Boost | 200kHz | Board(s) | ISL81801 |
|
DC728AEVAL BOARD FOR LTC3458 |
4,000 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 7V | 800mA | 2V ~ 6V | Boost | 1MHz | Board(s) | LTC3458 |
|

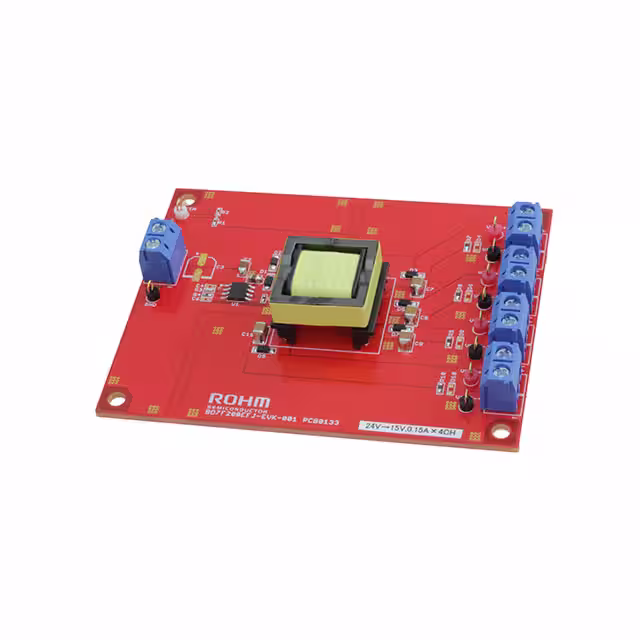

BD7F200EFJ-EVK-001EVAL BOARD FOR BD7F200 |
3,288 | 131.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Isolated Outputs | - | 15V, 15V, 15V, 15V | 150mA, 150mA, 150mA, 150mA | 24V | Flyback | 400kHz | Board(s) | BD7F200 |
|

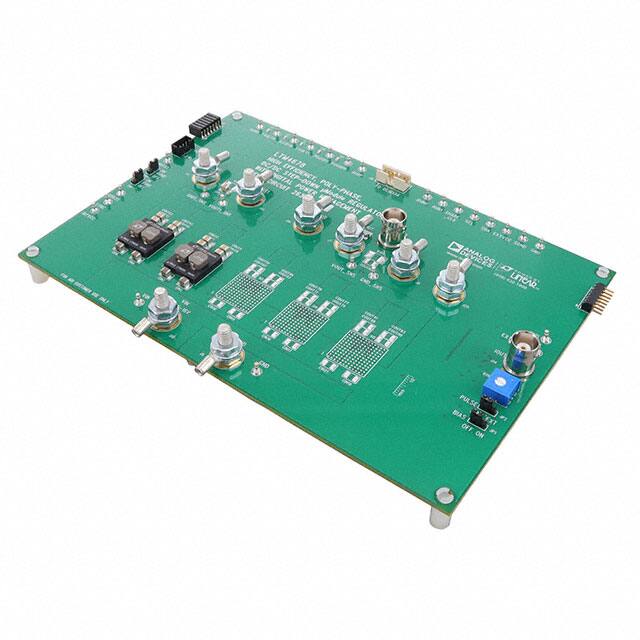

DC2638A-AEVAL BOARD FOR LTM4678 |
3,439 | 131.31 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 3.3V | 100A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4678 |
|

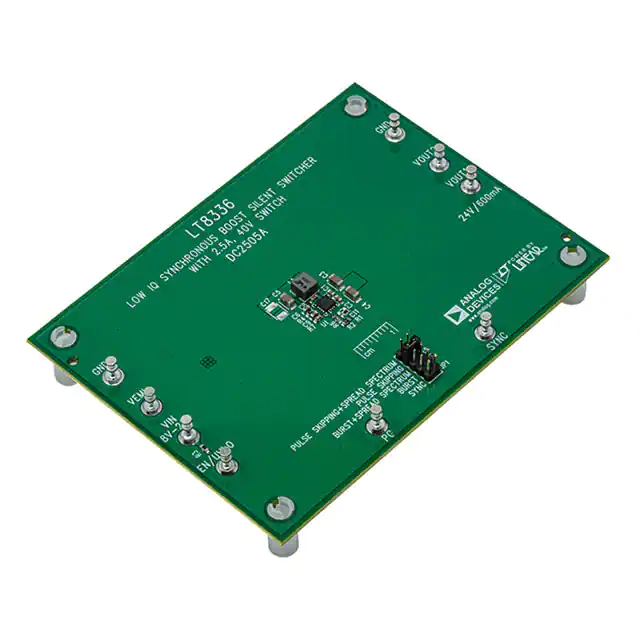

DC2505AEVAL BOARD FOR LT8336 |
2,331 | 153.26 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 1.5A | 8V ~ 20V | Boost | 2MHz | Board(s) | LT8336 |
|

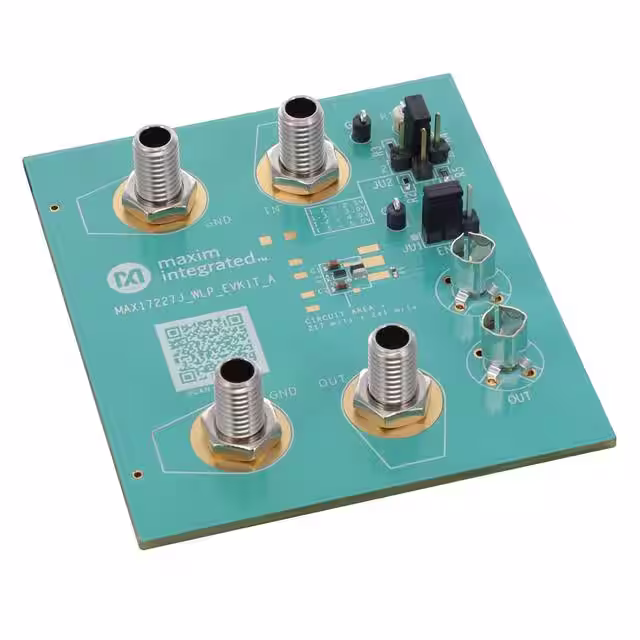

MAX17227JEVK#WLPEVAL BOARD FOR MAX17227J |
4,339 | 122.42 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 300mA | 0.4V ~ 5.5V | Boost | - | Board(s) | MAX17227J |
|

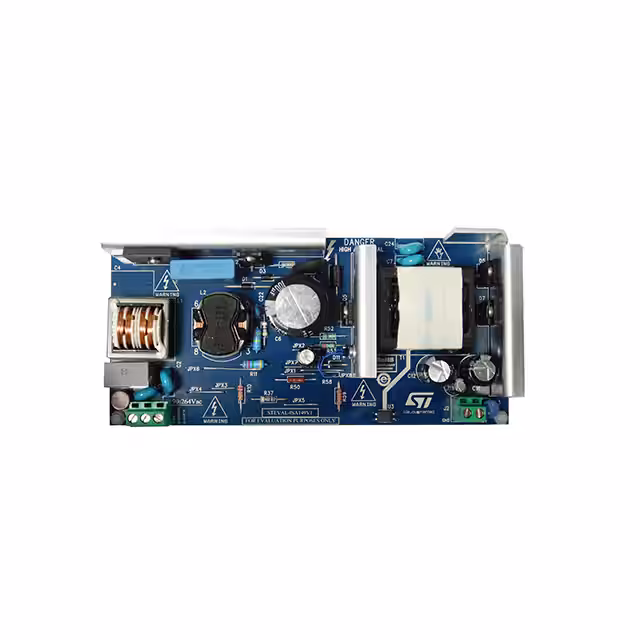

STEVAL-ISA149V1EVAL BOARD FOR L6563S L6566A |
1,702 | 141.25 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side and PFC | 1 Isolated Output | 75 W | 19V | 4A | 90 ~ 264 VAC | Flyback | - | Board(s) | L6563S, L6566A |
|
MAX20408EVKIT#EVAL BOARD FOR MAX20408 |
2,494 | 132.50 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4V | 8A | 3V ~ 36V | Buck | 2.1MHz | Board(s) | MAX20408 |
|
MAX20410EVKIT#EVAL BOARD FOR MAX20410 |
1,433 | 132.50 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 3V ~ 36V | Buck | 400kHz | Board(s) | MAX20410 |
|

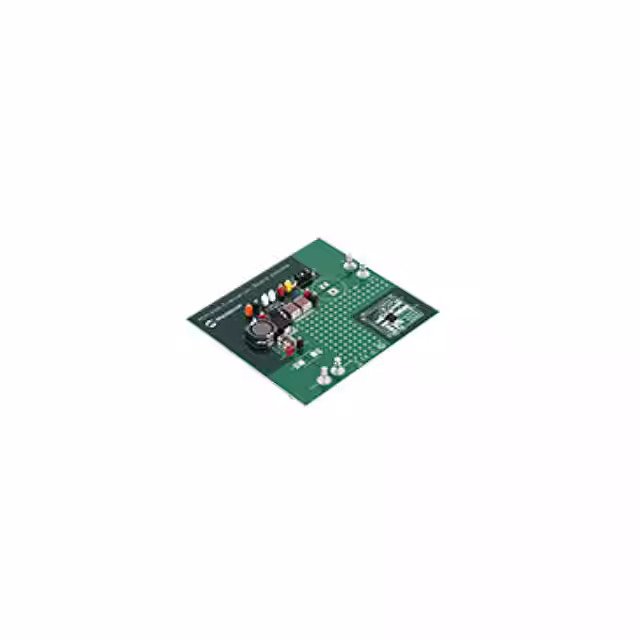

EV27C97AEVAL BOARD FOR MCP16361 |
2,366 | 123.41 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 48V | Buck | 2.2MHz | Board(s) | MCP16361 |
|
MAX20049EVKIT#EVAL BOARD FOR MAX20049 |
3,349 | 159.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 3.8V | 250mA, 200mA, 140mA, 50mA | 2.7V ~ 18V | Buck | 2.2MHz | Board(s) | MAX20049 |
|

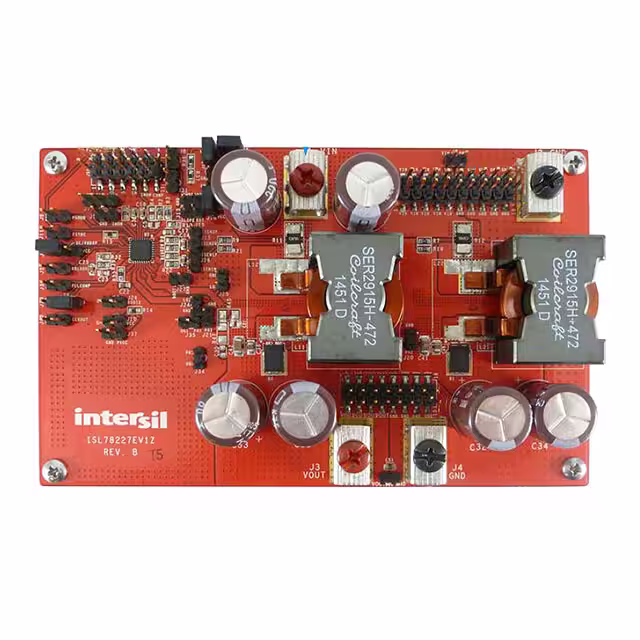

ISL78227EV1ZEVAL BOARD FOR ISL78227 |
4,647 | 142.88 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | - | - | - | - | - | Boost | - | Board(s) | ISL78227 |
|
DC1611AEVAL BOARD FOR LTC3604 |
4,187 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V or 3.3V | 2.5A | 3.6V ~ 15V | Buck | 1MHz | Board(s) | LTC3604 |
|

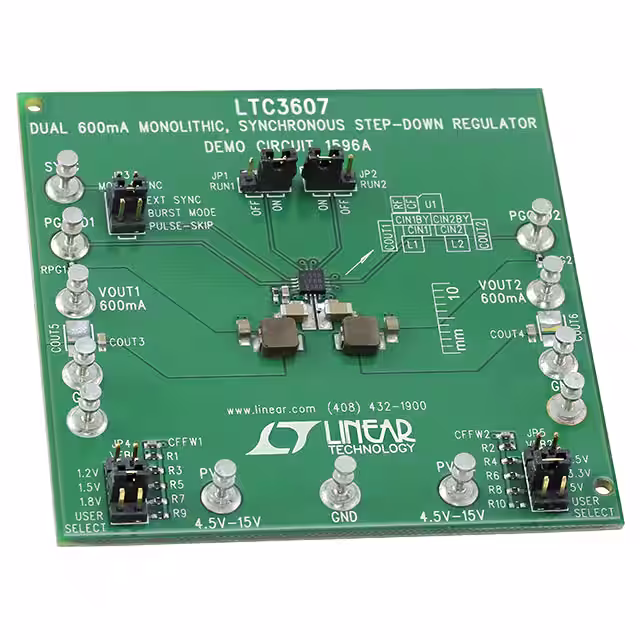

DC1596AEVAL BOARD FOR LTC3607 |
1,996 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 600mA, 600mA | 4.5V ~ 15V | Buck | 2.25MHz | Board(s) | LTC3607 |
|

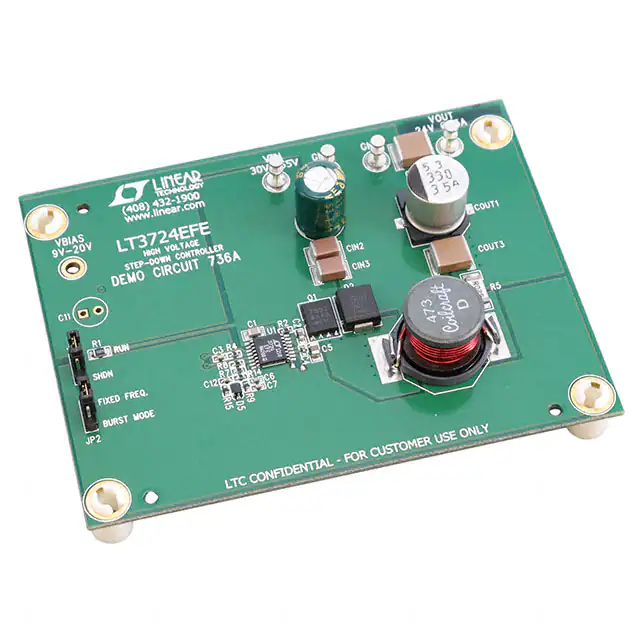

DC736AEVAL BOARD FOR LT3724 |
4,417 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 3A | 30V ~ 55V | Buck | 200kHz | Board(s) | LT3724 |
|
|
MAX20474EVKIT#EVAL BOARD FOR MAX20474 |
3,098 | 137.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 6V ~ 18V | 1A | 3V ~ 5.5V | Boost | 2.2MHz | Board(s) | MAX20474 |
