DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2014AEVAL BOARD FOR LT8302 |
2,837 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 2.2A | 10V ~ 30V | Flyback | 345kHz | Board(s) | LT8302 |
|
MAX20076EVKIT#EVAL BOARD FOR MAX20076 |
1,242 | 138.46 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 3.5V ~ 36V | Buck | - | Board(s) | MAX20076 |
|

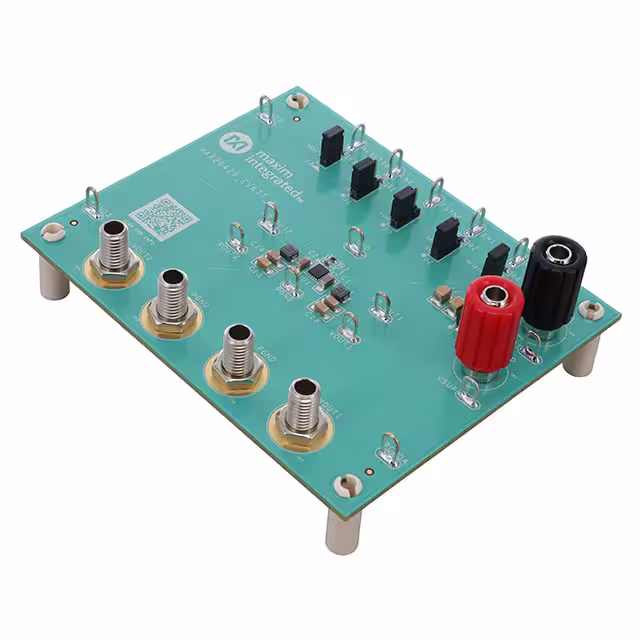

MAX20429EVKIT#EVAL BOARD FOR MAX20429 |
3,915 | 138.46 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | 30 W | 0.5V ~ 3.8V | 6A | 3V ~ 5.5V | Buck | - | Board(s) | MAX20429 |
|

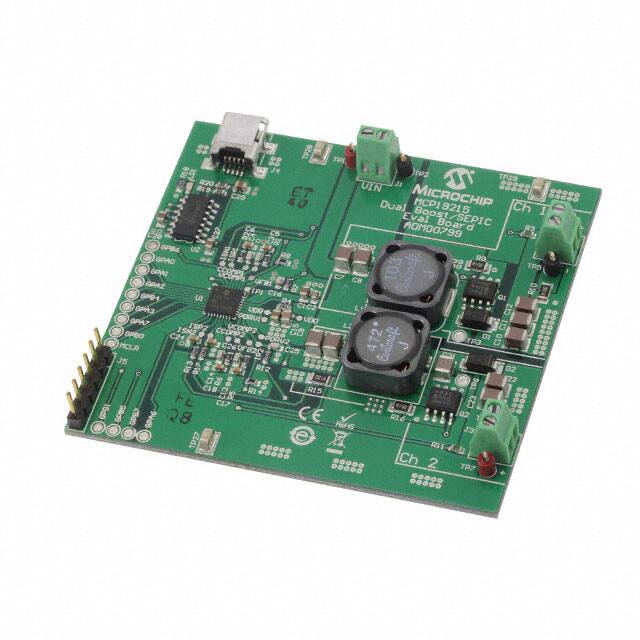

ADM00799EVAL BOARD FOR MCP19215 |
2,849 | 129.01 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | - | - | - | Boost | - | Board(s) | MCP19215 |
|

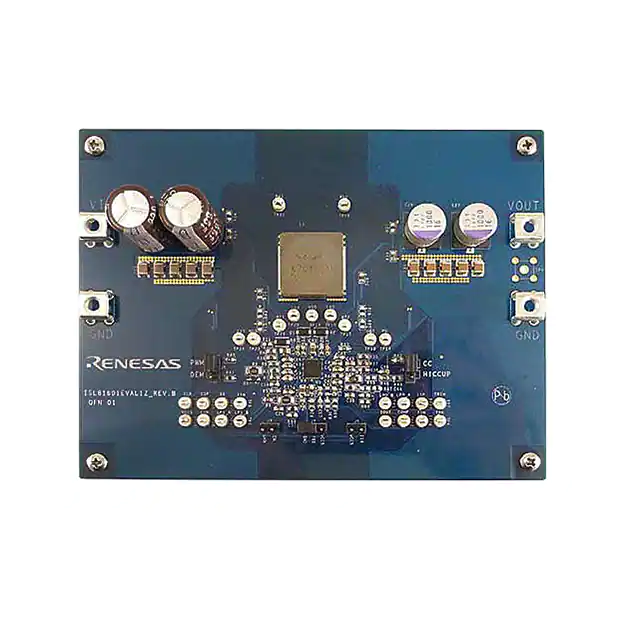

ISL81601EVAL1ZEVAL BOARD FOR ISL81601 |
1,502 | 153.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 10A | 9V ~ 60V | Buck-Boost | 200kHz | Board(s) | ISL81601 |
|

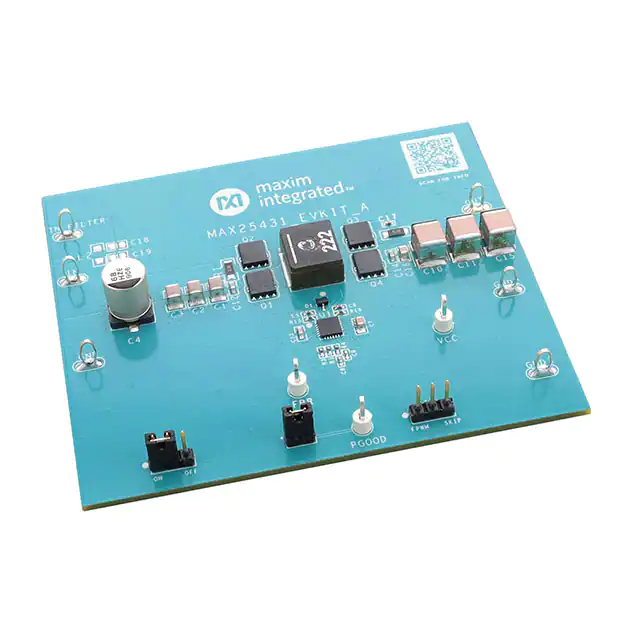

MAX25431EVKIT#EVAL BOARD FOR MAX25431 |
1,965 | 144.29 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 6V ~ 36V | Buck-Boost | 420kHz | Board(s) | MAX25431 |
|

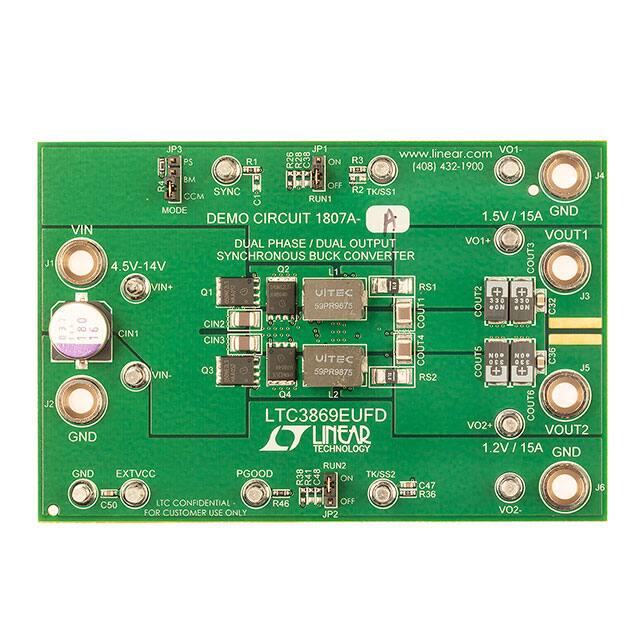

DC1807A-AEVAL BOARD FOR LTC3869 |
4,886 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3869 |
|
EVAL-LT8333-BZEVAL BOARD FOR LT8333 |
4,316 | 160.50 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 24V | 2A | 4.5V ~ 20V | Boost, SEPIC | 2MHz | Board(s) | LT8333 |
|
DC524AEVAL BOARD FOR LTC3704 |
2,687 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5.2V | 2.5A | 5V ~ 15V | Inverting | 300kHz | Board(s) | LTC3704 |
|
|
ISL68200DEMO1ZEVAL BOARD FOR ISL68200 |
3,487 | 166.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 4.75V ~ 14.5V | Buck | 400kHz | Board(s) | ISL68200 |
|
|
DC2784B-AEVAL BOARD FOR LTM4700 |
4,374 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 200A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4700 |
|

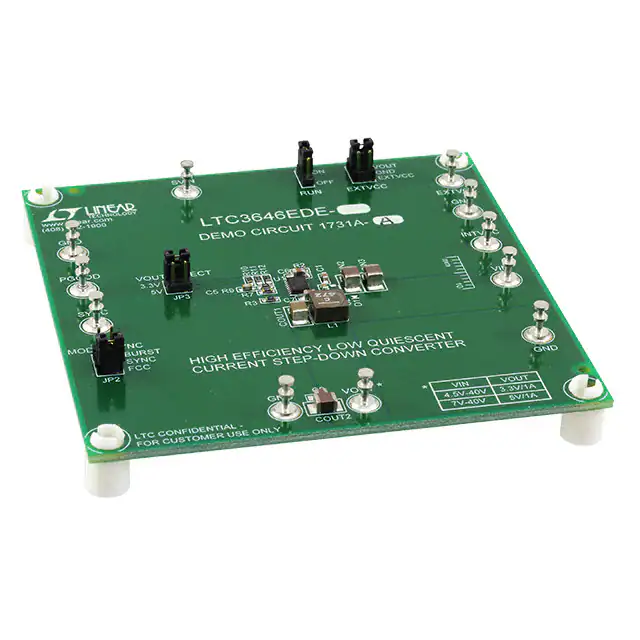

DC1731A-AEVAL BOARD FOR LTC3646 |
2,411 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 4V ~ 40V | Buck | 1.5MHz | Board(s) | LTC3646 |
|

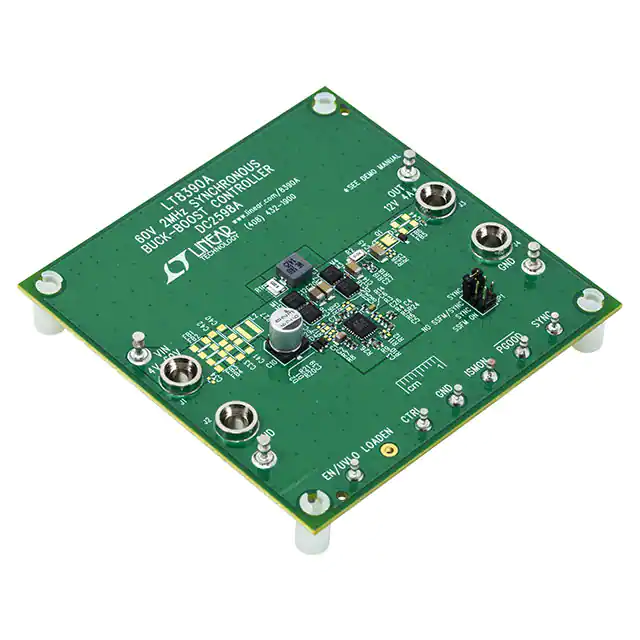

DC2598AEVAL BOARD FOR LT8390A |
1,933 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 4A | 4V ~ 24V | Buck-Boost | 2MHz | Board(s) | LT8390A |
|
ISL95338EVAL1ZEVAL BOARD FOR ISL95338 |
2,921 | 179.69 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.4V ~ 20V | - | 3.8V ~ 24V | Buck-Boost | - | Board(s) | ISL95338 |
|

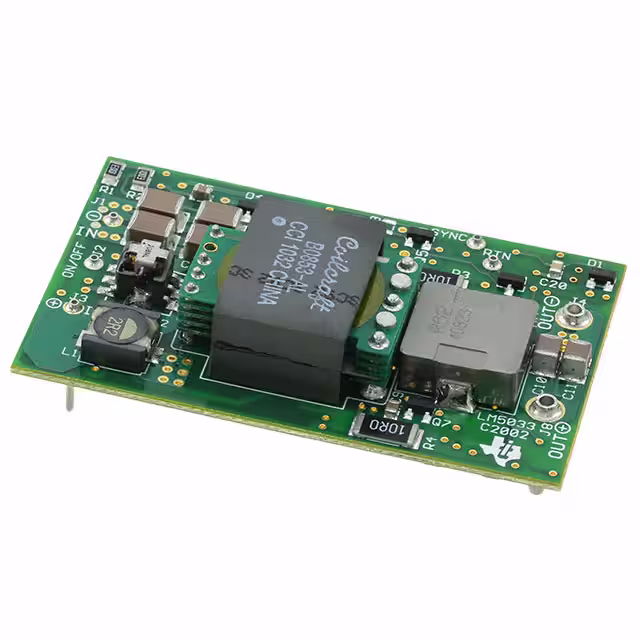

LM5033SD-EVALEVAL BOARD FOR LM5033 |
1,434 | 178.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 9V | 20A | 40V ~ 60V | Buck | 315kHz | Board(s) | LM5033 |
|
LM25119EVAL/NOPBEVAL BOARD FOR LM25119 |
4,372 | 178.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 16A | 6V ~ 36V | Buck | 230kHz | Board(s) | LM25119 |
|

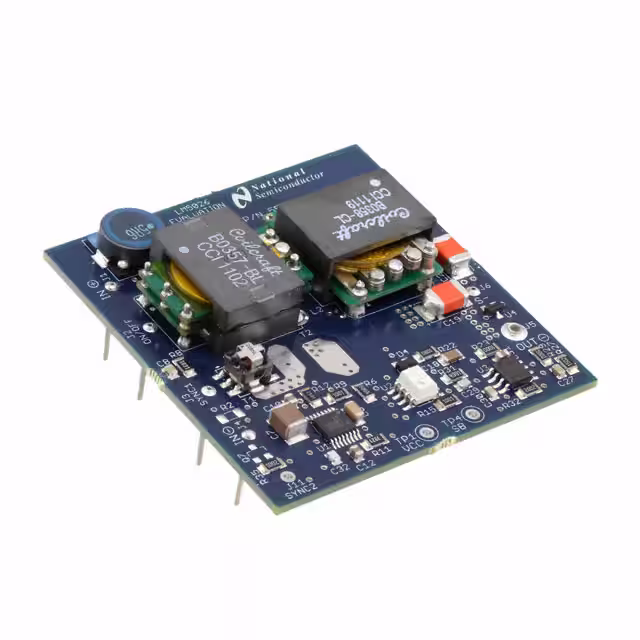

LM5026EVAL/NOPBEVAL BOARD FOR LM5026 |
4,557 | 178.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 78V | Buck | 230kHz | Board(s) | LM5026 |
|

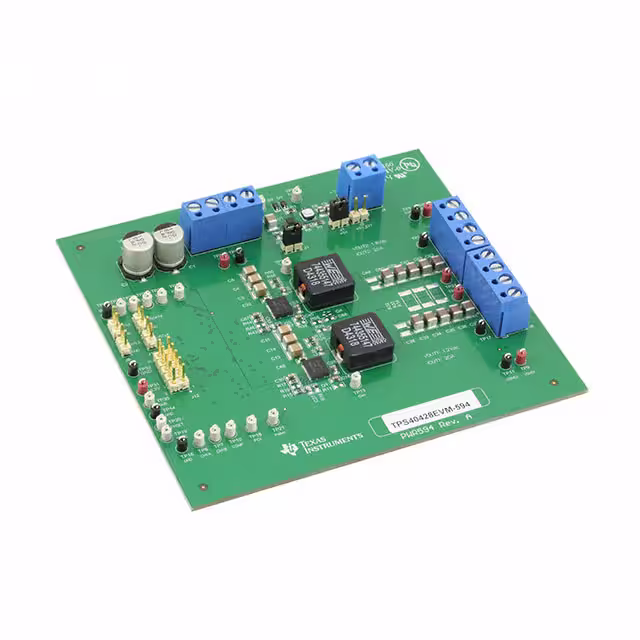

TPS40428EVM-594EVAL BOARD FOR TPS40428 |
4,668 | 178.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 20A, 20A | 7V ~ 14V | Buck | 500kHz | Board(s) | TPS40428 |
|

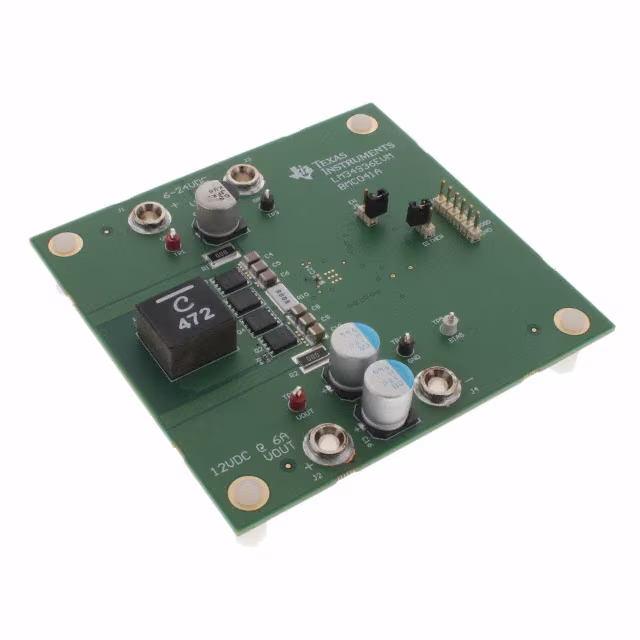

LM34936EVMEVAL BOARD FOR LM34936 |
4,669 | 178.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 6A | 6V ~ 24V | Buck-Boost | 300kHz | Board(s) | LM34936 |
|

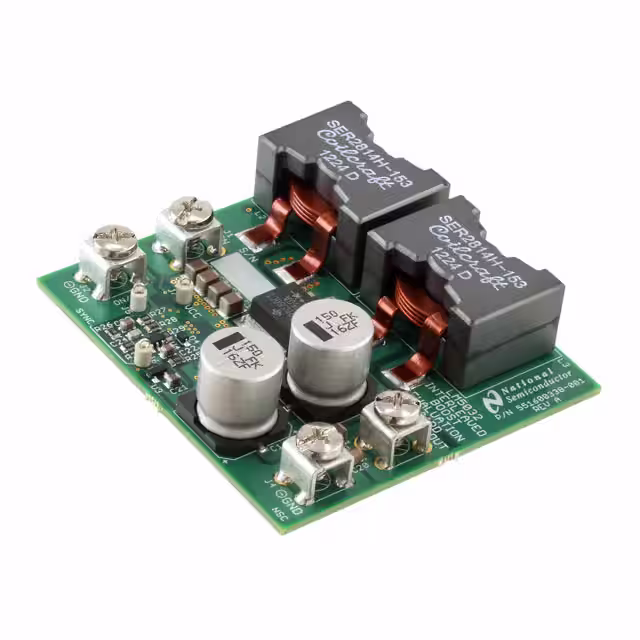

LM5032EVAL/NOPBEVAL BOARD FOR LM5032 |
2,948 | 178.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 4A | 18V ~ 45V | Boost | - | Board(s) | LM5032 |
