DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

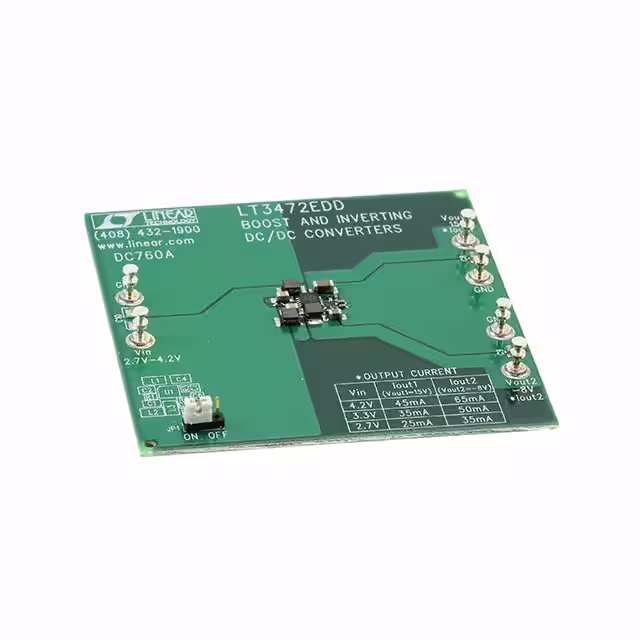

DC760AEVAL BOARD FOR LT3472 |
4,715 | 117.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 15V, -8V | 65mA, 45mA | 2.7V ~ 4.2V | Boost, Inverting | 1.1MHz | Board(s) | LT3472 |
|

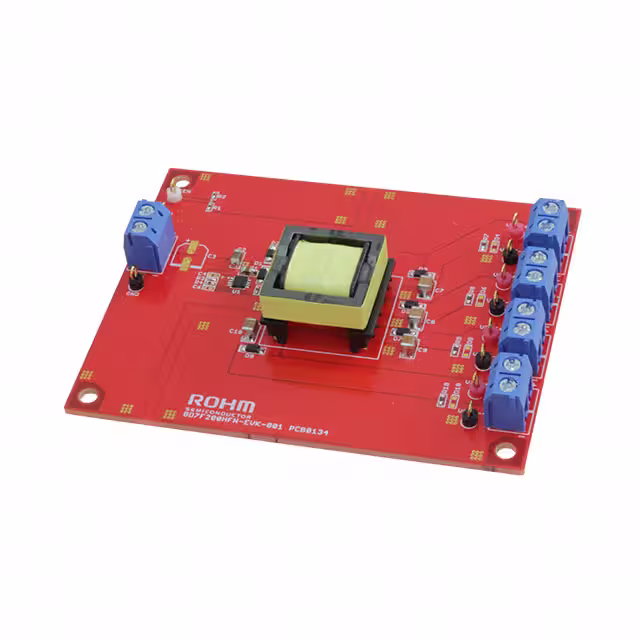

BD7F200HFN-EVK-001EVAL BOARD FOR BD7F200 |
1,108 | 131.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Isolated Outputs | - | 15V, 15V, 15V, 15V | 150mA, 150mA, 150mA, 150mA | 24V | Flyback | 400kHz | Board(s) | BD7F200 |
|

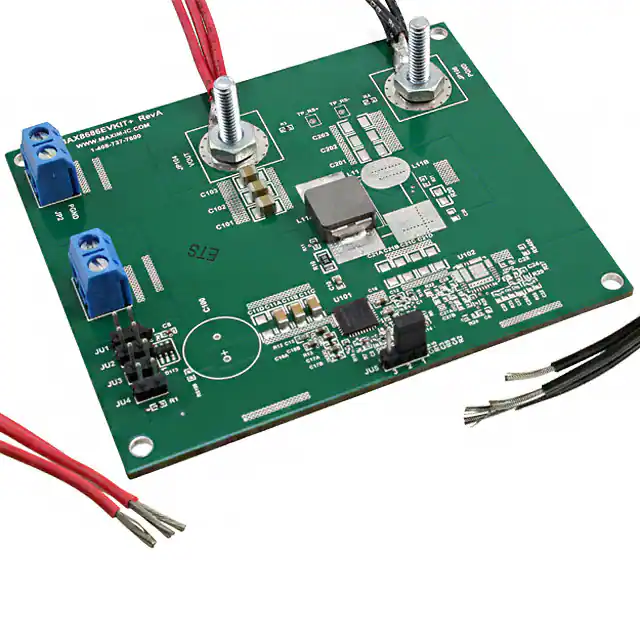

MAX8686EVKIT#EVAL BOARD FOR MAX8686 |
2,522 | 134.66 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V ~ 5.5V | 25A | 4.5V ~ 20V | Buck | 300kHz ~ 1MHz | Board(s) | MAX8686 |
|

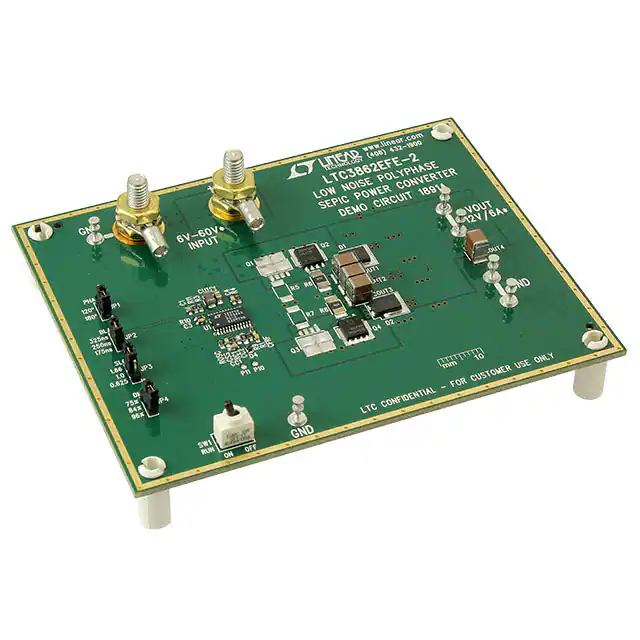

DC1891AEVAL BOARD FOR LTC38622 |
4,283 | 141.24 |
|
Datasheet |
PolyPhase® | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 6A | 6V ~ 60V | Boost | 300kHz | Board(s) | LTC3862-2 |
|
DC1231A-AEVAL BOARD FOR LTC3850 |
4,852 | 141.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 5A, 5A | 6.5V ~ 24V | Buck | 400kHz | Board(s) | LTC3850 |
|
DC1801A-BEVAL BOARD FOR LTC3838 |
2,411 | 144.45 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 20A, 20A | 4.5V ~ 14V | Buck | 300kHz | Board(s) | LTC3838 |
|
DC1467AEVAL BOARD FOR LTC3614 |
4,500 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.8V, 2.5V or 3.3V | 4A | 2.25V ~ 5.5V | Buck | 4MHz | Board(s) | LTC3614 |
|
DC725AEVAL BOARD FOR LTC3415 |
2,268 | 147.12 |
|
Datasheet |
PolyPhase® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V or 1.8V | 7A | 2.375V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3415 |
|

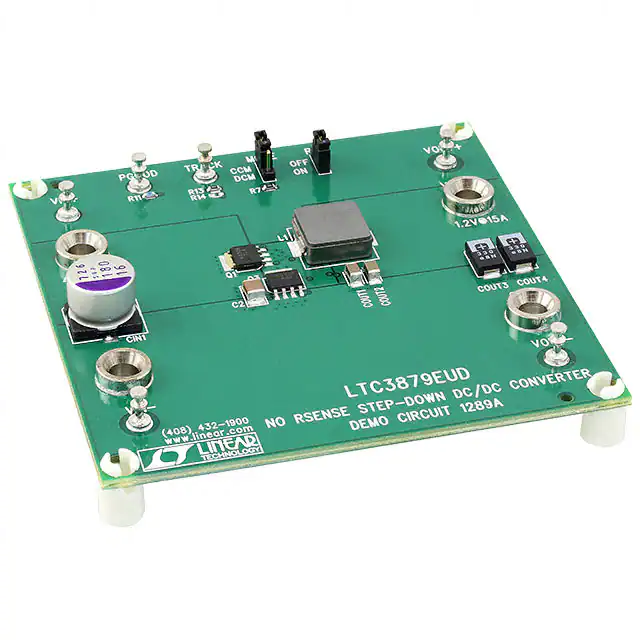

DC1289AEVAL BOARD FOR LTC3879 |
4,839 | 147.12 |
|
Datasheet |
No RSENSE™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 15A | 4.5V ~ 14V | Buck | 430kHz | Board(s) | LTC3879 |
|
DC385AEVAL BOARD FOR LTC1778 |
4,393 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 6A | 5V ~ 25V | Buck | 200kHz | Board(s) | LTC1778 |
|

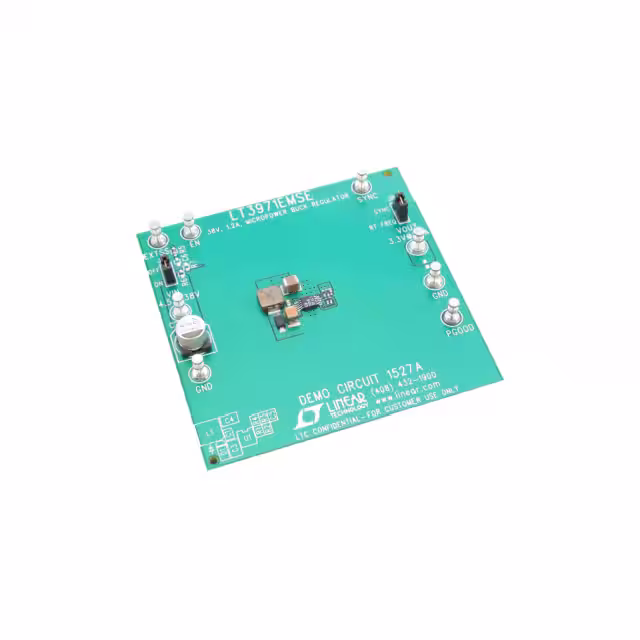

DC1527AEVAL BOARD FOR LT3971 |
2,448 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 4.5V ~ 38V | Buck | 800kHz | Board(s) | LT3971 |
|
MAX15059EVKIT+EVAL BOARD FOR MAX15059 |
2,061 | 140.49 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 70V | 4mA | 2.8V ~ 5.5V | Boost | 400kHz | Board(s) | MAX15059 |
|
DC3092AEVAL BOARD FOR LTC3312SA |
1,961 | 173.94 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 12A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3312SA |
|

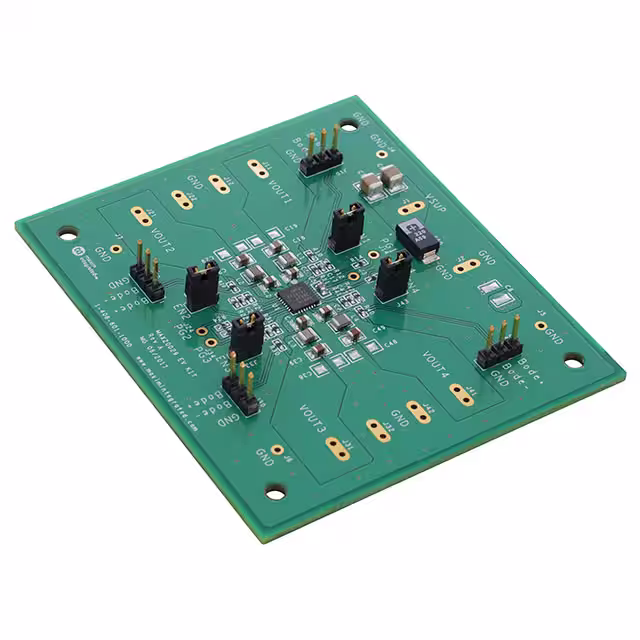

MAX20029EVKIT#EVAL BOARD FOR MAX20029 |
4,706 | 145.39 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V ~ 4V | 1.5A, 1.5A, 1.5A, 1.5A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20029 |
|
ISL78083DEMO1ZEVAL BOARD FOR ISL78083 |
4,383 | 188.71 |
|
- |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 3.8V | 800mA, 600mA, 300mA, 300mA | 4V ~ 42V | Buck | 2.2MHz | Board(s) | ISL78083 |
|

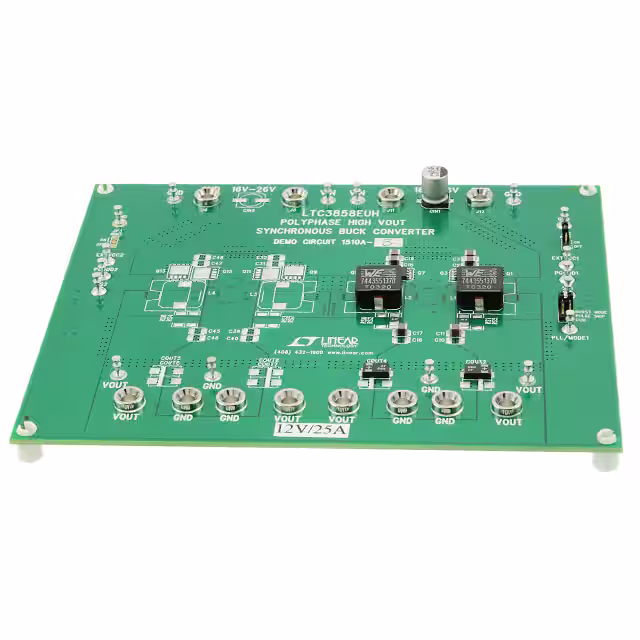

DC1510A-BEVAL BOARD FOR LTC3858 |
2,621 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 25A | 16V ~ 26V | Buck | 250kHz | Board(s) | LTC3858 |
|

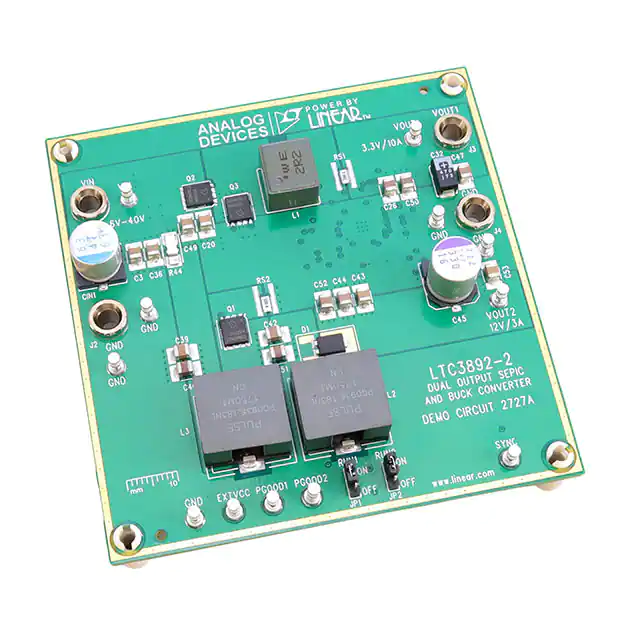

DC2727AEVAL BOARD FOR LTC38922 |
2,796 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 12V | 10A, 3A | 6V ~ 40V | Buck-Boost, SEPIC | 250kHz | Board(s) | LTC3892-2 |
|
NCP1654PFCGEVBEVAL BOARD FOR NCP1654 |
3,834 | 175.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Secondary Side | 1 Non-Isolated Output | - | 378V ~ 401V | - | 85 ~ 230 VAC, 15V | Boost | 65kHz | Board(s) | NCP1654 |
|
DC457BEVAL BOARD FOR LTC3727A1 |
2,225 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 3.3V, 5V, 7.5V, 12V | 4A, 3A, 50mA, 25mA | 12.5V ~ 25V | Buck | 530kHz | Board(s) | LTC3727A-1 |
|

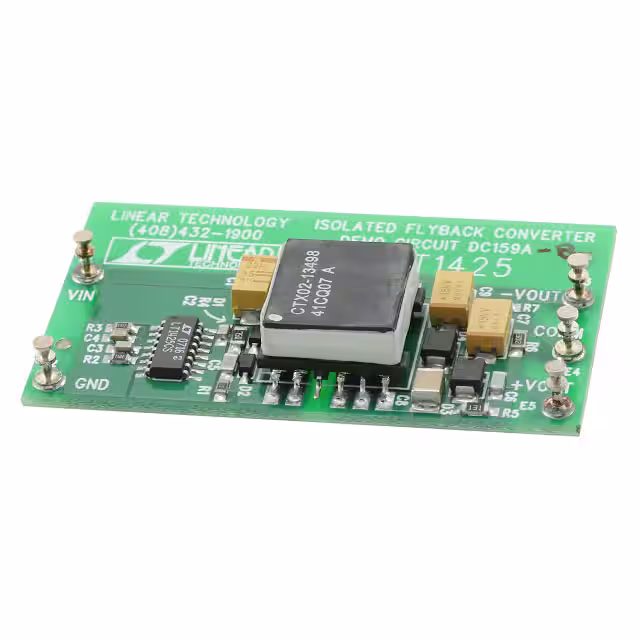

DC159A-BEVAL BOARD FOR LT1425 |
2,260 | 153.81 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 2 Isolated Outputs | - | ±15V | - | 5V ~ 15V | Flyback | - | Board(s) | LT1425 |
