DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

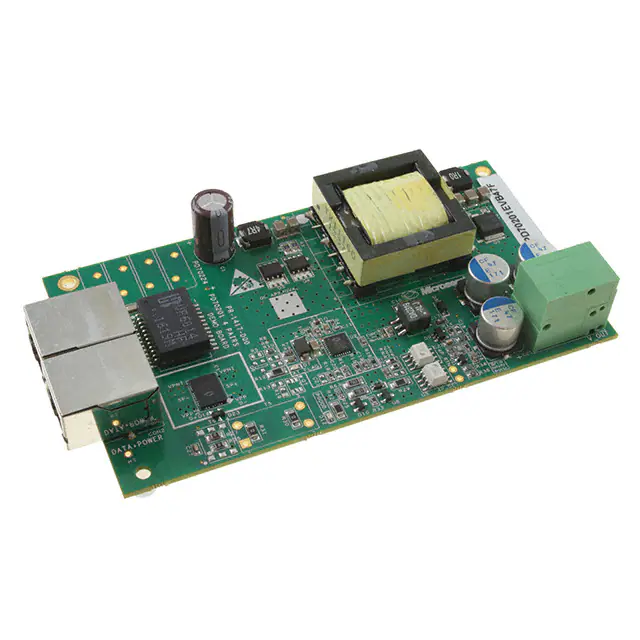

PD70201EVB47FEVAL BOARD FOR PD70201 |
4,679 | 350.62 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 47 W | 12V | 4A | 44V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|
DC2784A-CEVAL BOARD FOR LTM4700 |
3,639 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 400A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4700 |
|
DC2784B-CEVAL BOARD FOR LTM4700 |
1,604 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 400A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4700 |
|

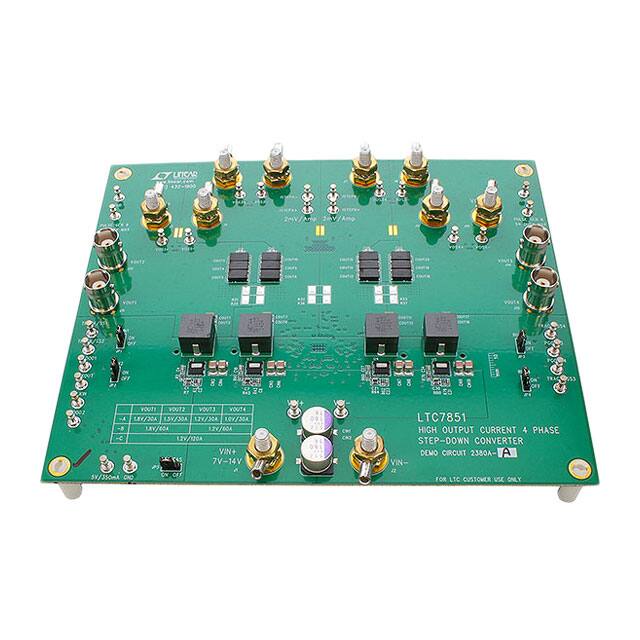

DC2380A-CEVAL BOARD FOR LTC7851 |
4,984 | 369.79 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 120A | 7V ~ 14V | Buck | 400kHz | Board(s) | LTC7851 |
|
VTD48EF120T025A00EVAL BOARD FOR VTM48EX120Y025A00 |
3,528 | 328.78 |
|
Datasheet |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 12V | 25A | 26V ~ 55V | Buck | 1.95MHz | Board(s) | VTM48Ex120y025A00 |
|

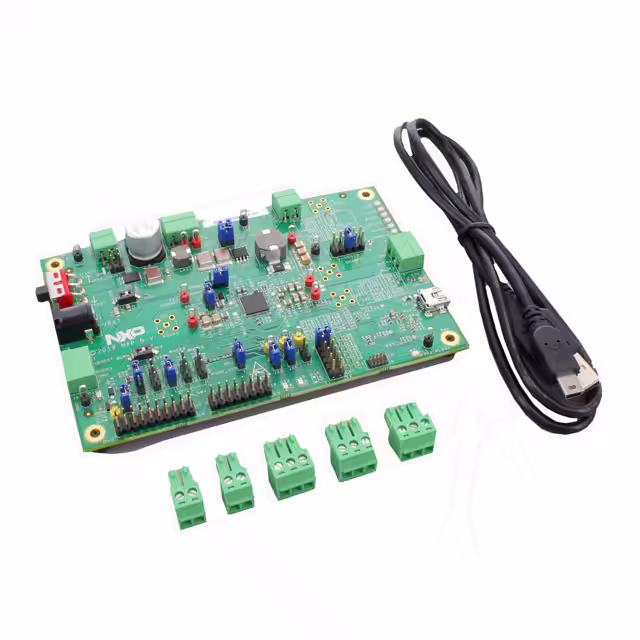

KITVR5500AEEVMKITVR5500AEEVM |
3,107 | 359.86 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck-Boost | - | Board(s) | - |
|
|
NCP13992AIOGEVBEVAL BOARD FOR NCP431 NCP1616 |
1,725 | 420.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 240 W | 12V | 20A | 95 ~ 265 VAC | Flyback | - | Board(s) | NCP431, NCP1616, NCP4306, NCP13992 |
|
|
EV66F86AEVAL BOARD FOR MIC2132 |
3,582 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 40A | 9.6V ~ 14.4V | Buck | - | Board(s) | MIC2132 |
|
VTD48EF015T115A00EVAL BOARD FOR VTM48EF015T115A |
3,591 | 550.77 |
|
Datasheet |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 0.81V ~ 1.71V | 115A | 26V ~ 55V | Buck | 1.4MHz | Board(s) | VTM48EF015T115A |
|

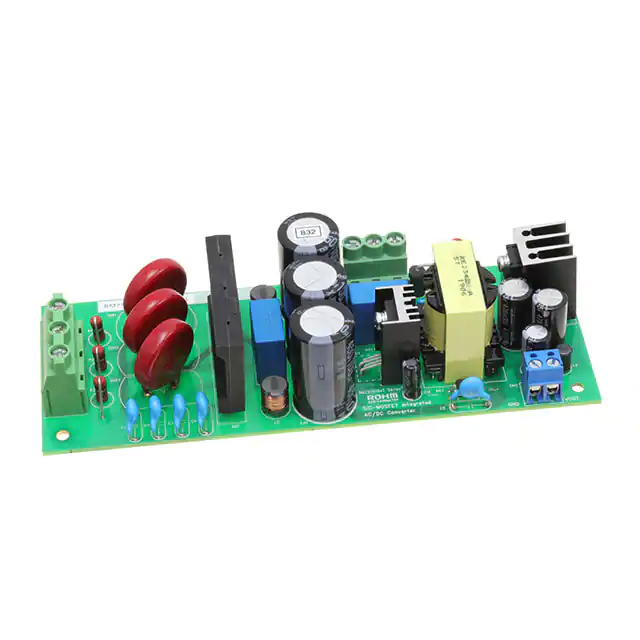

BM2SCQ123T-EVK-001EVAL BOARD FOR BM2SCQ123 |
2,208 | 628.80 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 48 W | 24V | 2A | 210 ~ 480VAC, 300V ~ 900V | Flyback | - | Board(s) | BM2SCQ123 |
|
PRD48BF480T500A00EVAL BOARD FOR PRM48BY480X500A00 |
1,040 | 574.66 |
|
Datasheet |
VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 500 W | 48V | 10.42A | 38V ~ 55V | Buck-Boost | 1.03MHz | Board(s) | PRM48By480x500A00 |
|
DCM2322E72S0650T60EVAL BOARD DCM2322X72S0650Y6Z |
3,269 | 656.41 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 50 W | 5V | 10A | 14V ~ 72V | - | - | Board(s) | DCM2322x72S0650y6z |
|
|
DCM2322E50T1360T60EVAL BOARD DCM2322X50T1360Y6Z |
3,027 | 657.10 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 60 W | 12V | 5A | 9V ~ 50V | - | - | Board(s) | DCM2322x50T1360y6z |
|
|
DCM2322E50T2660T60EVAL BOARD DCM2322X50T2660Y6Z |
3,015 | 659.41 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 60 W | 24V | 2.5A | 9V ~ 50V | - | - | Board(s) | DCM2322x50T2660y6z |
|
|
DCM2322EA5N31A2T60EVAL BOARD DCM2322XA5N31A2Y6Z |
4,994 | 659.73 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 120 W | 28V | 4.3A | 43V ~ 154V | - | - | Board(s) | DCM2322xA5N31A2y6z |
|
|
DCM2322E50T3160T60EVAL BOARD DCM2322X50T3160Y6Z |
2,926 | 660.22 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 60 W | 28V | 2.2A | 9V ~ 50V | - | - | Board(s) | DCM2322x50T3160y6z |
|
|
DCM2322EA5N0660T60EVAL BOARD DCM2322XA5N0660Y6Z |
2,650 | 662.42 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 60 W | 5V | 12A | 43V ~ 154V | - | - | Board(s) | DCM2322xA5N0660y6z |
|
|
DCM2322E72S53A0T60EVAL BOARD DCM2322X72S53A0Y6Z |
4,719 | 662.67 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 100 W | 48V | 2.1A | 14V ~ 72V | - | - | Board(s) | DCM2322x72S53A0y6z |
|
|
DCM2322E72S17A0T60EVAL BOARD DCM2322X72S17A0Y6Z |
4,791 | 674.40 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 100 W | 15V | 6.7A | 14V ~ 72V | - | - | Board(s) | DCM2322x72S17A0y6z |
|
|
DCM2322E72S26A0T60EVAL BOARD DCM2322X72S26A0Y6Z |
3,472 | 678.87 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 100 W | 24V | 4.2A | 14V ~ 72V | - | - | Board(s) | DCM2322x72S26A0y6z |
